Isuzu Rodeo Brake Line Set 2003 3.2L BL-1125-SS2F Stainless Steel

w/ABS

Isuzu Rodeo Brake Line Set 2003 3.2L BL-1125-SS2F Stainless Steel
Isuzu Rodeo Brake Line Set 2003 3.2L BL-1125-SS2F Stainless Steel
Isuzu Rodeo Brake Line Set 2003 3.2L BL-1125-SS2F Stainless Steel

Isuzu Rodeo Brake Line Set 2003 3.2L BL-1125-SS2F Stainless Steel

w/ABS

MSRP: from
SALE: from
Save $65
from /
Stainless steel

Delivery Time & Rates

Zip/Postal Code:
SKU: BL-1125-SS2F
  • Weight: 7

Install this pre bent 2003 Isuzu Rodeo brake line set in no time!

Brake Line Set Stainless Steel Isuzu Rodeo w/ABS for 3.2L engines.

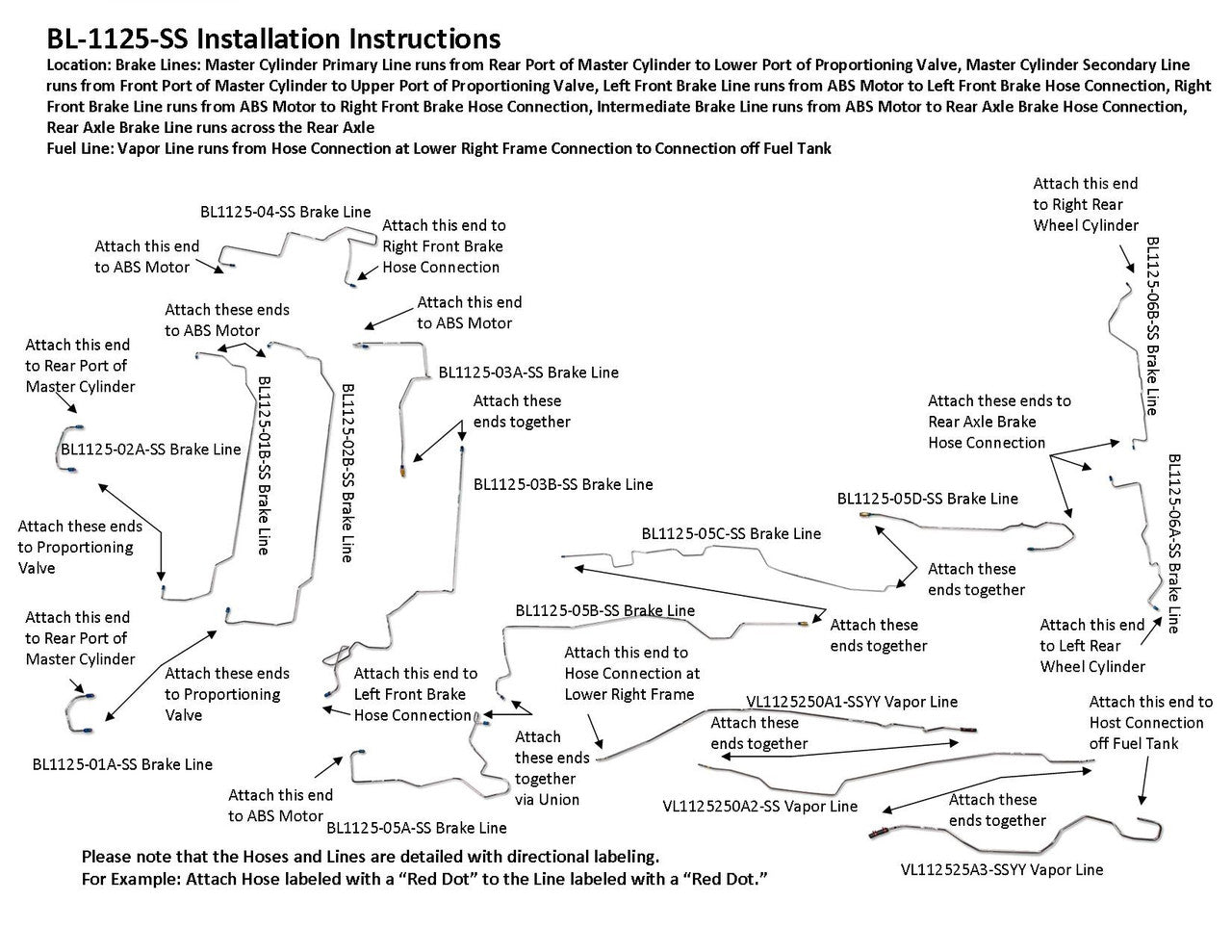

Location: Brake Lines: Master Cylinder Primary Line runs from Rear Port of Master Cylinder to Lower Port of Proportioning Valve, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to Upper Port of Proportioning Valve, Left Front Brake Line runs from ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from ABS Motor to Right Front Brake Hose Connection, Intermediate Brake Line runs from ABS Motor to Rear Axle Brake Hose Connection, Rear Axle Brake Line runs across the Rear Axle

Fuel Line: Vapor Line runs from Hose Connection at Lower Right Frame Connection to Connection off Fuel Tank

Please Note: Before installing your brake line, a shipping bend will need to be removed from the line labeled BL1125-05C-SS. See the video below on how to remove the shipping bend.

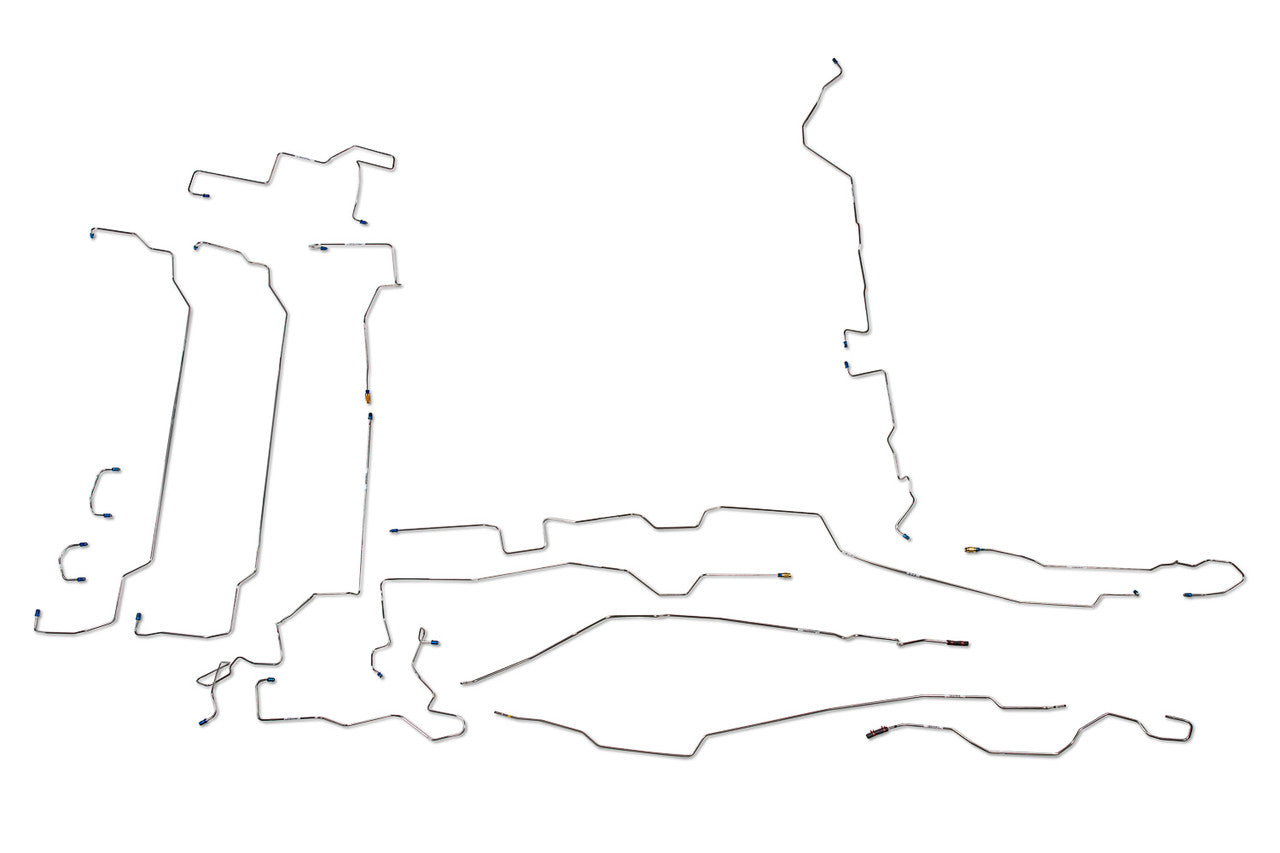

Included in Set: 1 Master Cylinder Primary Brake Line 3/16", 1 Master Cylinder Secondary Brake Line 3/16", 1 Left Front Brake Line 3/16" (in 2 easy to install sections), 1 Right Front Brake Line 3/16", 1 Intermediate Brake Line 3/16" (in 4 easy to install sections), 1 Rear Axle Brake Line 3/16" (2 sections), 1 Vapor Line 1/4" (in 3 easy to install sections), Does NOT include Brake Hoses

Tube Construction: Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Warranty: 1 Year

Box Dimensions: 58" x 12" x 7"
