SALE:
Save $53.24
/

Delivery Time & Rates

Shipping calculated at checkout.

Delivery Time & Rates

Shop LinesToGo for your 1998 Honda Civic fuel lines. The FL1110-1C set of fuel lines are crafted for 2 Door, 3 Door and 4 Door models with 4 Cyl

Please Note: Before installing your fuel lines, a shipping bend will need to be removed from the lines labeled SL1110313A2, RL1110250A2, VL1110250A2. See the video below on how to remove the shipping bend

SKU: FL1110-1C
Box Dimensions 39" x 11" x 7"

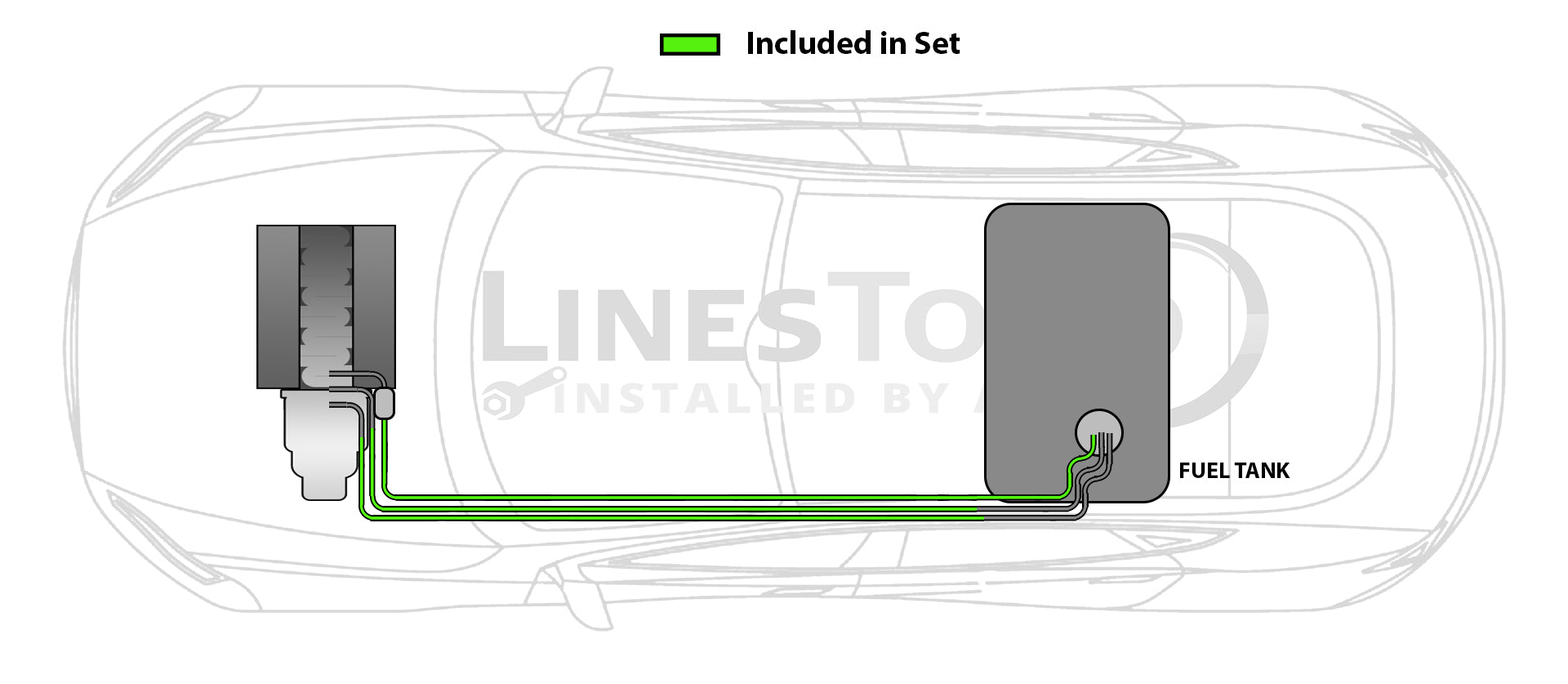

Hose Connection at Engine to Hose Connection off Fuel Tank

1 supply line 5/16" (in 2 easy to install sections), 1 return line 1/4" (in 2 easy to install sections), 1 vapor line 1/4" (in 2 easy to install sections), hose to tank connection, 1 union

17700-S04-930, 17740-S04-931, 17720-S04-930

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

All hoses are made from Stainless Steel Braided Teflon with OE style fittings: SA320QAS

Hose meets or exceeds applicable SAE Specifications – SAE J30R7: FI-505250

Avoid Ordering The Wrong Part

1-855-781-5992 (Toll Free)

Complete The Job With

Sale
Honda Civic Front Brake Line Set 1998 BL-1124-SS1C Stainless Steel
Save $39.74
Sale
Quick Disconnect Tool, Steel 3/8" & 5/16" 5230-01
Save $3.12

Overall rating: 4.4 / 5 from 5 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["lines"].

Review highlights

Reviews

great

"great"

— John L. (5/5)

I have not installed the

"I have not installed the lines yet but shipping was fast and all the lines look great. I am really happy to find someone who sells everything pre bent and flared. Makes the job a lot less daunting."

— Amanda D. (5/5)

Had to cut couple of

"Had to cut couple of the lines to make them work."

— Juan R. (3/5)

Review written Sep 2021 2

"Review written Sep 2021 2 weeks after lines installed. These lines appear to be good quality and should last as long as the originals. As replacements, a design improvement was to have each line have a front and rear part that can be assembled once each front and rear part has been worked in to position. The installation is sufficiently tight on a 98 Civic CX that even having the lines in two parts is an installation challenge. Only the vapor line is easy to connect the two parts underneath. The connector location is not well placed on the other two lines, especially the supply line. Making the connections is extremely difficult in the engine compartment since these must be done in the feed through area where the body is connected to the suspension. If those connections could have been made 5 or 6 inches farther in to the engine compartment it would be much better. At the back end a new stainless clad fuel hose for the supply line and extra length on the vapor line definitely improved on the factory design. There are small differences between these new lines and the factory originals, in length particularly, that may make it impossible to use the factory clips for holding the new lines in the same way the originals were held. There were no instructions included for those of us with older technology. There was only a 2 dimensional barcode figure. I got my instructions on the internet. Some guidelines on how to deal with the pre-bent lines in tight spaces and the order of installation would have been really helpful. All the lines and parts are well labelled. I would buy from Linestogo again since they had the best price I could find and they gave good service."

— Norman C. (4/5)

Lines worked great! Count be

"Lines worked great! Count be more pleased!"

— Andrew B. (5/5)
