Shop LinesToGo for 2013 GMC Yukon XL fuel lines for 2500 models with 6.0L engines.

Location: Hose Connection off Engine to Hose Connection off Front Fuel Tank

OEM Part Number: 24100440, 15113488, 15884268

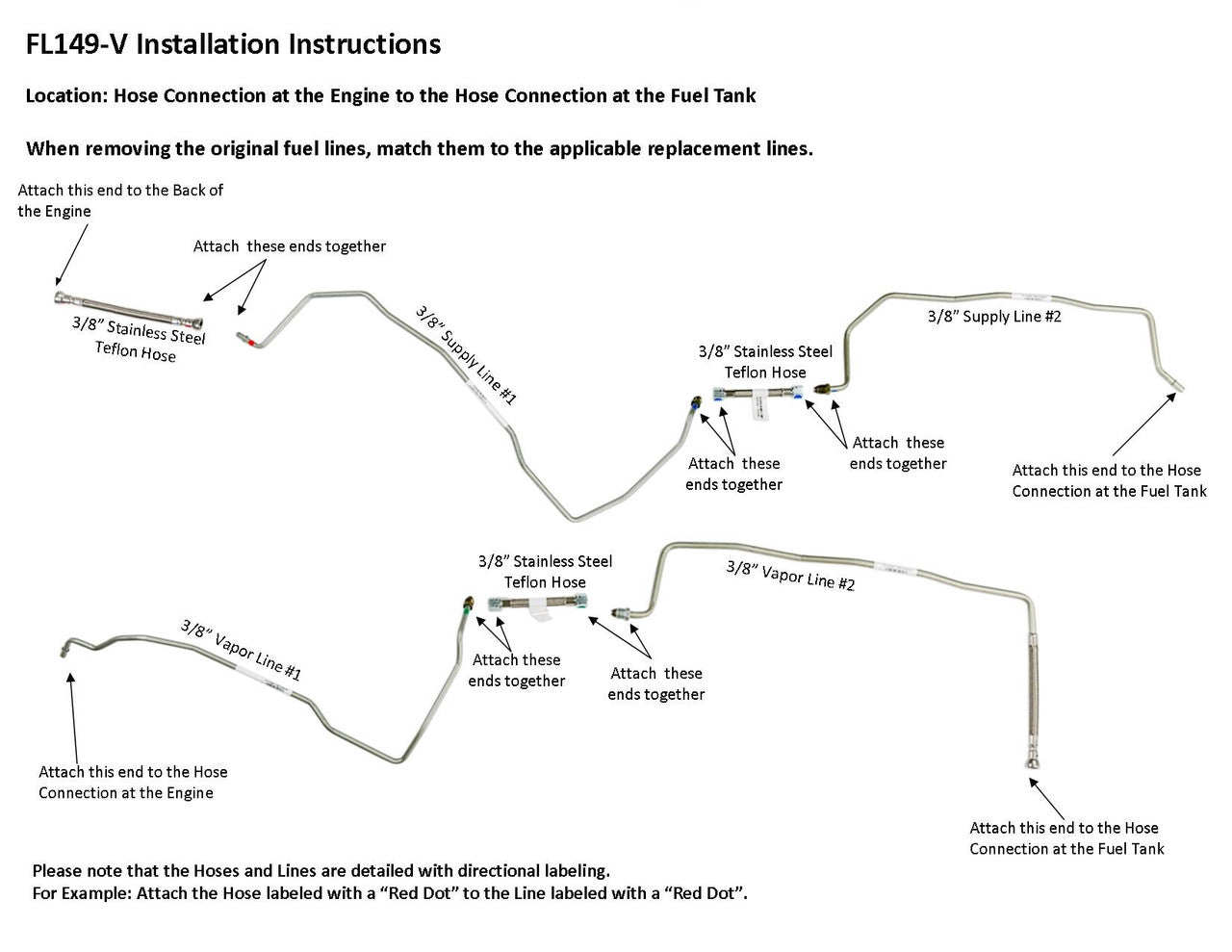

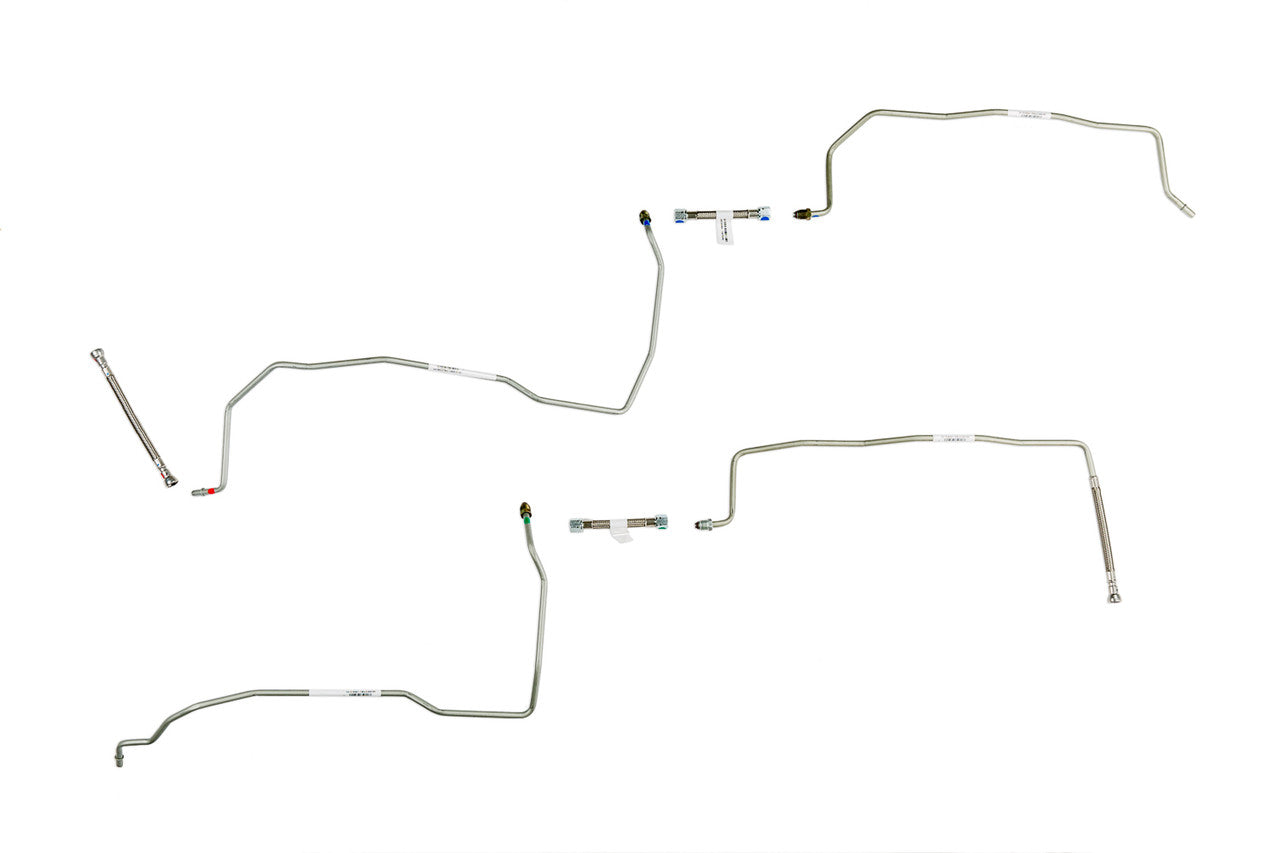

Included in Set: 1 supply line 3/8" ( in 2 easy to install sections), 1 vapor line 3/8" ( in 2 easy to install sections), hose to engine connection, hoses to join rear and front sections.

Notes: This vehicle has a front and rear fuel tank. One filler neck fills both fuel tanks.

Tube Construction: Lines are constructed from Galfan® coated  steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 39" x 11" x 7"
