SALE:
Save $57.24
/

Delivery Time & Rates

Shipping calculated at checkout.

Choose from 2002 Yukon XL 2500 brake lines to fit your GMC without a problem...

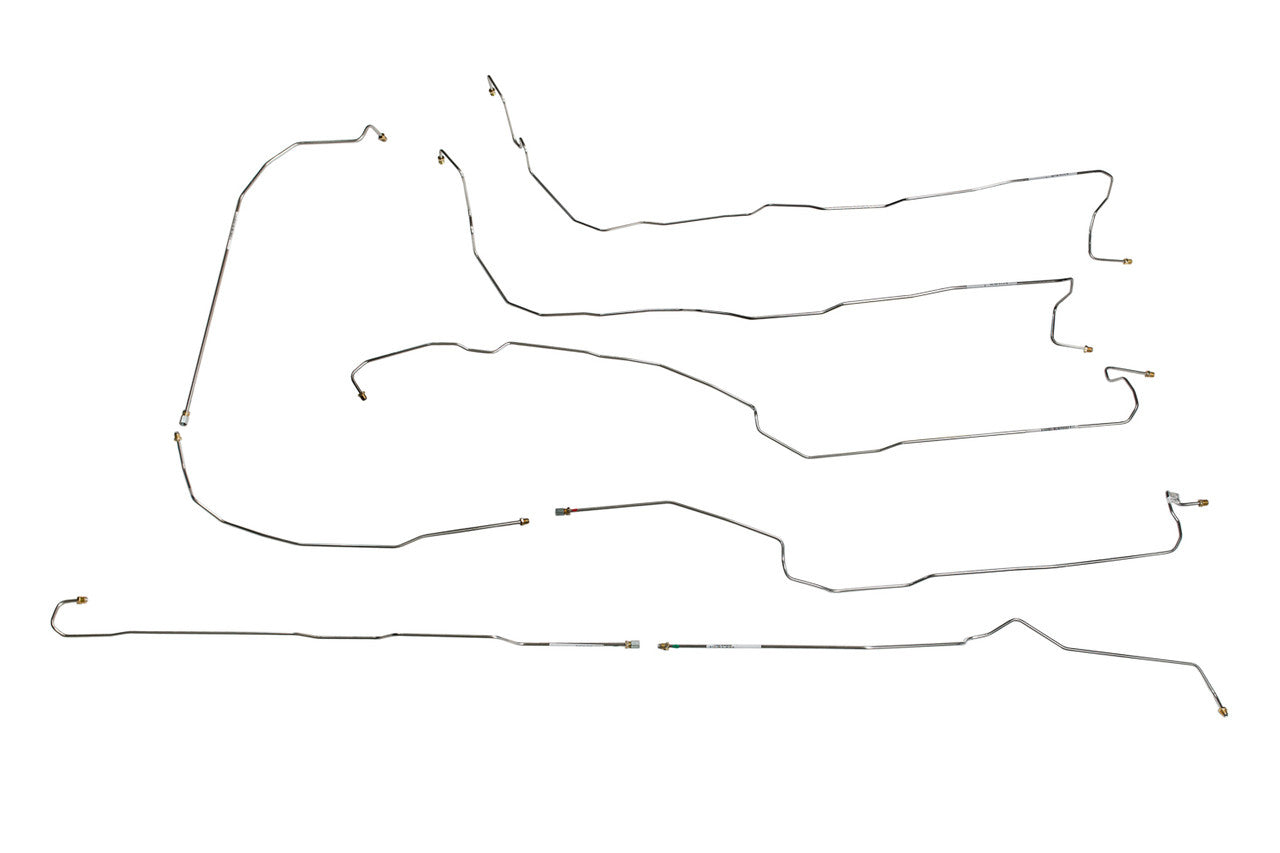

Stainless Steel Brake Line Set 2002 GMC Yukon XL 2500 Complete Set excluding Rear Axle Set and Hoses for 6.0L engines

Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC114-01-SS, BLC114-02-SS and BLC113-03-SS. See the video below on how to remove the shipping bend

SKU: BLC-137-SS3C
Box Dimensions 57" x 11" x 7"

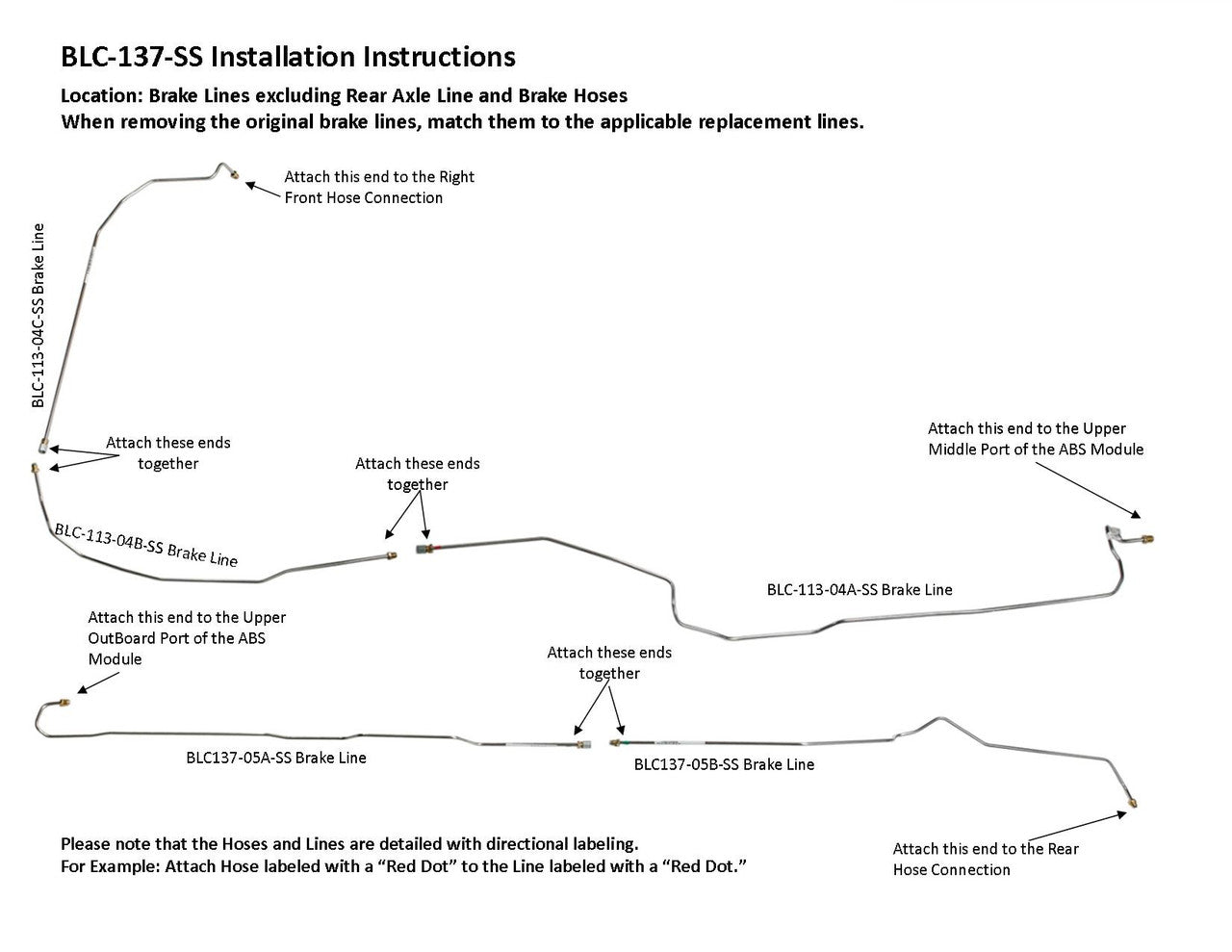

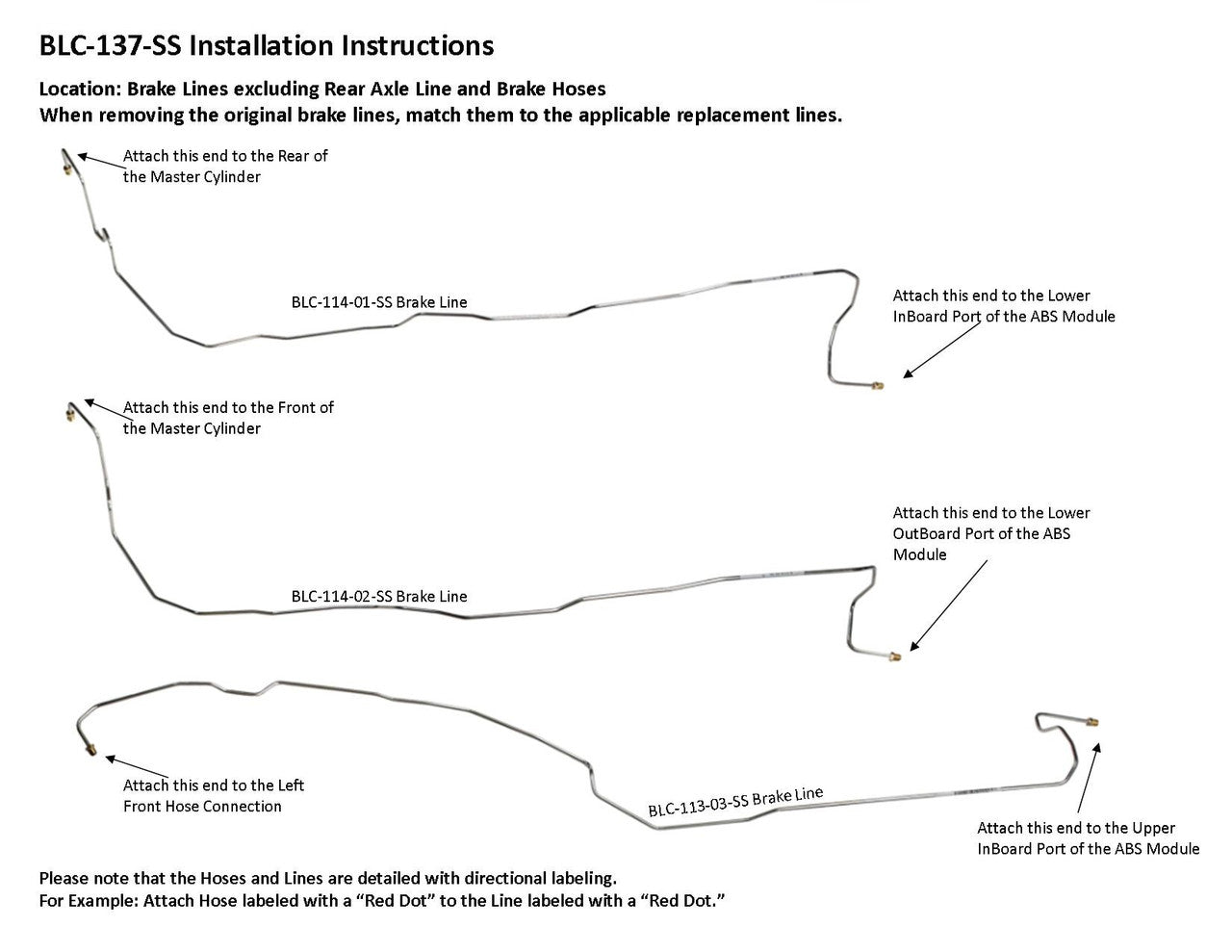

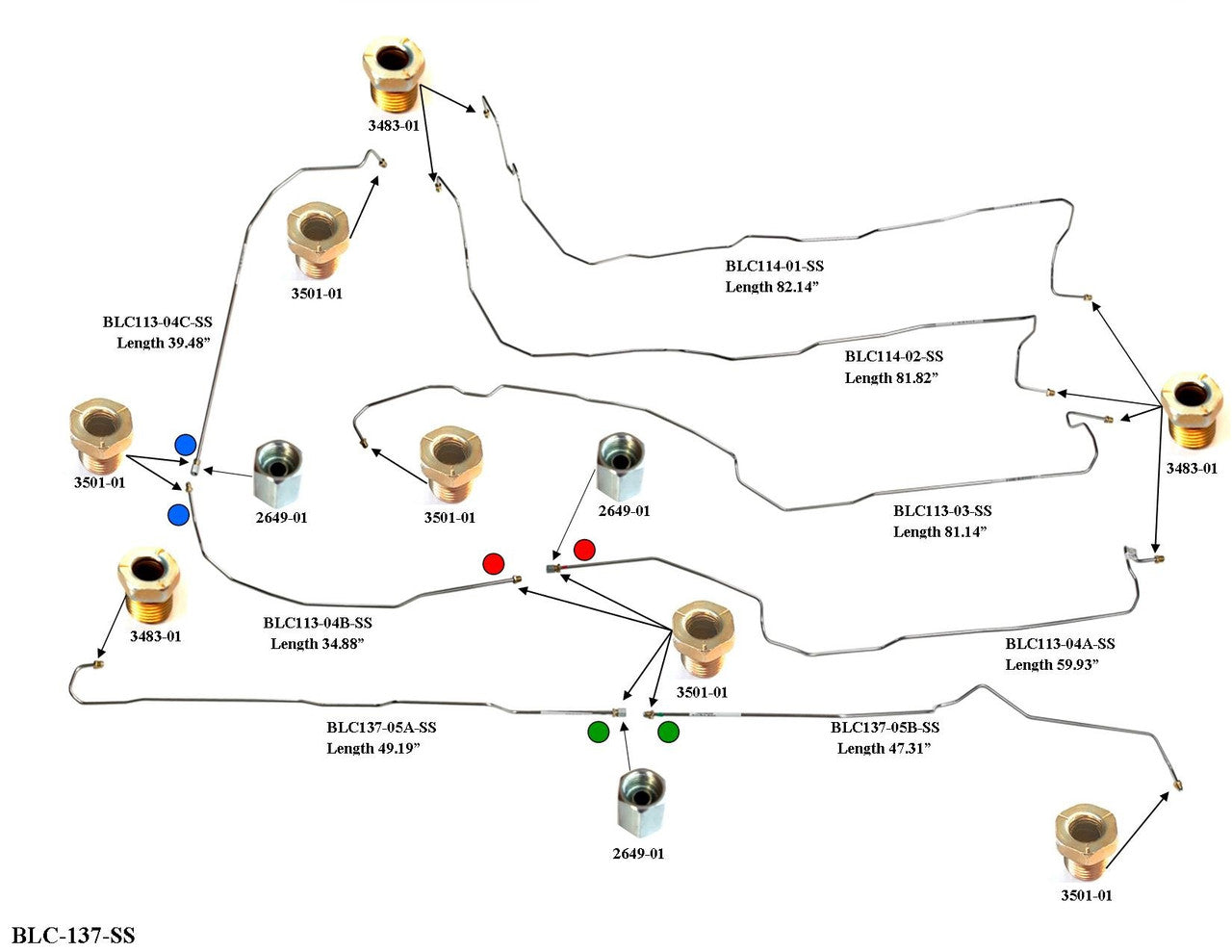

1 Master Cylinder Primary Line from Rear of Master Cylinder to Lower Inboard Port of ABS Module, 1 Master Cylinder Secondary Line from Front of Master Cylinder to Lower Outboard Port of ABS Module, Left Front Line from Hose Connection to Upper Inboard Port of ABS, Right Front Line from Hose Connection to Upper Middle Port of ABS (3 easy to install sections), Rear Line from Hose Connection to Upper Outboard Port of ABS Module (2 easy to install sections)



22933197

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.

Complete The Job With

Sale
GMC Yukon XL Fuel Line Set 2002 2500 Gas 6.0L SS149-R6A Stainless Steel
Save $121.50

Overall rating: 4.0 / 5 from 2 reviews.

AI Generated Review Summary

Summary topics

Review topics: [worked, lines].

Review highlights

Reviews

Update on Previous Post

"After getting my Yukon going with new LinesToGo fuel and brake lines, I will add that the brake lines are working well so far. Only issue I've had is that I've had to go back and tighten all joints and most connection points due to small leaks at the bleed out process. So far, all leaks have been stopped and none were major, but, I had to tighten the unions to the point I was afraid I was going to strip the threads out. So far, lines are working well. I would definitely recommend these lines and this company is AWESOME to deal with. Customer service is outstanding!!"

— Chad K. (4/5)

Fitment was very good for

"Fitment was very good for my vehicle. Very few problems with the install. Seems to be good quality product. No instructions in the box with the product. Would also be helpful if there was a diagram of the ABS module port layout for the specific model. Pretty bummed that there is no crossover lines for the rear going to the right rear side."

— Chad K. (4/5)
