GMC Yukon Brake Line Set 2006 1500 116" WB 5.3L BLC-142-SS3D Stainless Steel
w/Active Brake Control
GMC Yukon Brake Line Set 2006 1500 116" WB 5.3L BLC-142-SS3D Stainless Steel
w/Active Brake Control
Delivery Time & Rates
Choose from 2006 Yukon brake lines to fit your GMC without a problem...

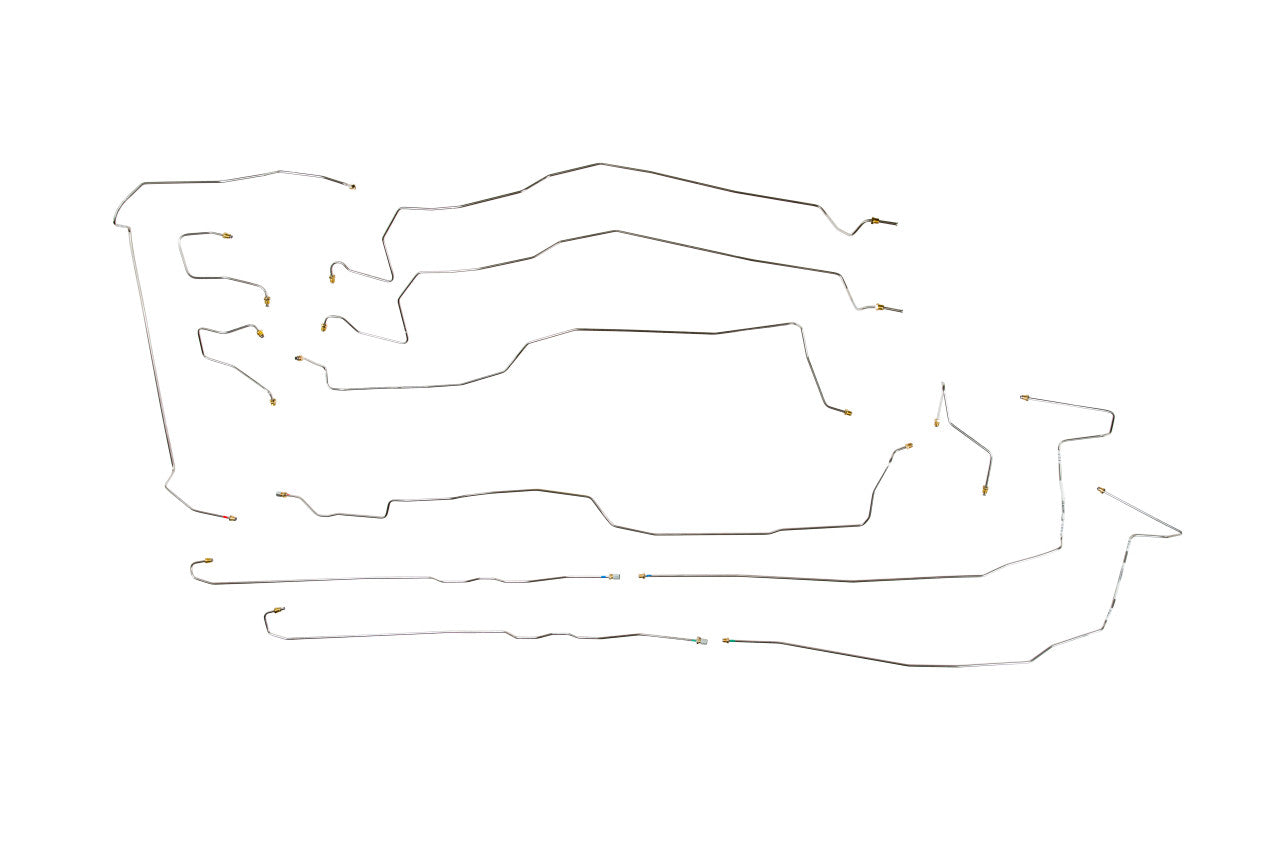

Stainless Steel Brake Line Set Yukon 2006 1500 w/Active Brake Control 116" WB for 5.3L engines

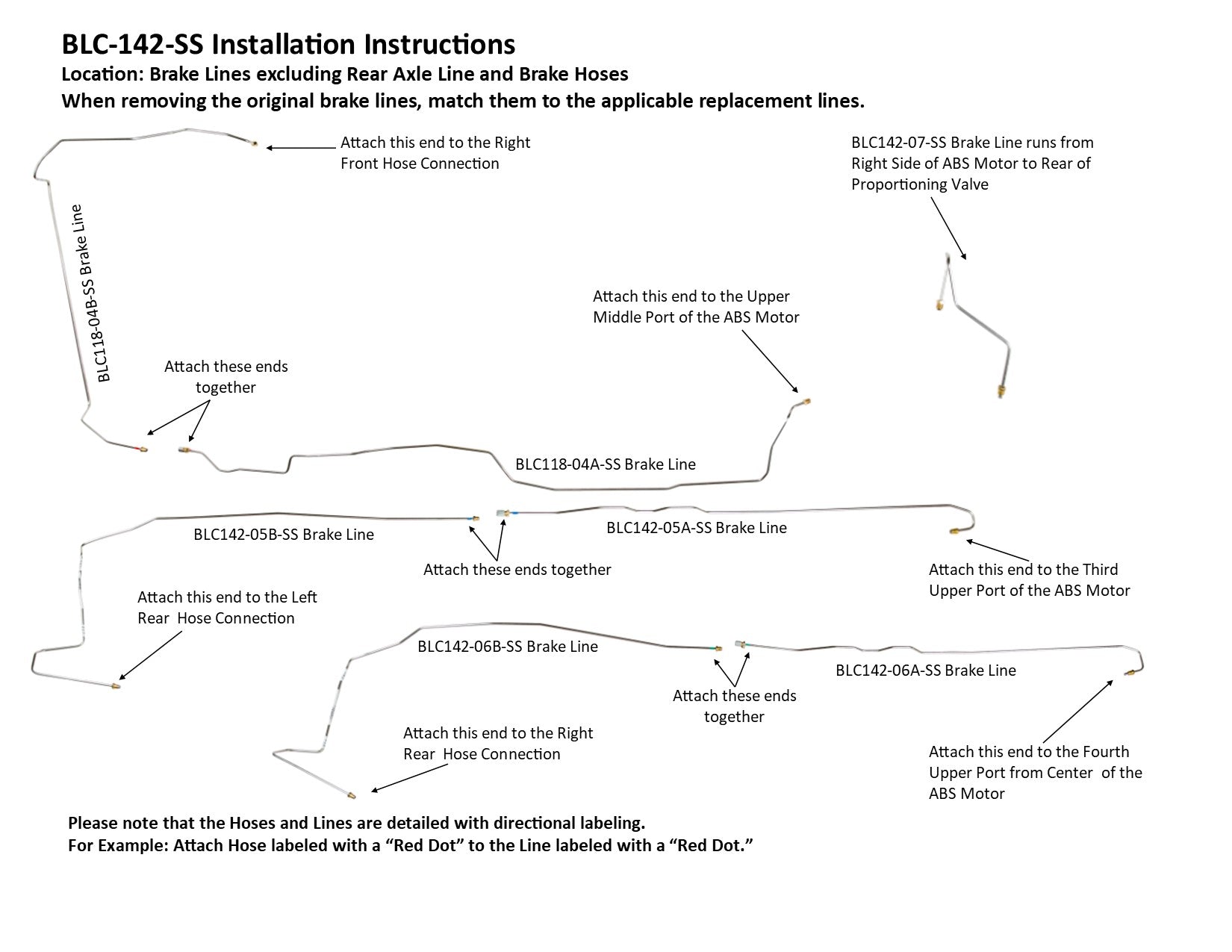

Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC118-04A-SS, BLC142-05B-SS and BLC142-06B-SS. See the video below on how to remove the shipping bend
Please Note: Before installing your brake line, a shipping twist will need to be removed from the line labeled BLC118-04B-SS. See the video below on how to remove the shipping twist

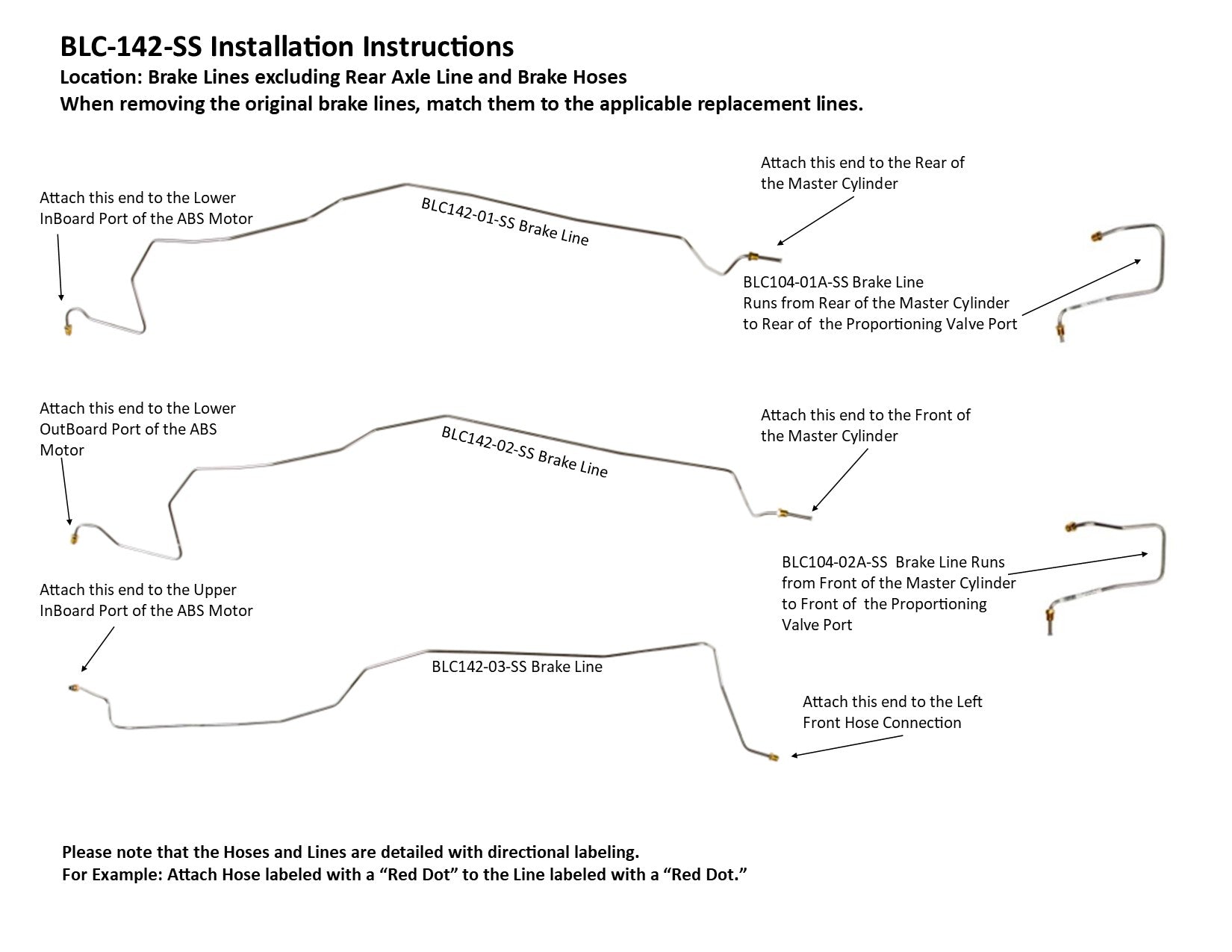

1 Master Cylinder Primary Line from Rear of Proportioning Vale to Lower InBoard Port of ABS Module, 1 Master Cylinder Primary Line from Rear of the Master Cylinder to Rear of the Portioning Valve, 1 Master Secondary Line from Front of Proportioning Valve to Lower Outboard of ABS Module, 1 Master Cylinder Secondary Line from Front of Master Cylinder to Front of Proportioning Valve, 1 Left Front Line from Left Front Hose Connection to Upper Outboard Port of ABS Module, 1 Right Front Line from Right Front Hose Connection to Second Upper Port in from Center of ABS Module (2 easy to install sections), 1 left Rear Line from Rear Hose Connection to Third Upper Port in from Center of ABS Module (2 easy to install sections), 1 Right Rear Line from Rear Hose Connection to Fourth Upper Port from Center of ABS Module (2 easy to install sections), 1 Line from Right Side of ABS Module to Rear of Proportioning Valve
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
