Name: GMC Truck Rear Fuel Line Set 1999 C Series 2WD Ext Cab 6.5ft Bed 5.0L FL146-D4B
Brand: Lines - To - Go
SKU: FL146-D4B
Price: 242.91 USD
Availability: InStock

Year Make & Model

GMC Truck Rear Fuel Line Set 1999 C Series 2WD Ext Cab 6.5ft Bed 5.0L FL146-D4B

Price

SALE:

Save $60.73

Delivery Time & Rates

Rear Fuel Line Set for 1999 GMC Truck C Series. FL146-D4B Rear Fuel Line Set for 1999 GMC Truck C Series with 2WD Ext Cab 6.5ft Bed 5.0L engines

Nylon Line Attached to Vapor Line: There is a small section of nylon line included which is attached to the vapor line. It is only a section of nylon that will splice to the original nylon line on the vehicle.

SKU: FL146-D4B

Weight: 4

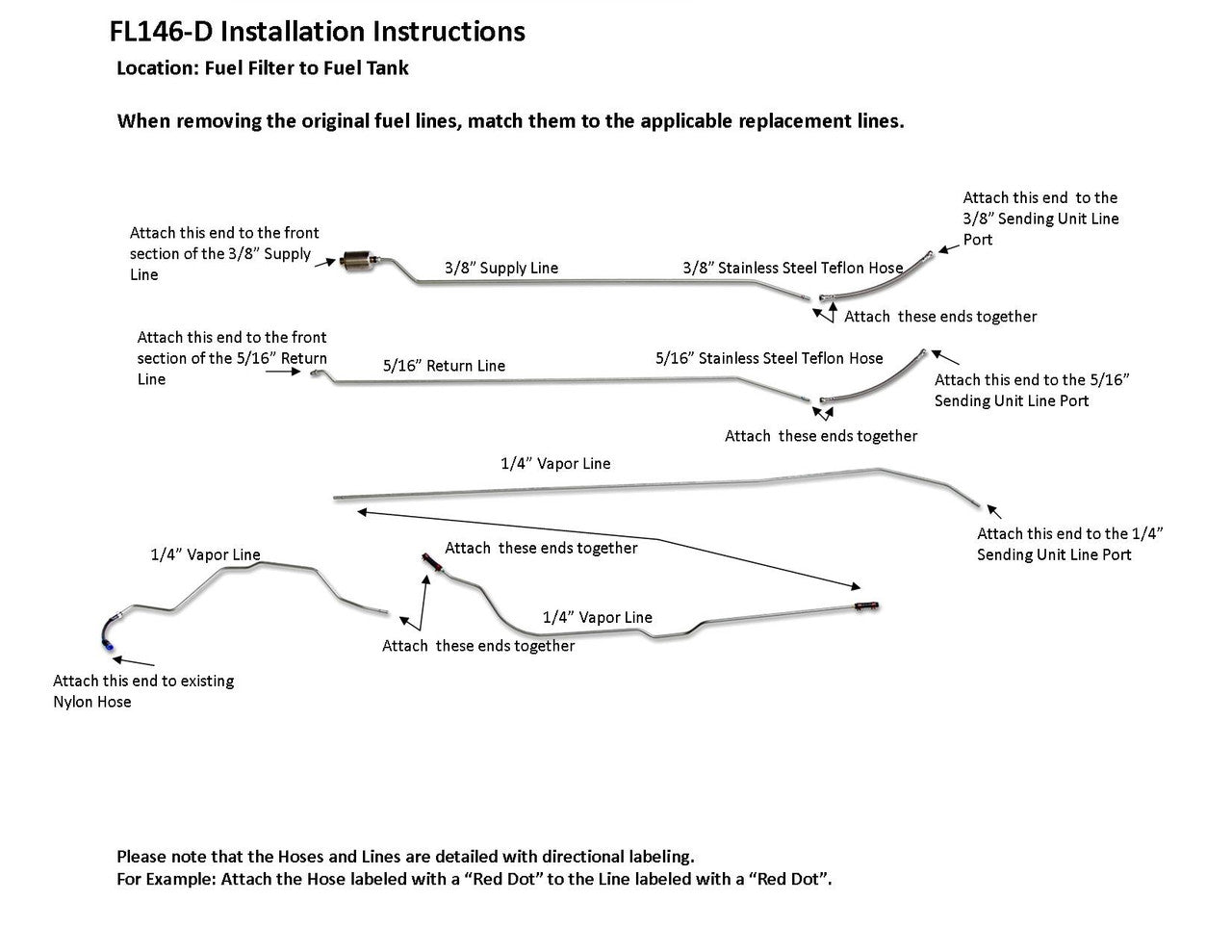

Installation Instructions

Box Dimensions 67" x 6" x 4"

Fuel Filter to Fuel Tank

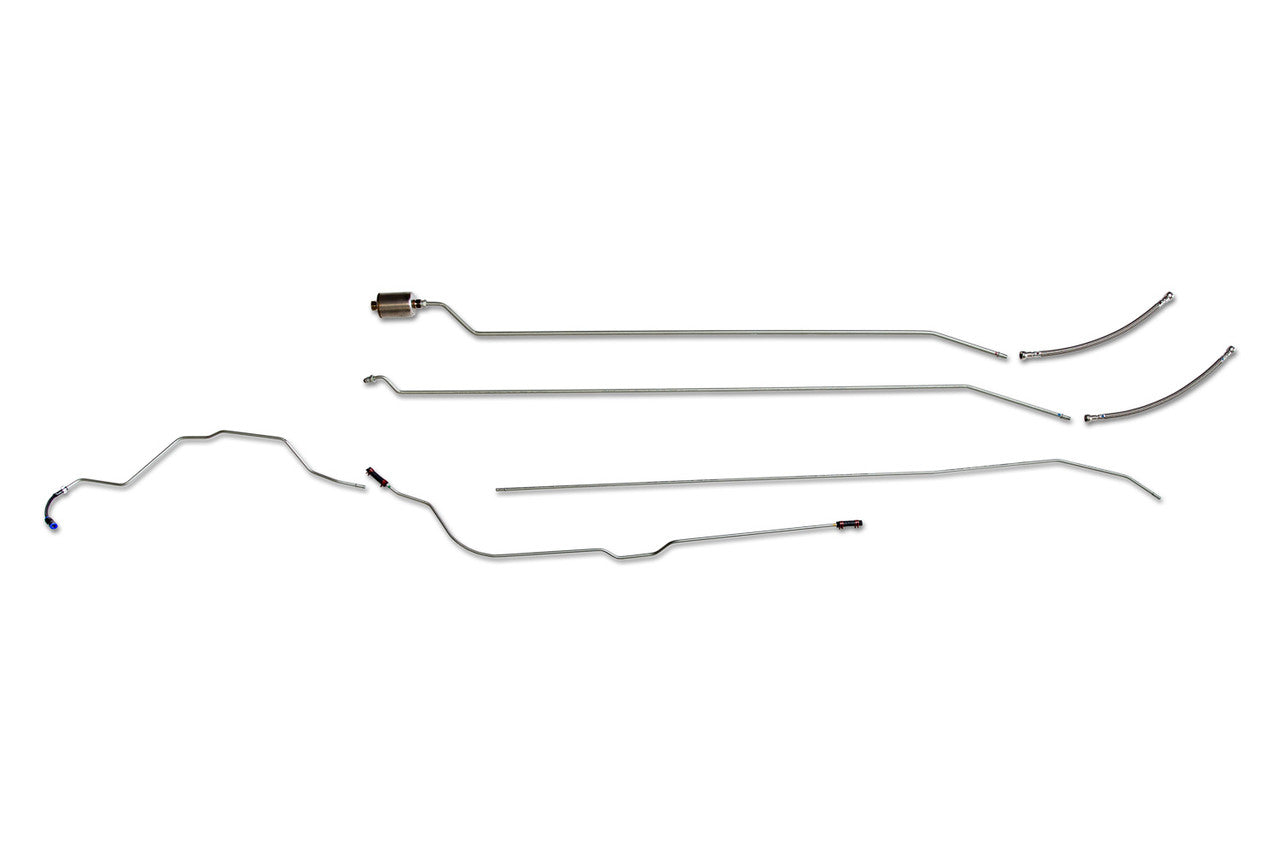

1 supply line 3/8", 1 return line 5/16", 1 vapor line 1/4" (in 3 easy to install sections), hoses to sending unit connection, 1 fuel filter

15731640, 15731663

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

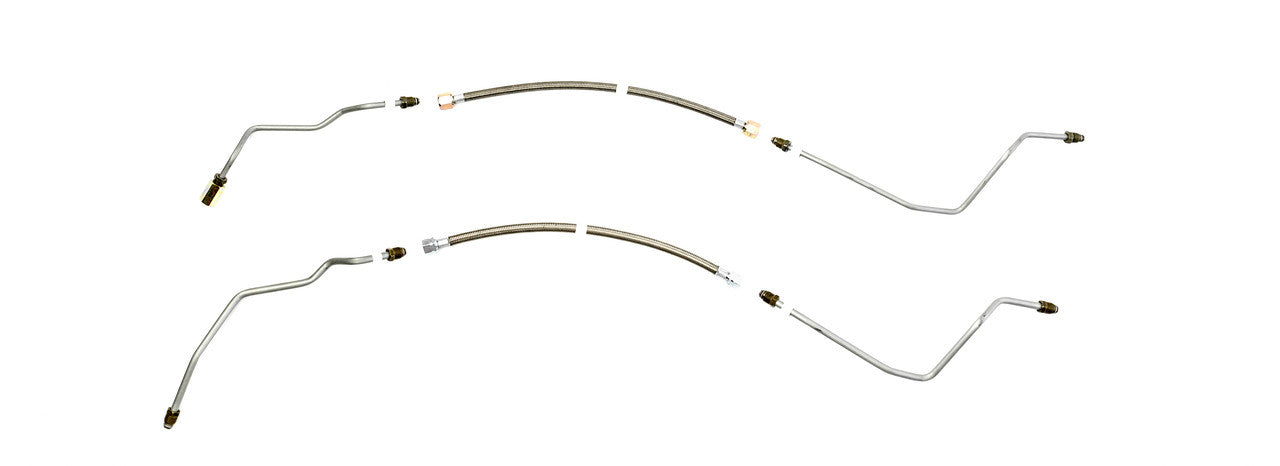

Hoses are made from Stainless Steel Braided Teflon with OE style fittings: SA340QAS, SA340QBS

Hose meets or exceeds applicable SAE Specifications – SAE J30R7: FI-505250
