GMC TopKick Transmission Line Set 2009 C4500/5500 Reg Cab & Chassis 176" WB 8.1L TCL-261-2A

w/HD Cooling

GMC TopKick Transmission Line Set 2009 C4500/5500 Reg Cab & Chassis 176" WB 8.1L TCL-261-2A
Diagram
GMC TopKick Transmission Line Set 2009 C4500/5500 Reg Cab & Chassis 176" WB 8.1L TCL-261-2A
GMC TopKick Transmission Line Set 2009 C4500/5500 Reg Cab & Chassis 176" WB 8.1L TCL-261-2A
GMC TopKick Transmission Line Set 2009 C4500/5500 Reg Cab & Chassis 176" WB 8.1L TCL-261-2A
GMC TopKick Transmission Line Set 2009 C4500/5500 Reg Cab & Chassis 176" WB 8.1L TCL-261-2A
Diagram
GMC TopKick Transmission Line Set 2009 C4500/5500 Reg Cab & Chassis 176" WB 8.1L TCL-261-2A
GMC TopKick Transmission Line Set 2009 C4500/5500 Reg Cab & Chassis 176" WB 8.1L TCL-261-2A
GMC TopKick Transmission Line Set 2009 C4500/5500 Reg Cab & Chassis 176" WB 8.1L TCL-261-2A

GMC TopKick Transmission Line Set 2009 C4500/5500 Reg Cab & Chassis 176" WB 8.1L TCL-261-2A

w/HD Cooling

SALE:
Save $62.49
/

Delivery Time & Rates

Shipping calculated at checkout.

Delivery Time & Rates

Install this pre-bent 2009 GMC TopKick C4500/5500 Transmission Cooler Line Set in no time!

Transmission Cooler Line Set 2009 GMC TopKick C4500/5500 Regular Cab & Chassis 176" WB w/HD Cooling for 8.1L engines.

SKU: TCL-261-2A
Box Dimensions 39" x 28" x 6"

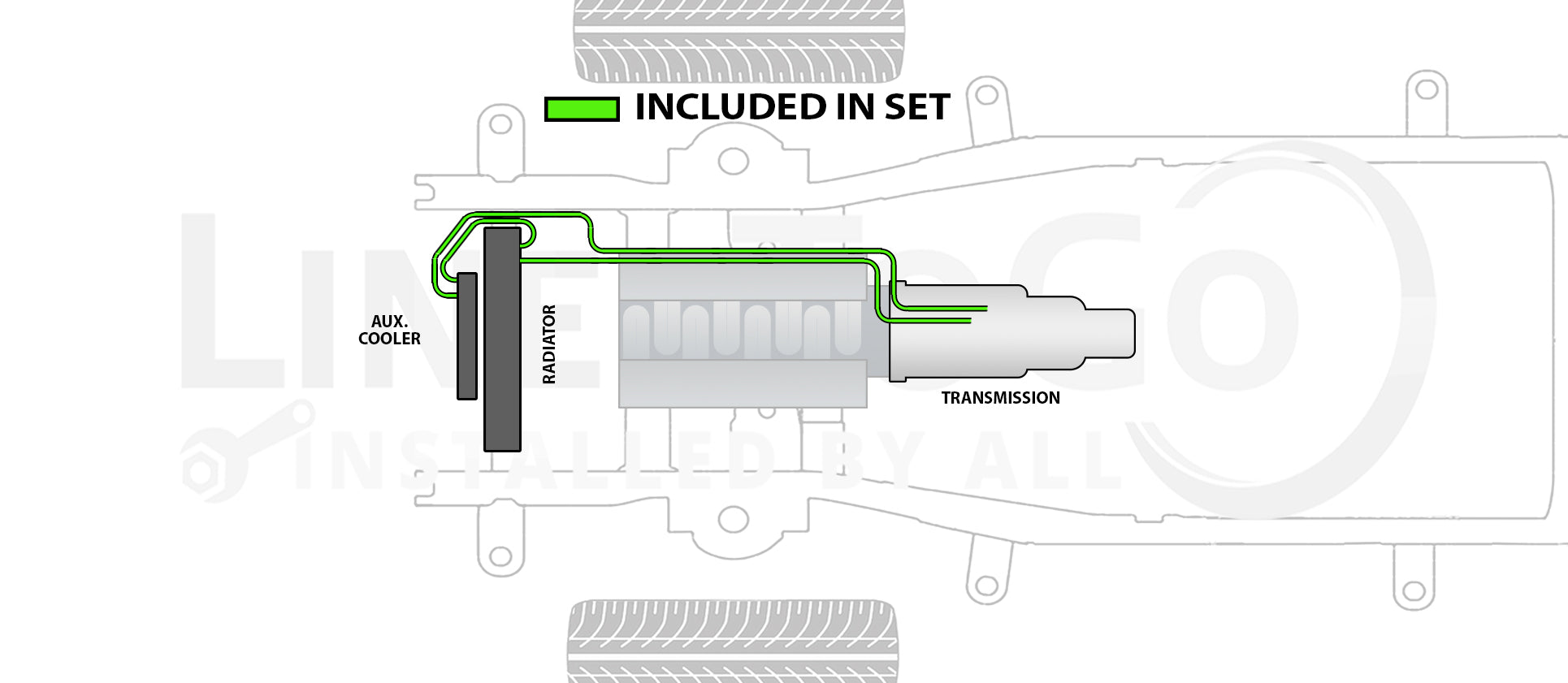

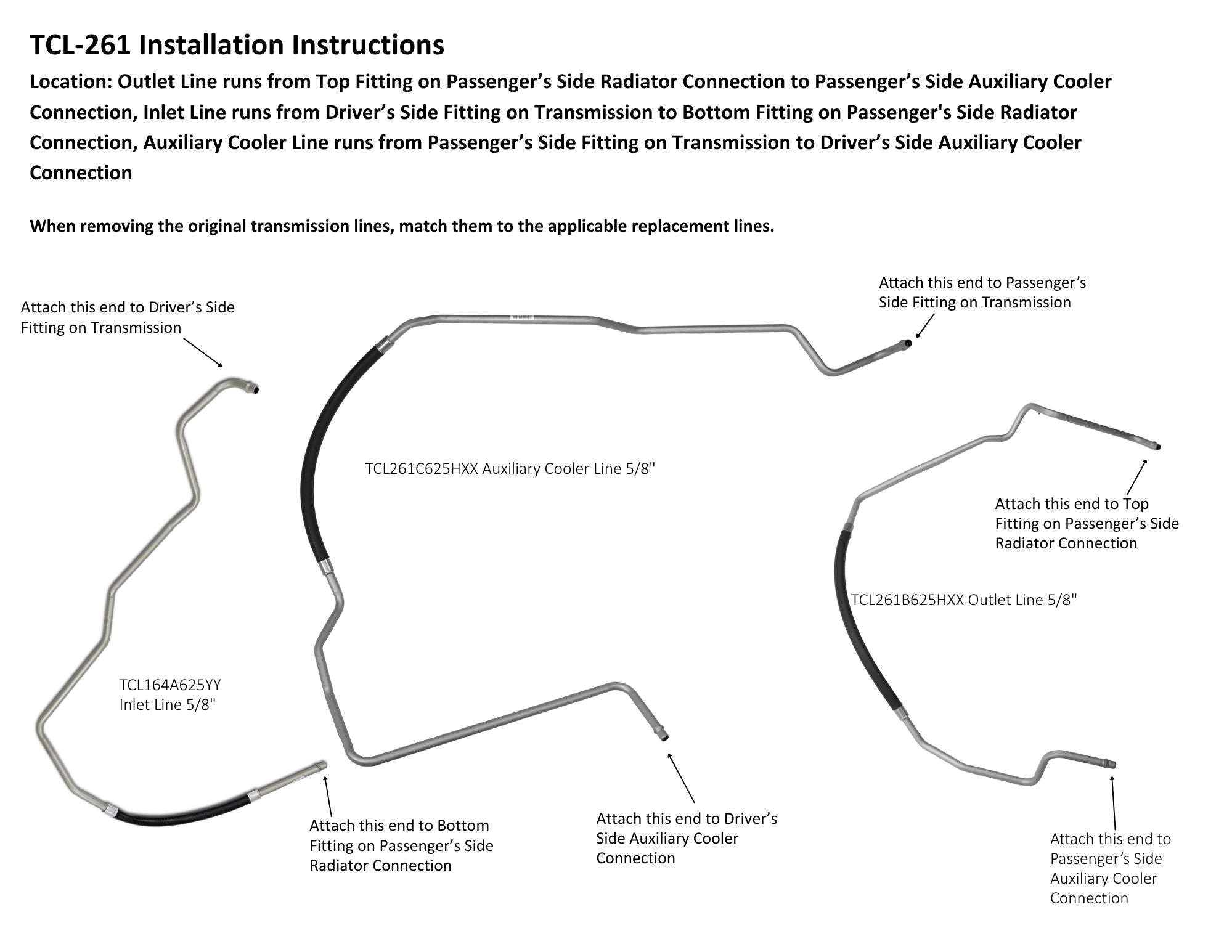

Outlet Line runs from Top Fitting on Passenger's Side Radiator Connection to Passenger's Side Auxiliary Cooler Connection, Inlet Line runs from Driver's Side Fitting on Transmission to Bottom Fitting on Passenger's Side Radiator Connection, Auxiliary Cooler Line runs from Passenger's Side Fitting on Transmission to Driver's Side Auxiliary Cooler Connection

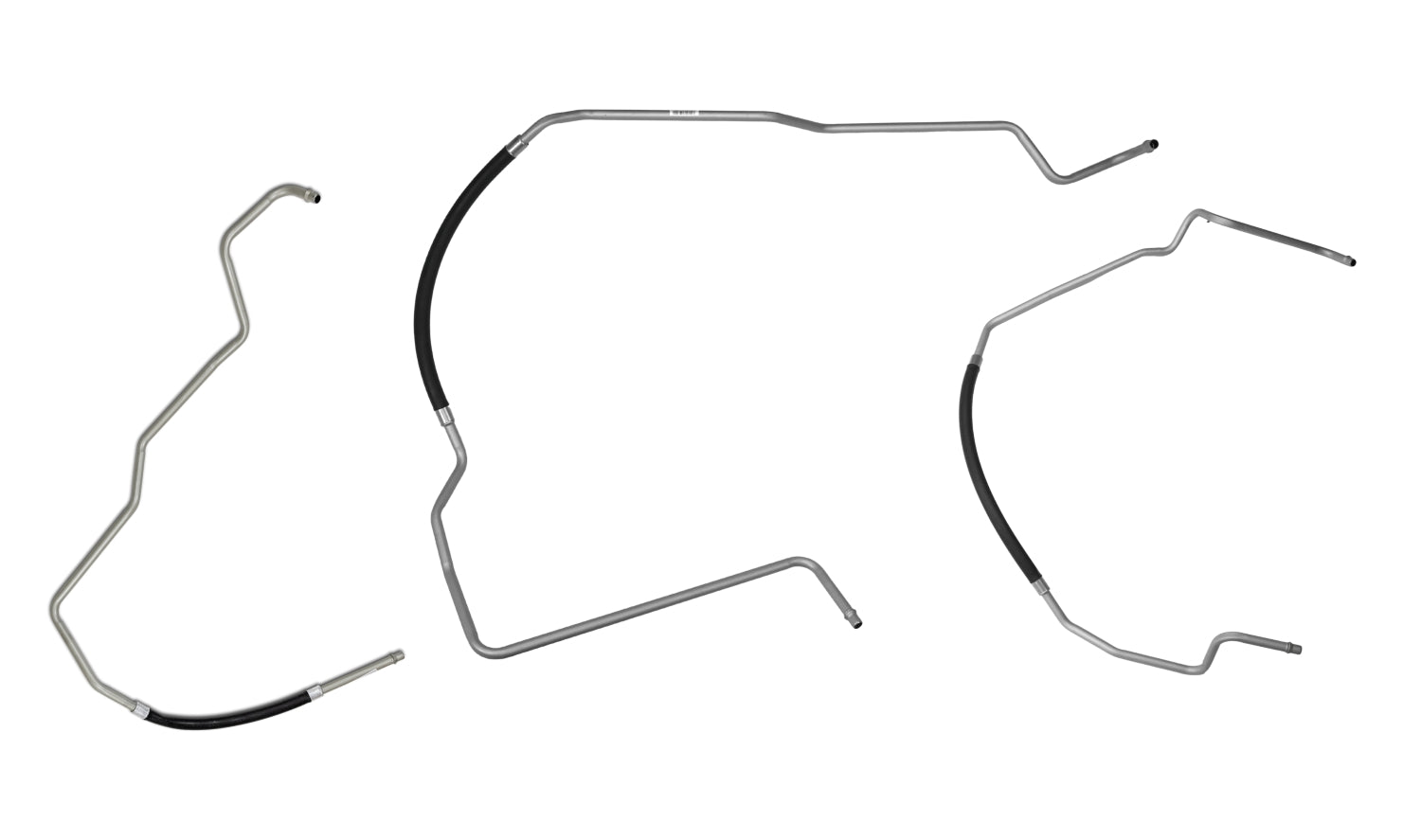

1 Outlet Line 5/8", 1 Inlet Line 5/8", 1 Auxiliary Cooler Line 5/8"

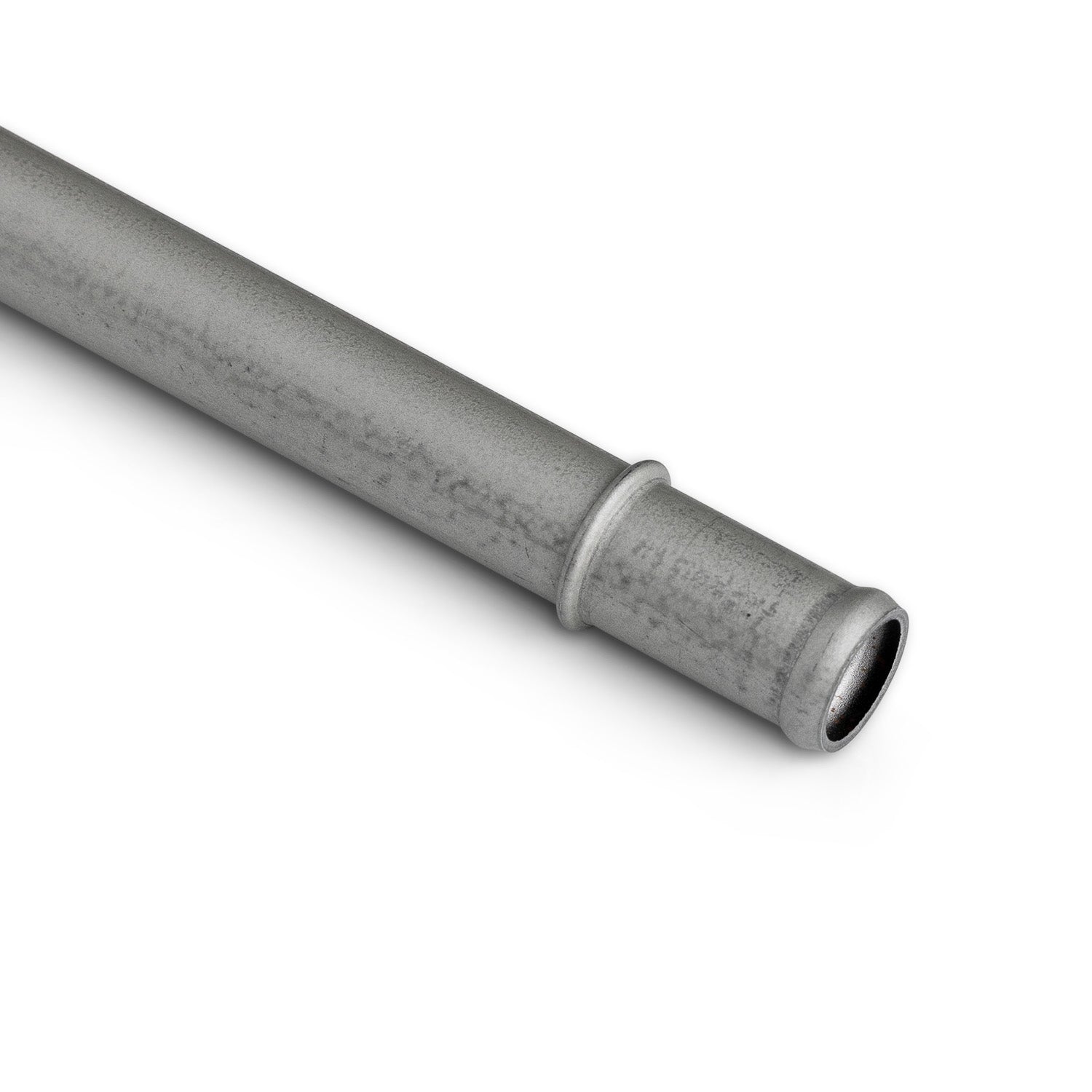

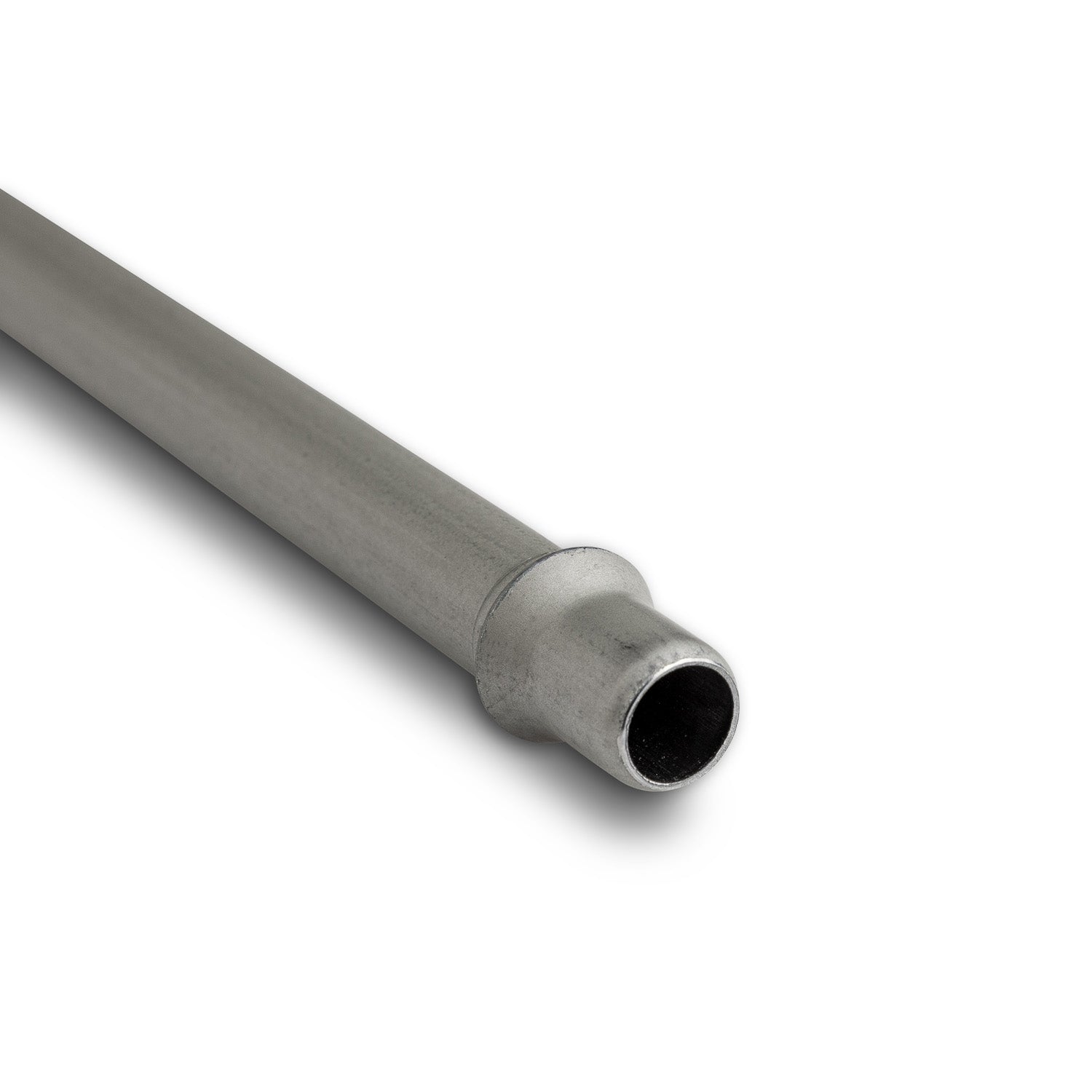

Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

All hoses are made from Reinforced Hydraulic Hose and meets or exceeds applicable SAE Specifications – SAE 100R4: 7288-01
