Name: GMC TopKick Rear Fuel Line Set 2006 C6500/7500/8500 w/RPO Code NNQ FL788-C2A
Brand: Lines - To - Go
SKU: FL788-C2A
Price: 151.0 USD
Availability: InStock

Year Make & Model

GMC TopKick Rear Fuel Line Set 2006 C6500/7500/8500 w/RPO Code NNQ FL788-C2A

Price

SALE:

Save $37.75

Delivery Time & Rates

Shop LinesToGo for 2006 GMC truck fuel lines - 6500/7500/8500 8.1L Engine Code L18 W/RPO Code NNQ W/ Dual 53 Gal Saddle Tanks

Nylon Lines: We do not produce pre-formed nylon lines and they are not included with your fuel lines. However, repair kits are available which will attach to your existing nylon lines providing new connectors for the fuel supply and return lines. The original connections are often seized and damaged during install.

6093-01 includes 1 - 3/8” Nylon Line, 1 union, 1 - 90 degree quick connector 3/8"

SKU: FL788-C2A

Weight: 4

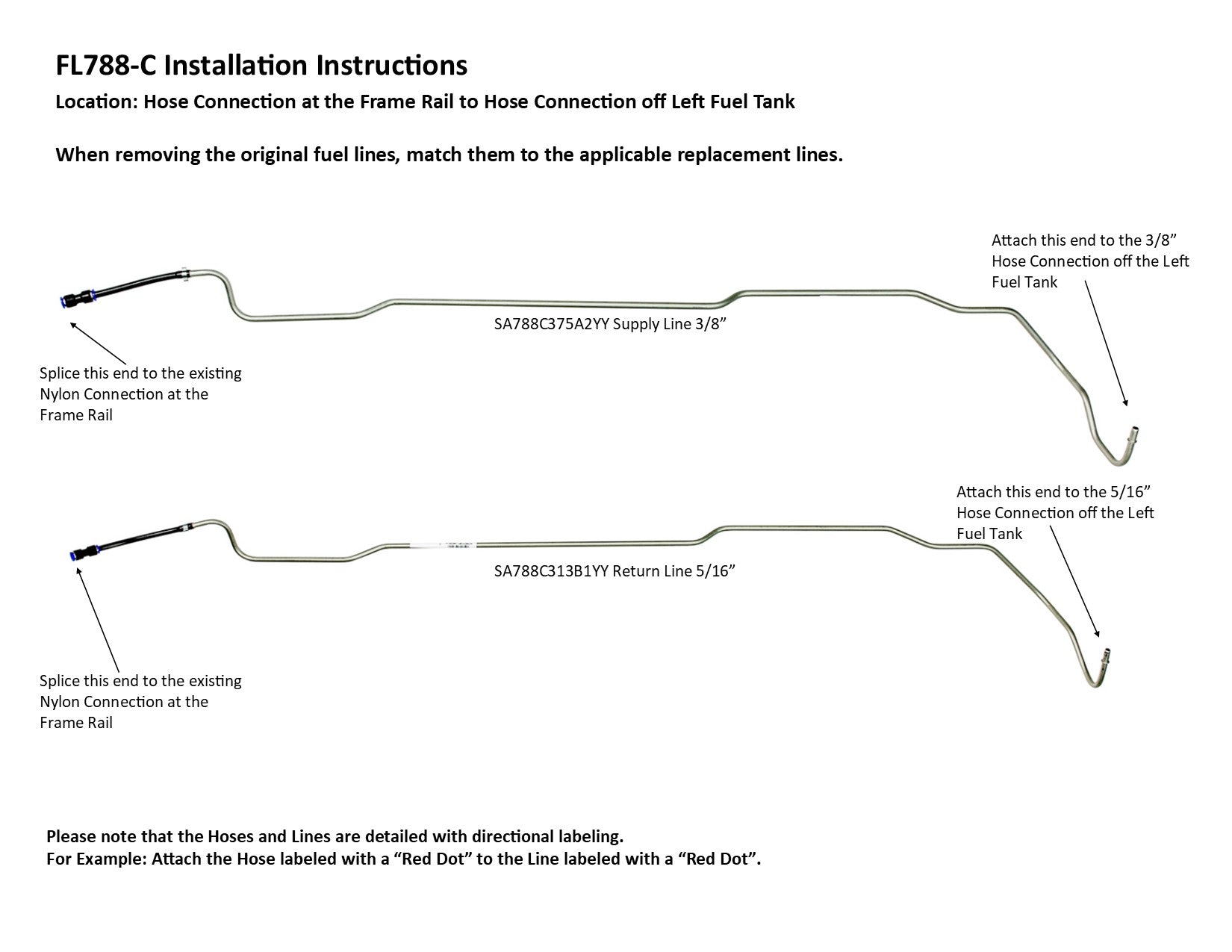

Installation Instructions

Box Dimensions 59" x 12" x 7"

Nylon Splicing

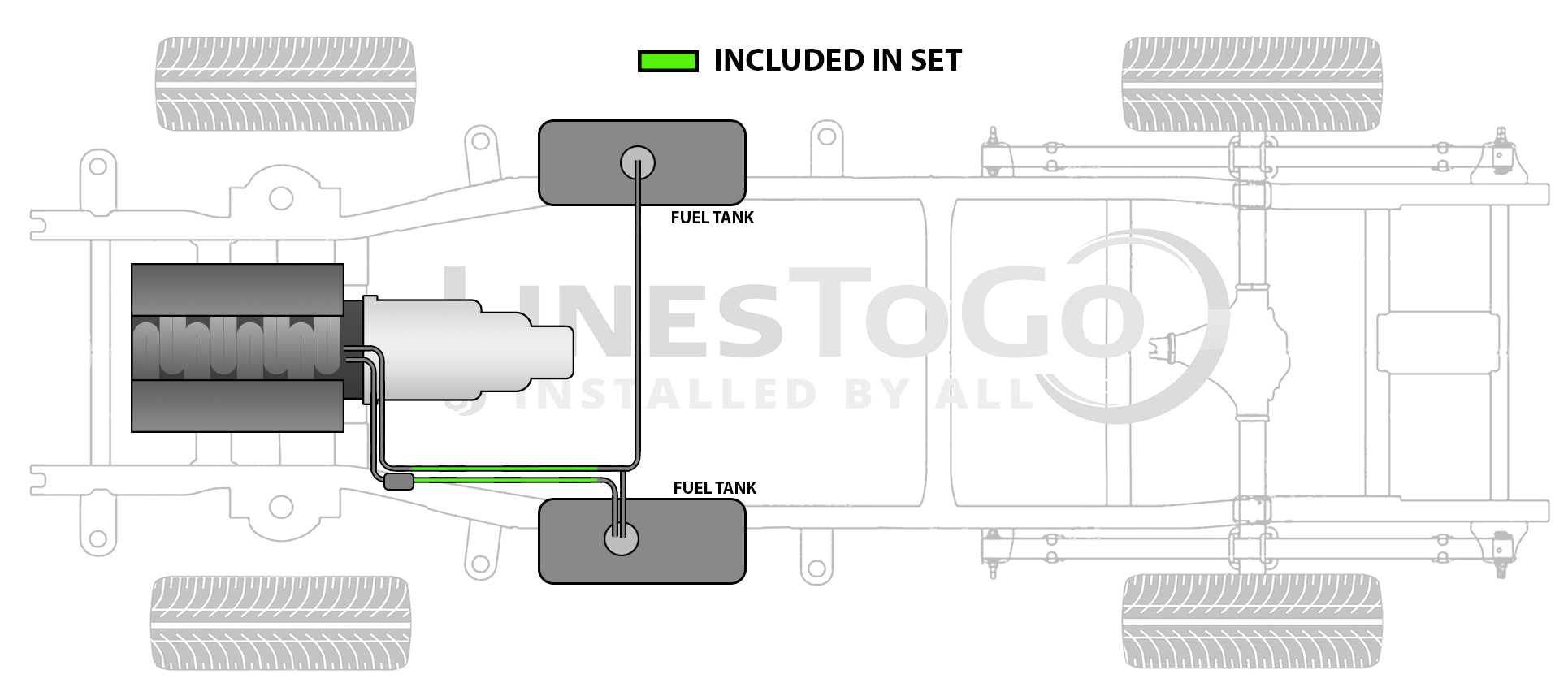

Hose Connection at Frame Rail to Hose Connection off of Left Fuel Tank

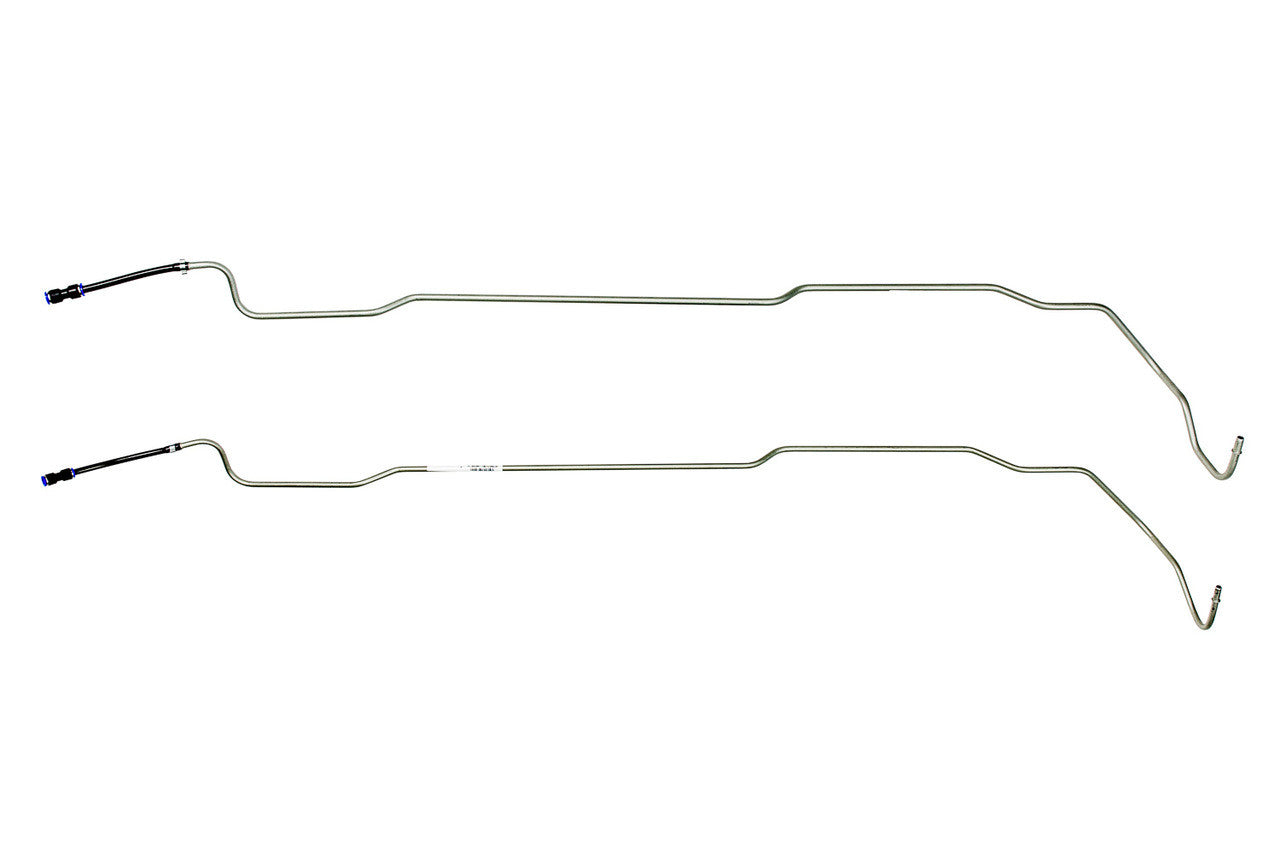

1 supply line 3/8", 1 return line 5/16"

15856865

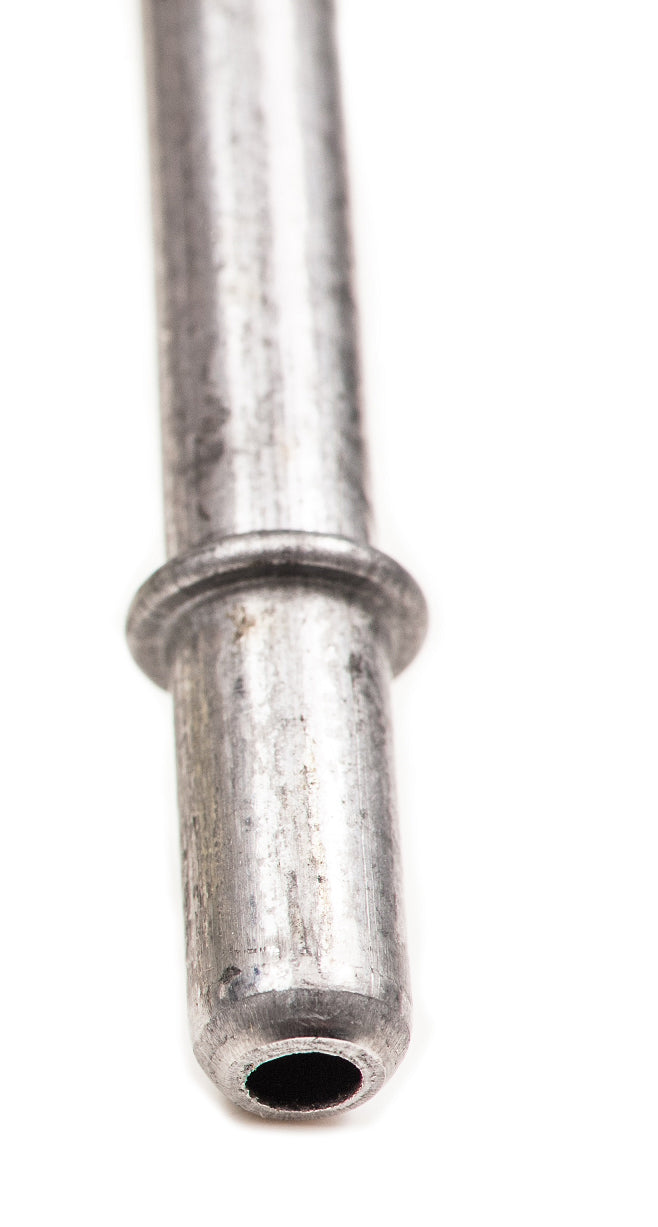

Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.
