Name: GMC TopKick Intermediate Fuel Line Set 2004 C4500/5500 w/206" WB w/Dual Tanks RPO Code NG6 NK1 6.6L FL688-T1B
Brand: Lines - To - Go
SKU: FL688-T1B
Price: 294.95 USD
Availability: InStock

Year Make & Model

GMC TopKick Intermediate Fuel Line Set 2004 C4500/5500 w/206" WB w/Dual Tanks RPO Code NG6 NK1 6.6L FL688-T1B

Price

SALE:

Save $73.74

Delivery Time & Rates

Shop LinesToGo for 2004 GMC TopKick fuel lines - C4500/5500 w/206" WB (w/RPO Code EK5) w/Dual Tanks (w/RPO Code NG6 or NK1) for 6.6L Duramax Diesel engines.

SKU: FL688-T1B

Weight: 5

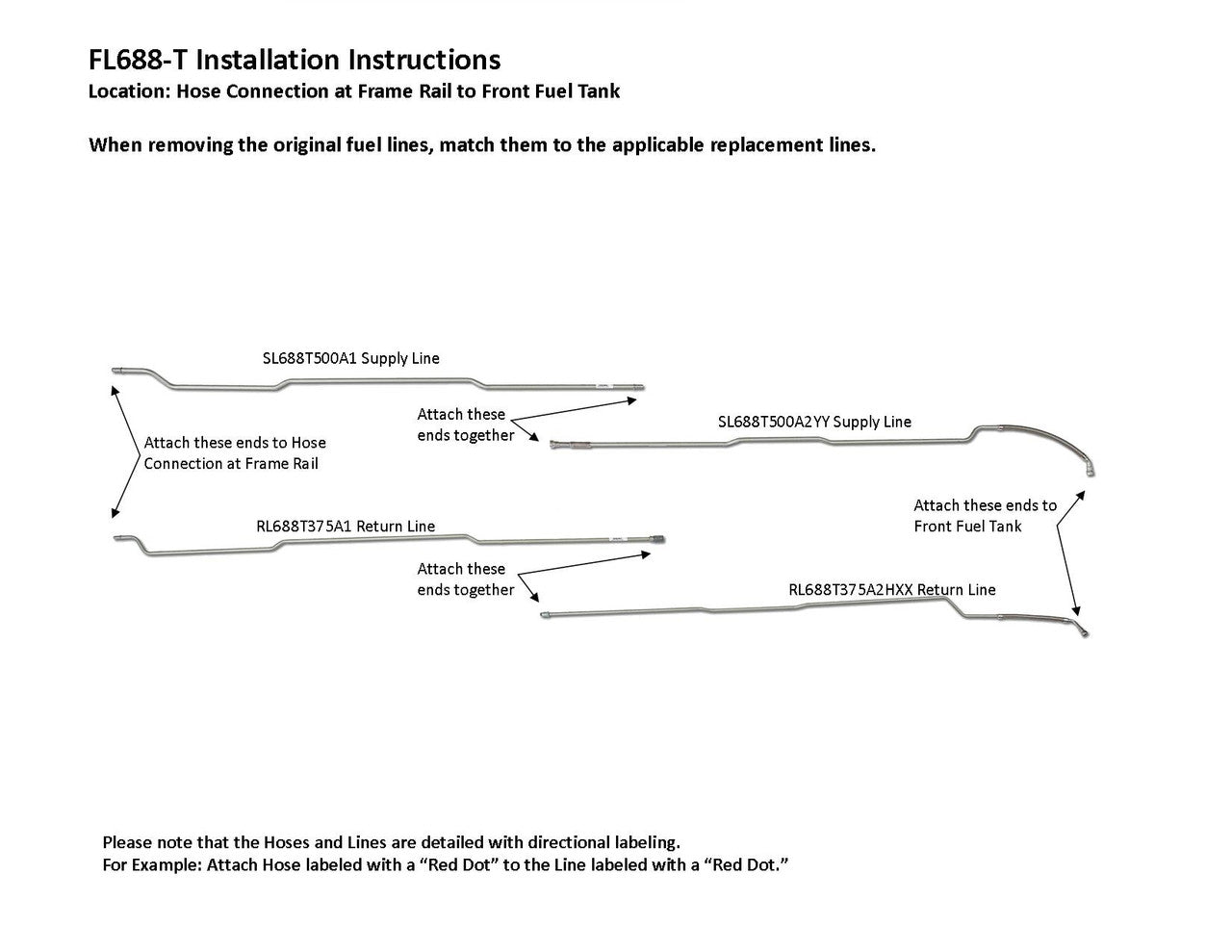

Installation Instructions

Box Dimensions 67" x 6" x 4"

Product Warranty 1 Year

How to use a Quick Disconnect Tool

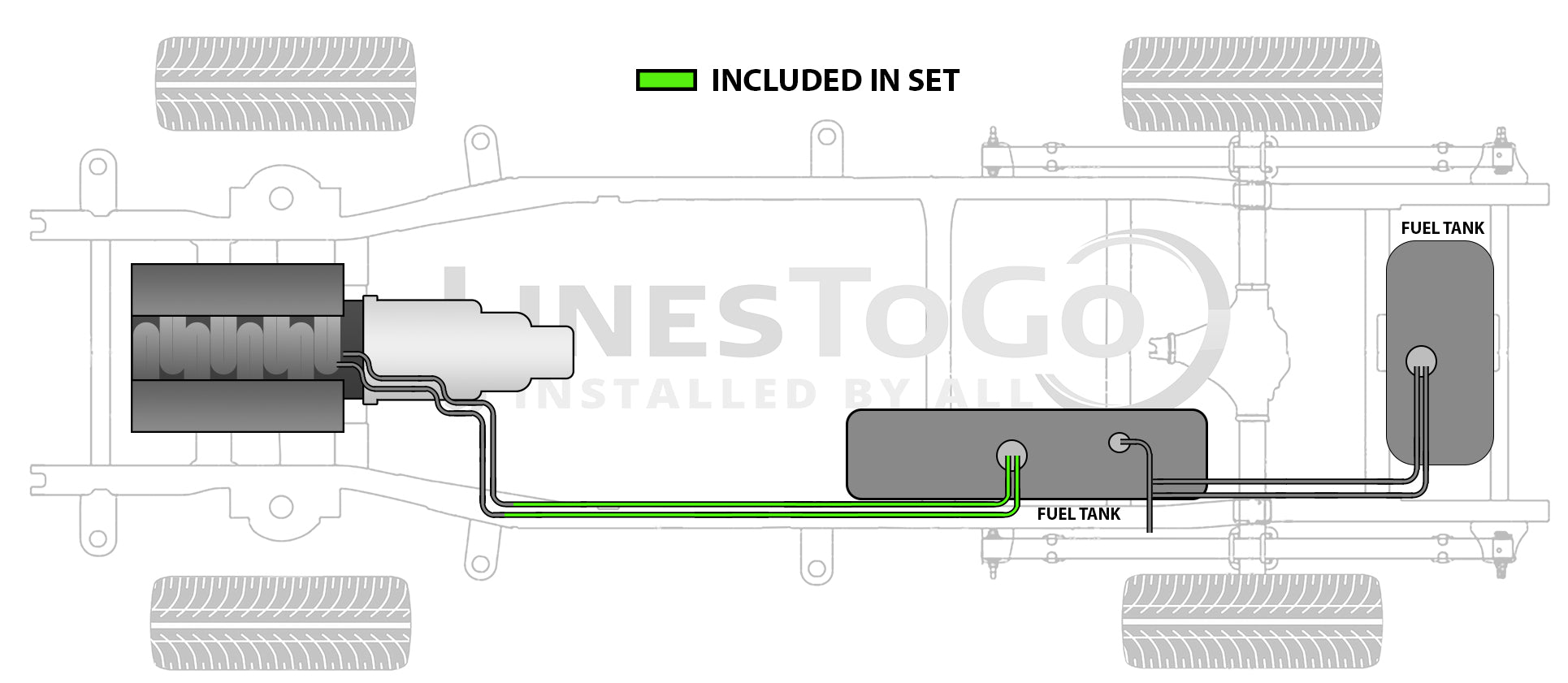

Hose Connection at Frame Rail to Front Fuel Tank

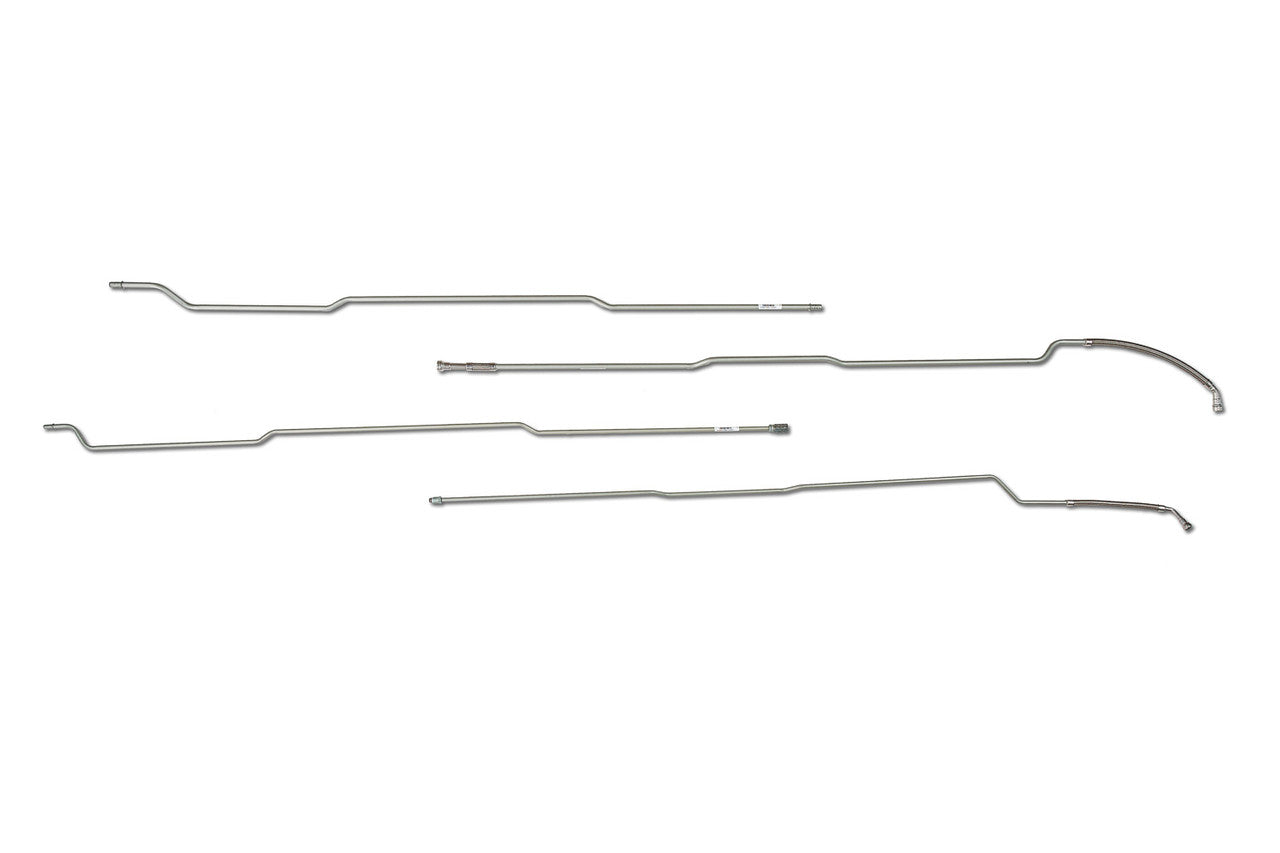

1 supply line 1/2" (in 2 easy to install sections), 1 return line 3/8" (in 2 easy to install sections), hoses to front fuel tank, 1 union

88944193

Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

All hoses are made from Stainless Steel Braided Teflon with OE style fittings
