GMC TopKick Brake Line Set 2008 C6500/7500 2WD Reg Cab & Chassis 224" WB 7.2L BLC-204-SS2K Stainless Steel

GMC TopKick Brake Line Set 2008 C6500/7500 2WD Reg Cab & Chassis 224" WB 7.2L BLC-204-SS2K Stainless Steel
GMC TopKick Brake Line Set 2008 C6500/7500 2WD Reg Cab & Chassis 224" WB 7.2L BLC-204-SS2K Stainless Steel

GMC TopKick Brake Line Set 2008 C6500/7500 2WD Reg Cab & Chassis 224" WB 7.2L BLC-204-SS2K Stainless Steel

MSRP: from
SALE: from
Save $81.24
from /

Delivery Time & Rates

Zip/Postal Code:
SKU: BLC-204-SS2K
  • Weight: 8

Brake Line Set Stainless Steel 2008 GMC TopKick C6500/7500 2WD Reg Cab & Chassis 224" WB 7.2L w/Hydraulic Brakes w/10,000 LBS Front Axle or w/12,000 LBS Front Axle.

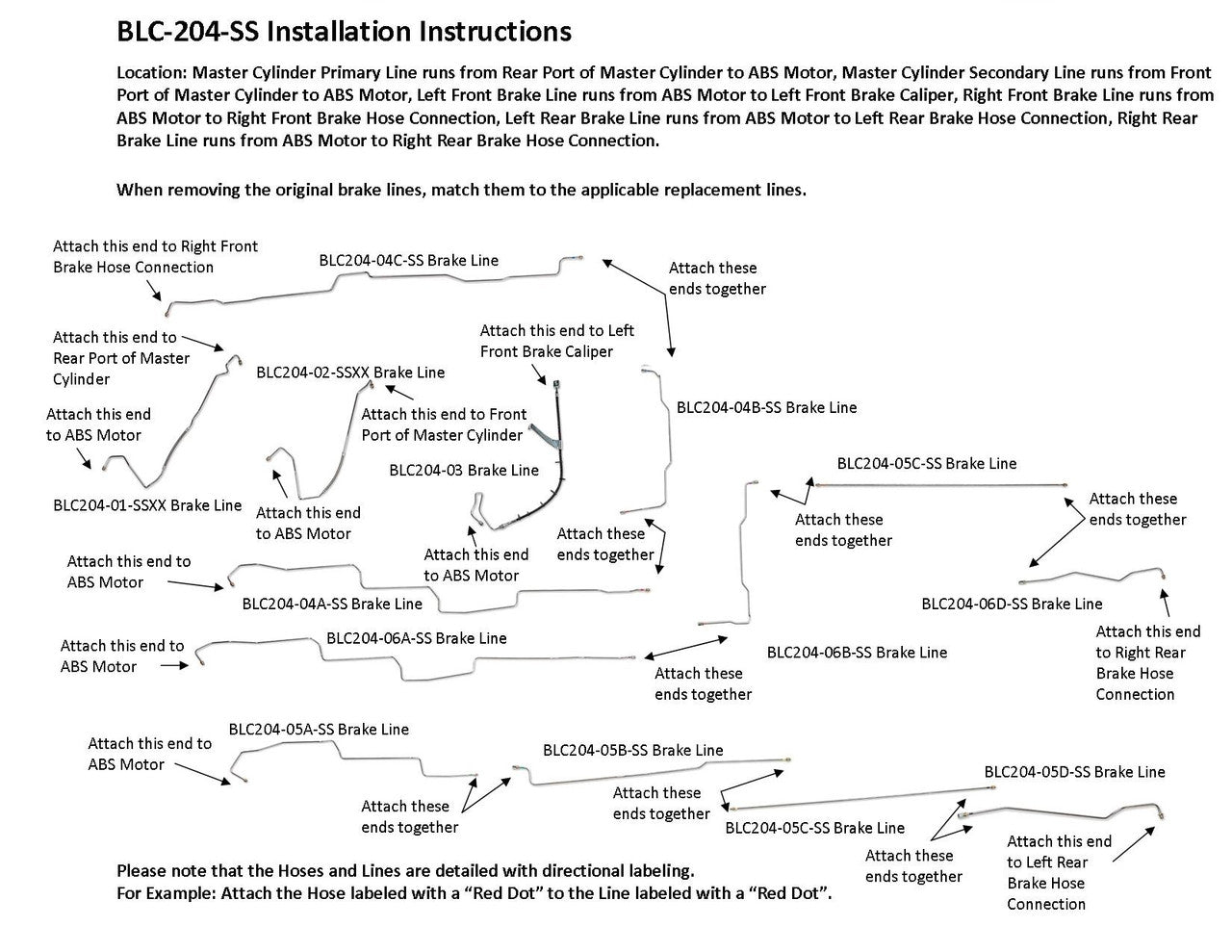

Location: Master Cylinder Primary Line runs from Rear Port of Master Cylinder to ABS Motor, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to ABS Motor, Left Front Brake Line runs from ABS Motor to Left Front Brake Caliper, Right Front Brake Line runs from ABS Motor to Right Front Brake Hose Connection, Left Rear Brake Line runs from ABS Motor to Left Rear Brake Hose Connection, Right Rear Brake Line runs from ABS Motor to Right Rear Brake Hose Connection.

Please Note: Before installing your brake lines, a shipping bend will need to be removed from the lines labeled BLC204-04A-SS and BLC204-06A-SS. See the video below on how to remove the shipping bend.

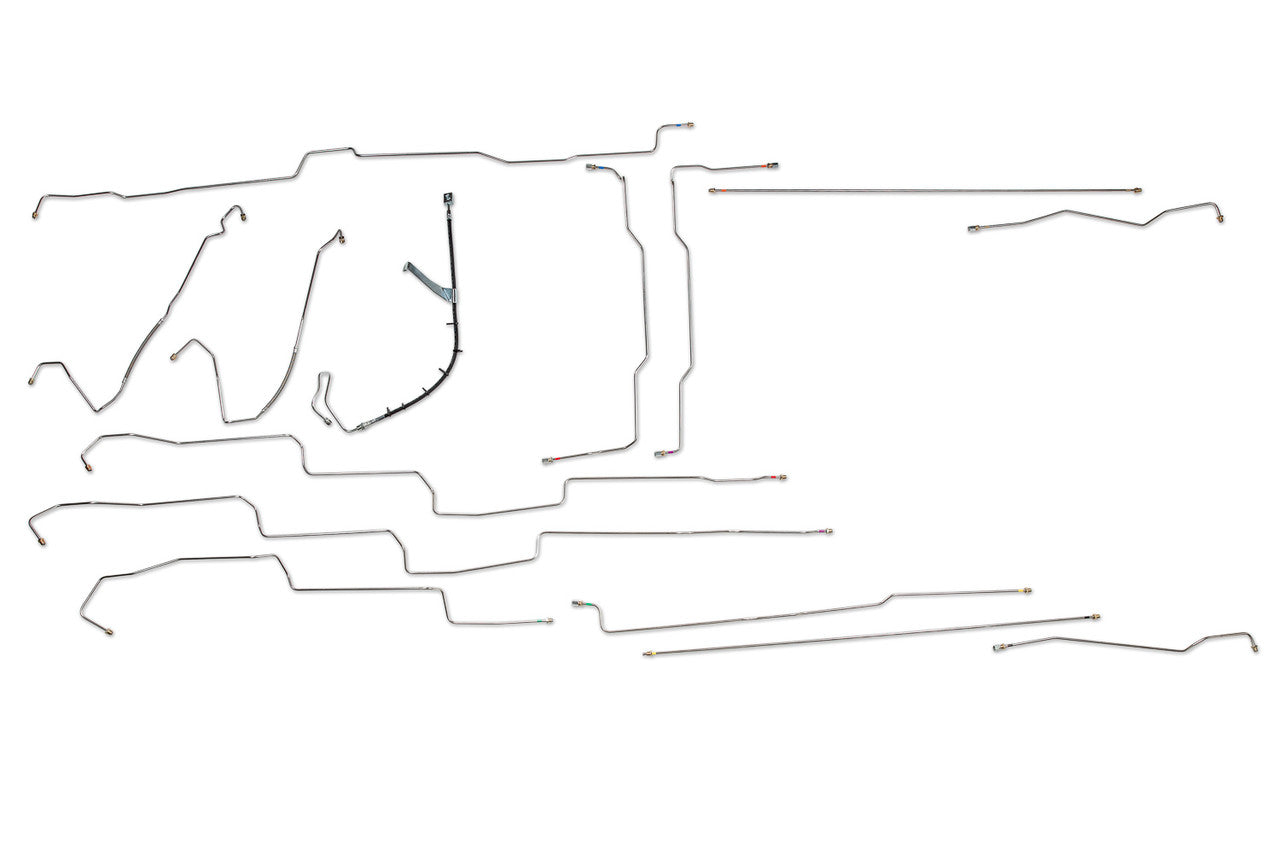

Included in Set: 1 Master Cylinder Primary Line 1/4", 1 Master Cylinder Secondary Line 1/4", 1 Left Front Brake Line 1/4", 1 Right Front Brake Line 1/4" (in 3 easy to install sections), 1 Left Rear Brake Line 1/4" (in 4 easy to install sections), 1 Right Rear Brake Line 1/4" (in 4 easy to install sections), Does NOT include Brake Hoses

Tube Construction: Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Warranty: 1 Year

Box Dimensions: 57" x 11" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
