Install this pre bent 1996 transmission cooler line set in no time!
Transmission Line Set Stainless Steel 1996 GMC Suburban C/K 2500 w/4L60-E 4 Spd Automatic Transmission (w/RPO Code M30),w/HD Cooling for 5.7L engines.

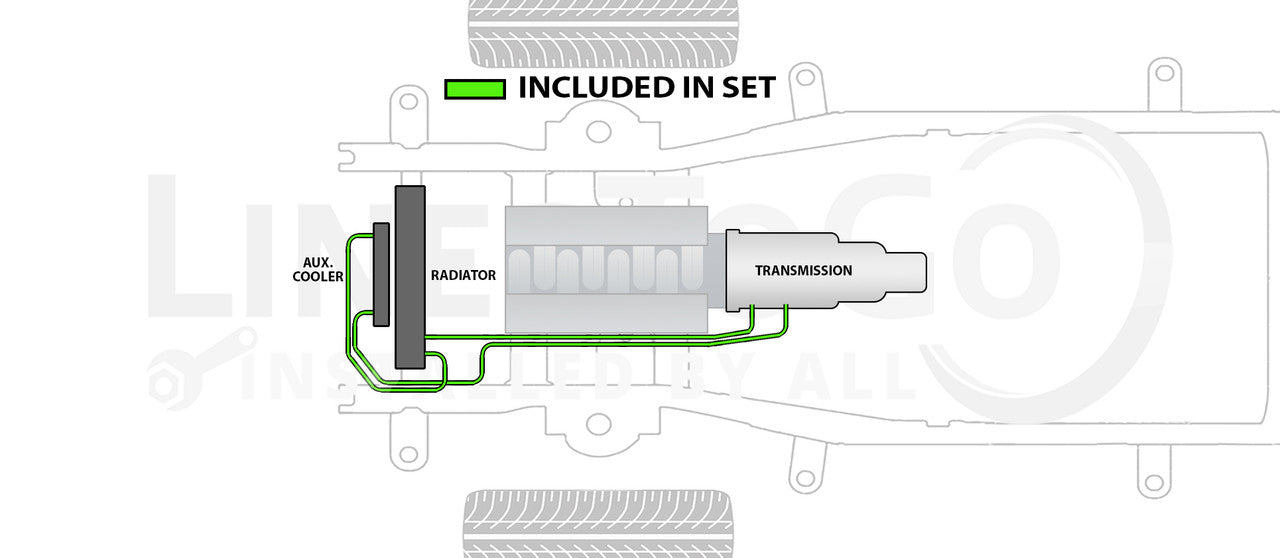

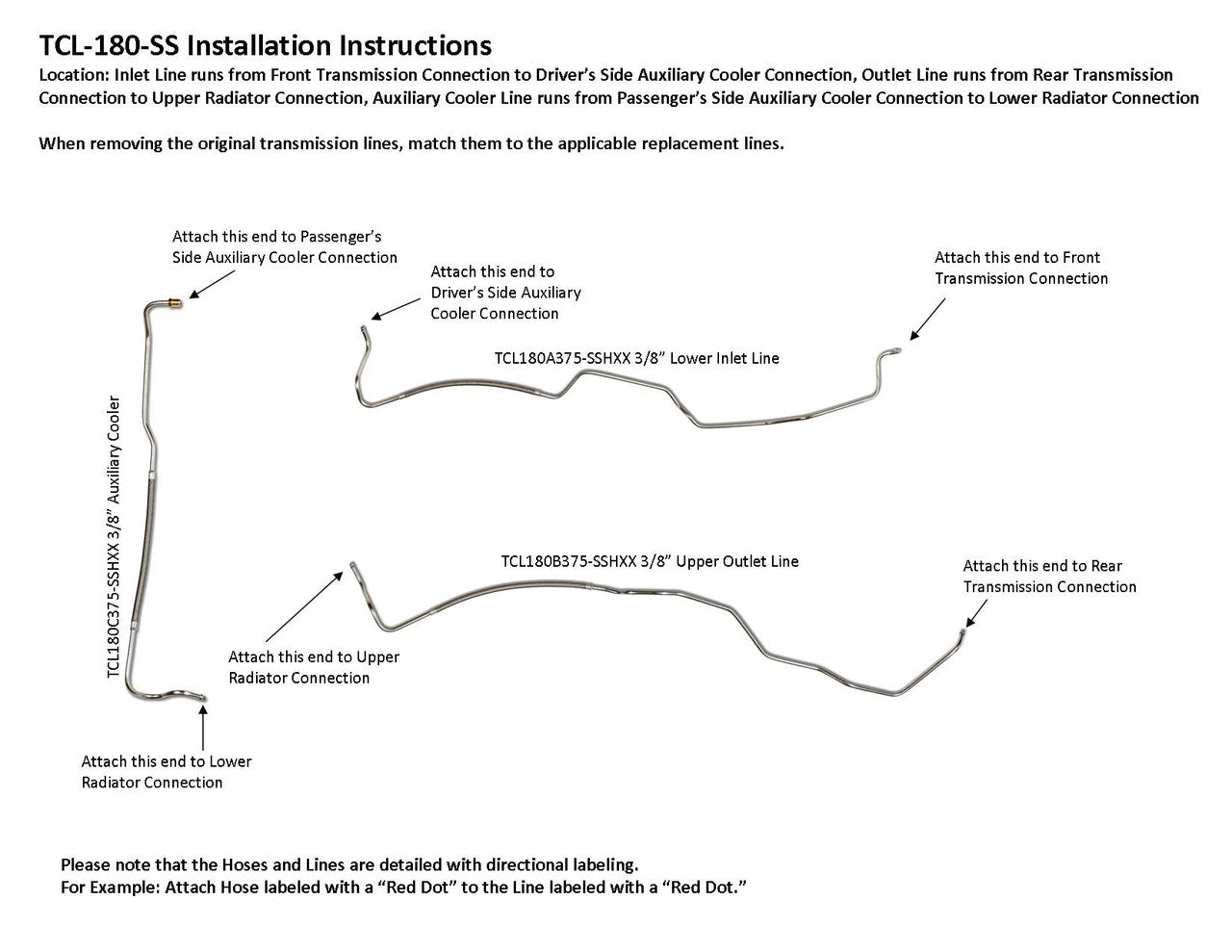

Inlet Line runs from Front Transmission Connection to Driver's Side Auxiliary Cooler Connection, Outlet Line runs from Rear Transmission Connection to Upper Radiator Connection, Auxiliary Cooler Line runs from Passenger's Side Auxiliary Cooler Connection to Lower Radiator Connection

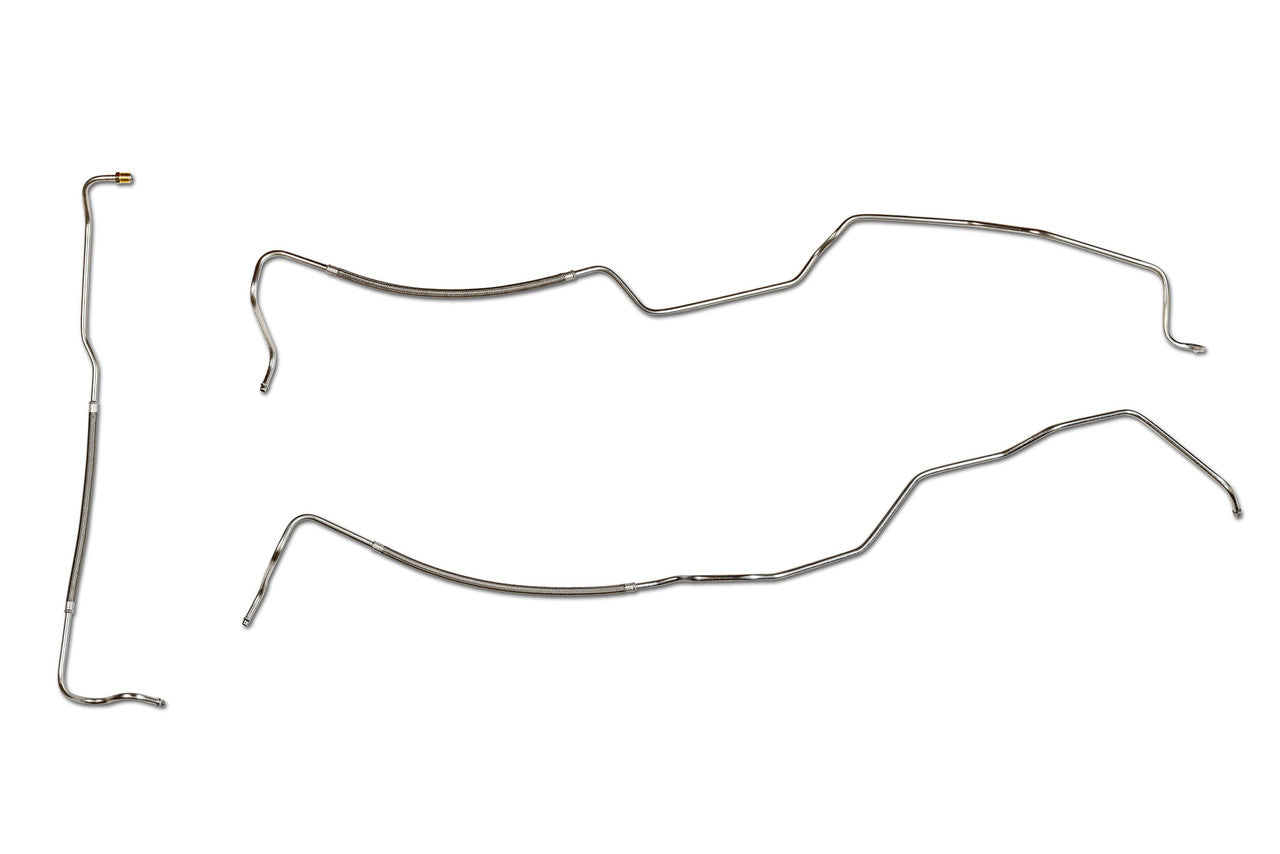

1 Lower Inlet Line 3/8", 1 Upper Outlet Line 3/8", 1 Auxiliary Cooler Line 3/8"
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.
All hoses are made from Stainless Steel Braided Teflon with OE style fittings
