GMC Suburban Brake Line Set 1996 K1500 4WD BLC-169-SS2B Stainless Steel
RPO Code JB5 w/11.86” X 2.25” Rear Drums
GMC Suburban Brake Line Set 1996 K1500 4WD BLC-169-SS2B Stainless Steel
RPO Code JB5 w/11.86” X 2.25” Rear Drums
Delivery Time & Rates
Choose from 1996 Suburban brake lines to fit your GMC without a problem...
Brake Line Set Stainless Steel 1996 GMC Suburban K1500 4WD w/ 11.86” X 2.25” Rear Drums (RPO Code JB5) for 5.7L engines

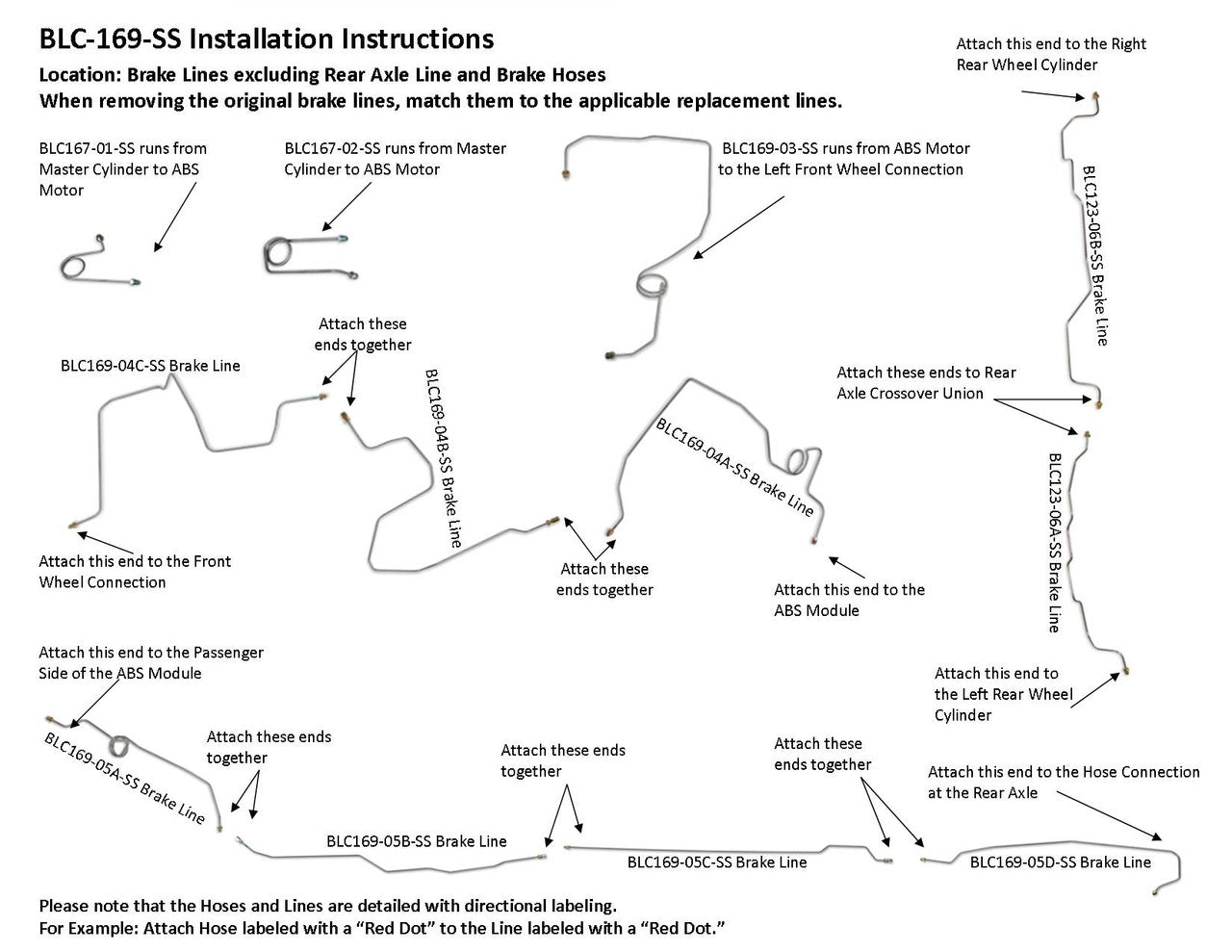

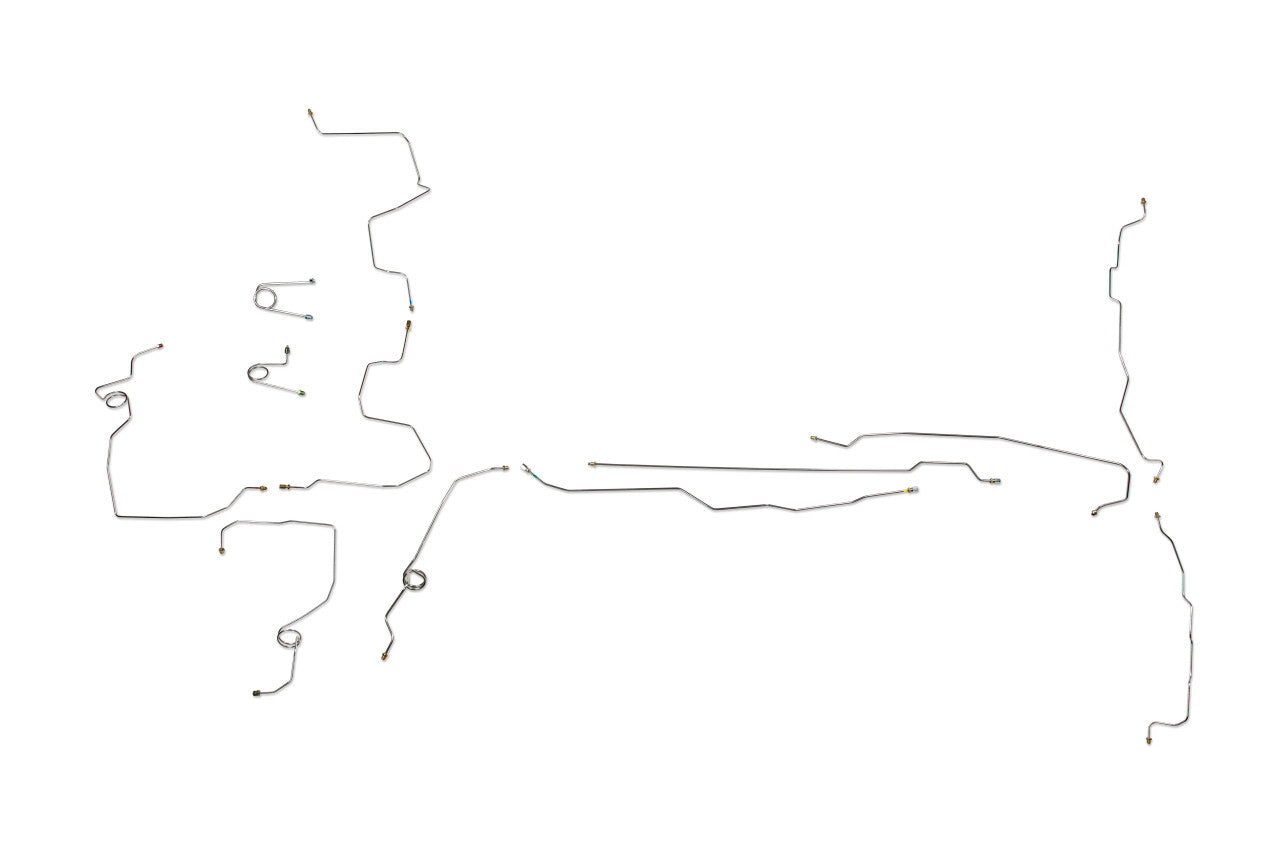

1 Primary Line 3/16" from Master Cylinder to ABS, 1 Secondary Line 1/4" from Master Cylinder to ABS, 1 Left Front Line 3/16" from ABS Motor to Left Front Wheel Hose Connection, 1 Right Front Line 3/16" from ABS Motor to the Right Front Wheel Connection (3 easy to install sections), 1 Line 1/4" from ABS Motor to the Rear Axle Hose Connection (4 easy to install sections), 1 Rear Axle Line 3/16" (2 sections)

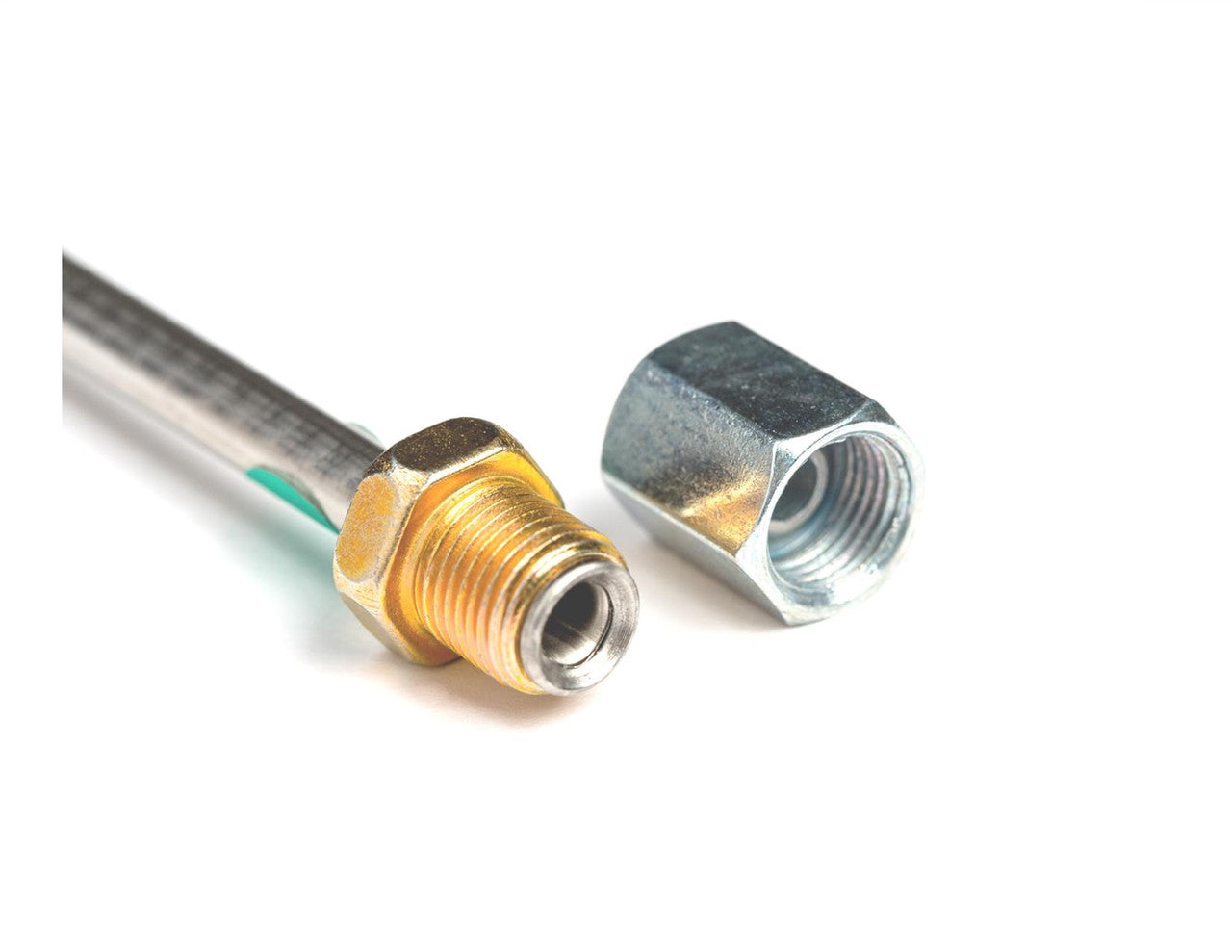

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
Need Assistance? Call us toll free 1-855-781-5992
We'll make sure you're ordering the correct part and we can take your order for you too.
