GMC Sonoma Pick Up Front Fuel Line Set 1999 4WD 4.3L FL441-D4C

GMC Sonoma Pick Up Front Fuel Line Set 1999 4WD 4.3L FL441-D4C
GMC Sonoma Pick Up Front Fuel Line Set 1999 4WD 4.3L FL441-D4C
GMC Sonoma Pick Up Front Fuel Line Set 1999 4WD 4.3L FL441-D4C
GMC Sonoma Pick Up Front Fuel Line Set 1999 4WD 4.3L FL441-D4C
GMC Sonoma Pick Up Front Fuel Line Set 1999 4WD 4.3L FL441-D4C
GMC Sonoma Pick Up Front Fuel Line Set 1999 4WD 4.3L FL441-D4C

GMC Sonoma Pick Up Front Fuel Line Set 1999 4WD 4.3L FL441-D4C

MSRP: from
SALE: from
Save $45.73
from /

Delivery Time & Rates

Zip/Postal Code:
SKU: FL441-D4C
  • Weight: 4

Shop LinesToGo for your 1999 Sonoma pickup fuel lines. The FL441-D4C set of fuel lines is ideal for any Automatic 4 wheel drive pickup with a 4.3L engine.

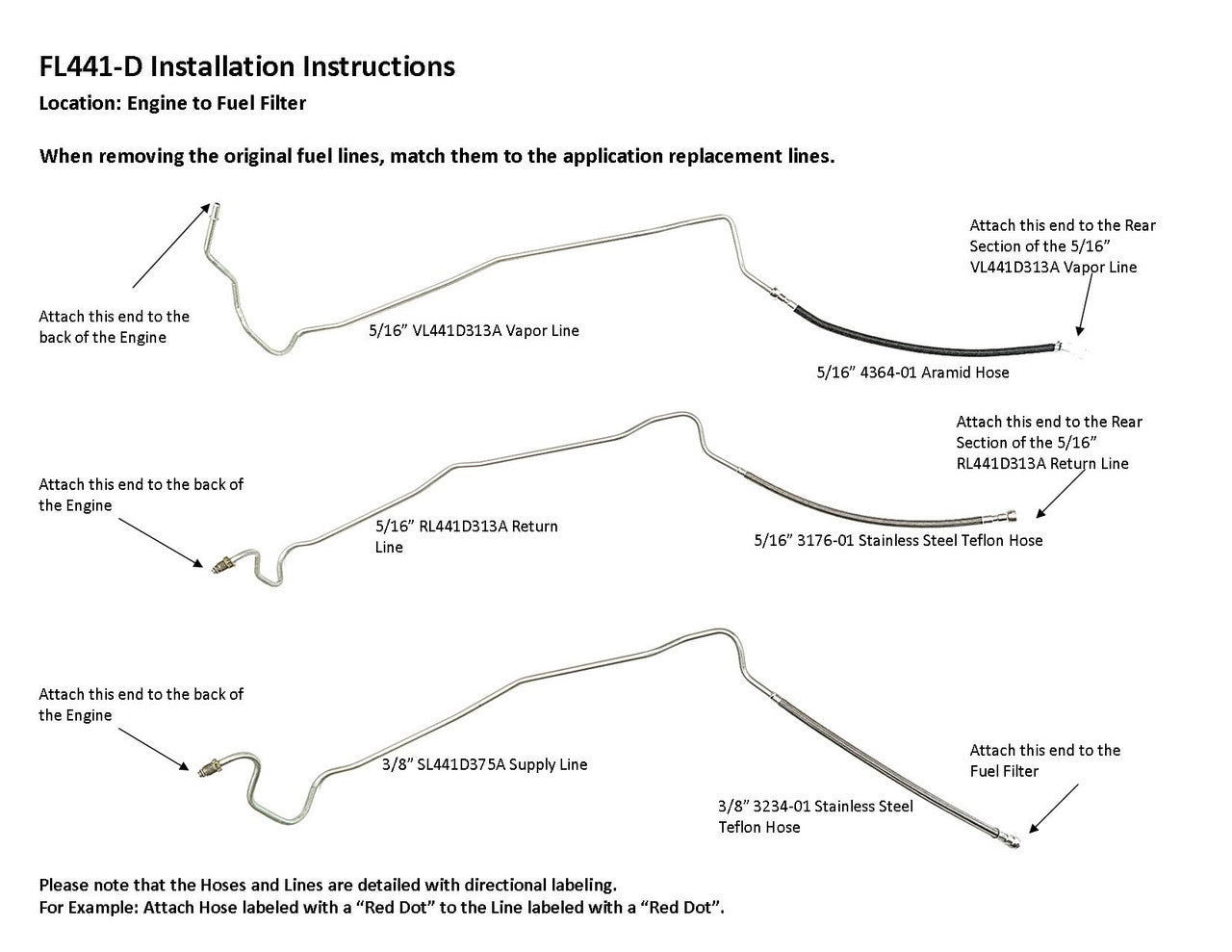

Location: Engine to Fuel Filter

Please Note: This is more difficult to install than the average set of front fuel lines as the transmission cross member should be removed and the transmission/engine assembly needs to be angled down to make the installation.

FL442-A is another replacement option. The lines are made from Stainless Steel Braided Teflon which is flexible and can be routed between the engine and the fire wall down over and along the transmission and transfer case.

Retainer Clips Included On Lines: The retainer clips provided on the replacement lines may not be needed. The replacement lines will plug into connectors which have retainer clips inside them.

Sometimes during removal of the OEM lines, the retainer clips inside the connectors may be damaged. If this is the case, you will need to leave the retainer clips on the replacement lines.

If the retainer clips remain inside the connector undamaged during removal of the OEM lines, you will not require the retainer clips provided on the replacement lines. The retainer clips will need to be removed before plugging into the connector.

OEM Part Number: 15109105, 15109102, 15023819

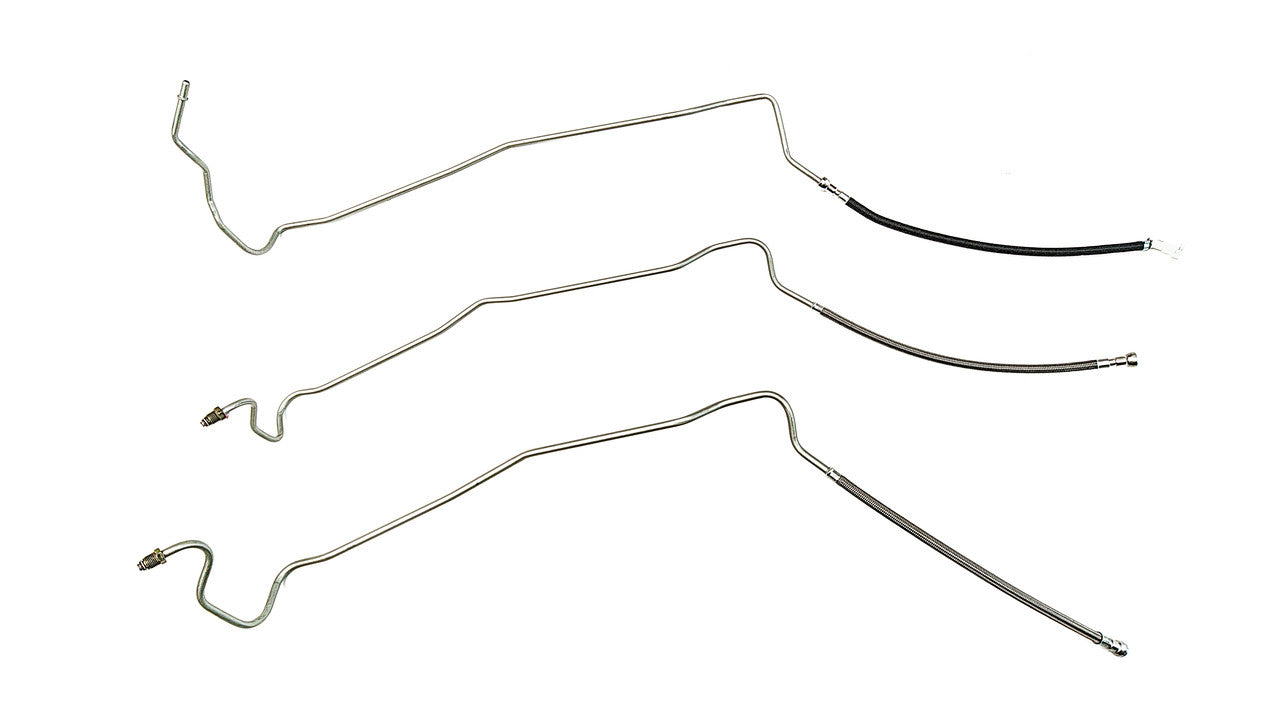

Included in Set: 1 supply line 3/8", 1 return line 5/16", 1 vapor line 5/16" (Direct OEM Replacement)

Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 39" x 11" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
