GMC Sierra Fuel Line Set 2009 C/K2500HD Crew Cab 6.0L FL486-B5C

GMC Sierra Fuel Line Set 2009 C/K2500HD Crew Cab 6.0L FL486-B5C
GMC Sierra Fuel Line Set 2009 C/K2500HD Crew Cab 6.0L FL486-B5C
GMC Sierra Fuel Line Set 2009 C/K2500HD Crew Cab 6.0L FL486-B5C
GMC Sierra Fuel Line Set 2009 C/K2500HD Crew Cab 6.0L FL486-B5C
GMC Sierra Fuel Line Set 2009 C/K2500HD Crew Cab 6.0L FL486-B5C
GMC Sierra Fuel Line Set 2009 C/K2500HD Crew Cab 6.0L FL486-B5C
GMC Sierra Fuel Line Set 2009 C/K2500HD Crew Cab 6.0L FL486-B5C
GMC Sierra Fuel Line Set 2009 C/K2500HD Crew Cab 6.0L FL486-B5C
GMC Sierra Fuel Line Set 2009 C/K2500HD Crew Cab 6.0L FL486-B5C

GMC Sierra Fuel Line Set 2009 C/K2500HD Crew Cab 6.0L FL486-B5C

MSRP: from
SALE: from
Save $69.59
from /
Stainless steel
Check Your Cab Configuration

Delivery Time & Rates

Zip/Postal Code:
SKU: FL486-B5C
  • Weight: 4

Shop LinesToGo for 2009 Sierra GMC truck fuel lines - 2500HD Crew Cab 6.5 ft & 8 ft box 6.0L

Nylon lines between the fuel line and the fuel tank are not included. However, you can purchase Stainless Steel Lines between fuel lines and fuel tank, 5076-01.

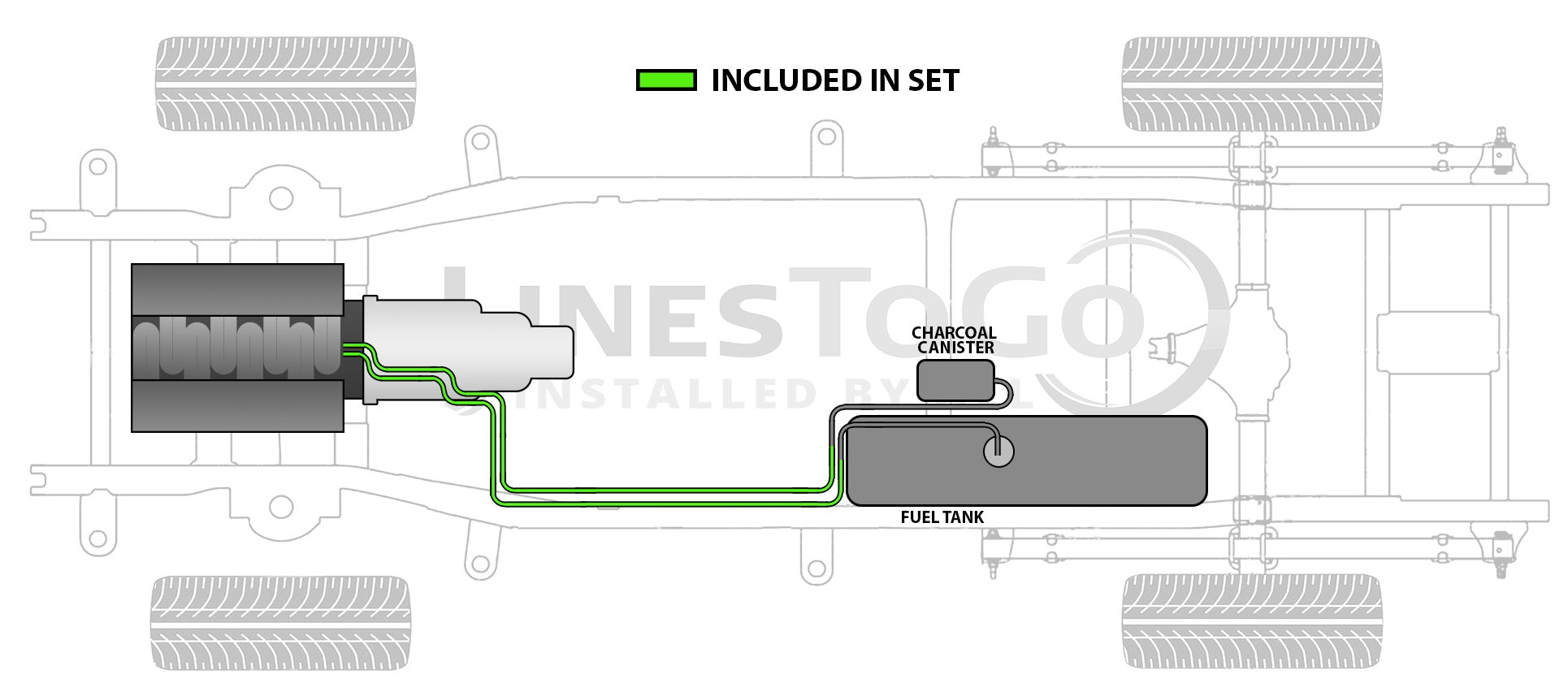

Location: Engine to Hose Connection off Fuel Tank

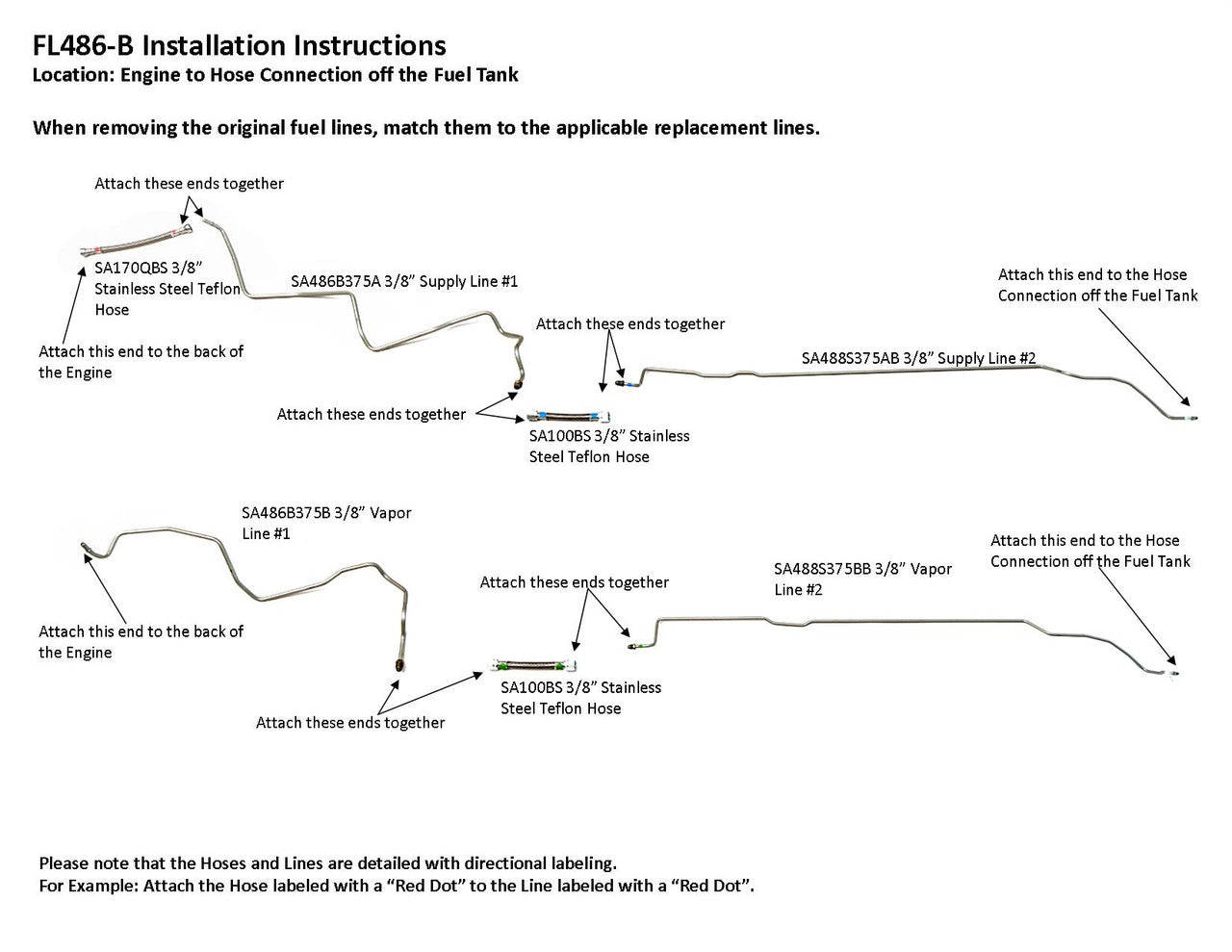

Please Note: Before installing your fuel line, shipping bends will need to be removed from the lines labeled SA488S375AB, SS488S375AB, SA488S375BB and SS488S375BB. See the video below on how to remove the shipping bend.

OEM Part Number: 15946198, 15946199

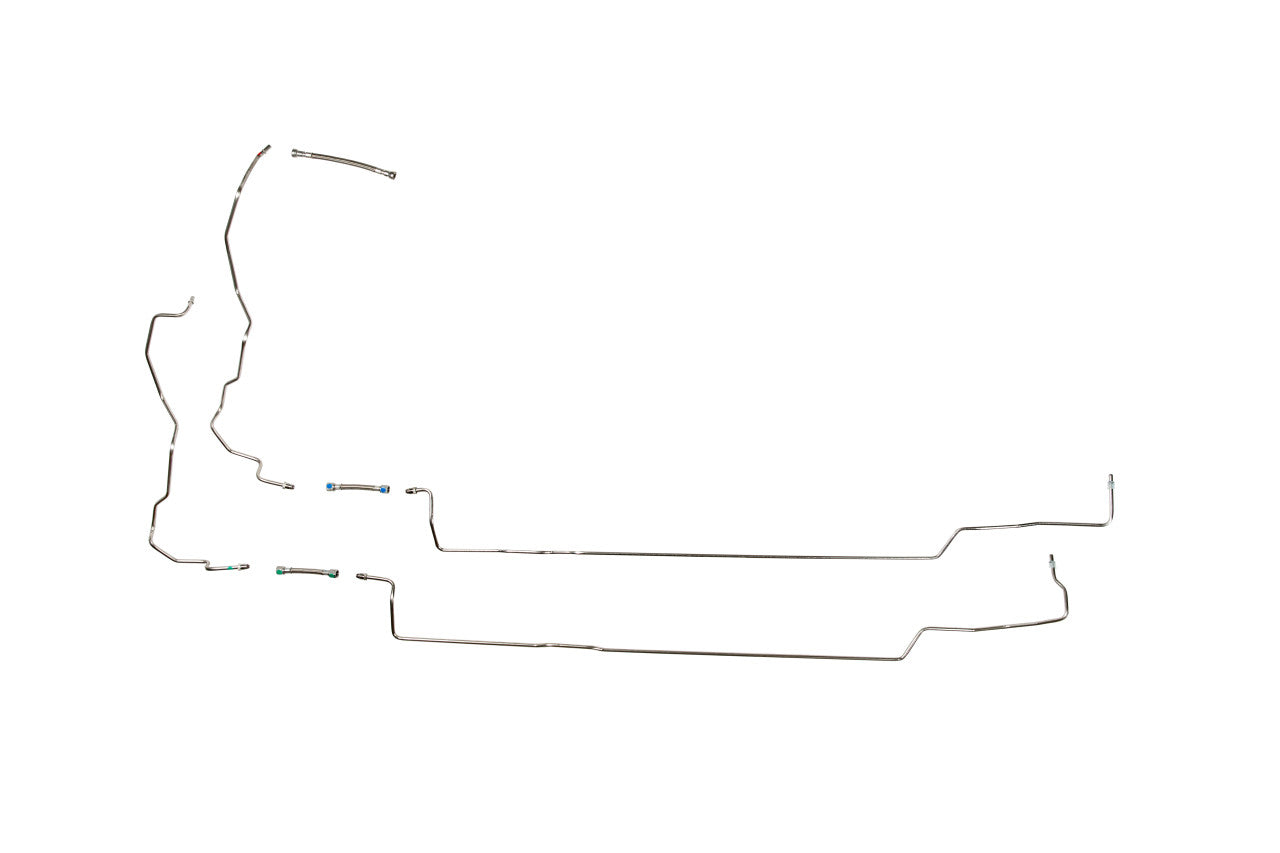

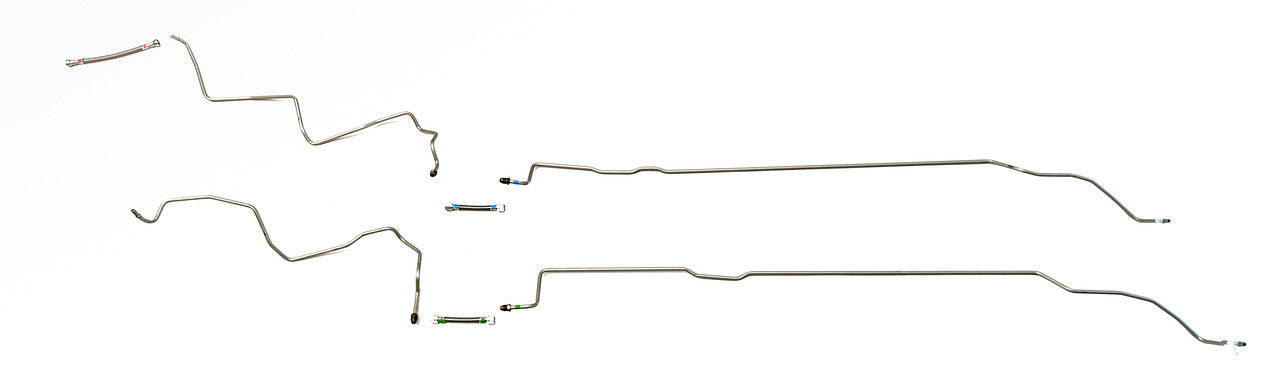

Included in Set: 1 supply line 3/8" ( in 2 easy to install sections), 1 vapor line 3/8" ( in 2 easy to install sections), hose to engine connection, hoses to join rear and front sections

Tube Construction: Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 39" x 12" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
