GMC Sierra Fuel Line Set 2005 C/K1500 Reg Cab 4.3L FL488-V2A

GMC Sierra Fuel Line Set 2005 C/K1500 Reg Cab 4.3L FL488-V2A
GMC Sierra Fuel Line Set 2005 C/K1500 Reg Cab 4.3L FL488-V2A
GMC Sierra Fuel Line Set 2005 C/K1500 Reg Cab 4.3L FL488-V2A
GMC Sierra Fuel Line Set 2005 C/K1500 Reg Cab 4.3L FL488-V2A
GMC Sierra Fuel Line Set 2005 C/K1500 Reg Cab 4.3L FL488-V2A
GMC Sierra Fuel Line Set 2005 C/K1500 Reg Cab 4.3L FL488-V2A
GMC Sierra Fuel Line Set 2005 C/K1500 Reg Cab 4.3L FL488-V2A
GMC Sierra Fuel Line Set 2005 C/K1500 Reg Cab 4.3L FL488-V2A
GMC Sierra Fuel Line Set 2005 C/K1500 Reg Cab 4.3L FL488-V2A
GMC Sierra Fuel Line Set 2005 C/K1500 Reg Cab 4.3L FL488-V2A
GMC Sierra Fuel Line Set 2005 C/K1500 Reg Cab 4.3L FL488-V2A
GMC Sierra Fuel Line Set 2005 C/K1500 Reg Cab 4.3L FL488-V2A
GMC Sierra Fuel Line Set 2005 C/K1500 Reg Cab 4.3L FL488-V2A
GMC Sierra Fuel Line Set 2005 C/K1500 Reg Cab 4.3L FL488-V2A
GMC Sierra Fuel Line Set 2005 C/K1500 Reg Cab 4.3L FL488-V2A
GMC Sierra Fuel Line Set 2005 C/K1500 Reg Cab 4.3L FL488-V2A
GMC Sierra Fuel Line Set 2005 C/K1500 Reg Cab 4.3L FL488-V2A
GMC Sierra Fuel Line Set 2005 C/K1500 Reg Cab 4.3L FL488-V2A
GMC Sierra Fuel Line Set 2005 C/K1500 Reg Cab 4.3L FL488-V2A
GMC Sierra Fuel Line Set 2005 C/K1500 Reg Cab 4.3L FL488-V2A

GMC Sierra Fuel Line Set 2005 C/K1500 Reg Cab 4.3L FL488-V2A

SALE:
Save $61.84
/

Delivery Time & Rates

Shipping calculated at checkout.

Shop LinesToGo for your 2005 GMC truck. Our FL488-V2A set of Sierra fuel lines are made for your C/K 1500 regular cab trucks with 4.3L engines

Fuel Line Set 05 Sierra C/K Series 1500 Reg Cab 6.5 ft & 8 ft box 2WD & 4WD 4.3L

SKU: FL488-V2A
Box Dimensions 39" x 11" x 7"

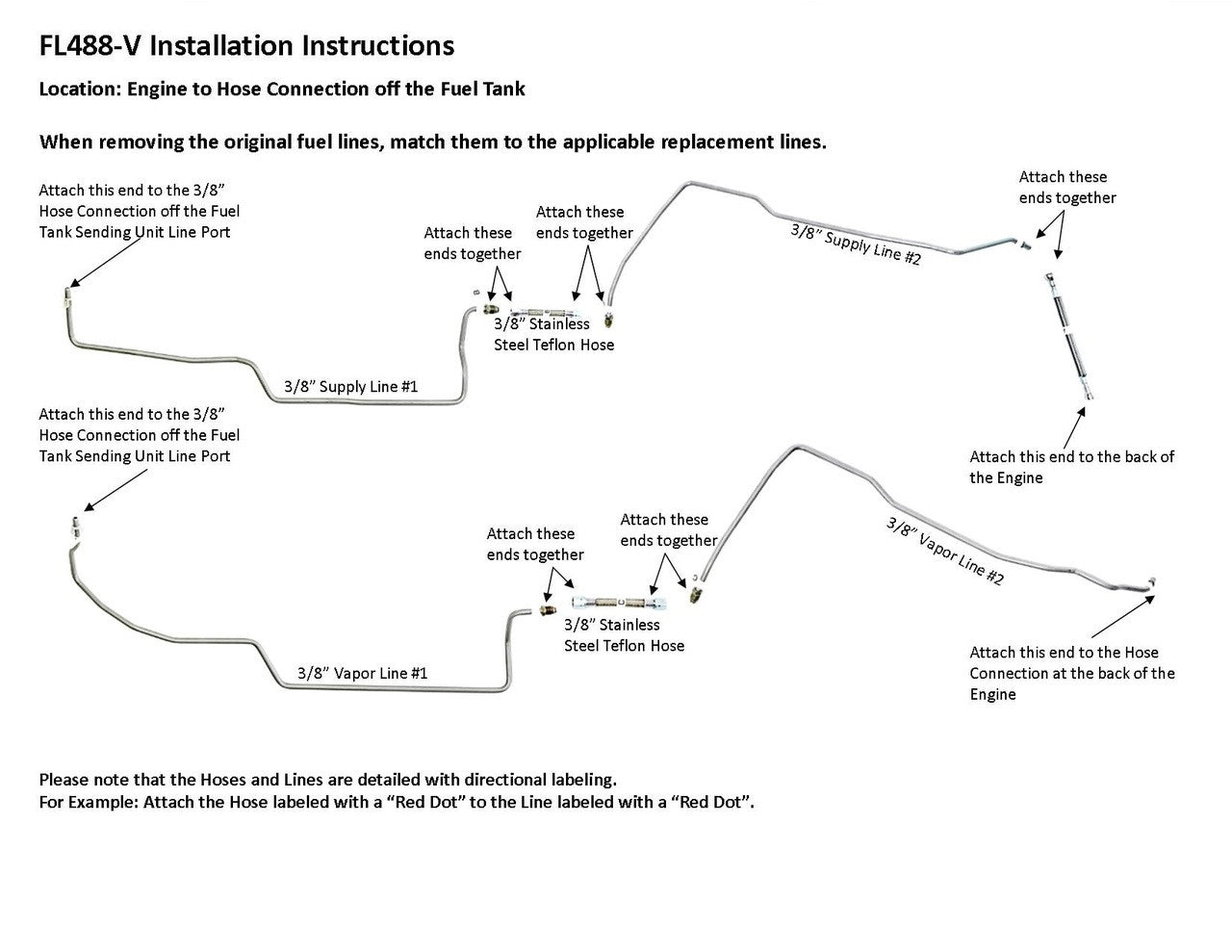

Engine to Hose Connection off Fuel Tank

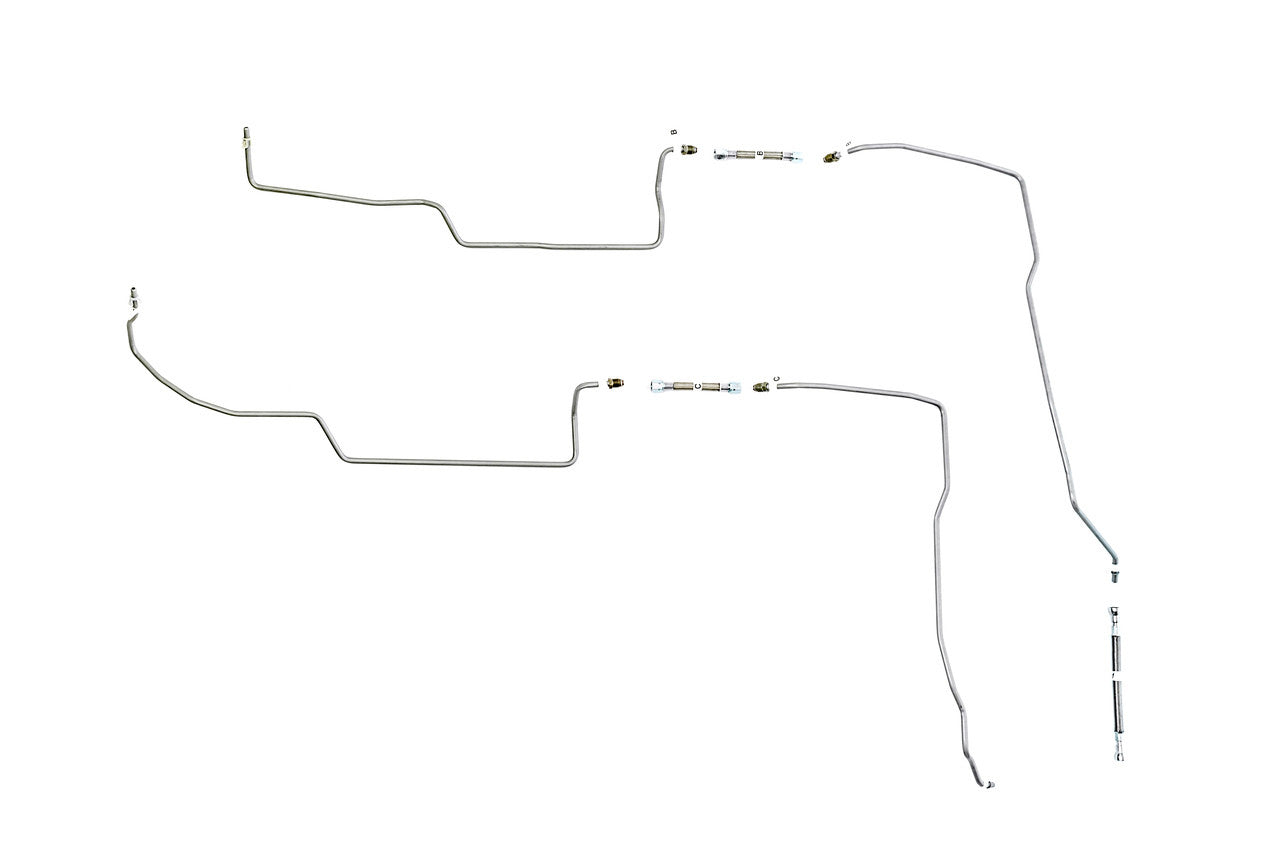

1 supply line 3/8" ( in 2 easy to install sections), 1 vapor line 3/8" ( in 2 easy to install sections), hose to engine connection, hoses to join rear and front sections

15946184

Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Avoid Ordering The Wrong Part

1-855-781-5992 (Toll Free)

Complete The Job With

Sale
3070-01 Nylon Line Repair Kit 2 Nylon Lines 3/8"
Save $13.75
Sale
Quick Disconnect Tool, Steel 3/8" & 5/16" 5230-01
Save $3.12

Overall rating: 4.6666665 / 5 from 6 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Mechanic recommended this website to

"Mechanic recommended this website to order my lines, they arrived way faster than I expected, free next day shipping iirc and on time too. Have not seen or smelled and fuel leak in the 2 weeks ive daily drove the truck since so they must fit excellent also, material looked to be quality stuff as well"

— Daniel L. (5/5)

The lines were shipped and

"The lines were shipped and received on time. Very good quality for the money. They were a little hard to fit through the body but that was due to the type of vehicle. ( and it was the 1st ones I've changed). Overall, very satisfied."

— William C. (5/5)

These people have it going

"These people have it going on ! Top notch ! I will definitely be buying from again ,"

— Todd R. (5/5)

Excellent fit to 2005 GMC

"Excellent fit to 2005 GMC 1500 Sierra , Very good and Identical bends as original, Instuctions were Very Easy for installation, Thank you,will be testing them out after I install a new Fuel Pump"

— Stanley F. (5/5)

Fit perfect but was a

"Fit perfect but was a little hard to install. I needed to unbolt the abs module to run the lines and that was not mentioned in the instructions."

— Greg S. (5/5)

They were nice , But

"They were nice , But they came with no hardware, Had to reuse all the old clips . As far as the color labels I did not see a color chart . Why not just label them pump, return and evap? Screw those color circles , Just label the lines for what they are. The stupid color circles kept falling off. All and all the lines were very nice . The two piece lines make a world of difference . JUST STOP USING THE DANG COLOR CIRCLES . LABEL THE LINE FOR WHAT IT IS EITHER PUMP , RETURN OR EVAP"

— George M. (3/5)

Q&A
