Name: GMC Sierra Fuel Line Set 2005 C/K1500 Ext Cab 5.3L Flex Fuel FL488-QX2
Brand: Lines - To - Go
SKU: FL488-QX2
Price: 313.34 USD
Availability: InStock

Year Make & Model

GMC Sierra Fuel Line Set 2005 C/K1500 Ext Cab 5.3L Flex Fuel FL488-QX2

Price

SALE:

Save $78.34

Delivery Time & Rates

Shop LinesToGo for your 2005 GMC Sierra truck. Our FL488-QX2 set of fuel lines are ideal for extended cabs with 5.3L engines

Fuel Line Set 2005 Sierra 1500 Ext Cab 6.5 ft & 8 ft box 2WD & 4WD 5.3L Flex Fuel

Nylon lines between the fuel line and the fuel tank are not included. However, you can purchase Stainless Steel Lines between fuel lines and fuel tank, 5076-01B

SKU: FL488-QX2

Weight: 6

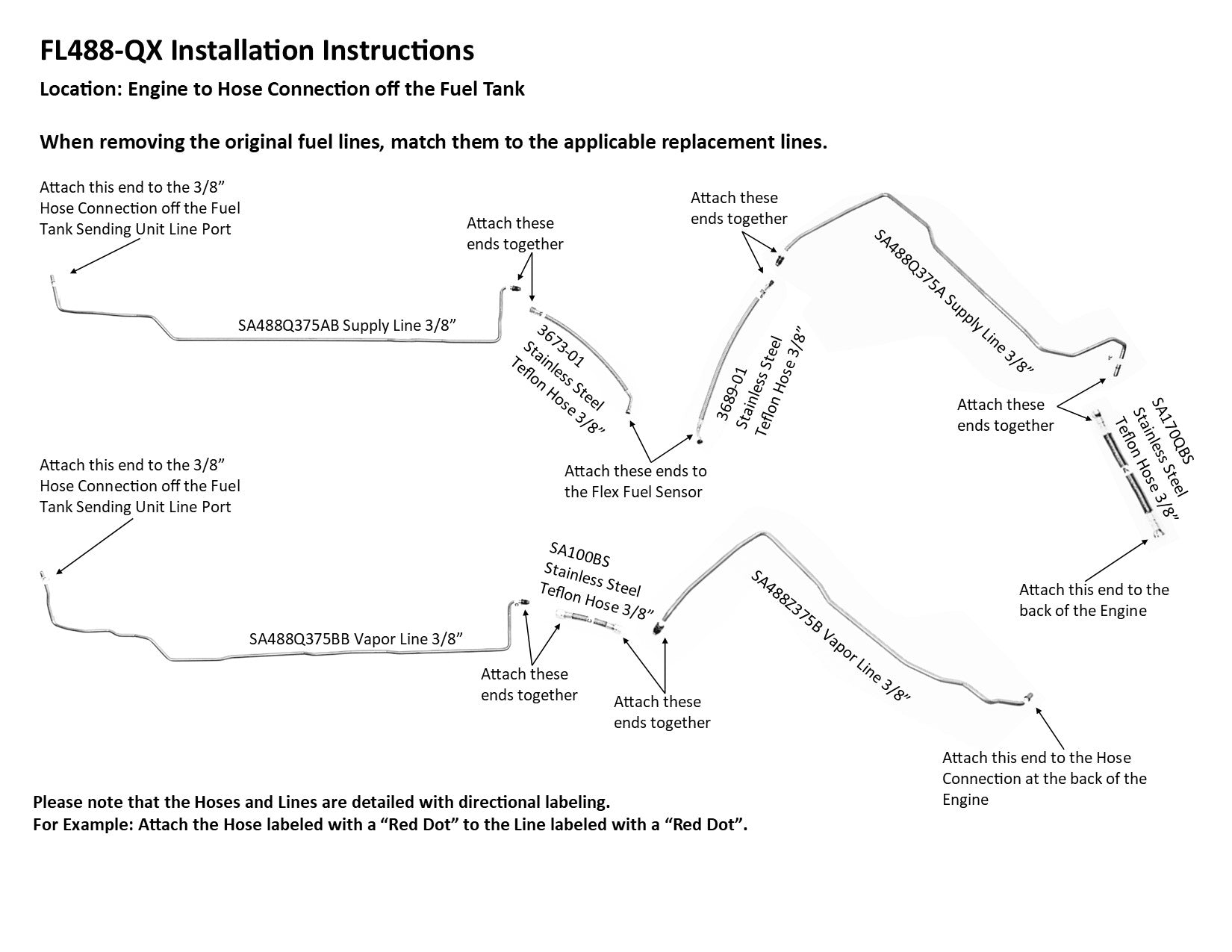

Installation Instructions

Box Dimensions 57" x 11" x 7"

Engine to Hose Connection off Fuel Tank

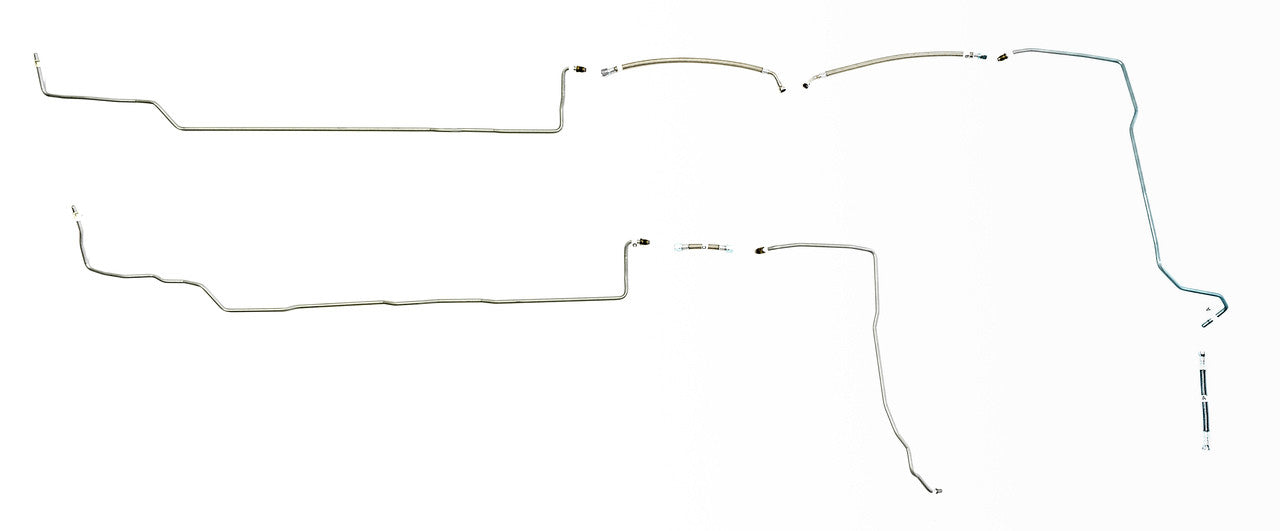

1 supply line 3/8" ( in 2 easy to install sections), 1 vapor line 3/8" ( in 2 easy to install sections), hose to engine connection, hoses to flex fuel sensor, hose to join rear and front section

15237136

Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.
