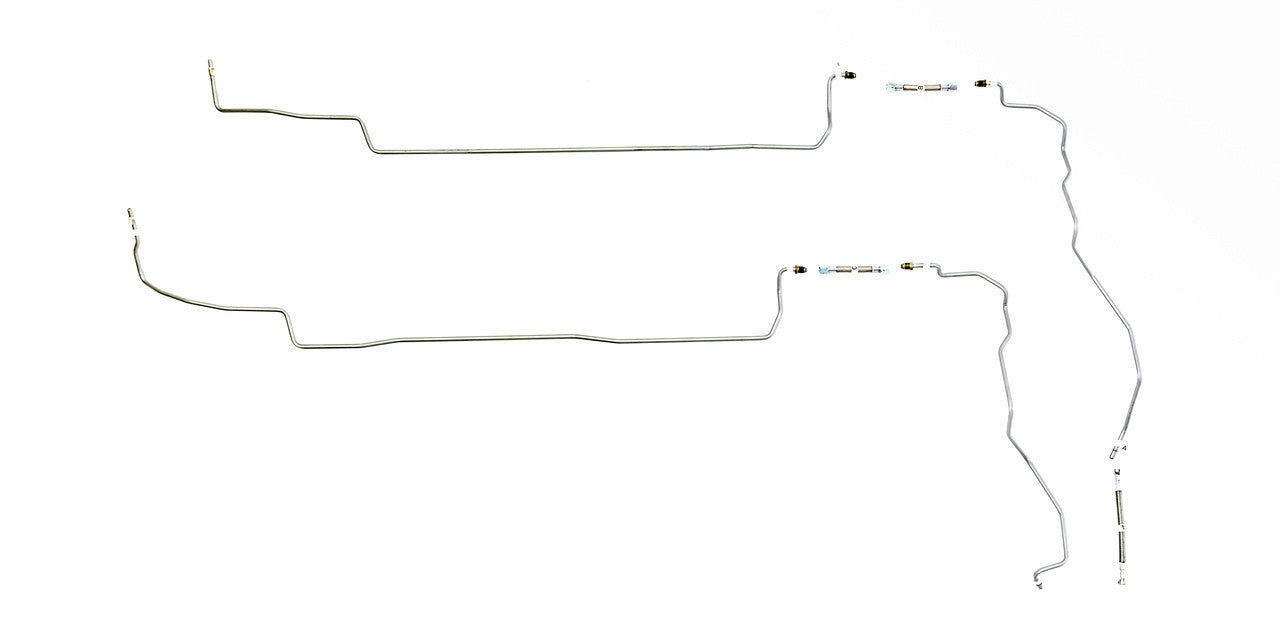

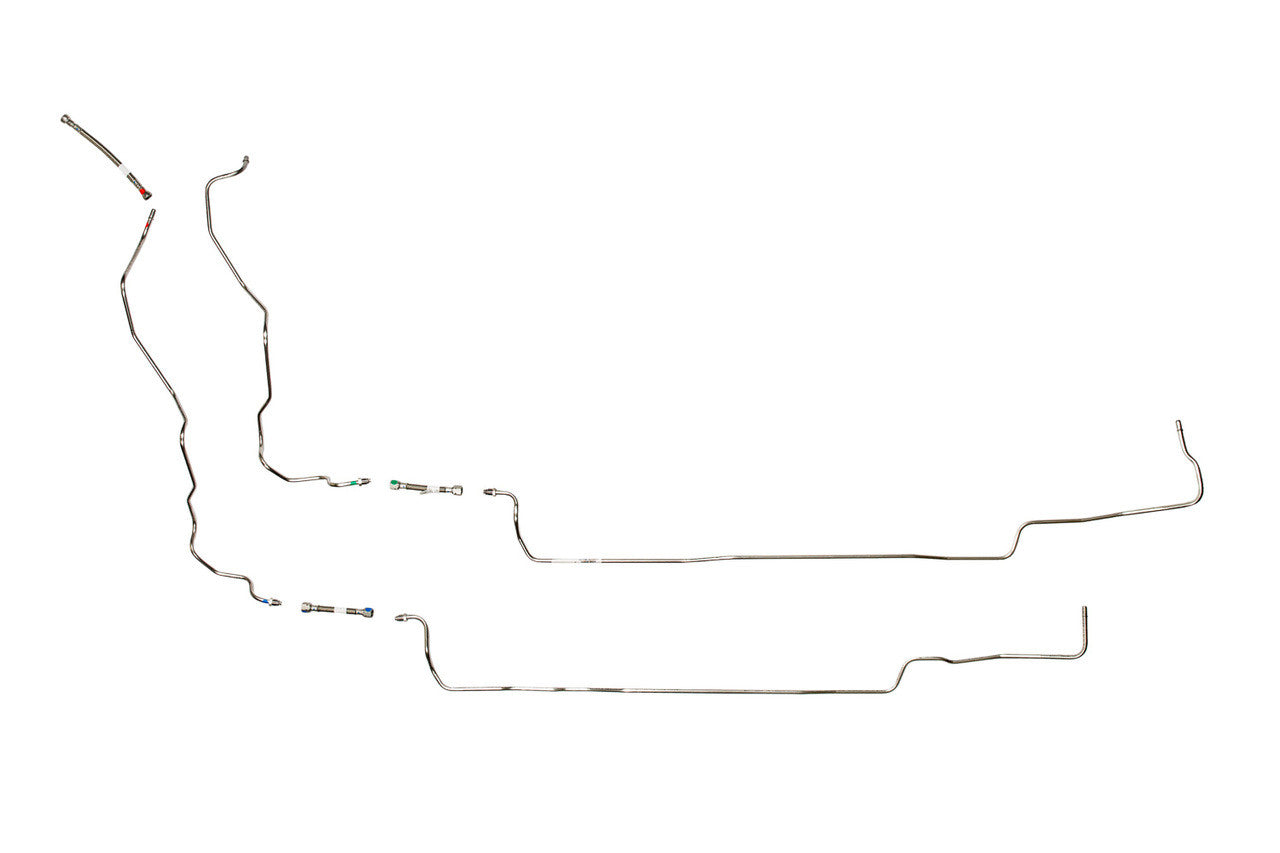

Shop LinesToGo for all of your 2004 GMC Sierra models. The FL488-P2A set of fuel lines are perfect for 2500HD/3500HD/3500 models with Ext Cab 8ft Bed and 6.0L engines.

Nylon lines between the fuel line and the fuel tank are not included. However, you can purchase Stainless Steel Lines between fuel lines and fuel tank, 5076-01.

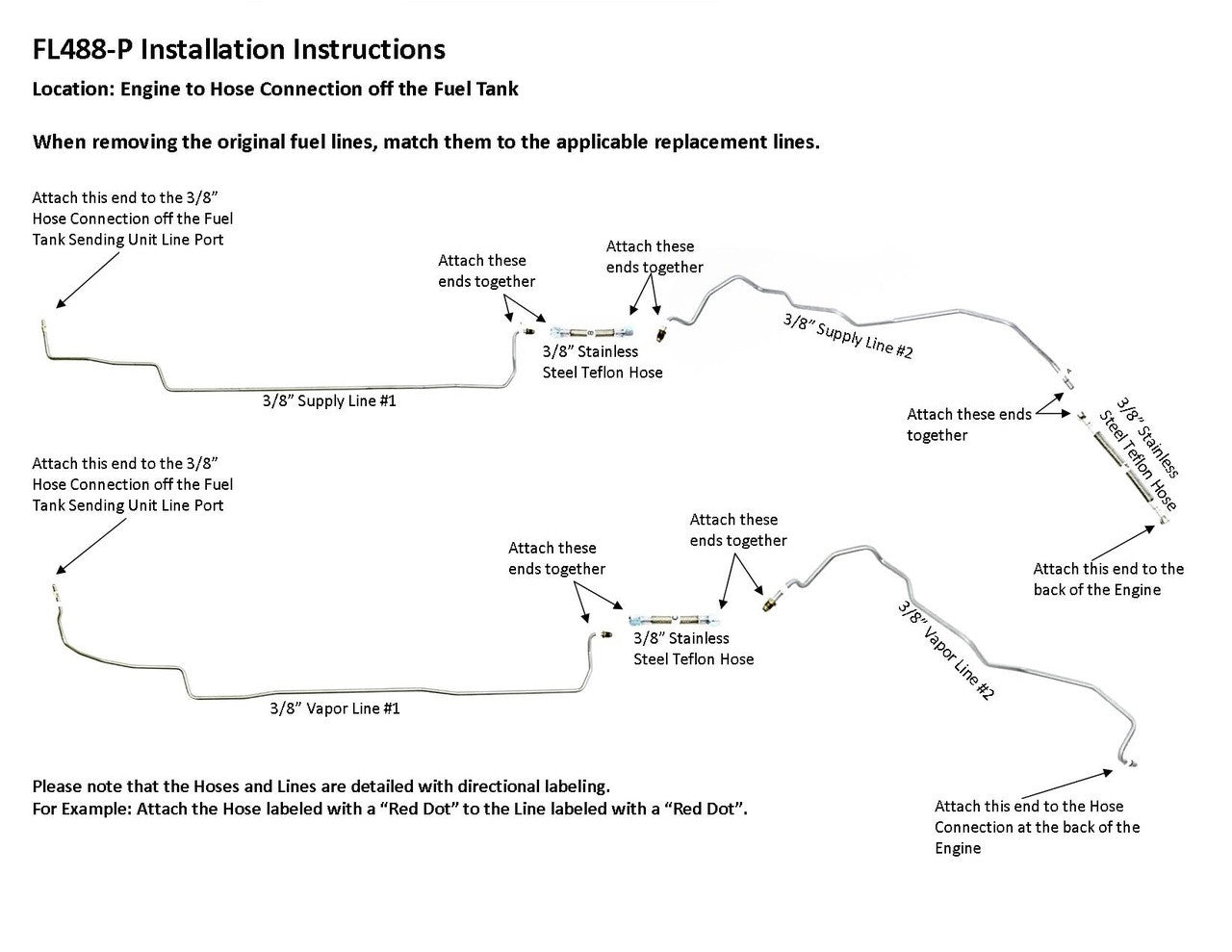

Location: Engine to Hose Connection off Fuel Tank

OEM Part Number: 15946200

Included in Set: 1 supply line 3/8" ( in 2 easy to install sections), 1 vapor line 3/8" ( in 2 easy to install sections), hose to engine connection, hoses to join rear and front sections

Tube Construction: Lines are constructed from Galfan® coated  steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 59" X 12" X 7"
