GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel

w/Fuel Cooler Line w/Engine Code LB7 (Eighth VIN Digit #1) Duramax Diesel

GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel
GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel
GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel
GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel
GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel
GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel
GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel
GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel
GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel
GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel
GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel
GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel
GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel
GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel
GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel
GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel
GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel
GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel
GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel
GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel
GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel
GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel

GMC Sierra Fuel Line Set 2003 C/K2500HD/3500 Ext Cab 6.6L Diesel w/Engine Code LB7 SS588-B2C Stainless Steel

w/Fuel Cooler Line w/Engine Code LB7 (Eighth VIN Digit #1) Duramax Diesel

SALE:
Save $82.24
/

Delivery Time & Rates

Shipping calculated at checkout.

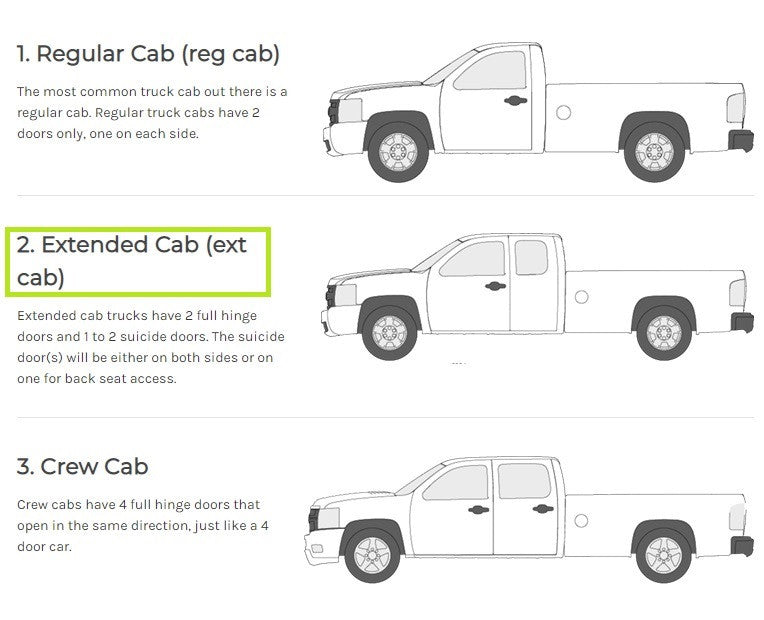

Shop LinesToGo for your 2003 GMC Sierra truck fuel lines. Our FL588-B2C set of fuel lines are crafted for all C/K2500HD/3500 with extended cabs and a 6.6L engine Stainless Steel Set. They must also have an engine reading the code LB7.

Fuel Cooler Line included

Not Included in Set: Hoses between fuel line and fuel tank 5070-01B and Cooler Connector Lines FL591-A2B or SS591-A2B. These parts are available for purchase separately

Please Note: If you have purchased an aftermarket replacement fuel cooler, the fuel cooler connector lines attached to the fuel cooler may be different than the OEM fuel cooler connector lines. As shown under images - in Illustration A, the aftermarket fuel cooler connector lines are made with a straight sharp edge. When these are plugged into the fuel cooler line, they will cut the o-ring inside the connector causing a leak. If you wish to replace the fuel cooler connector lines before installation of the fuel cooler line, they are available to purchase under part number FL591-A as shown in Illustration B

We are unable to warranty any of our products that are damaged by aftermarket fuel cooler connector lines.

SKU: SS588-B2C
Box Dimensions 47" x 12" x 12"

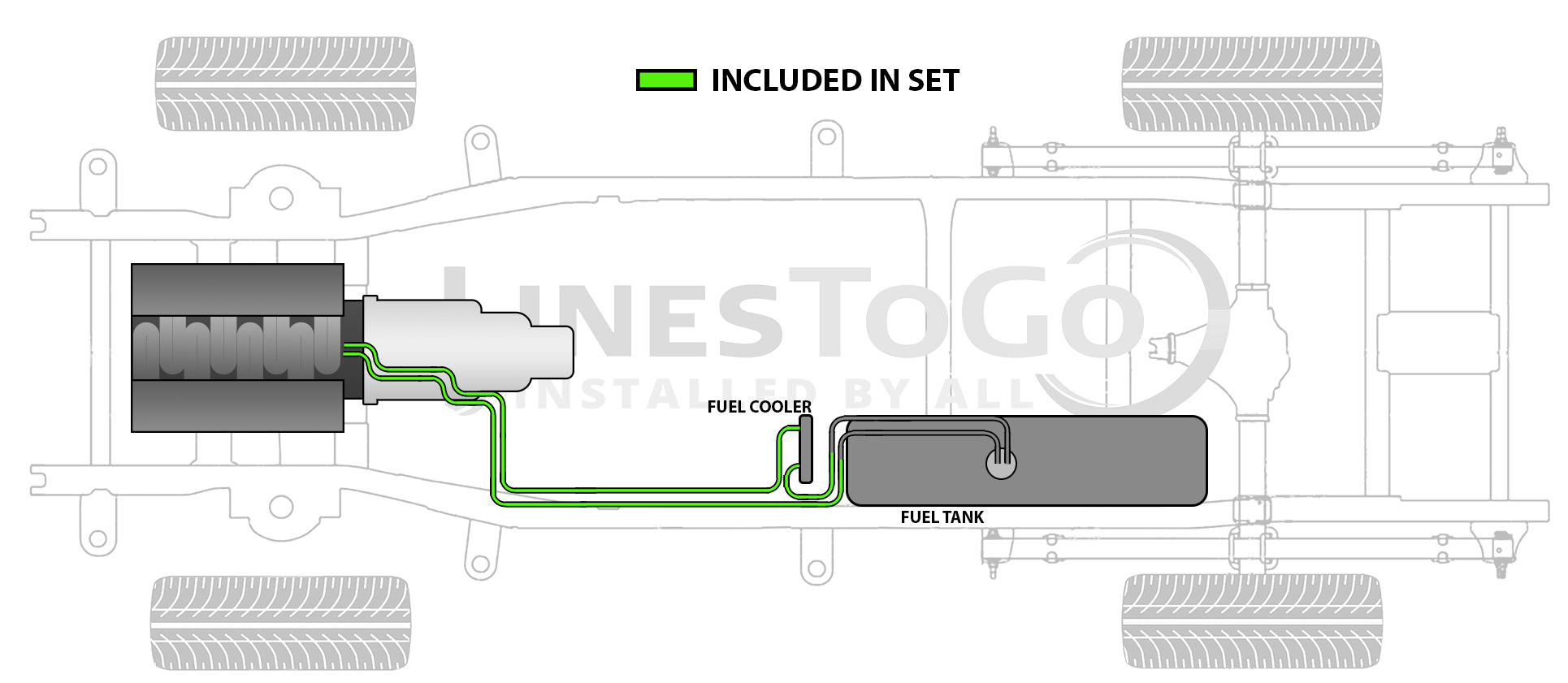

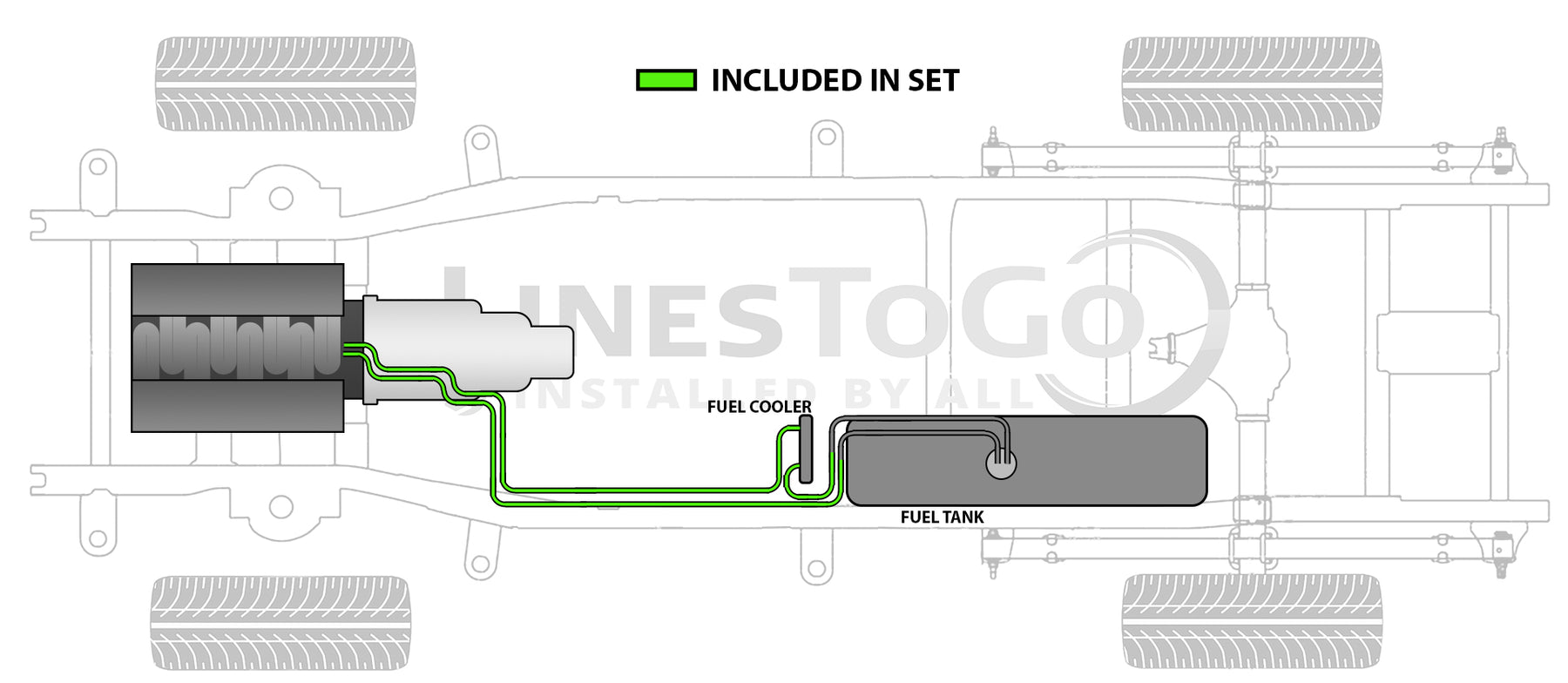

Engine to Hose Connection at Fuel Tank

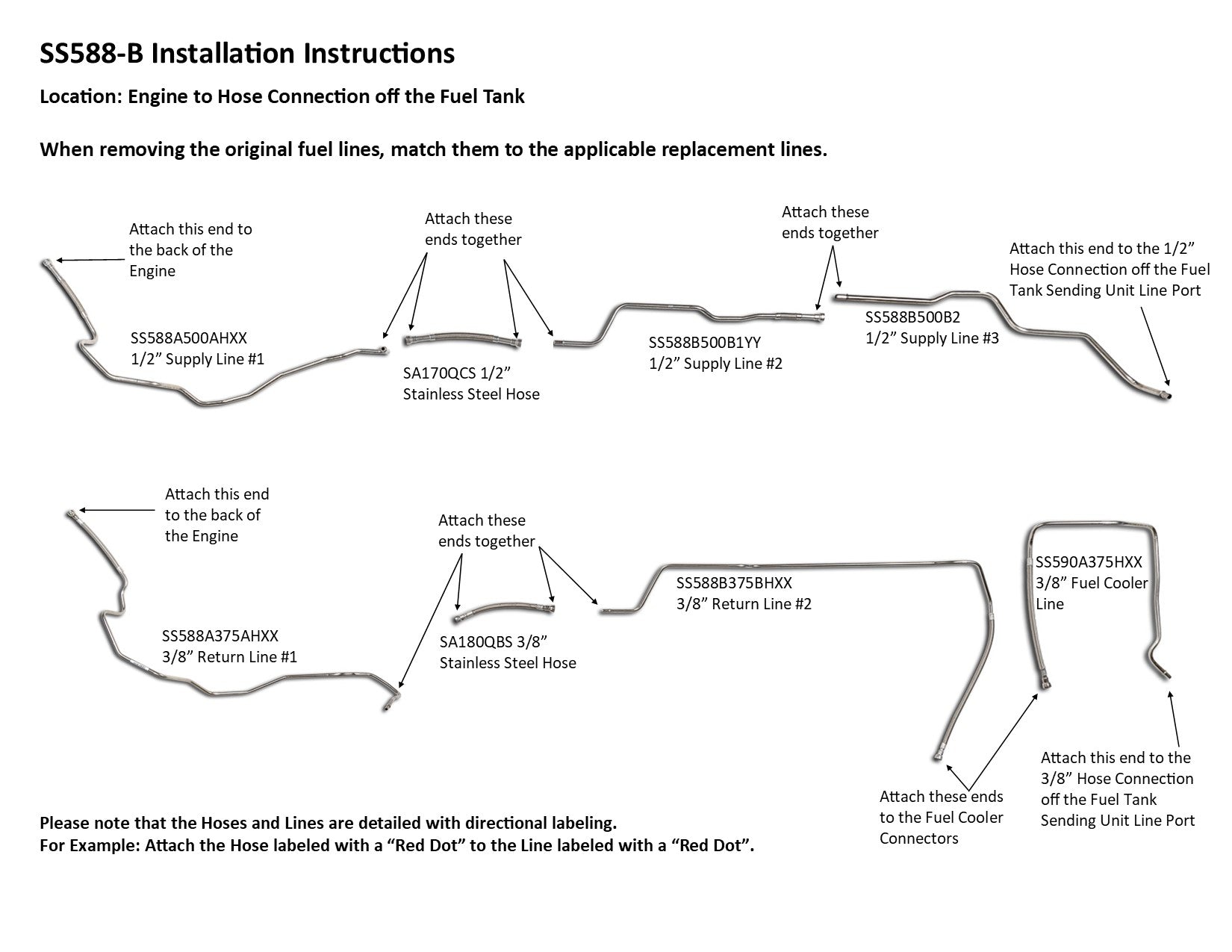

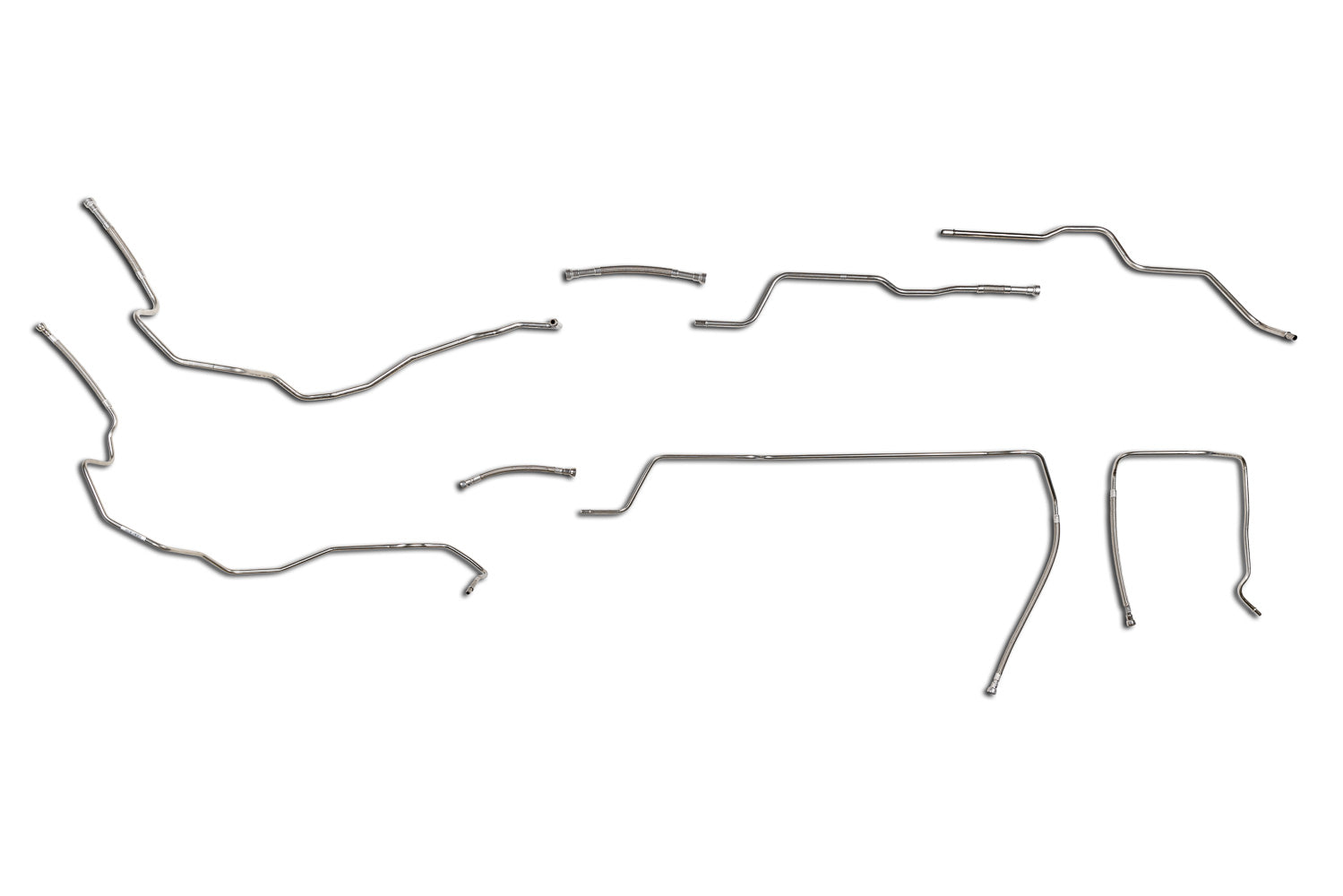

1 supply line 1/2" ( in 2 easy to install sections), 1 return line 3/8" ( in 2 easy to install sections), 1 fuel cooler line 3/8" , hoses to engine connection, hoses to join rear and front sections, hose to fuel cooler connection

15169342

Lines are constructed from Stainless Steel Tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.
