Non Flex Fuel

SALE:
Save $49.59
/

Delivery Time & Rates

Shipping calculated at checkout.

Delivery Time & Rates

Shop LinesToGo for your 2000 GMC Sierra truck. Our FL488-H2A fuel line set are made for 1500 trucks with Regular Cabs and 4.8L Non Flex Fuel engines.

Fuel Line Set 2000 GMC Sierra 1500 Reg Cab 6.5ft/8ft box 2WD & 4WD for 4.8L Non Flex Fuel engines

Nylon Lines Between Fuel Lines and Fuel Tank:

Nylon lines between the fuel line and the fuel tank are not included. We do not make the nylon lines for this vehicle. However, you can purchase a nylon repair kit, 3069-01, which will attach to your existing nylon line providing a new connector for the supply and return lines to connect to.

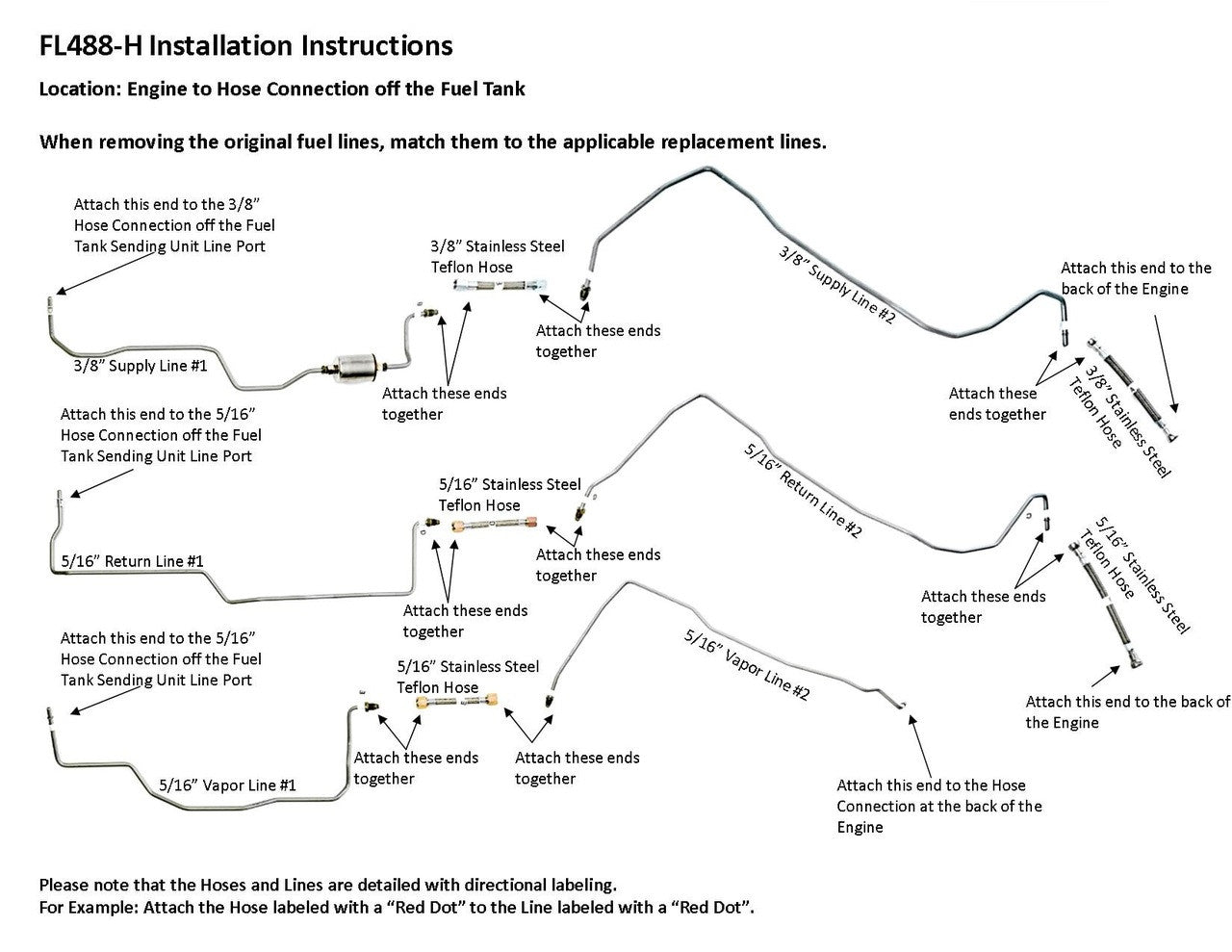

Nylon Installation Instructions:

Step 1

Cut the new nylon hose in the same position as the original nylon hose.

Step 2

Cut the original nylon hose in the same position as the new nylon hose.

Step 3

Use the original nylon hose with connector and attach it with supplied union to the new nylon hose.

SKU: FL488-H2A
Box Dimensions 39" x 11" x 7"

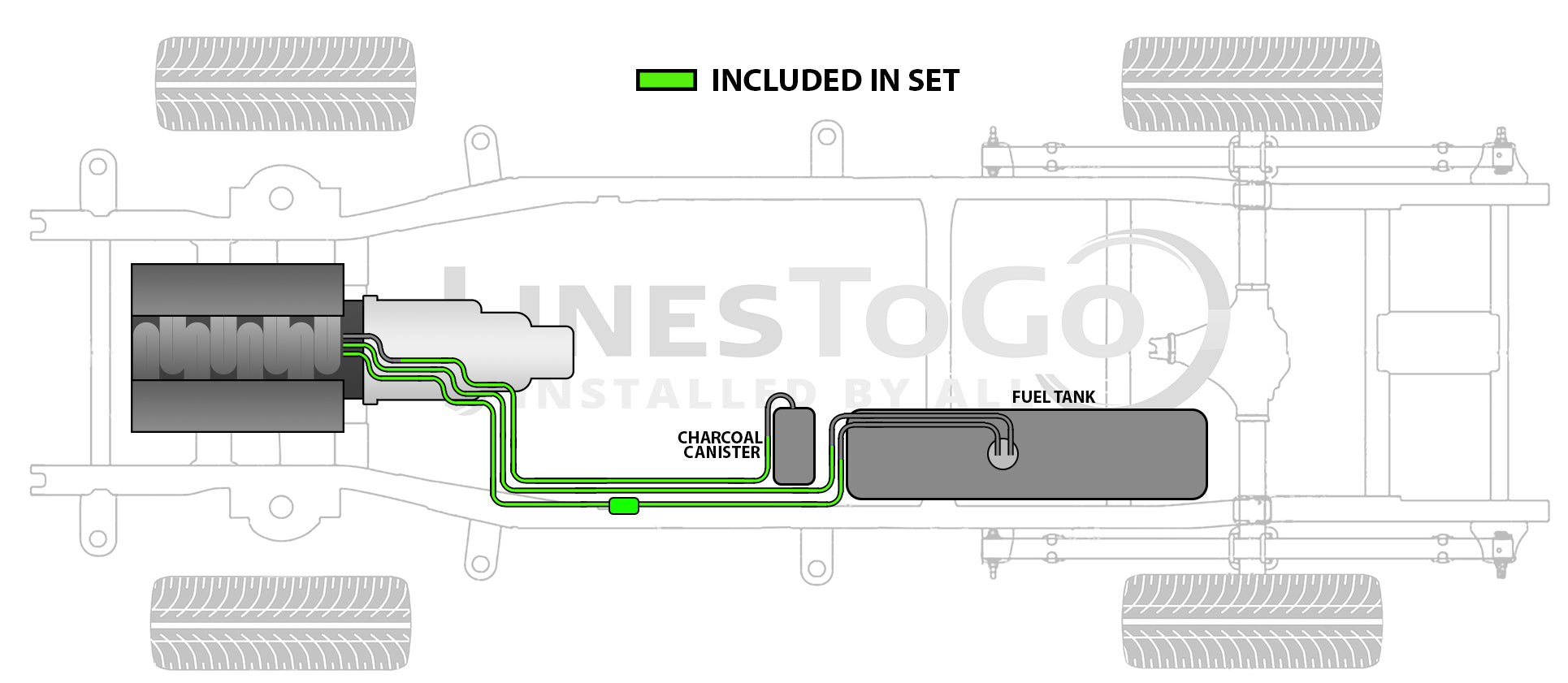

Engine to Hose Connection off Fuel Tank

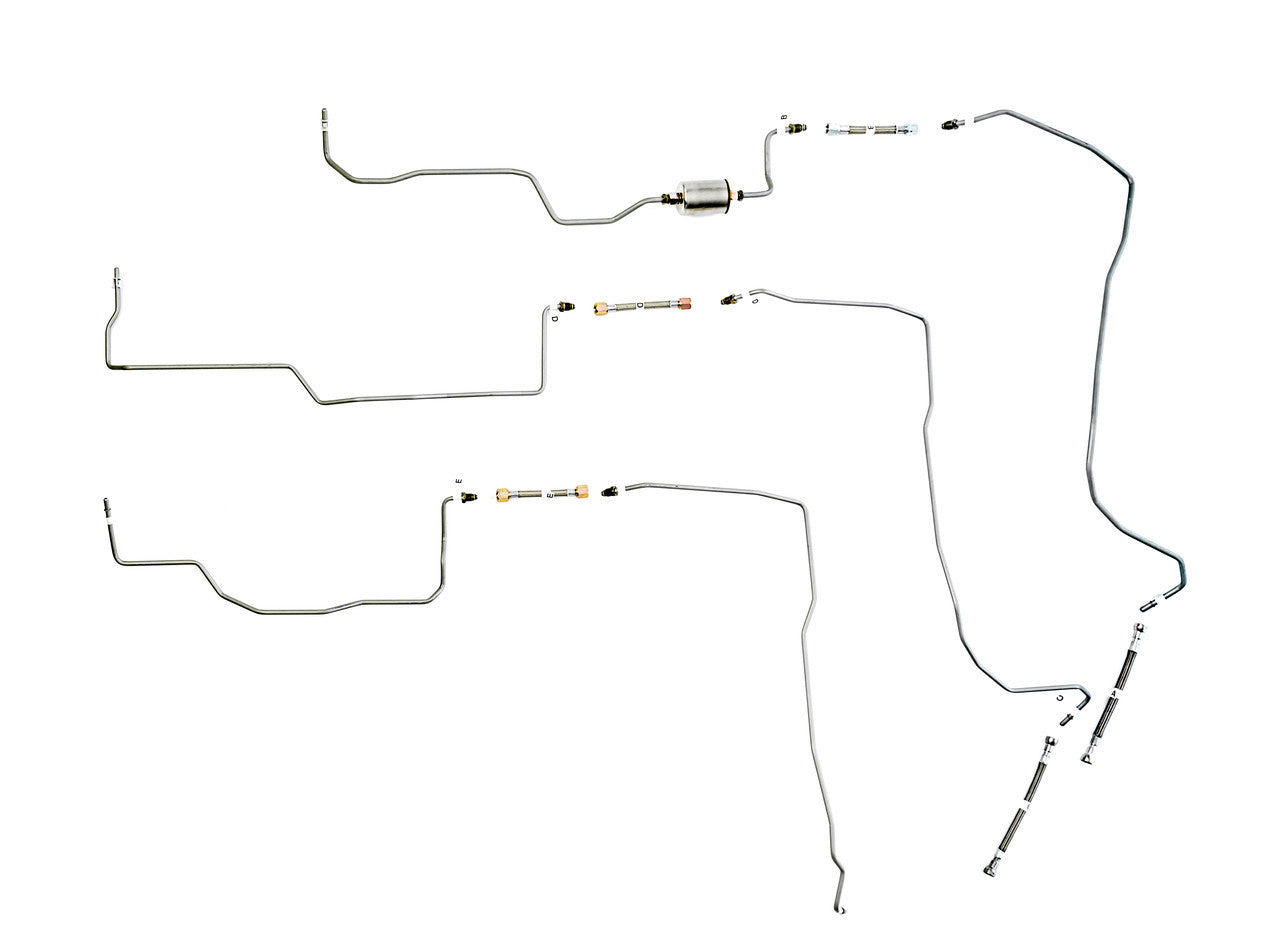

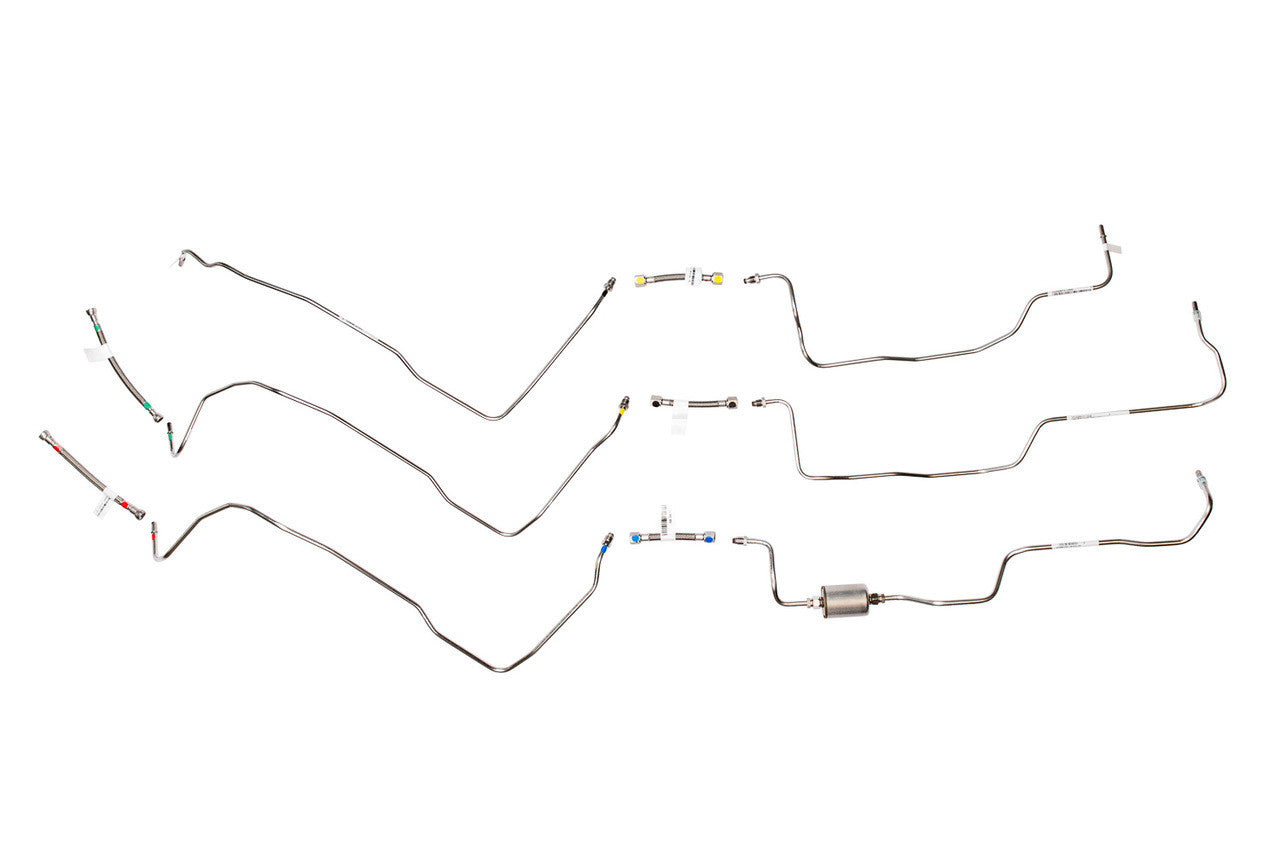

1 supply line 3/8" ( in 2 easy to install sections), 1 return line 5/16" ( in 2 easy to install sections), 1 vapor line 5/16" ( in 2 easy to install sections), hoses to engine connection, hoses to join rear and front sections, 1 fuel filter

15765805

Lines are constructed from Galfan® coated  steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

All hoses are made from Stainless Steel Braided Teflon with OE style fittings

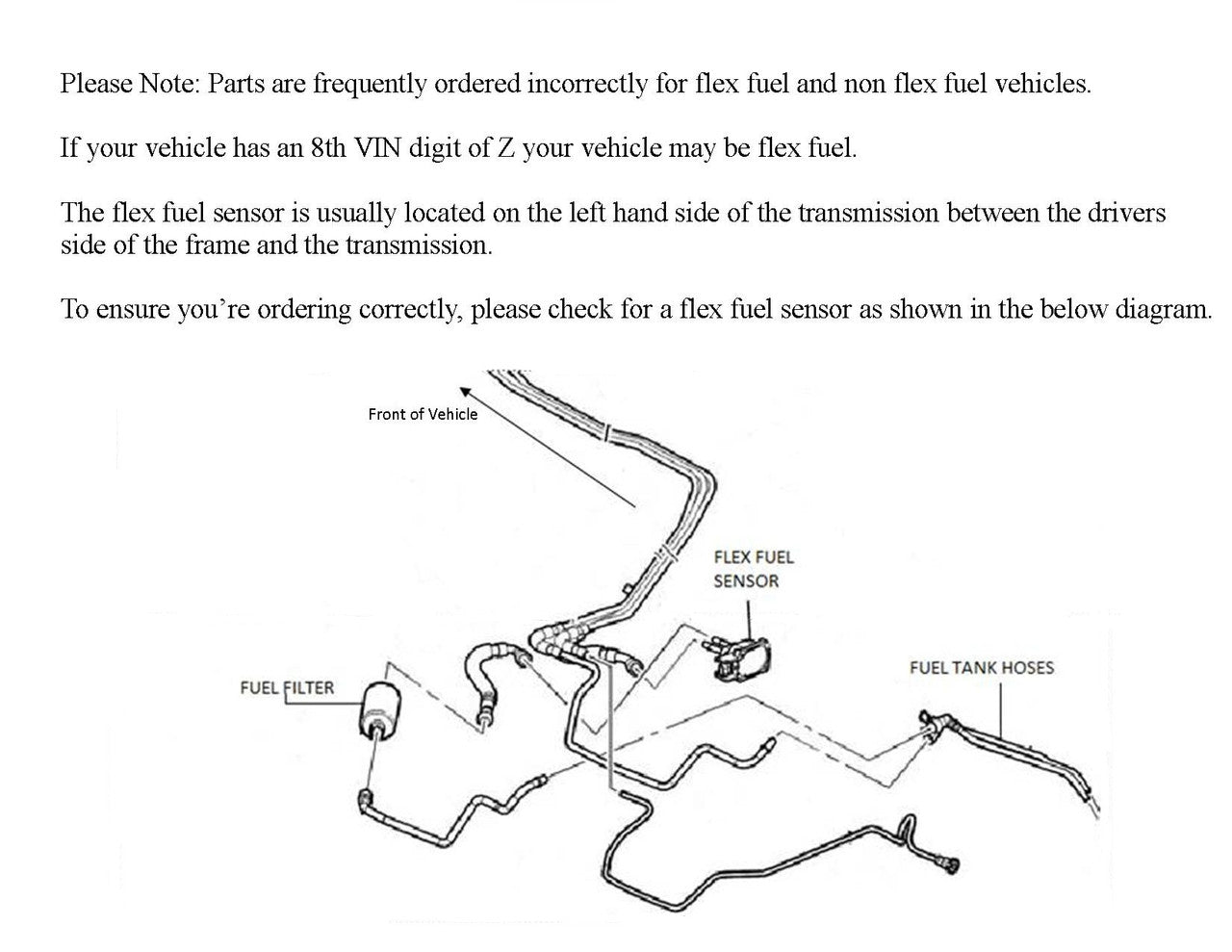

Avoid Ordering The Wrong Part

1-855-781-5992 (Toll Free)

Complete The Job With

Sale
3069-01 Nylon Line Repair Kit 2 Nylon Lines 3/8" & 5/16"
Save $13.75
Sale
GMC Sierra Fuel Line Set 2000 1500 Reg Cab 4.8L Non Flex Fuel SS488-H2A Stainless Steel
Non Flex Fuel
Save $57.09
Sale
Quick Disconnect Tool, Steel 3/8" & 5/16" 5230-01
Save $3.12

Overall rating: 4.2727275 / 5 from 11 reviews.

AI Generated Review Summary

Summary topics

Review topics: [fit, quality, install, work, lines, leaks].

Review highlights

Reviews

Too long

"Too long"

— Dalton M. (1/5)

The Lines were bent correctly

"The Lines were bent correctly and the online videos are informative. Worked great!"

— Charles B. (5/5)

My Installation experience

"I installed the line set in my 2000 GMC Sierra 4x4 with a regular cab. The lines were a perfect fit and I can highly recommend them. The installation was a lot harder than I was expecting. Here is what I had to do. I removed the front driveshaft, transfer case shifter, and a small heat shield on the firewall. I also removed the rear transmission mount so I could lower the transmission a few inches. All this was to get clearance to jockey the lines around up to the rear of the engine. They are a very tight fit between the transmission and the cab. I already had the fuel tank out to replace the fuel pump and that gave some extra clearance for the rear section of the lines. I hope this info can help someone out doing the same job. If I had known what I needed to remove I could have done the job in a lot less time."

— Mike M. (5/5)

Every thing worked well thank

"Every thing worked well thank you"

— John M. (5/5)

Flawless, cheaper and easier to

"Flawless, cheaper and easier to install than the 1 piece GM lines."

— Justin W. (5/5)

Some of the bends in

"Some of the bends in the upper set were way off."

— Leonard B. (3/5)

Worked out Fantastic ! Top

"Worked out Fantastic ! Top notch quality ! Very happy with start to finish . Highly recommend and you have a long-time customer !!"

— Dan B. (5/5)

The fuel lines fit properly

"The fuel lines fit properly and no leakage. Great job"

— Steve G. (5/5)

Very good quality. Difficult installation

"Very good quality. Difficult installation in tight conditions, but anything would be. Being able to install each line individually is helpful. Attached to tank and engine compartment with no leaks. We did have a communication problem though. I also needed the nylon EVAP line to the engine. I specified that when I ordered and was told it was included, only to find that it was not. When I called back, I was told that you don't include that. This makes it difficult to do the complete job with your products. Had to order the EVAP line from the dealer. Thanks for a very good product."

— John S. (4/5)

I had a few issues

"I had a few issues with this project, first 2 of the flex lines where not in the box when I received it. After sending an a message, the 2 lines were at my door the next day, great customer service. The only other issue was the supply line was missing one bend but I was able to bend the line manually. In the end, the price was good and the product worked well."

— Brian O. (4/5)
