Product Overview
Shop LinesToGo for 2001 Sierra truck fuel lines - 2 Dr Cab & Chassis C3500 2WD 183.5" WB w/Rear Auxiliary Fuel Tank w/RPO Code C5B (15,000 GVW) for 8.1L engines.

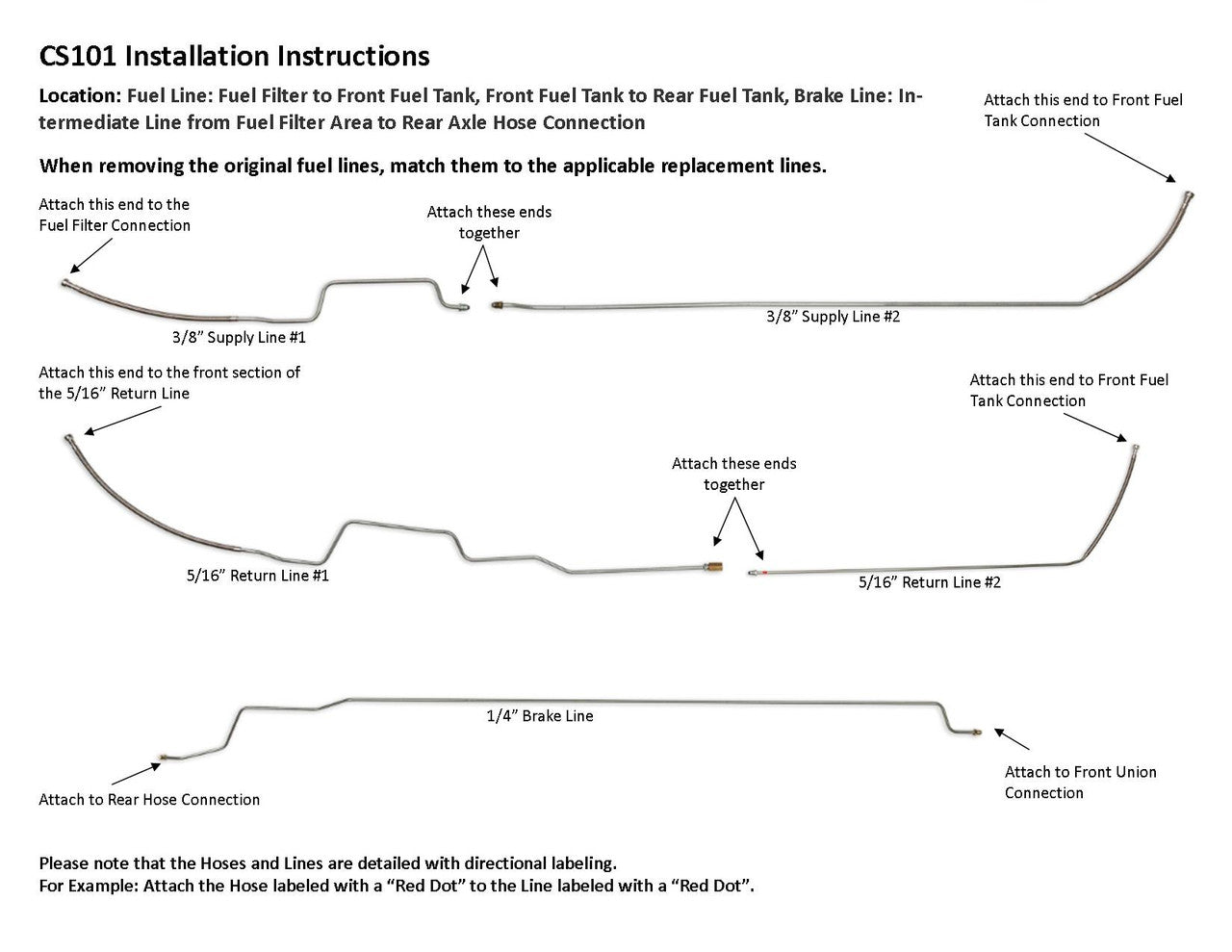

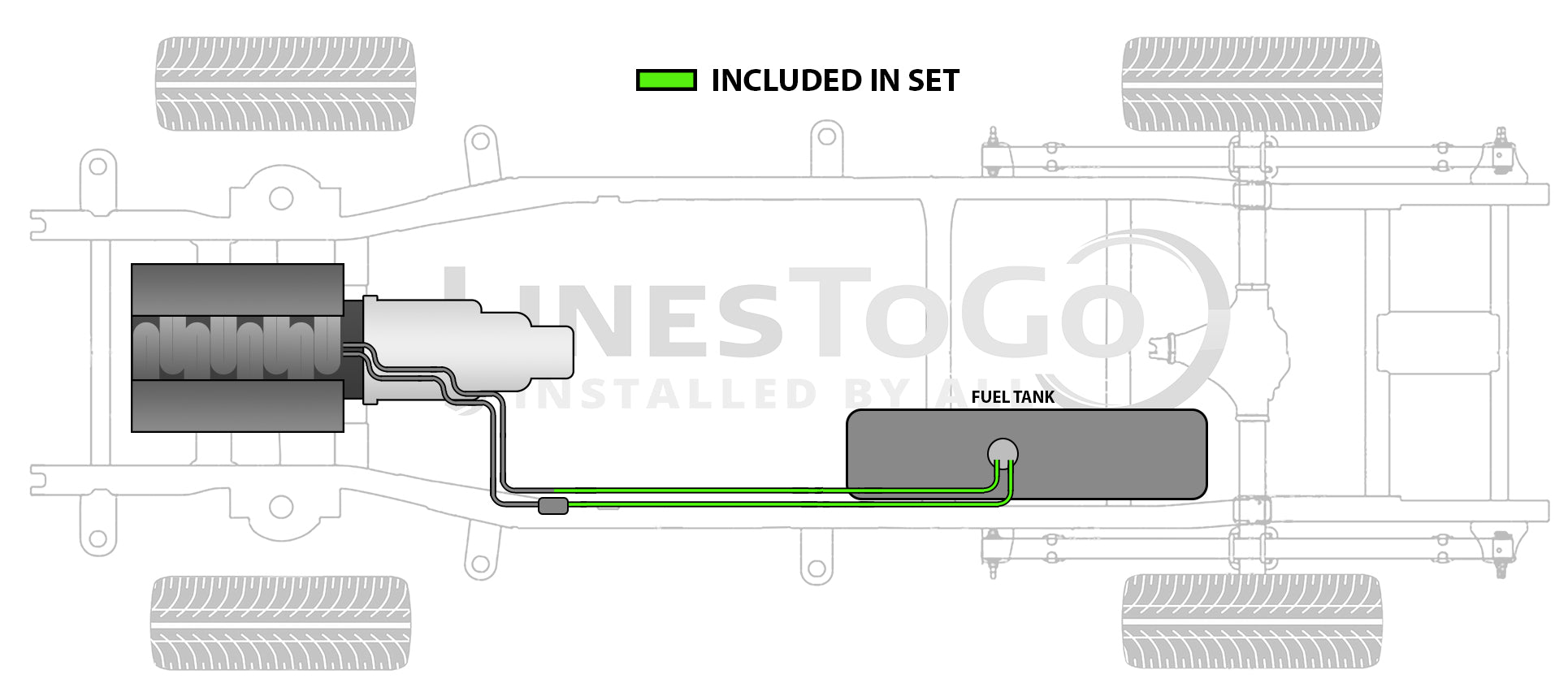

Location: Fuel Line: Fuel Filter to Front Fuel Tank, Front Fuel Tank to Rear Fuel Tank

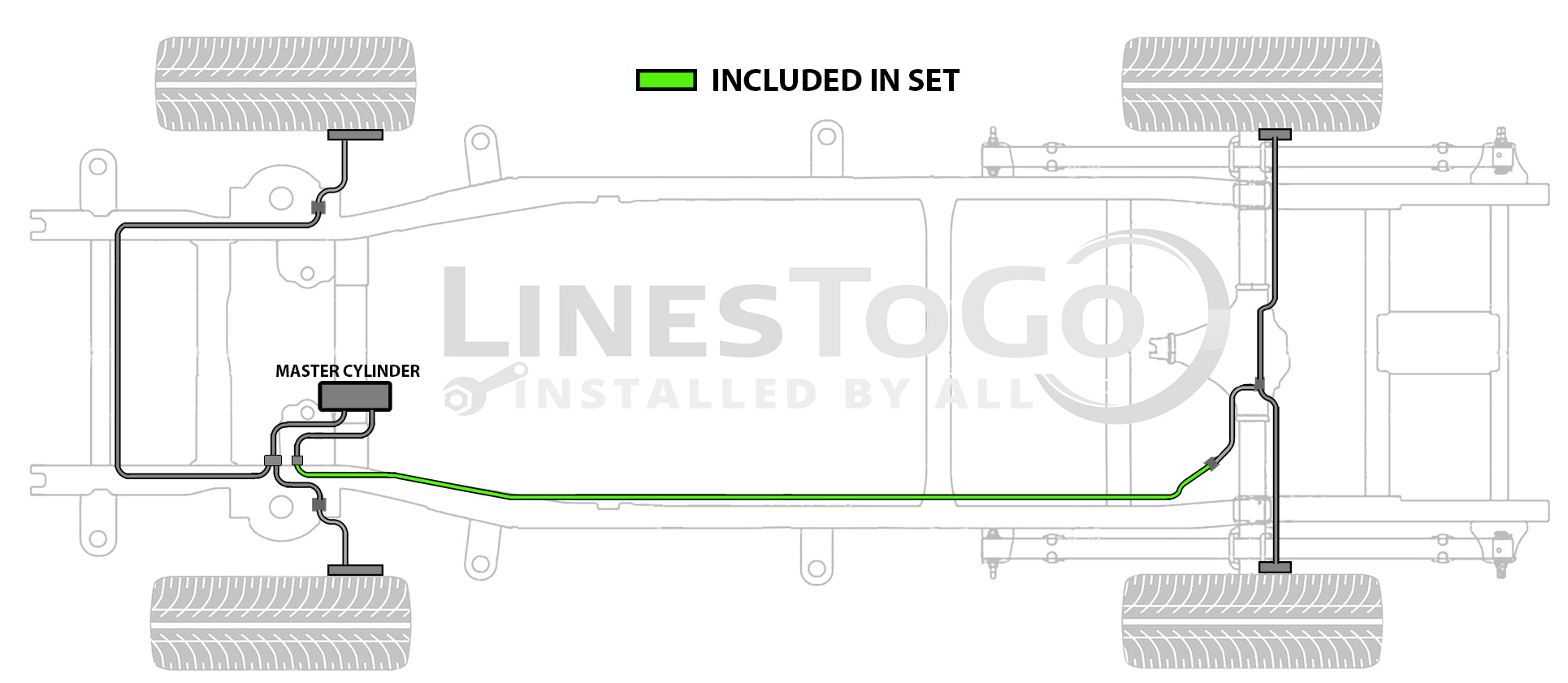

Brake Line: Intermediate Line from Fuel Filter Area to Rear Axle Hose Connection
OEM Part Number: 15735277, 15735290, 15735303, 15735280, 15735299

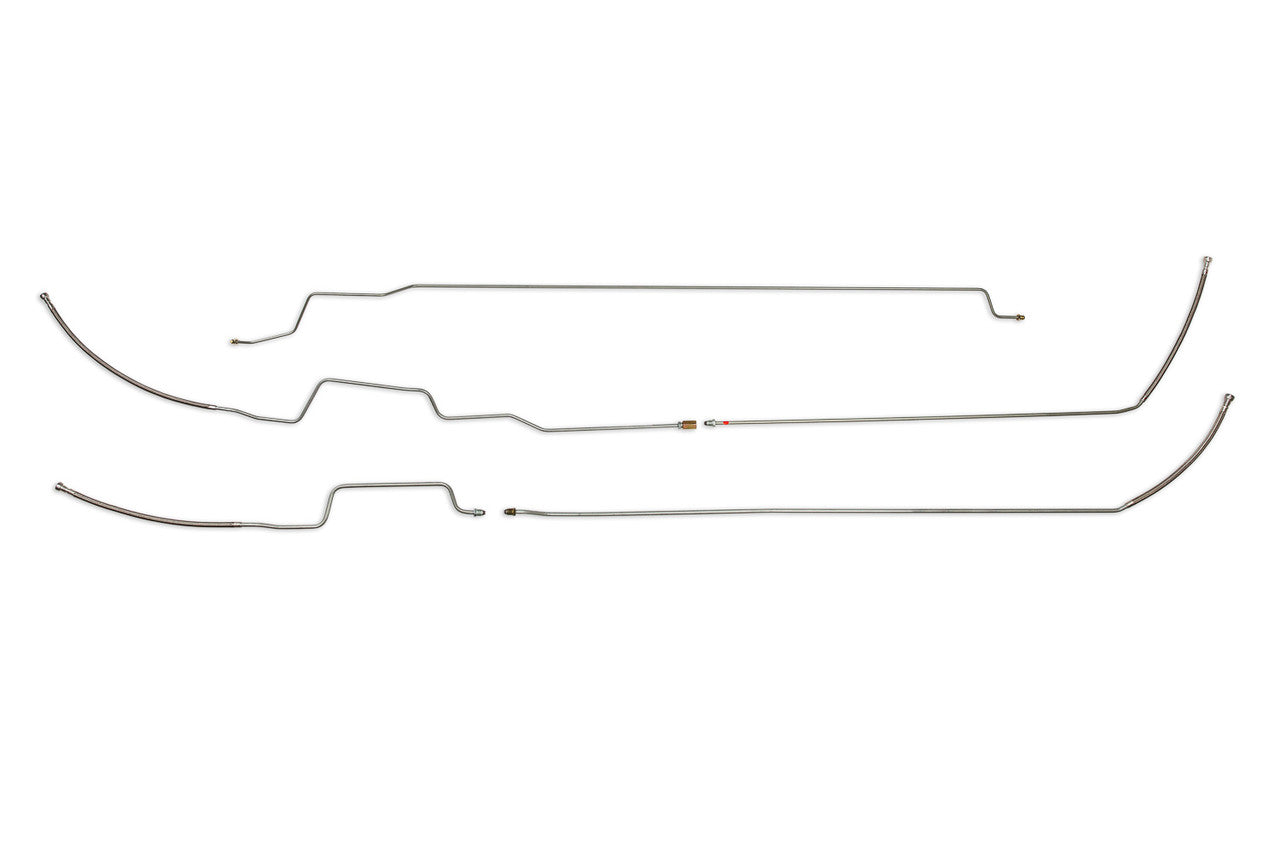

Included in Set: 1 supply line 3/8" (in 3 sections), 1 return line 5/16" (in 3 sections), 1 brake line 1/4"
Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.
Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings
Warranty: 1 Year
Box Dimensions: 89" x 7" x 5"
