Install this pre bent 2006 Sierra brake line set in no time!
Brake Line Set Stainless Steel Sierra 3500 2 Dr DRW 2006 Reg Cab & Chassis 137" WB for 6.0L, 6.6L, and 8.1L engines

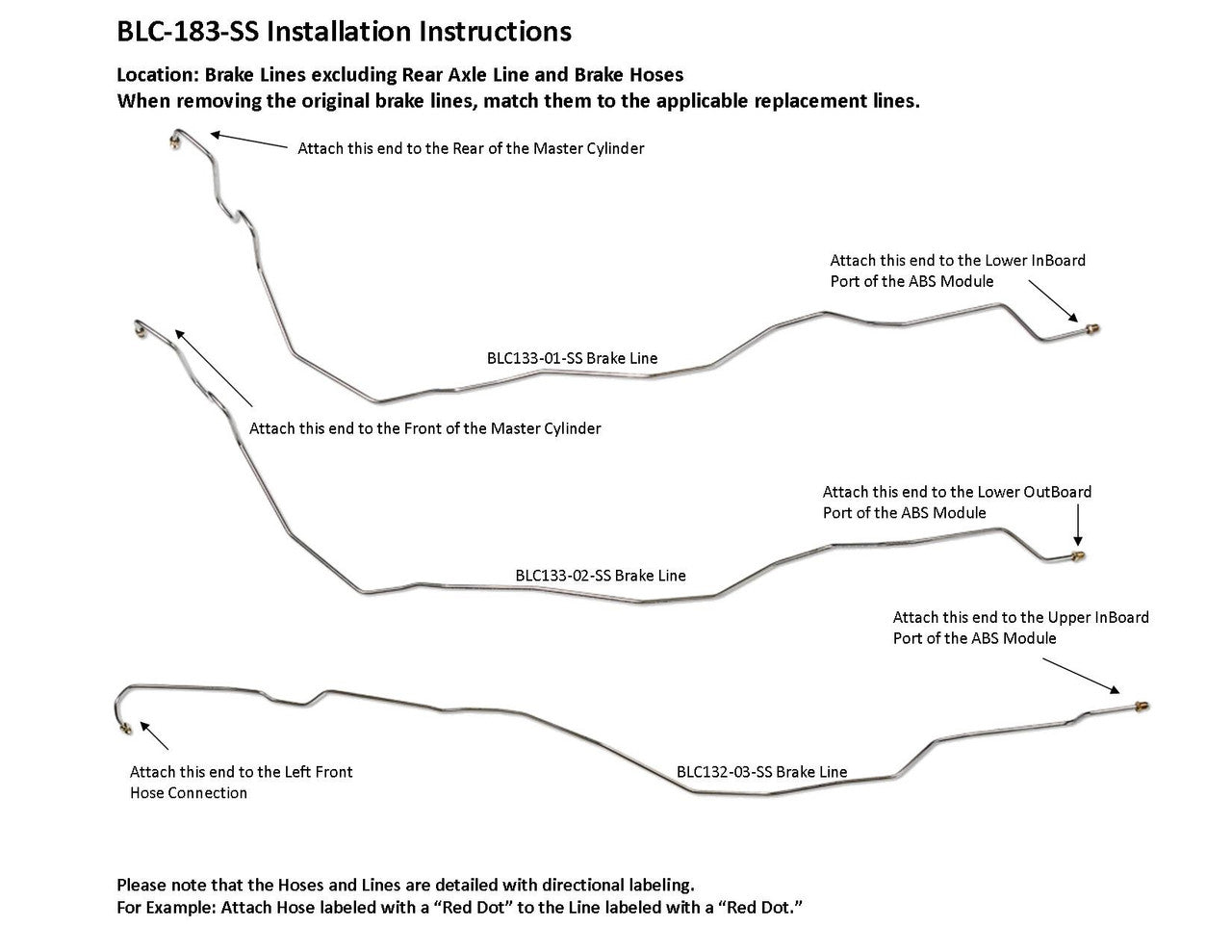

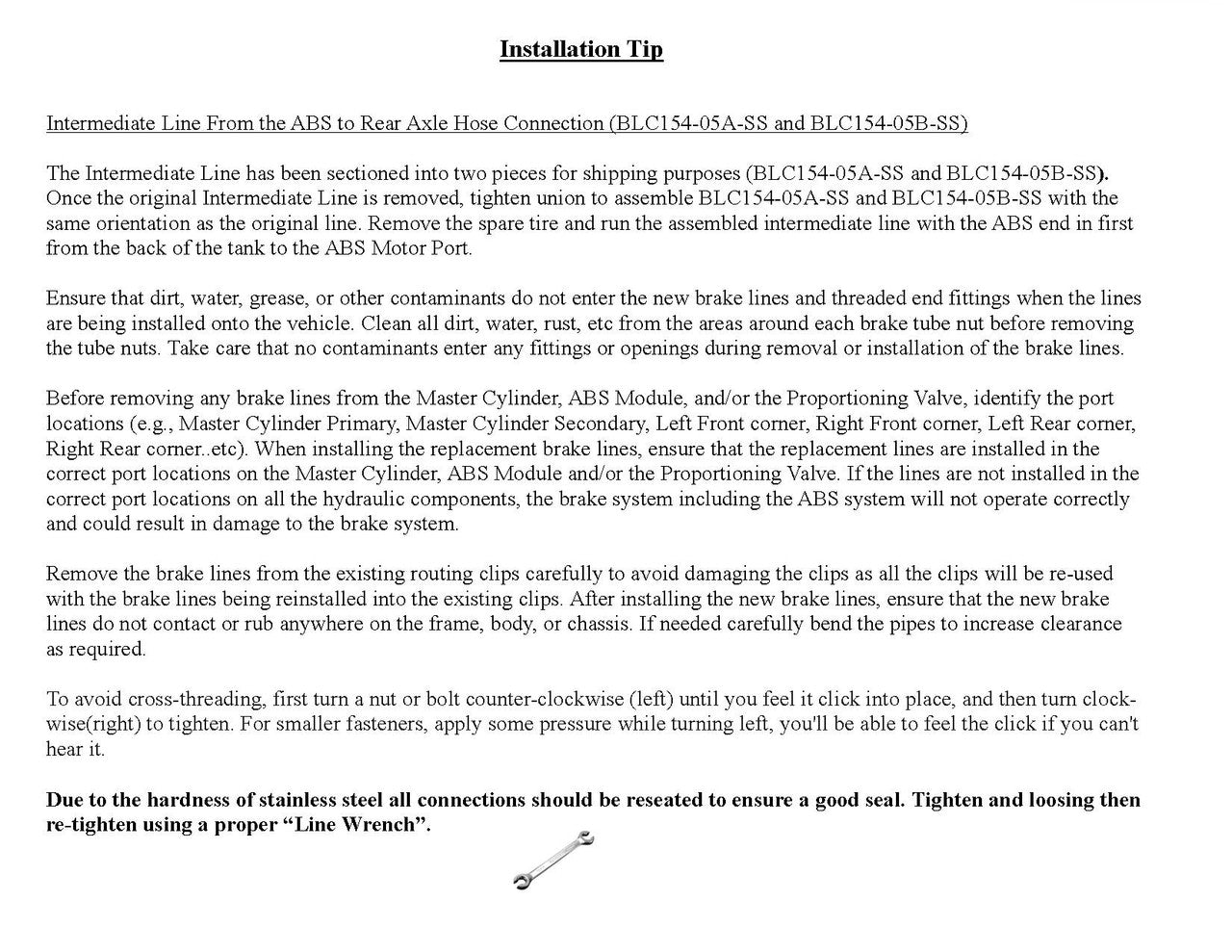

Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC133-01-SS, BLC133-02-SS and BLC132-03-SS, BLC132-04A-SS and BLC154-05A-SS. See the video below on how to remove the shipping bend.

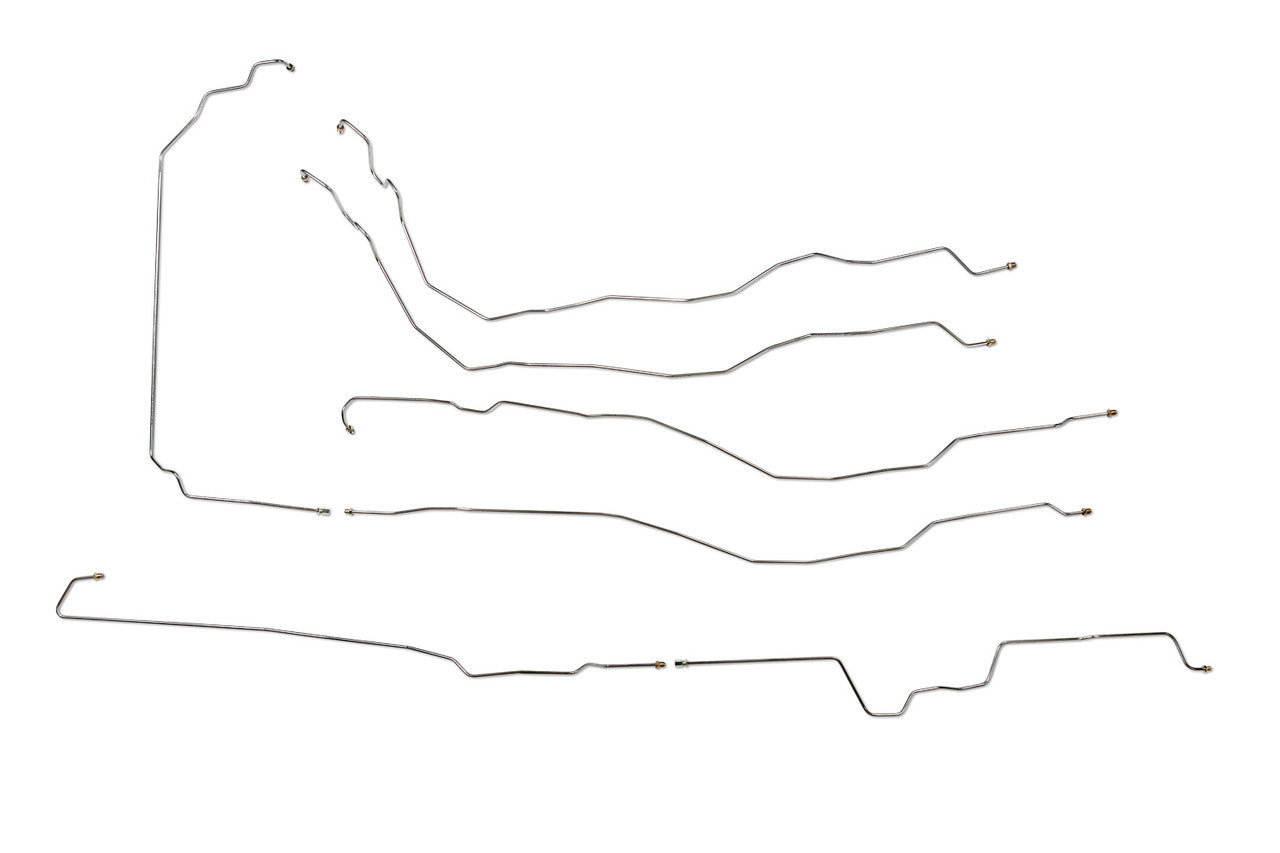

Complete set excluding Hoses and Rear Axle Crossover Line

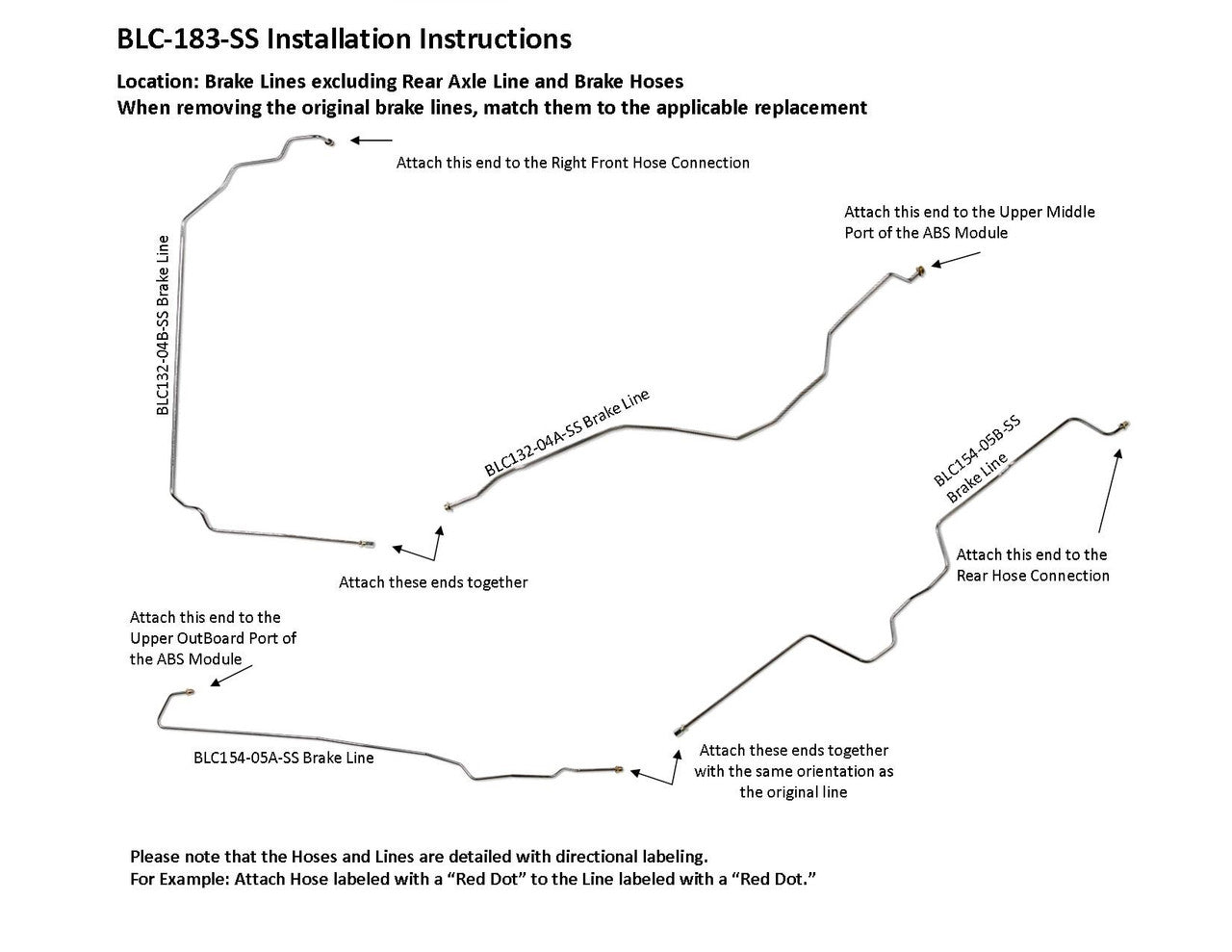

1 Primary Line from rear of Master Cylinder to Lower Inboard Port of ABS, 1 Secondary Line from Front of Master Cylinder to Lower Inboard Port of ABS, 1 Left Front Line from Upper Inboard Port of ABS Motor to Left Front Wheel Hose Connection, 1 Right Front Line from Upper Middle Port of ABS Motor to the Right Front Wheel Connection (2 easy to install sections), 1Rear Line from rear Hose Connection to Upper Outboard Port of ABS Module (2 easy to install sections), excludes Rear Axle Line
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
