w/ABS w/Front Disc/Rear Drum Brakes w/Front Coil Springs

SALE:
Save $57.52
/
  • In stock, ready to ship
  • Inventory on the way

Delivery Time & Rates

Shipping calculated at checkout.

Install this pre-bent 2005 Sierra brake line set in no time!

Stainless Steel Brake Line Set 2005 GMC Sierra 1500 2WD Ext Cab 6.5ft Bed w/ABS w/Front Disc/Rear Drum w/Front Coil Springs for 4.3L engines.

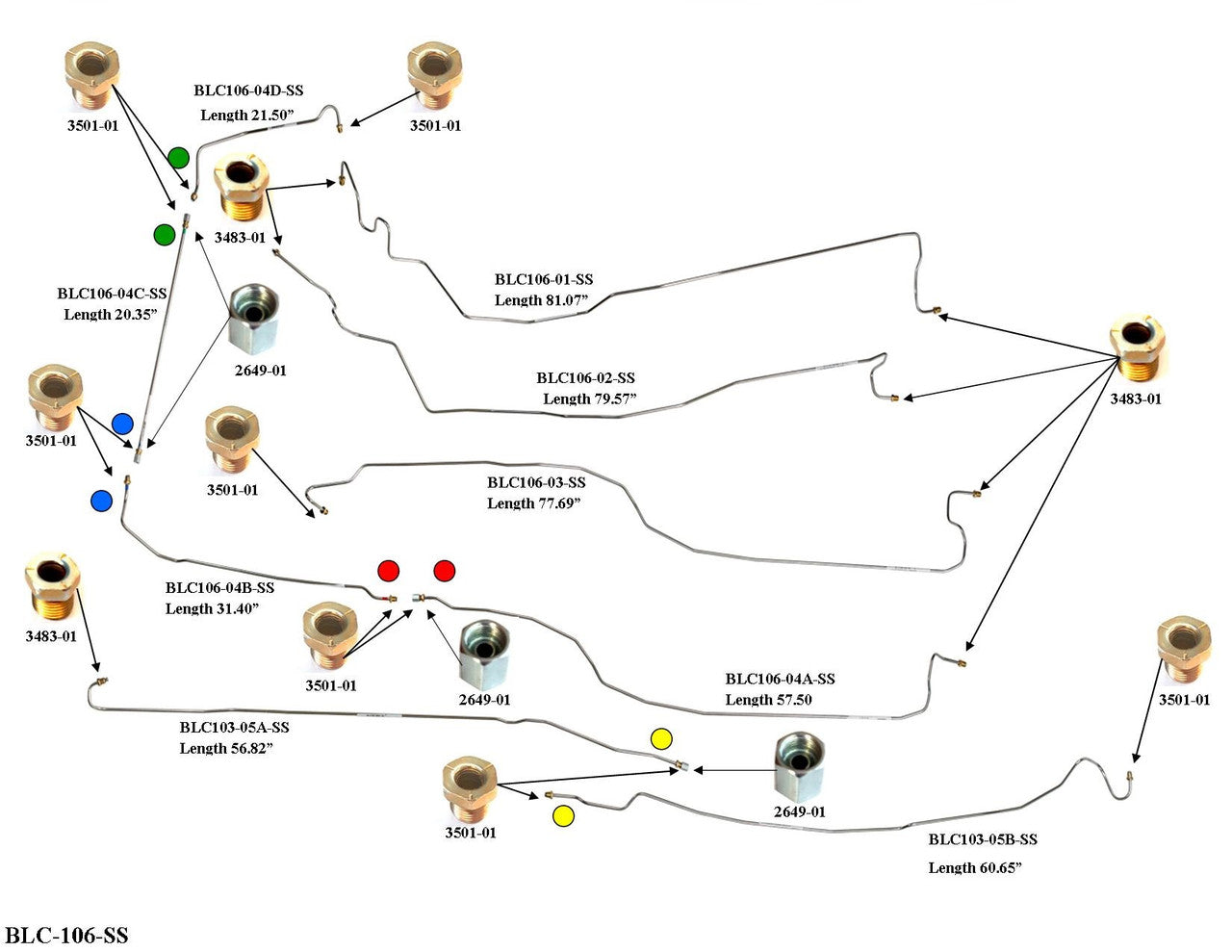

Please Note: Before installing your brake line, a shipping bend will need to be removed from the lines labeled BLC106-01-SS, BLC106-02-SS, BLC106-03-SS, BLC103-05A-SS, and BLC103-05B-SS. See the video below on how to remove the shipping bend

SKU: BLC-106-SS2A
Box Dimensions 47" x 12" x 7"

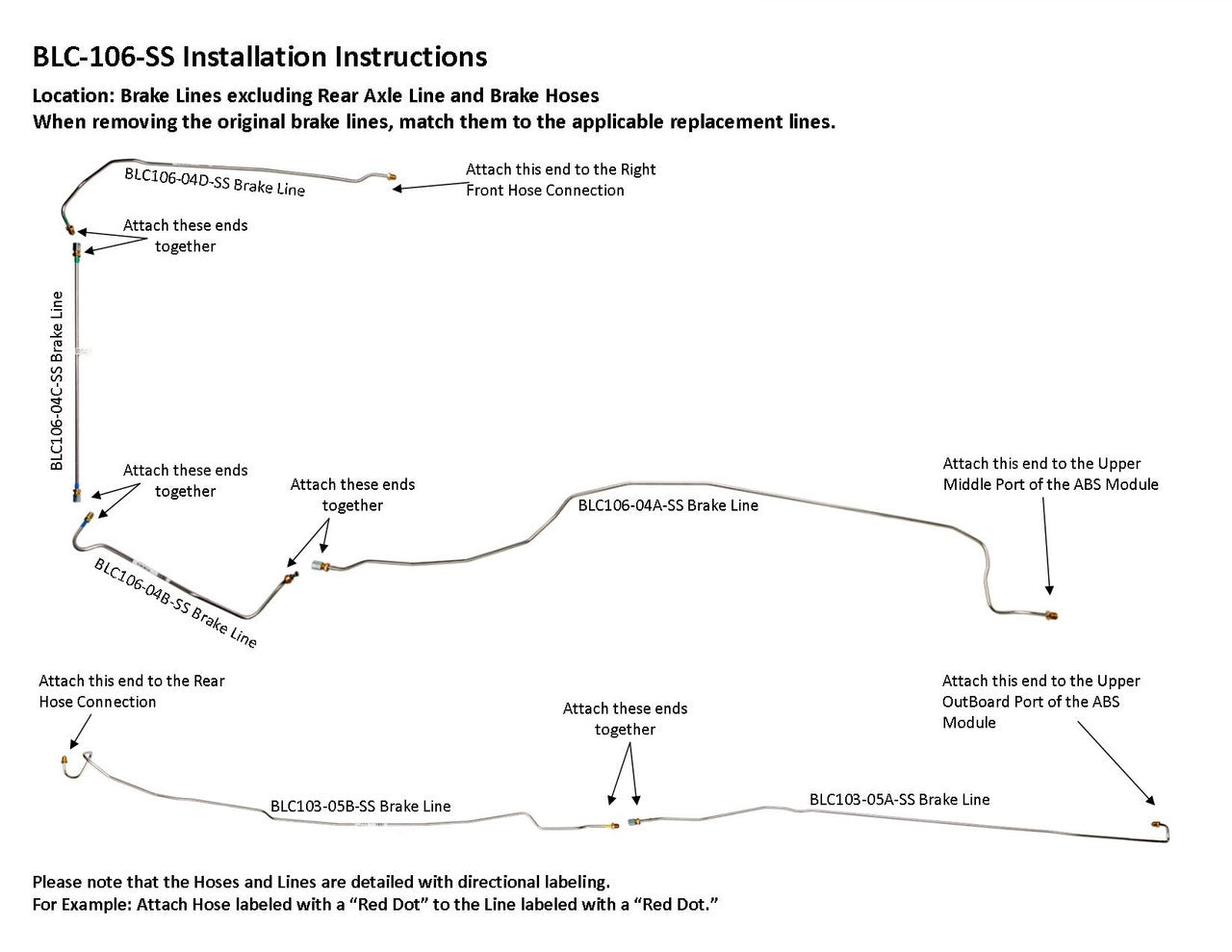

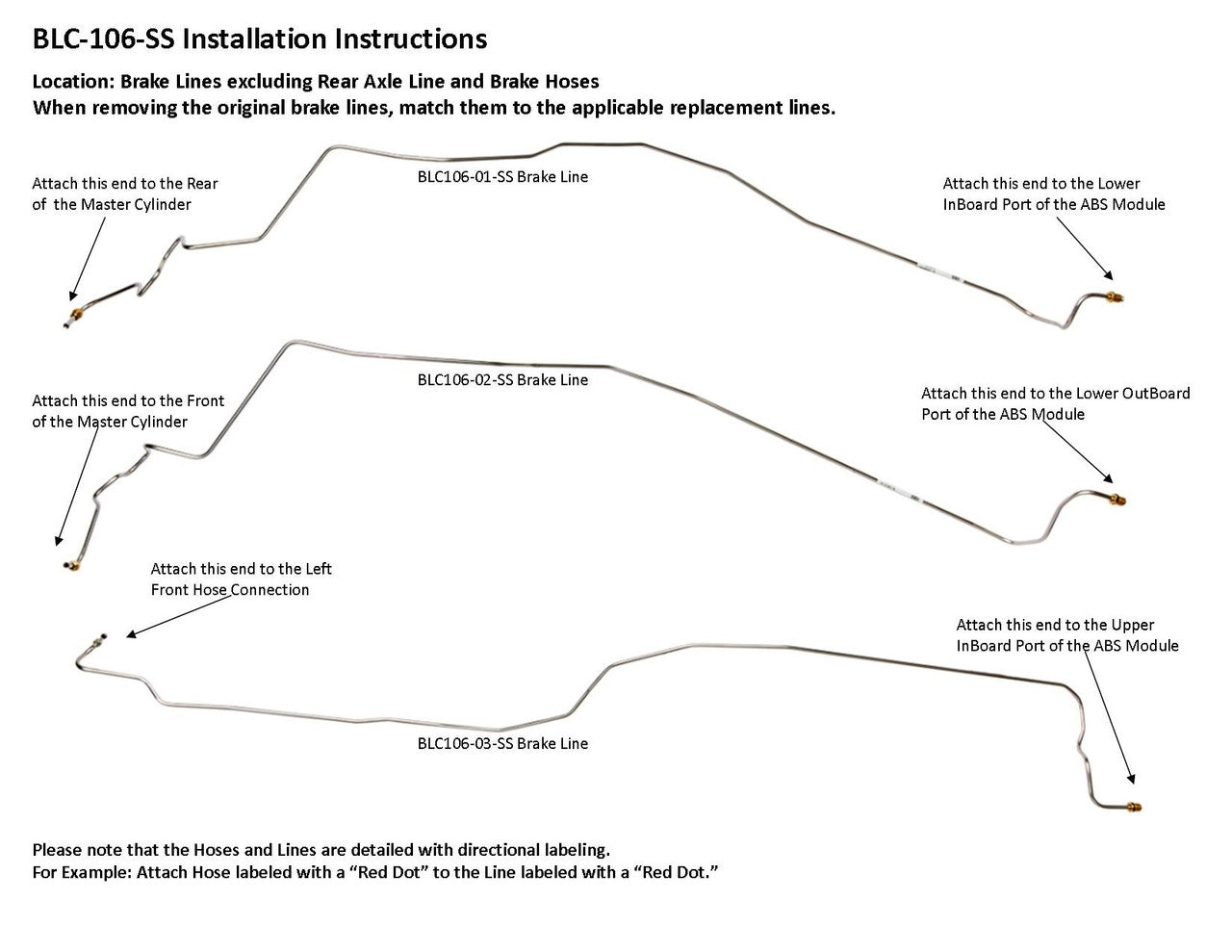

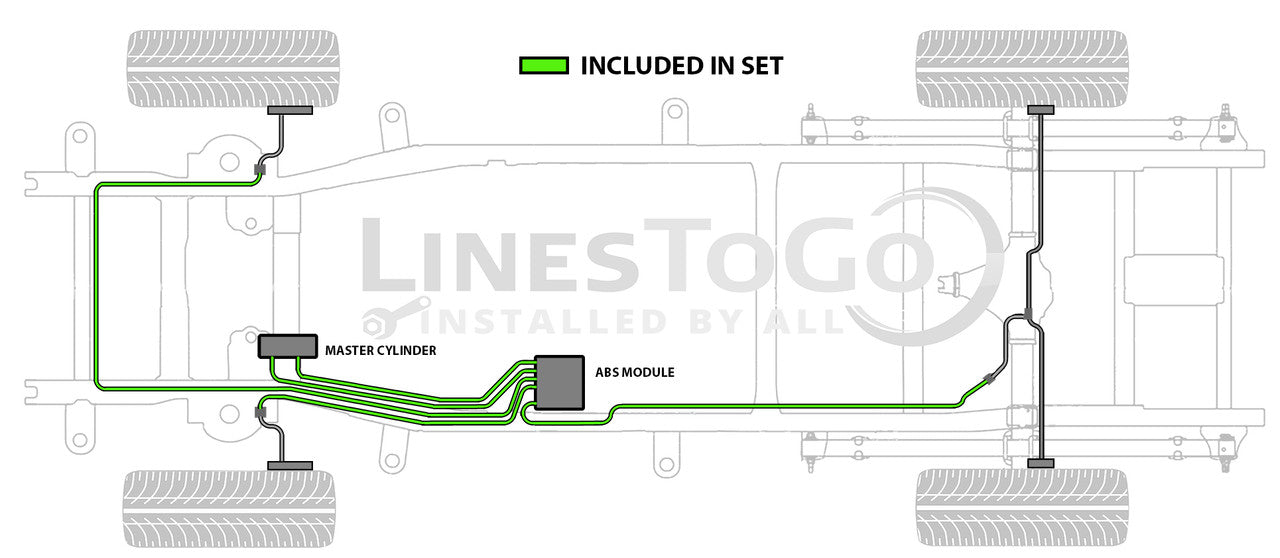

Master Cylinder Primary Line runs from Rear of Master Cylinder to Lower Inboard Port of ABS Motor, Master Cylinder Secondary Line runs from Front of Master Cylinder to Lower Outboard Port of ABS Motor, Left Front Brake Line runs from Upper Inboard Port of ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from Upper Middle Port of ABS Motor to Right Front Brake Hose Connection, Intermediate Brake Line runs from Upper Outboard Port of ABS Motor to Rear Axle Brake Hose Connection

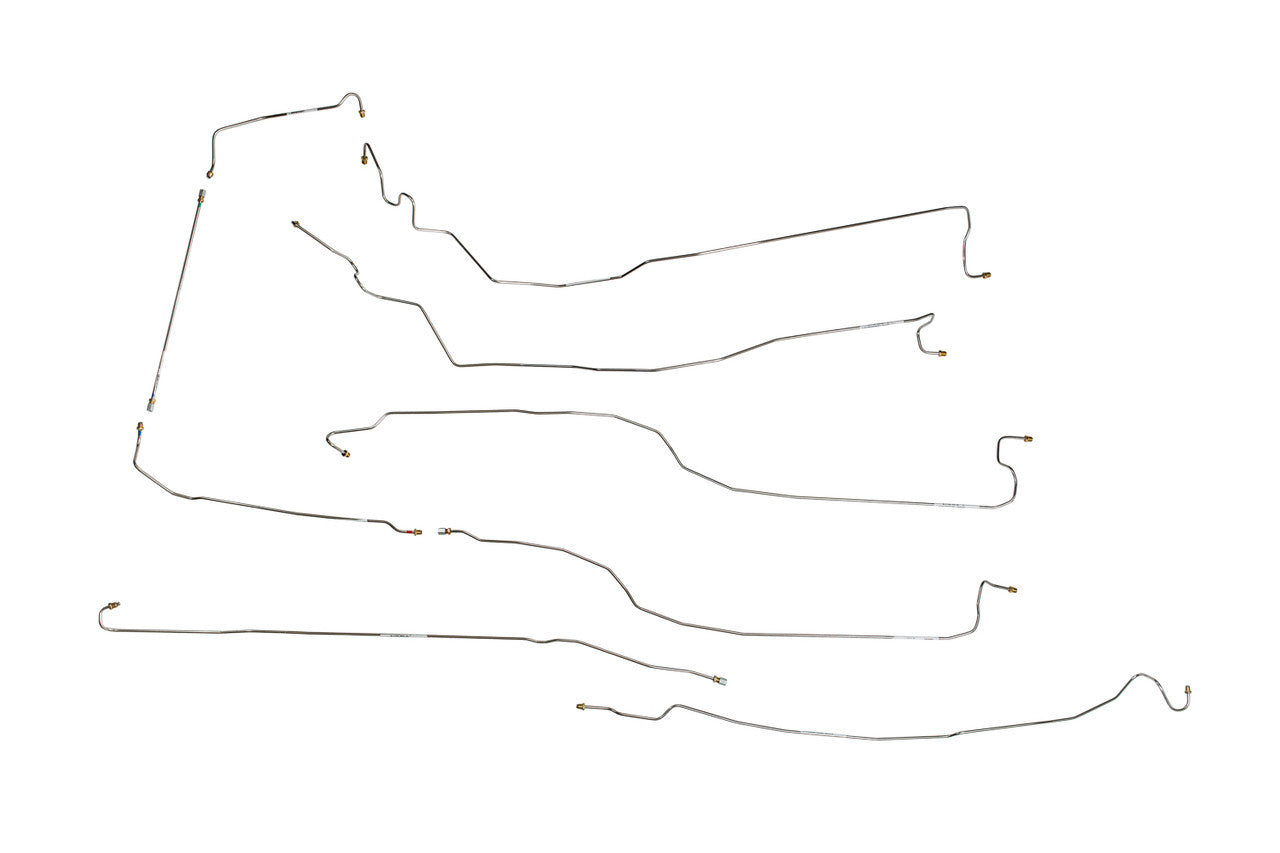

1 Master Cylinder Primary Brake Line 1/4”, 1 Master Cylinder Secondary Brake Line 1/4”, 1 Left Front Brake Line 1/4”, 1 Right Front Brake Line 1/4”, (in 4 easy to install sections), 1 Intermediate Brake Line 1/4” (in 2 easy to install sections), Does NOT include Brake Hoses or Rear Axle Crossover Line

22932601

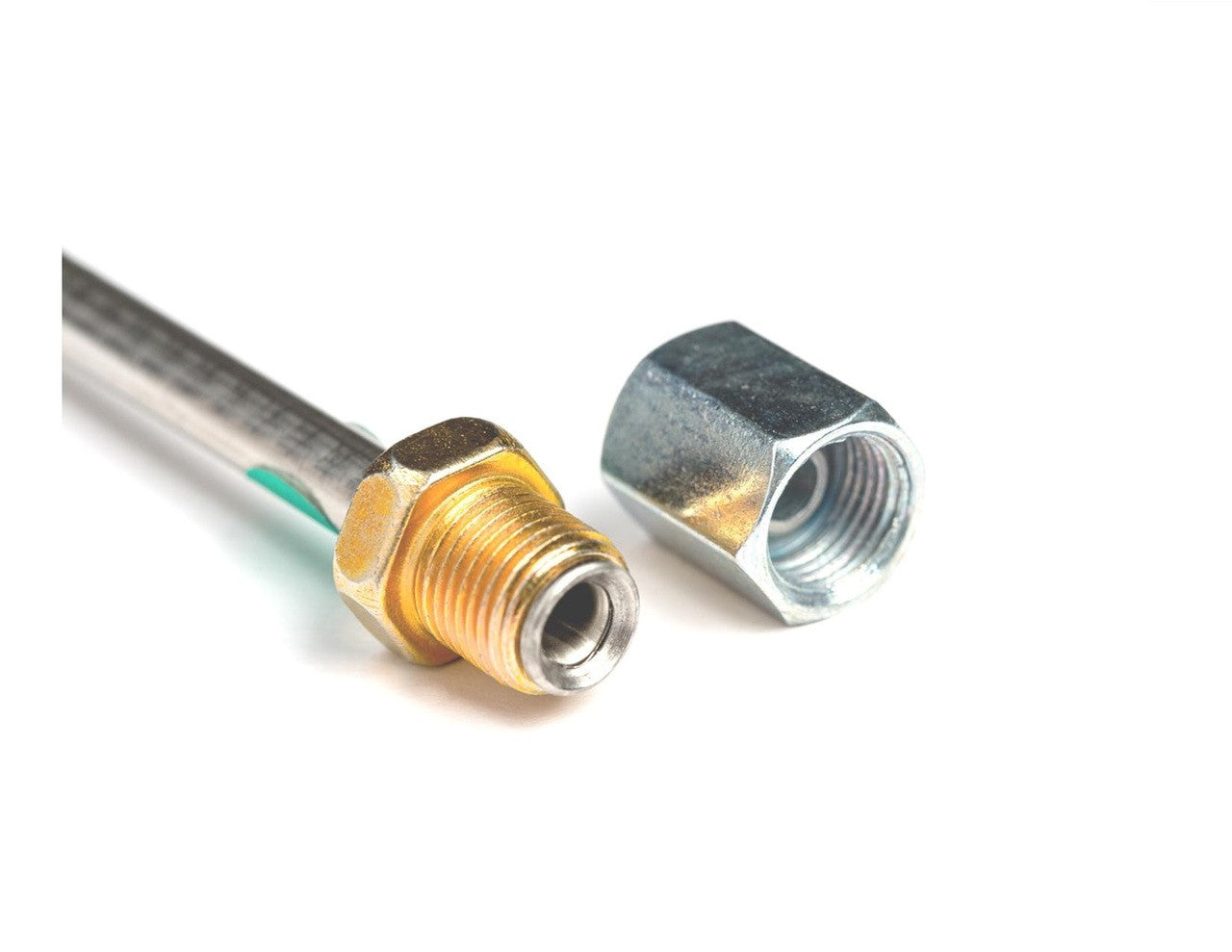

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.
