GMC Sierra Brake Line Set 2004 1500 4WD Reg Cab 8ft Bed BLC-143-SS2B Stainless Steel
w/o Active Brake Control
GMC Sierra Brake Line Set 2004 1500 4WD Reg Cab 8ft Bed BLC-143-SS2B Stainless Steel
w/o Active Brake Control
Delivery Time & Rates
Install this pre bent 2004 Sierra brake line set in no time!
Brake Line Set Stainless Steel 2004 GMC Sierra 1500 4WD Reg Cab 8ft Bed w/o Active Brake Control for 4.3L, 4.8L, 5.3L, 6.0L engines

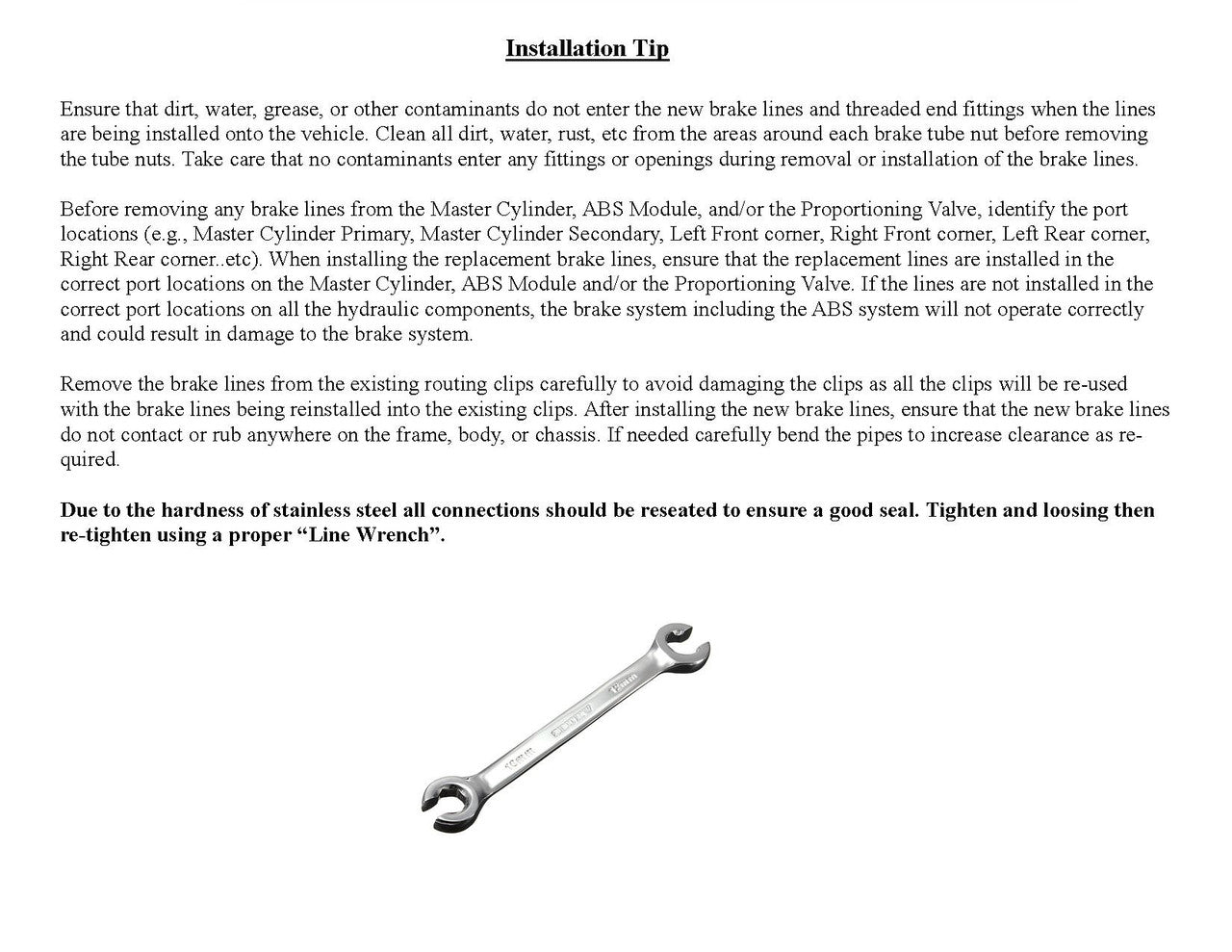

Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC104-01-SS, BLC104-02-SS, BLC104-03-SS, BLC103-04A-SS and BLC140-05A-SS. See the video below on how to remove the shipping bend
Please Note: Before installing your brake line, a shipping twist will need to be removed from the line labeled BLC103-04B-SS. See the video below on how to remove the shipping twist

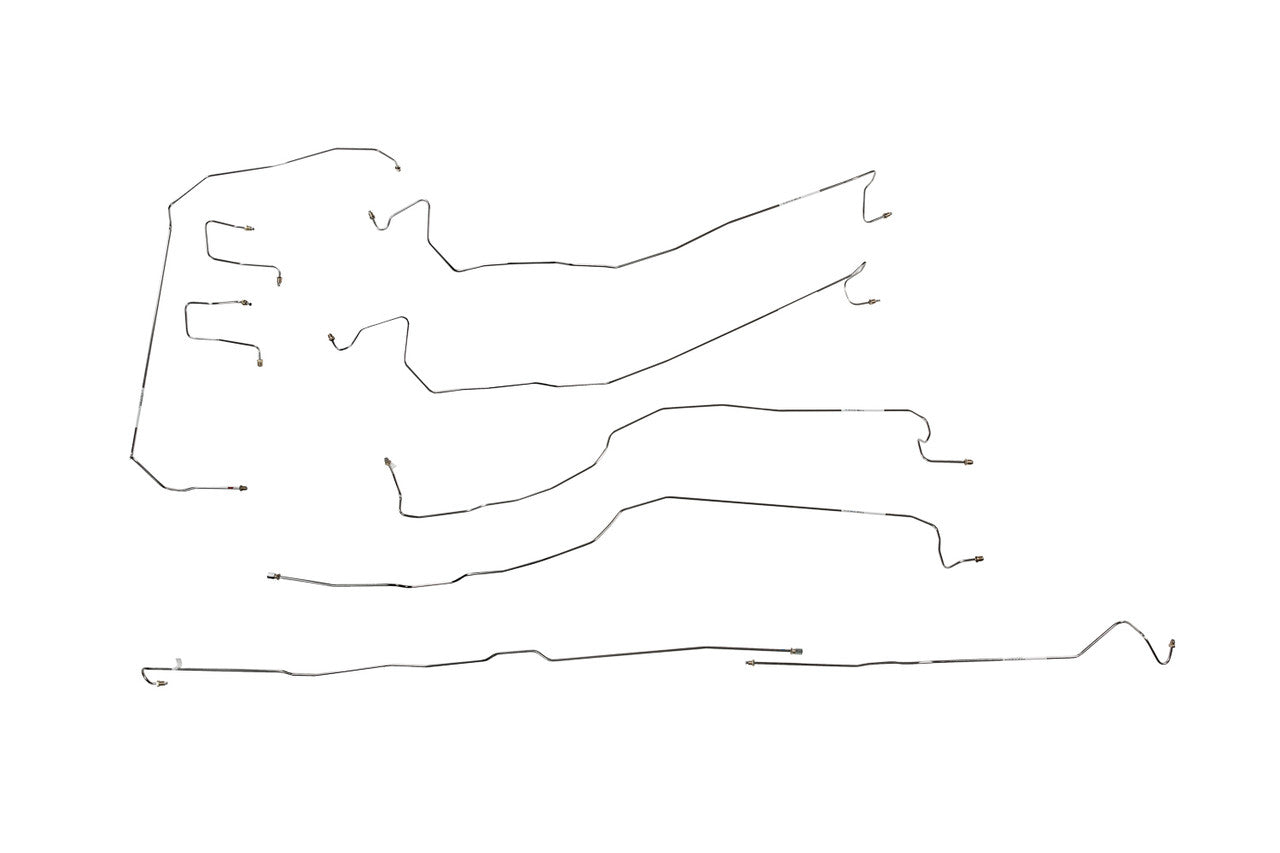

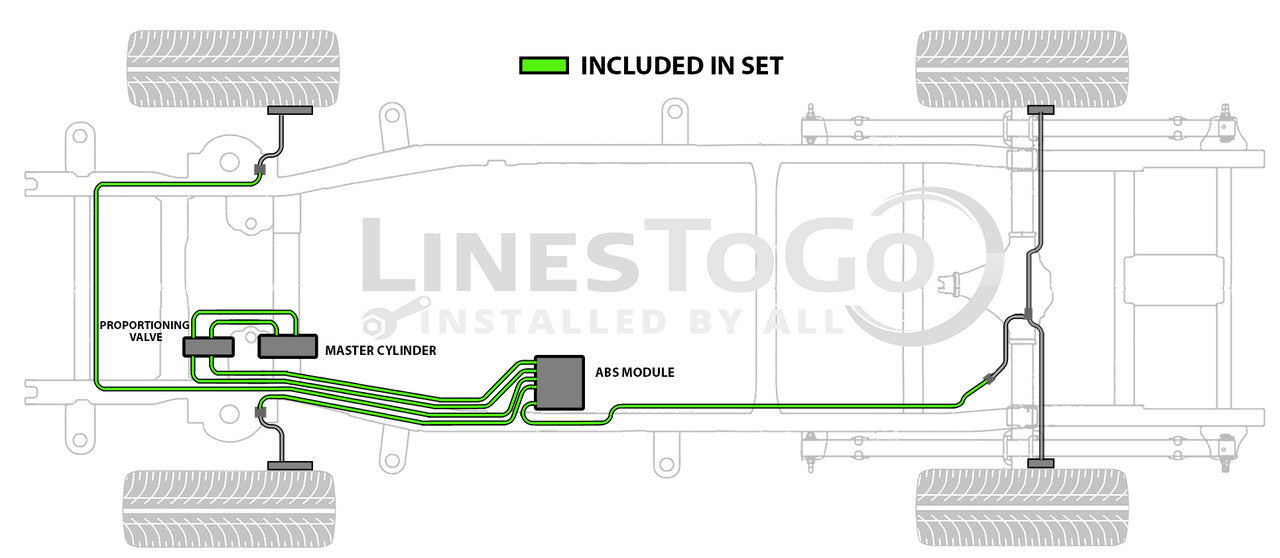

1 Master Cylinder Primary Line from Rear of Proportioning Valve to Lower InBoard Port of ABS Module, 1 Master Cylinder Primary Line from Rear of the Master Cylinder to Rear of the Portioning Valve, 1 Master Secondary Line from Front of Proportioning Valve to Lower Outboard of ABS Module, 1 Master Cylinder Secondary Line from Front of Master Cylinder to Front of Proportioning Valve, 1 Left Front Line from Front Hose Connection to Upper Inboard Port of ABS Module, 1 Right Front Line from Front Hose Connection to Upper Middle Port in from Center of ABS Module (2 easy to install sections), 1 Rear Line from Rear Hose Connection to Upper Outboard Port of ABS Module (2 easy to install sections) excludes Rear Axle Crossover Line
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
