GMC Sierra Brake Line Set 2003 1500 4WD Ext Cab 8ft Bed BLC-144-SS2A Stainless Steel
GMC Sierra Brake Line Set 2003 1500 4WD Ext Cab 8ft Bed BLC-144-SS2A Stainless Steel
Delivery Time & Rates
Install this pre bent 2003 Sierra brake line set in no time!
Brake Line Set Stainless Steel 2003 GMC Sierra 1500 4WD Ext Cab 8ft Bed for 4.3L, 4.8L, 5.3L, 6.0L engines

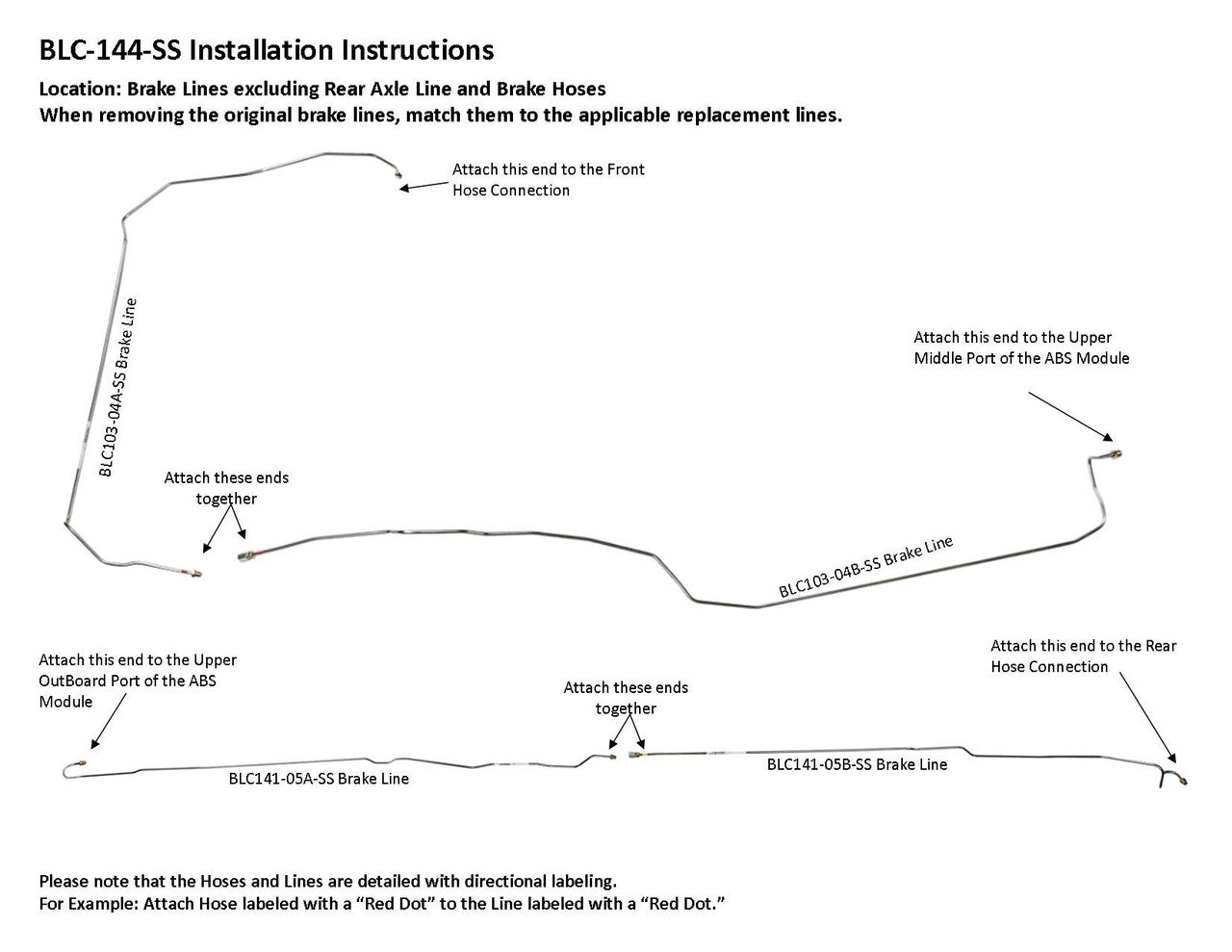

Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC103-04A-SS and BLC141-05A-SS. See the video below on how to remove the shipping bend
Please Note: Before installing your brake line, a shipping twist will need to be removed from the line labeled BLC103-04B-SS. See the video below on how to remove the shipping twist

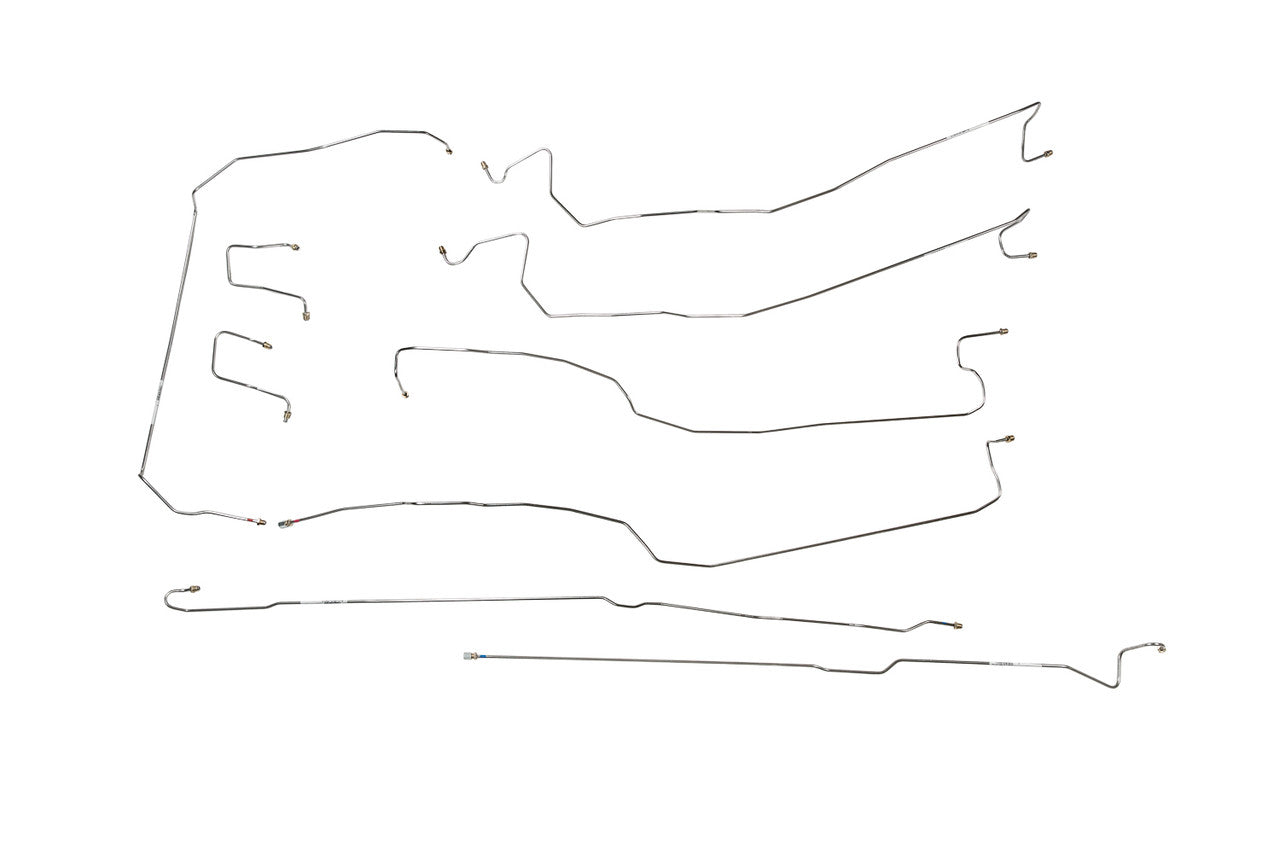

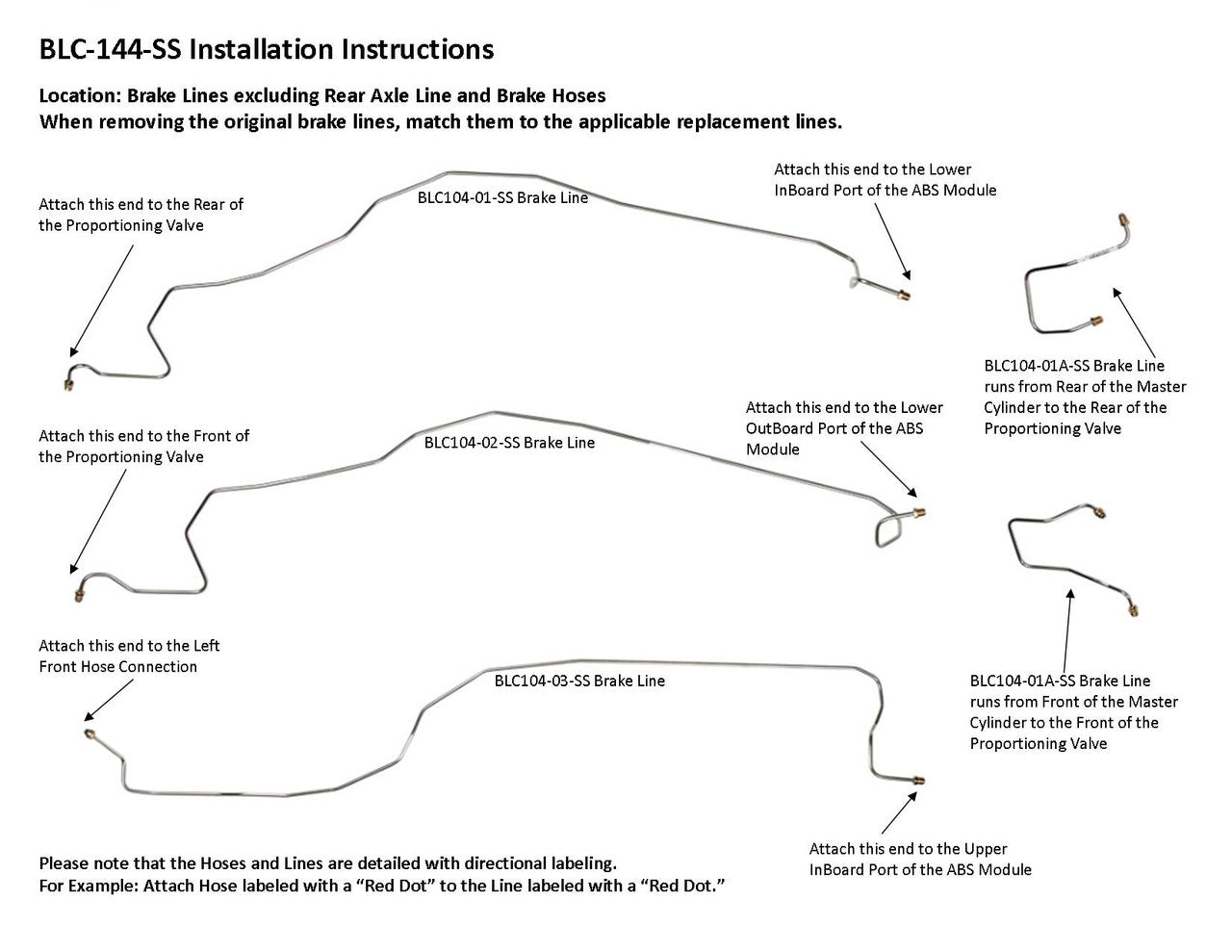

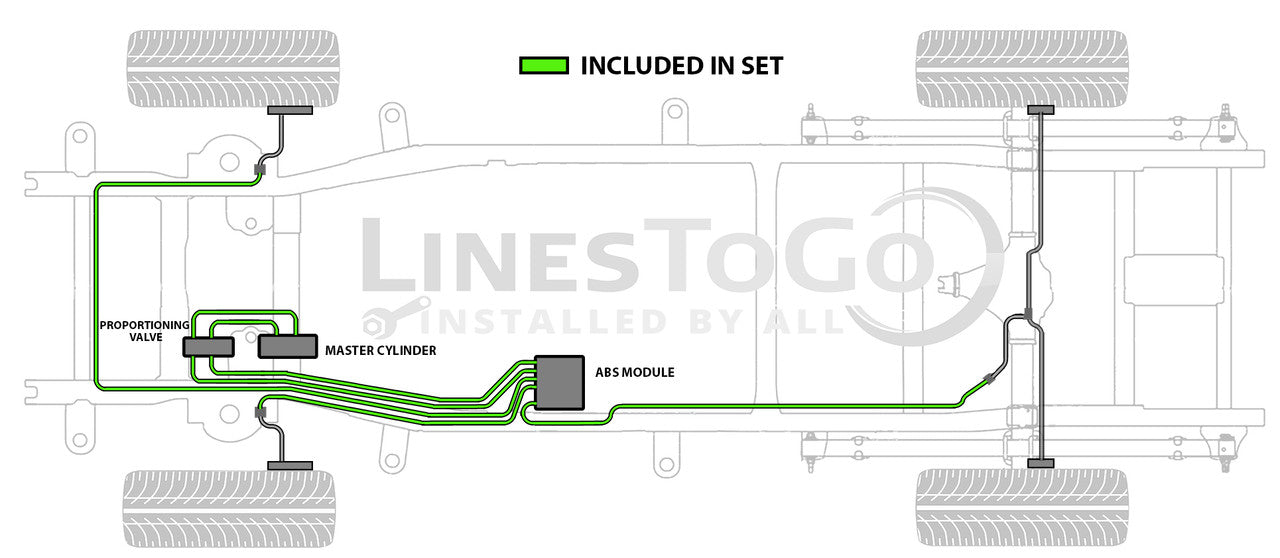

1 Master Cylinder Primary Line from Rear of Proportioning Valve to Lower InBoard Port of ABS Module, 1 Master Cylinder Primary Line from Rear of the Master Cylinder to Rear of the Portioning Valve, 1 Master Cylinder Secondary Line from Front of Proportioning Valve to Lower Outboard of ABS Module, 1 Master Cylinder Secondary Line from Front of Master Cylinder to Front of Proportioning Valve, 1 Left Front Line from Front Hose Connection to Upper Inboard Port of ABS Module, 1 Right Front Line from Front Hose Connection to Upper Middle Port in from Center of ABS Module (2 easy to install sections),1 Rear Line from Rear Hose Connection to Upper Outboard Port of ABS Module (2 easy to install sections) excludes Rear Axle Crossover Line

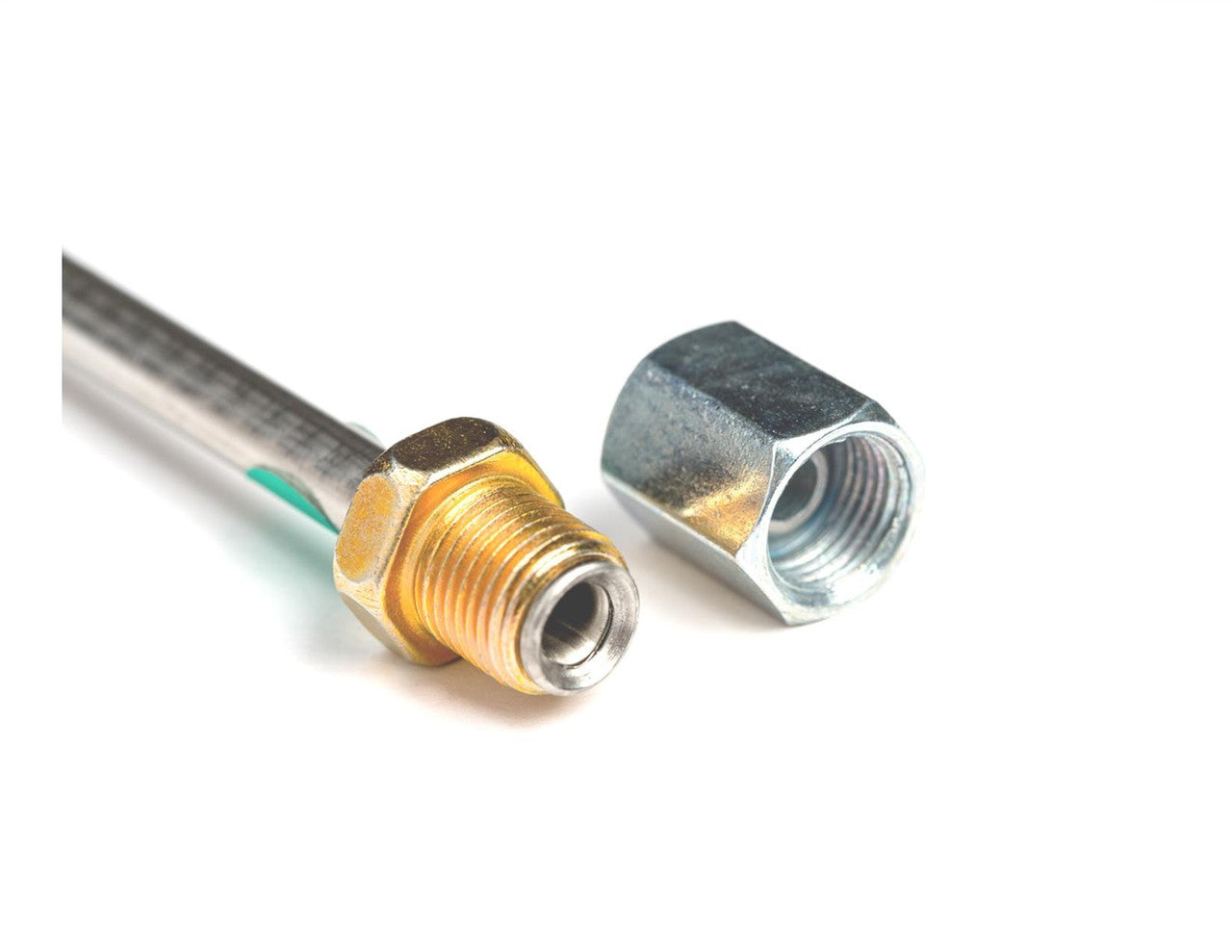

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
Need Assistance? Call us toll free 1-855-781-5992
We'll make sure you're ordering the correct part and we can take your order for you too.
