Install this pre bent 2002 Sierra brake line set in no time!
Brake Line Set Stainless Steel 2002 GMC Sierra 3500 Reg Cab & Chassis 161.5" WB w/Dual Rear Wheel for 5.7L and 7.4L engines
Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC149-01-SS, BLC149-02-SS, BLC132-03-SS, BLC132-04A-SS, BLC156-05A-SS and BLC156-05B-SS. See the video below on how to remove the shipping bend

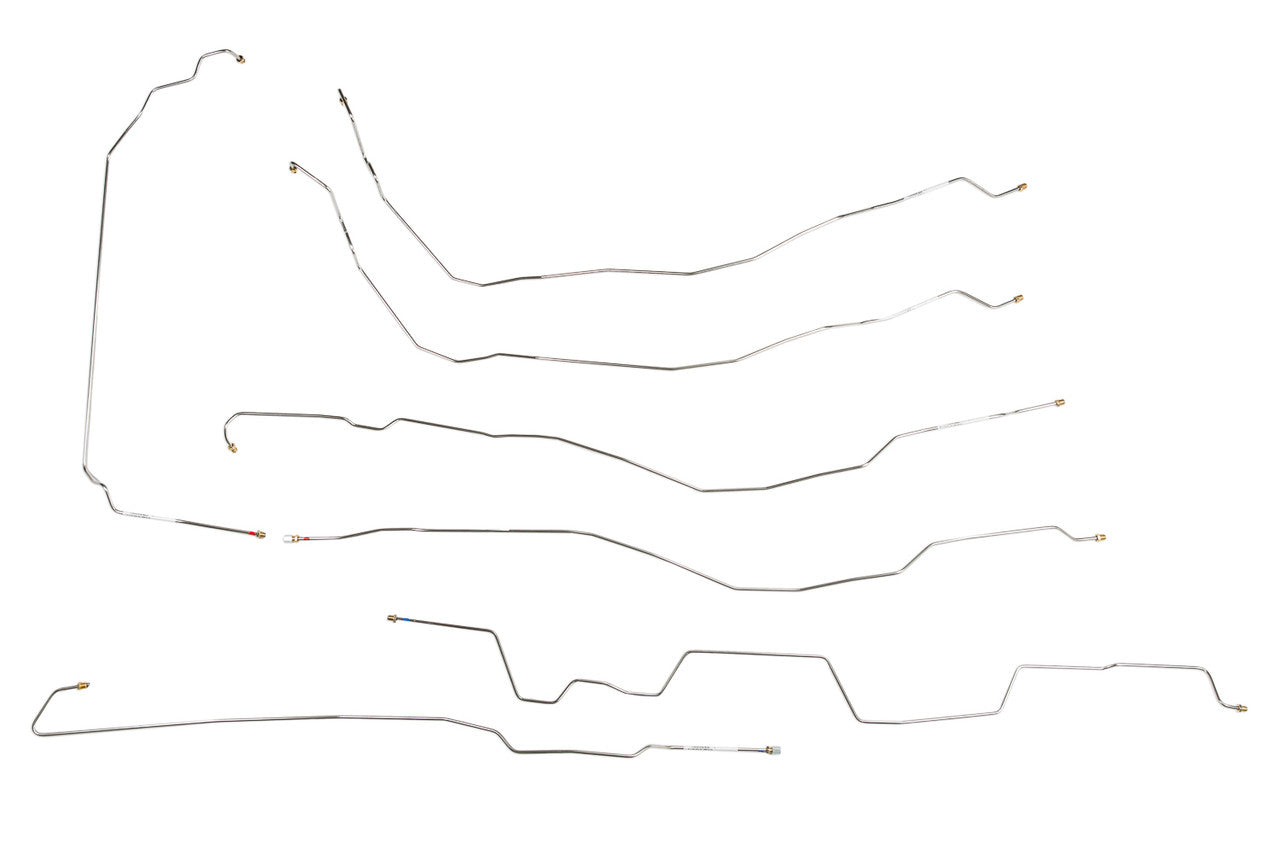

Complete set excluding Hoses and Rear Axle Crossover Line

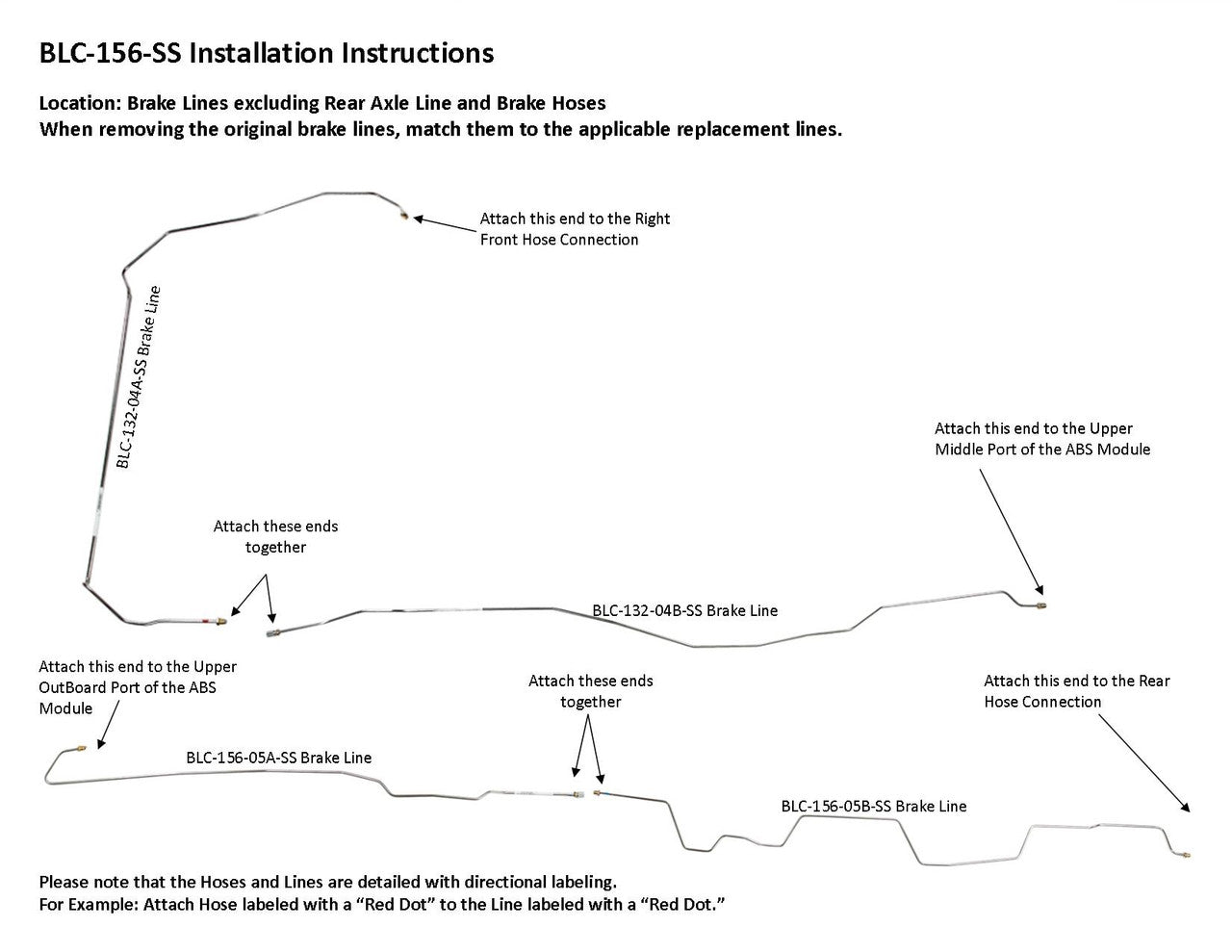

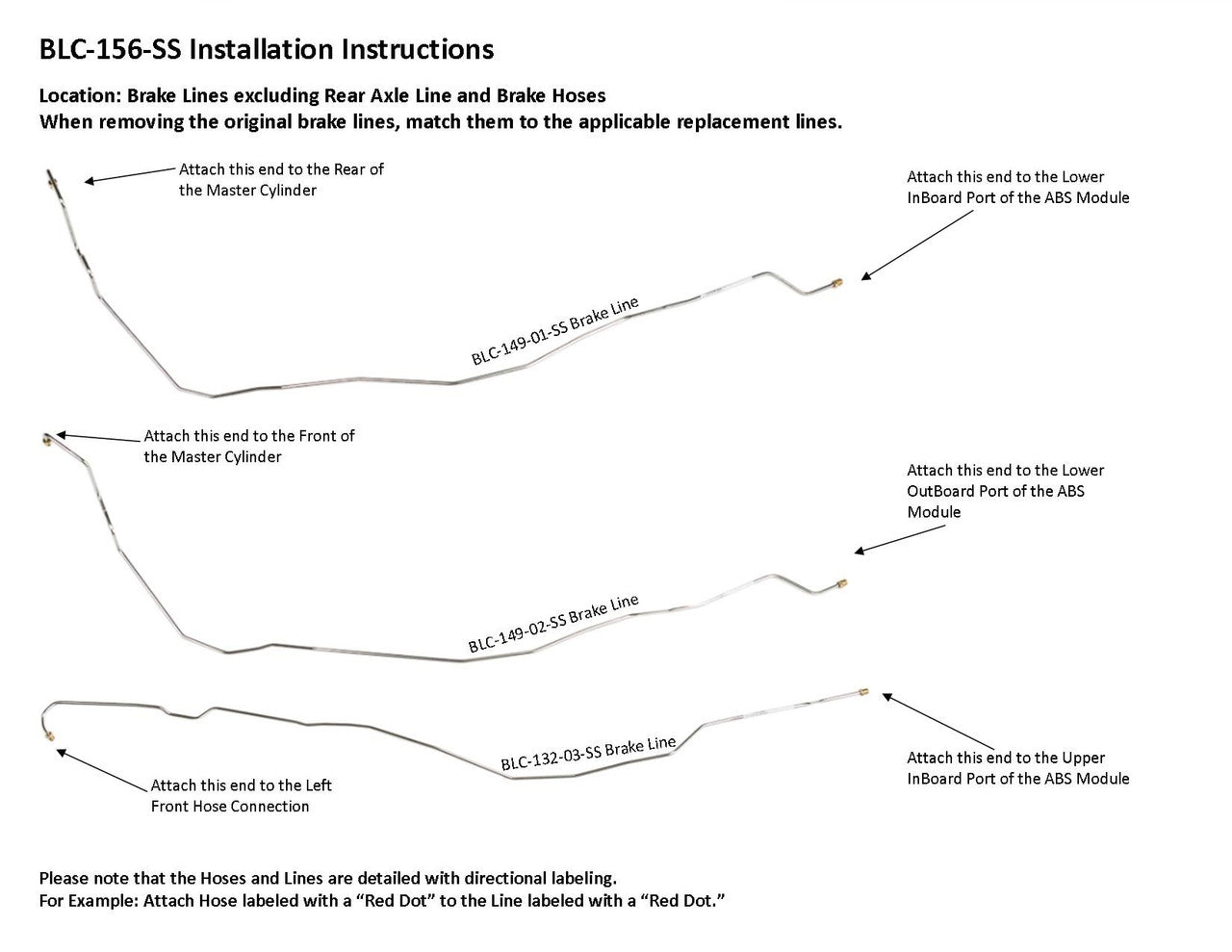

1 Master Cylinder Primary Line from Rear of Master Cylinder to Lower Inboard Port of ABS Module, 1 Master Secondary Line from Front of Master Cylinder to Lower Outboard Port of the ABS Module, Left Front Line from Hose Connection to Upper Inboard Port on the ABS Module, Right Front Line From Hose Connection to Upper Middle Port of the ABS Module (2 easy to install sections), Rear Line from Hose Connection to Upper Outboard Port of the ABS Module (2 easy to install sections), Excludes Rear Axle Crossover Line
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
