GMC Sierra Brake Line Set 2002 3500 2WD Reg Cab & Chassis 137" WB 6.0L, 6.6L, 8.1L BLC-154-SS4 Stainless Steel

w/DRW w/o Anti-lock Brakes

GMC Sierra Brake Line Set 2002 3500 2WD Reg Cab & Chassis 137" WB 6.0L, 6.6L, 8.1L BLC-154-SS4 Stainless Steel
GMC Sierra Brake Line Set 2002 3500 2WD Reg Cab & Chassis 137" WB 6.0L, 6.6L, 8.1L BLC-154-SS4 Stainless Steel
GMC Sierra Brake Line Set 2002 3500 2WD Reg Cab & Chassis 137" WB 6.0L, 6.6L, 8.1L BLC-154-SS4 Stainless Steel
GMC Sierra Brake Line Set 2002 3500 2WD Reg Cab & Chassis 137" WB 6.0L, 6.6L, 8.1L BLC-154-SS4 Stainless Steel
GMC Sierra Brake Line Set 2002 3500 2WD Reg Cab & Chassis 137" WB 6.0L, 6.6L, 8.1L BLC-154-SS4 Stainless Steel
GMC Sierra Brake Line Set 2002 3500 2WD Reg Cab & Chassis 137" WB 6.0L, 6.6L, 8.1L BLC-154-SS4 Stainless Steel
GMC Sierra Brake Line Set 2002 3500 2WD Reg Cab & Chassis 137" WB 6.0L, 6.6L, 8.1L BLC-154-SS4 Stainless Steel

GMC Sierra Brake Line Set 2002 3500 2WD Reg Cab & Chassis 137" WB 6.0L, 6.6L, 8.1L BLC-154-SS4 Stainless Steel

w/DRW w/o Anti-lock Brakes

SALE: from
from
Save $58.88
from /

Delivery Time & Rates

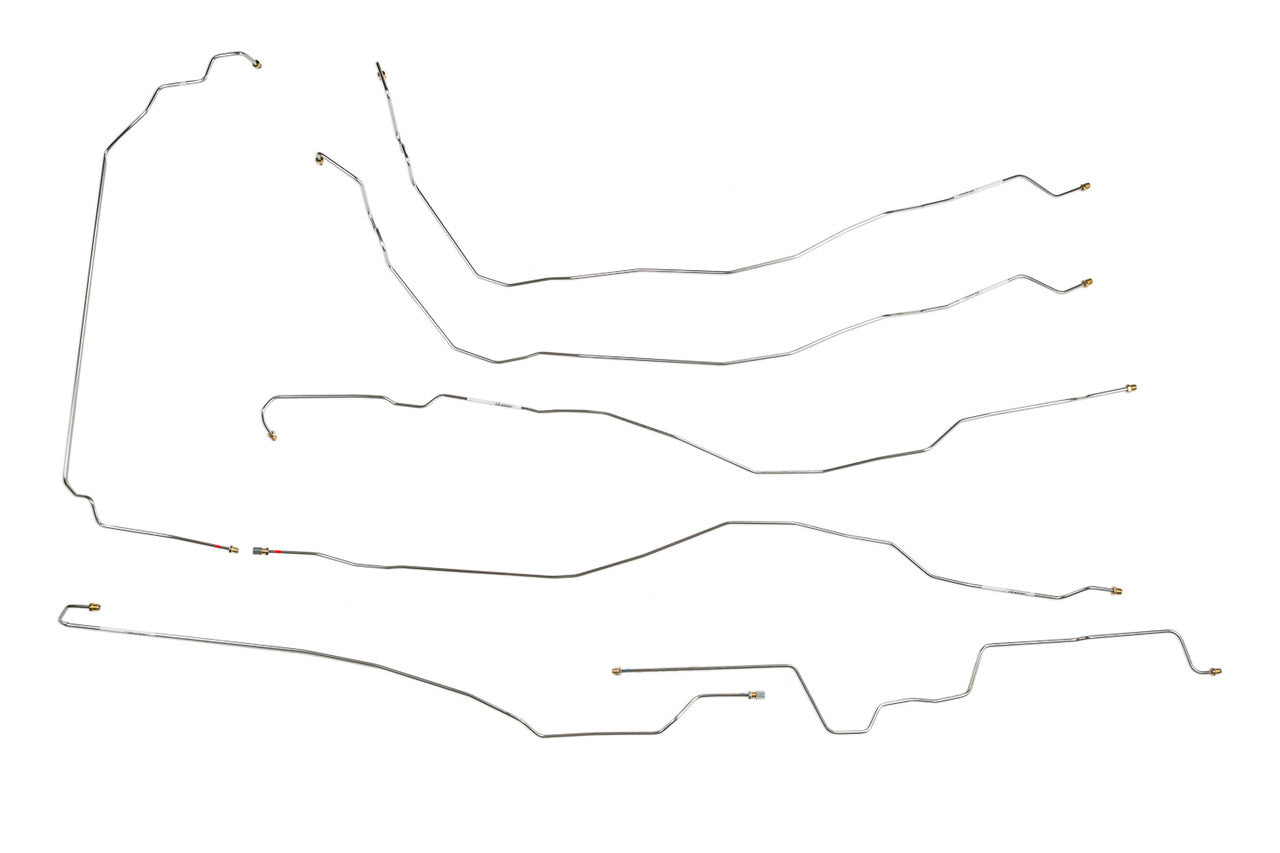

Install this pre bent 2002 Sierra brake line set in no time!

Brake Line Set Stainless Steel 2002 Sierra 3500 2WD 2 Dr Reg Cab & Chassis 137" WB w/DRW w/o Anti-lock Brakes for 6.0L, 6.6L and 8.1L engines

Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC149-01-SS, BLC149-02-SS, BLC132-03-SS and BLC132-04A-SS. See the video below on how to remove the shipping bend

SKU: BLC-154-SS4
Box Dimensions 59" x 12" x 7"
Product Warranty 1 Year

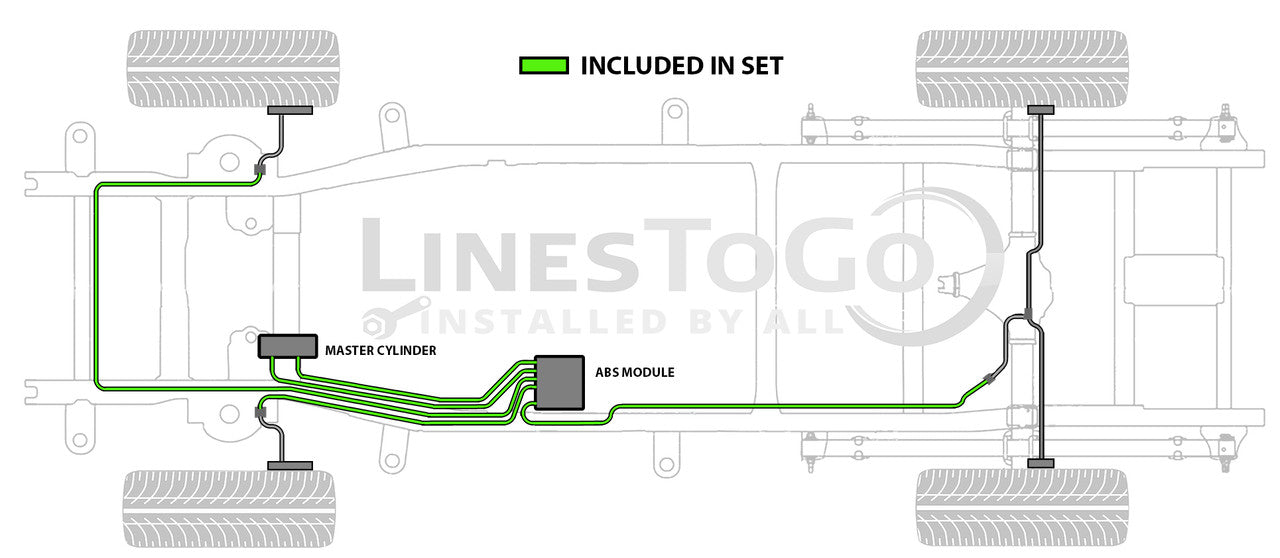

Complete set excluding Hoses and Rear Axle Crossover Line

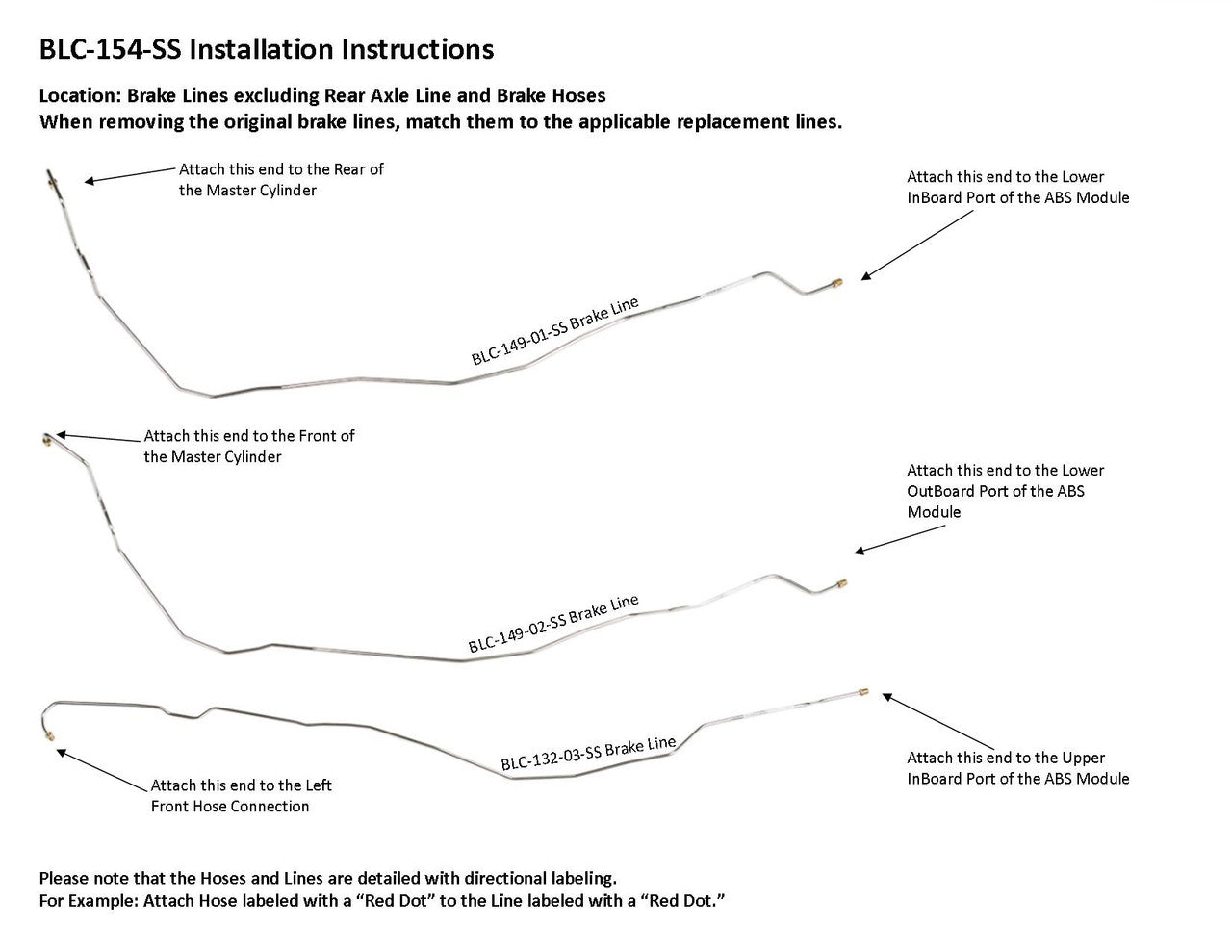

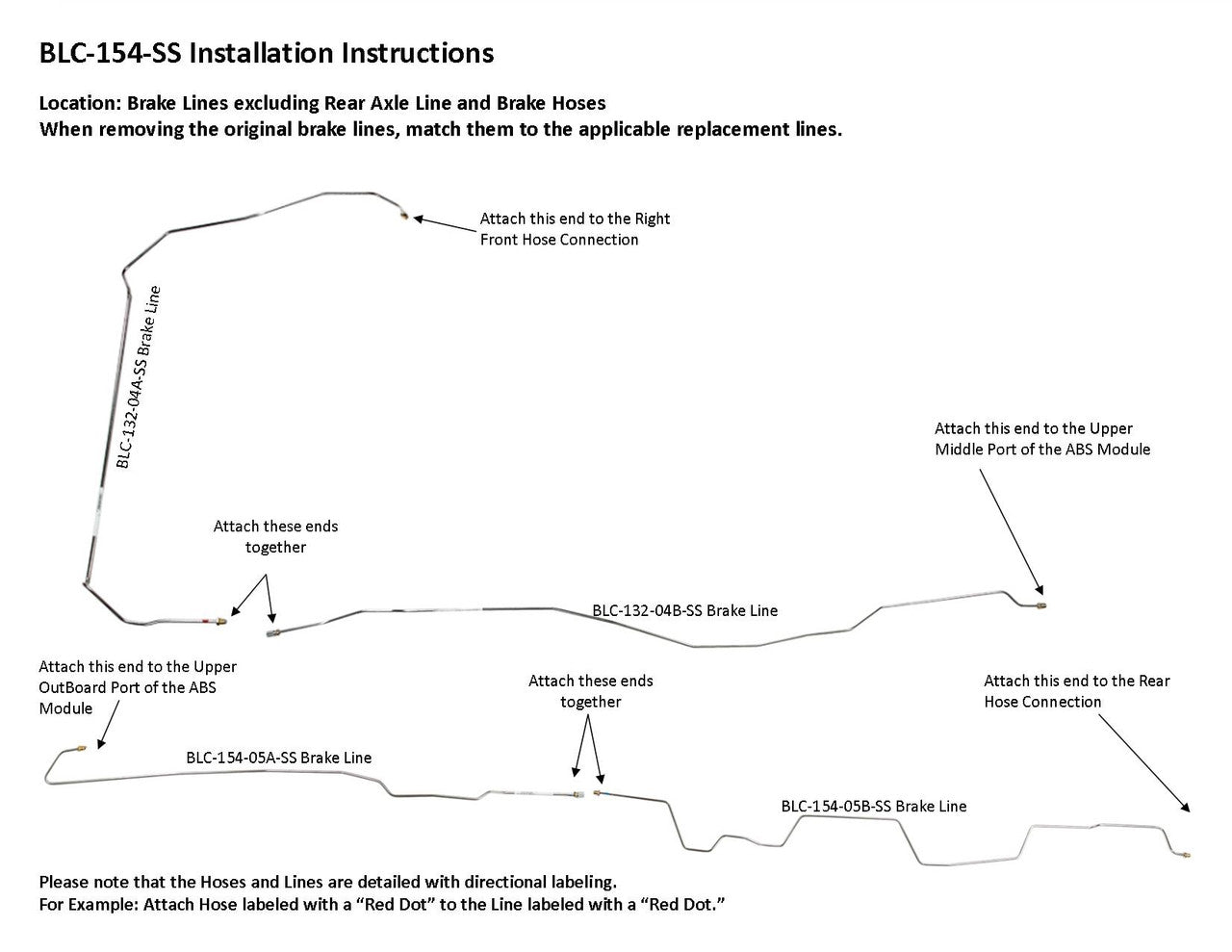

1 Master Cylinder Primary Line from Rear of Master Cylinder to Lower Inboard Port of the ABS Module, 1 Master Secondary Line from Front of Master Cylinder to Lower Outboard Port of the ABS Module, Left Front Line from Hose Connection to Upper Inboard Port of the ABS, Right Front Line from Hose Connection to Upper Middle Port of the ABS (2 easy to install sections), Rear Line from Hose Connection to Upper Outboard Port of the ABS Module (2 easy to install sections), Excludes Rear Axle Crossover Line

22933198

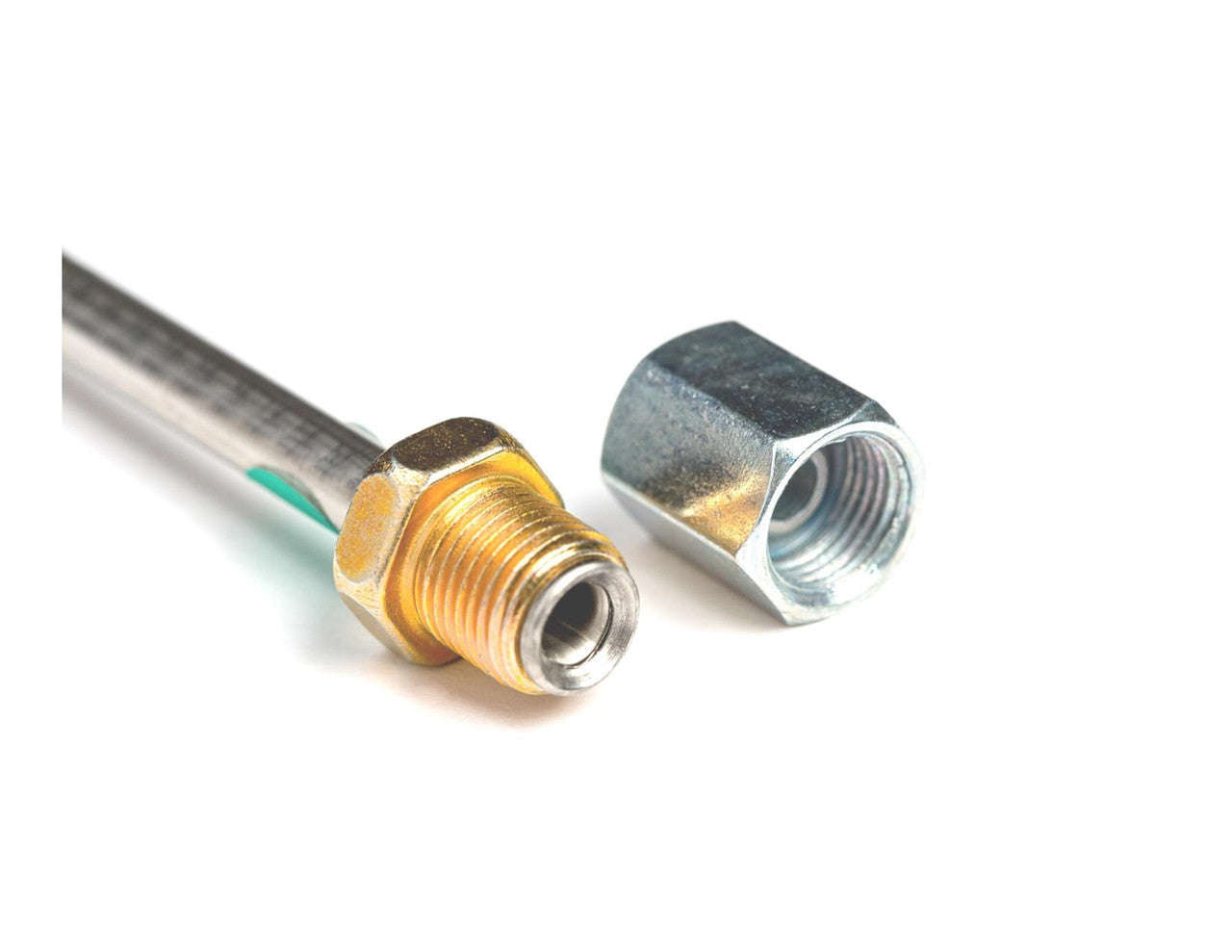

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.
