GMC Sierra Brake Line Set 2000 1500 4WD Ext Cab 8ft Bed 4.8L BLC-227-SS2F Stainless Steel

w/GVW 7,200 LBS w/4 Wheel Disc Brakes w/o QuadraSteer

GMC Sierra Brake Line Set 2000 1500 4WD Ext Cab 8ft Bed 4.8L BLC-227-SS2F Stainless Steel
GMC Sierra Brake Line Set 2000 1500 4WD Ext Cab 8ft Bed 4.8L BLC-227-SS2F Stainless Steel
GMC Sierra Brake Line Set 2000 1500 4WD Ext Cab 8ft Bed 4.8L BLC-227-SS2F Stainless Steel
GMC Sierra Brake Line Set 2000 1500 4WD Ext Cab 8ft Bed 4.8L BLC-227-SS2F Stainless Steel
GMC Sierra Brake Line Set 2000 1500 4WD Ext Cab 8ft Bed 4.8L BLC-227-SS2F Stainless Steel

GMC Sierra Brake Line Set 2000 1500 4WD Ext Cab 8ft Bed 4.8L BLC-227-SS2F Stainless Steel

w/GVW 7,200 LBS w/4 Wheel Disc Brakes w/o QuadraSteer

MSRP: from
SALE: from
Save $66.27
from /
Stainless steel
Check Your Cab Configuration

Delivery Time & Rates

Zip/Postal Code:
SKU: BLC-227-SS2F
  • Weight: 9

Install this pre bent 2000 Sierra brake line set in no time!

Brake Line Set Stainless Steel 2000 GMC Sierra 1500 4WD Ext Cab 8ft Bed for 4.8L engines w/GVW 7,200 LBS w/4 Wheel Disc Brakes w/o QuadraSteer.

Please Note: Before installing your brake line, a shipping bend will need to be removed from the lines labeled BLC175-01-SS, BLC175-02-SS, BLC104-03-SS, BLC140-04A-SS, BLC140-04B-SS, BLC178-05A-SS, and BLC178-05B-SS. See the video below on how to remove the shipping bend.

OEM Part Number: 22933215

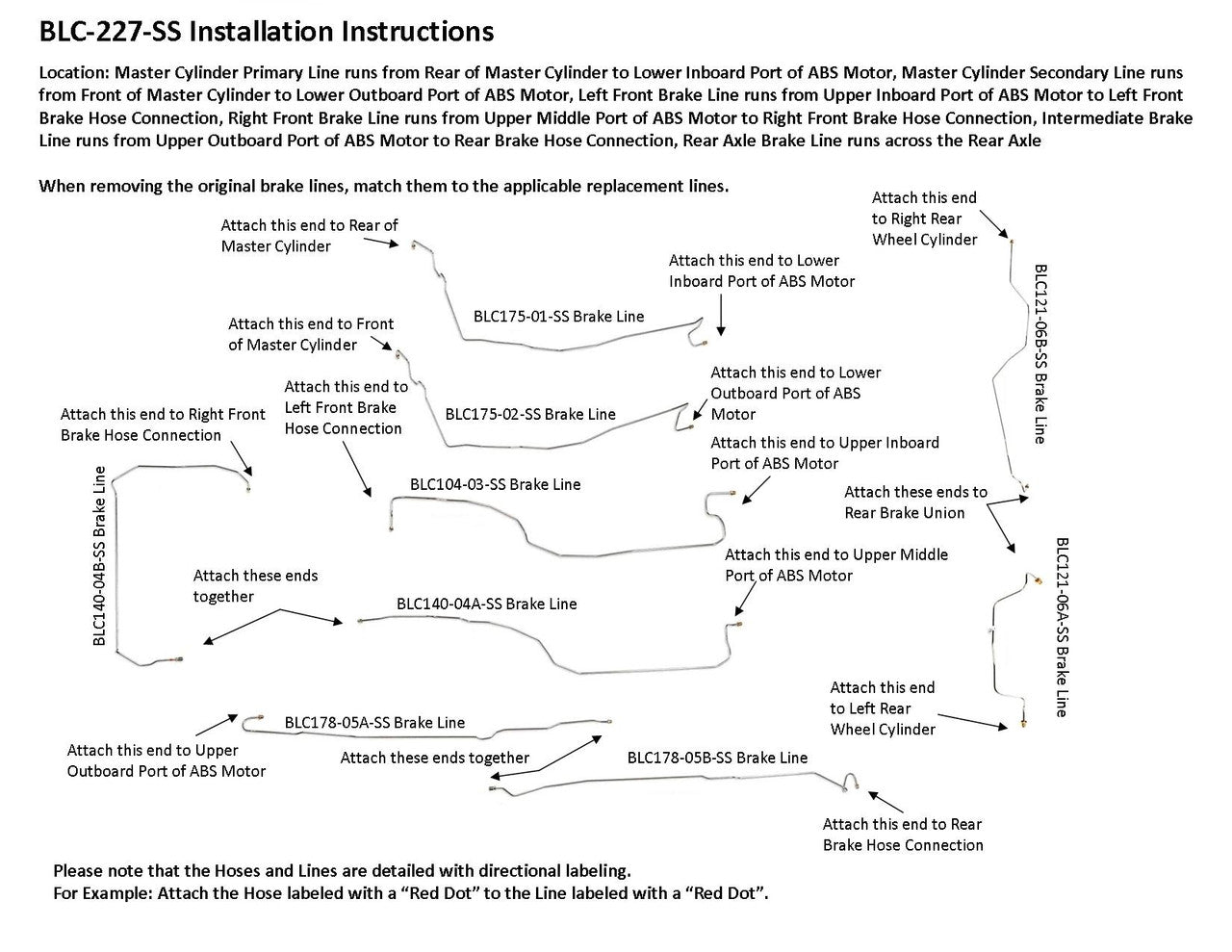

Location: Master Cylinder Primary Line runs from Rear of Master Cylinder to Lower Inboard Port of ABS Motor, Master Cylinder Secondary Line runs from Front of Master Cylinder to Lower Outboard Port of ABS Motor, Left Front Brake Line runs from Upper Inboard Port of ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from Upper Middle Port of ABS Motor to Right Front Brake Hose Connection, Intermediate Brake Line runs from Upper Outboard Port of ABS Motor to Rear Brake Hose Connection, Rear Axle Brake Line runs across the Rear Axle

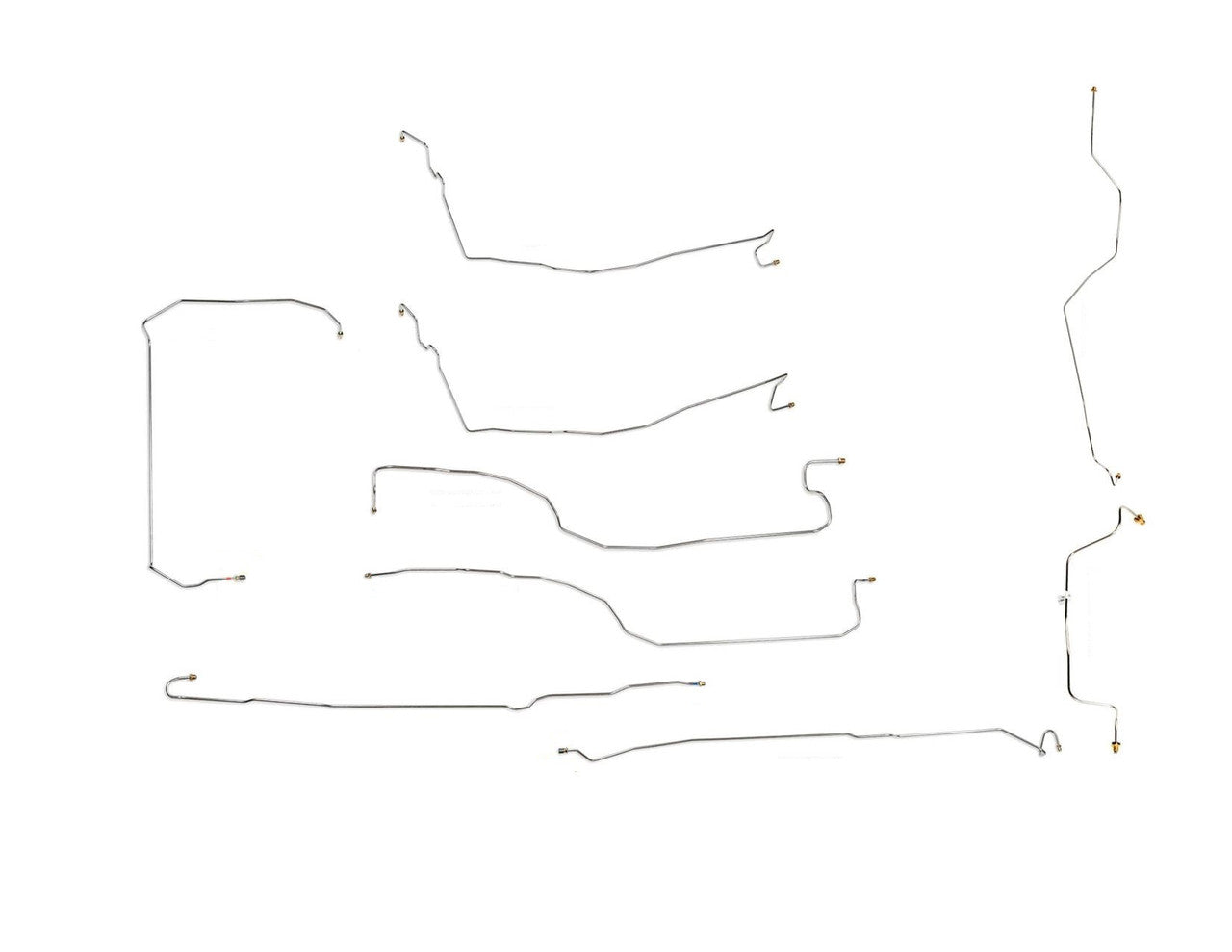

Included in Set: 1 Master Cylinder Primary Brake Line 1/4", 1 Master Cylinder Secondary Brake Line 1/4", 1 Left Front Brake Line 1/4", 1 Right Front Brake Line 1/4" (in 2 easy to install sections), 1 Intermediate Brake Line 1/4" (in 2 easy to install sections), 1 Rear Axle Brake Line 3/16" (2 sections), Does NOT include Brake Hoses

Tube Construction: Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Warranty: 1 Year

Box Dimensions: 47" x 12" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
