Name: GMC Sierra 1500HD/2500/2500HD/3500/3500HD Transmission Line Set 2001 6.0L TCL-152-SS2C Stainless Steel
Brand: Lines - To - Go
SKU: TCL-152-SS2C
Price: 154.95 USD
Availability: InStock

Year Make & Model

GMC Sierra 1500HD/2500/2500HD/3500/3500HD Transmission Line Set 2001 6.0L TCL-152-SS2C Stainless Steel

Price

SALE:

Save $38.74

Delivery Time & Rates

Stainless Steel Transmission Line Set 2001 GMC Sierra 1500HD/2500/2500HD/3500/3500HD w/Heavy Duty Cooling w/4L80-E Transmission for 6.0L engines.

SKU: TCL-152-SS2C

Weight: 5

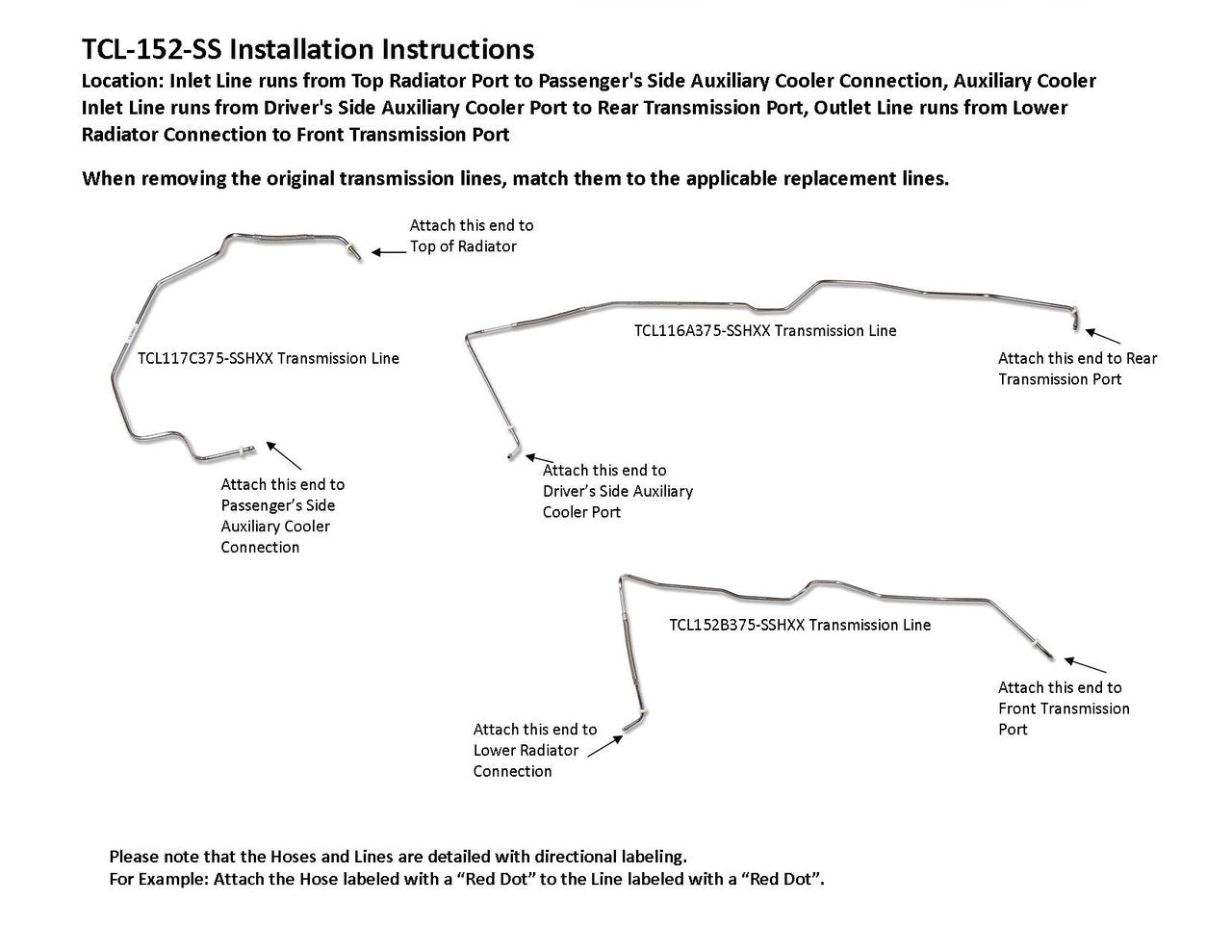

Installation Instructions

Box Dimensions 57" x 11" x 7"

How to use a Quick Disconnect Tool

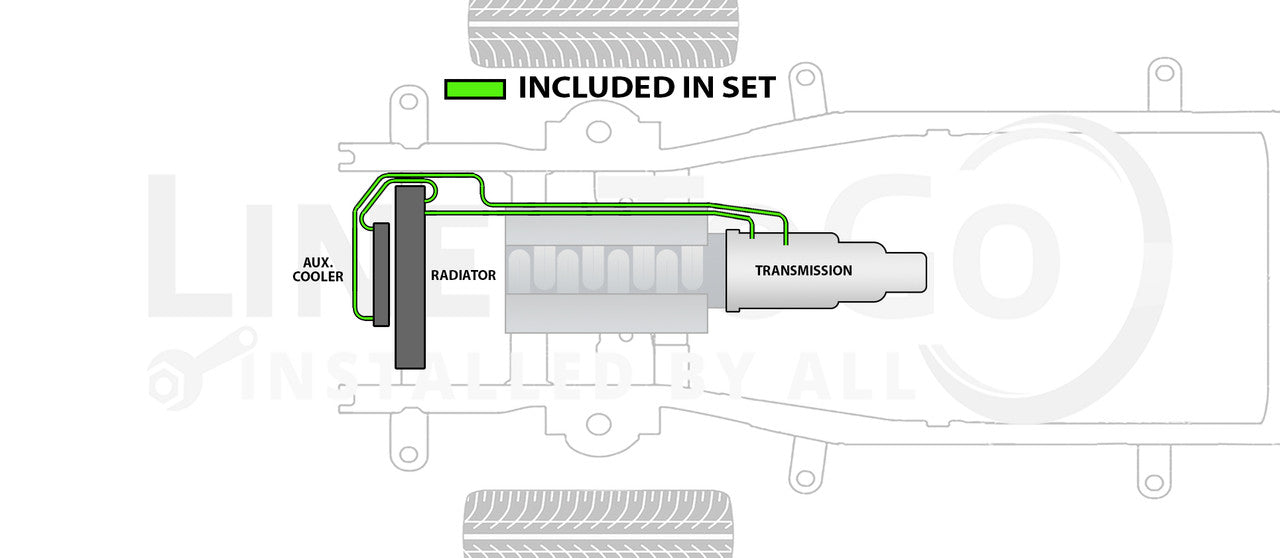

Inlet Line runs from Top Radiator Port to Passenger's Side Auxiliary Cooler Connection, Auxiliary Cooler Inlet Line runs from Driver's Side Auxiliary Cooler Port to Rear Transmission Port, Outlet Line runs from Lower Radiator Connection to Front Transmission Port

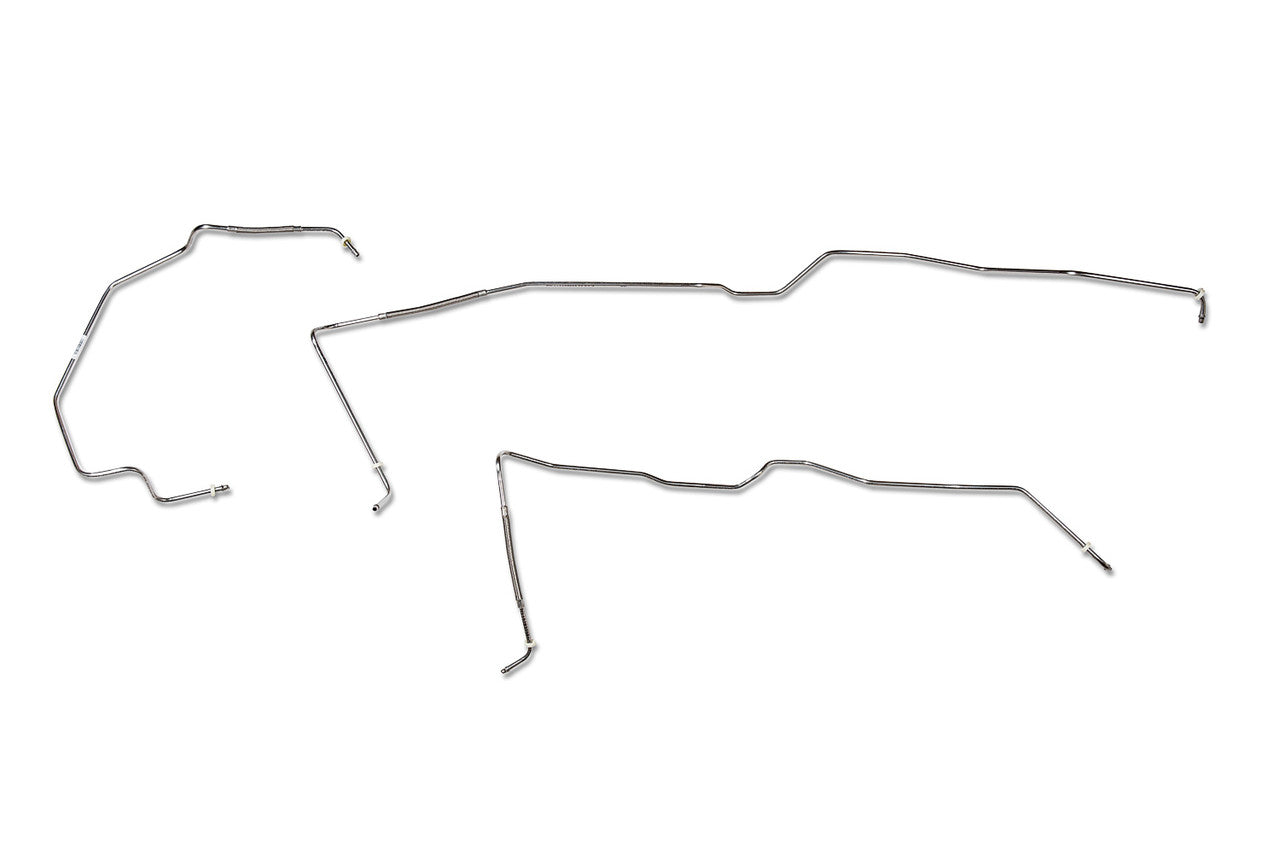

1 Inlet Line 3/8", 1 Outlet Line 3/8", 1 Auxiliary Cooler Inlet Line 3/8"

15809057, 15812029, 15267484

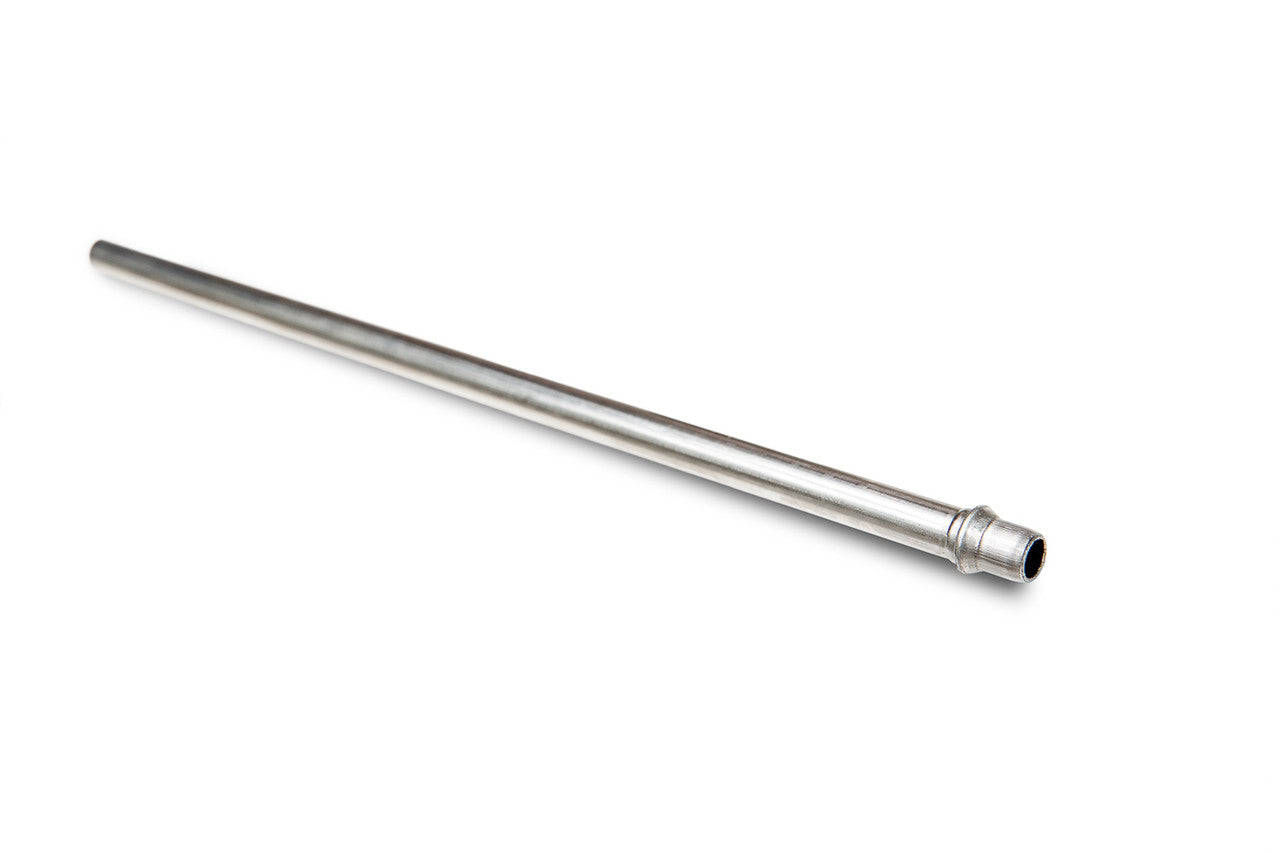

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

All hoses are made from Stainless Steel Braided Teflon with OE style fittings
