Install this pre bent 2010 transmission cooler line set in no time!

Transmission Cooler Line GMC Savana 1500 2010 5.3L engines only

How to use a Quick Disconnect Tool (see related products if needed):

OEM Part Number: 25849129, 25849125

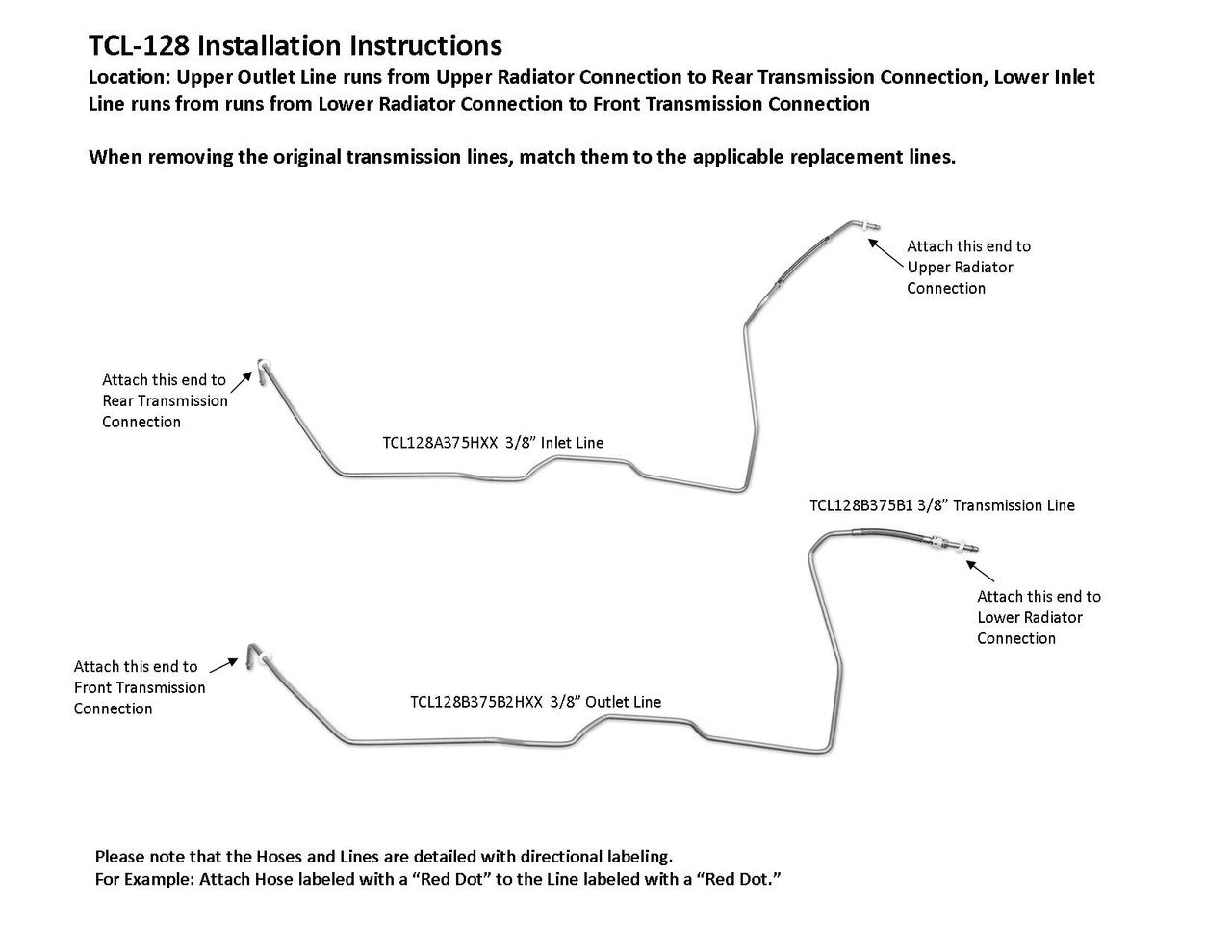

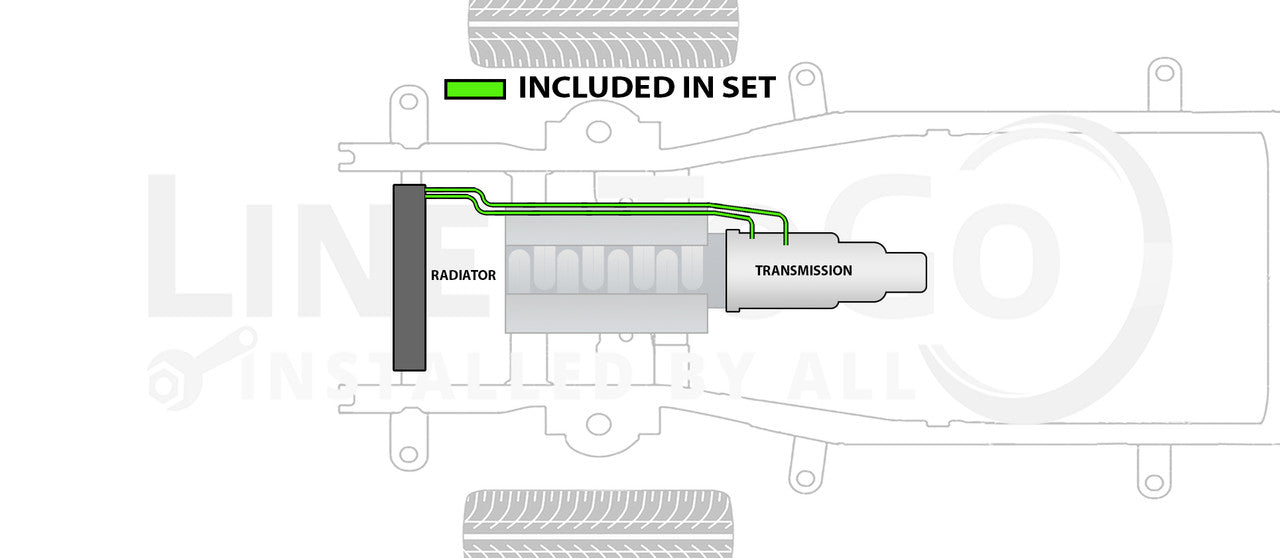

Location: Upper Outlet Line runs from Upper Radiator Connection to Rear Transmission Connection, Lower Inlet Line runs from runs from Lower Radiator Connection to Front Transmission Connection

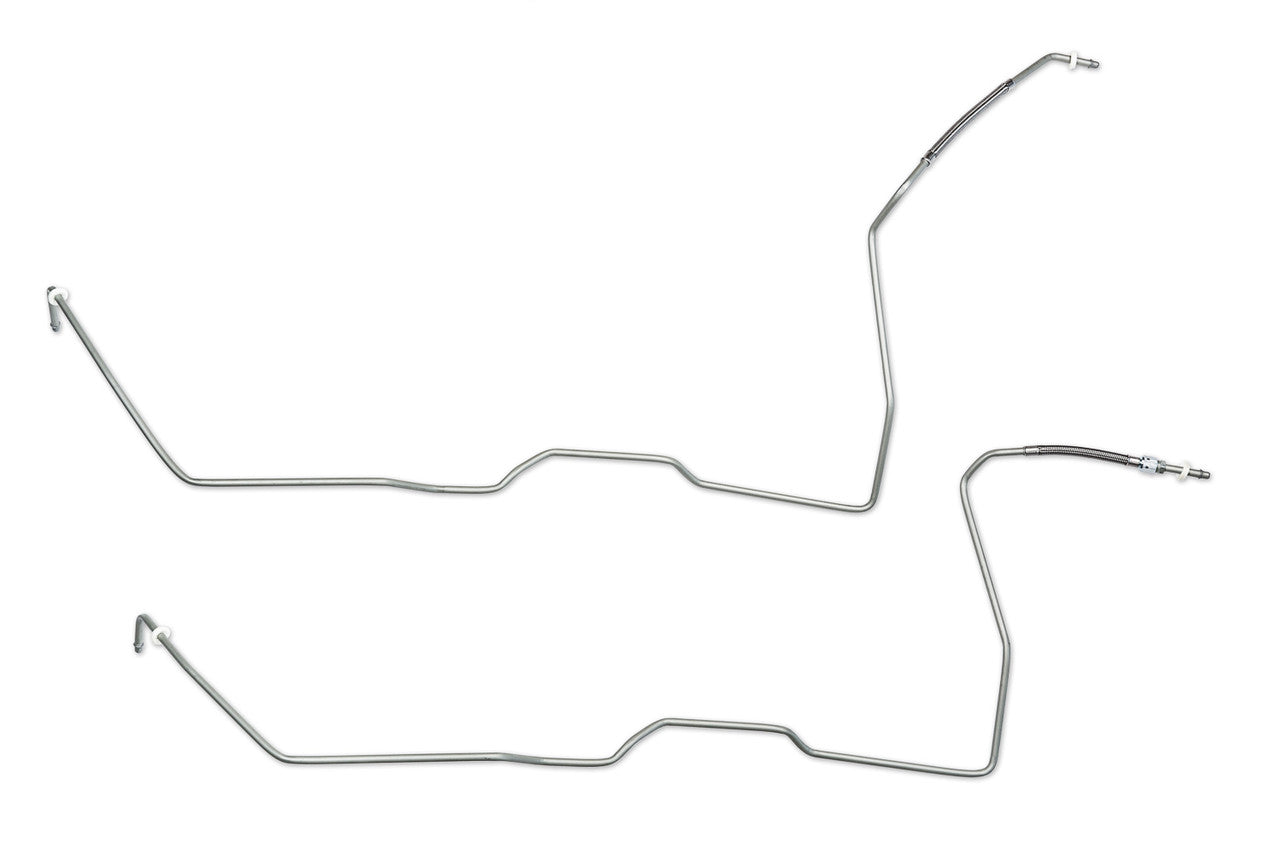

Included in Set: 1 Upper Outlet Line 3/8", 1 Lower Inlet Line 3/8" (2 sections)

Tube Construction: Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Warranty: 1 Year

Box Dimensions: 60" x 12" x 12"
