GMC Savana 1500 Transmission Line Set 2005 5.3L TCL-134-1C

w/Traditional Radiator Hose Clamp on Lower Out Hose 1st Design

GMC Savana 1500 Transmission Line Set 2005 5.3L TCL-134-1C
GMC Savana 1500 Transmission Line Set 2005 5.3L TCL-134-1C
GMC Savana 1500 Transmission Line Set 2005 5.3L TCL-134-1C
GMC Savana 1500 Transmission Line Set 2005 5.3L TCL-134-1C

GMC Savana 1500 Transmission Line Set 2005 5.3L TCL-134-1C

w/Traditional Radiator Hose Clamp on Lower Out Hose 1st Design

MSRP: from
SALE: from
Save $28.74
from /

Delivery Time & Rates

Zip/Postal Code:
SKU: TCL-134-1C
  • Weight: 7

Install this pre bent 2005 transmission cooler line set in no time!

Transmission Cooler Line GMC Savanna 1500 2005 5.3L engines only w/Traditional Radiator Hose Clamp on Lower Out Hose 1st Design

OEM Part Number: 15808429, 15751523

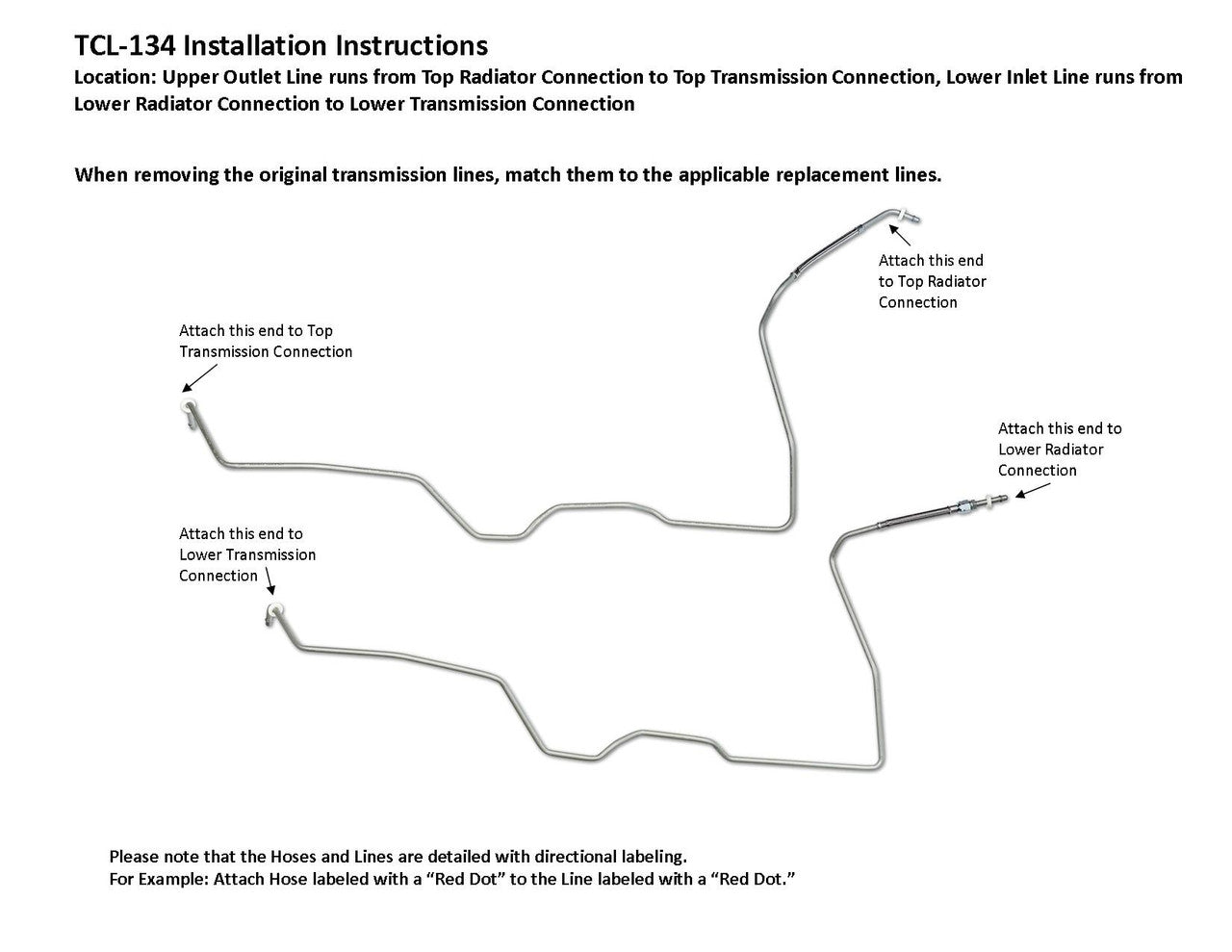

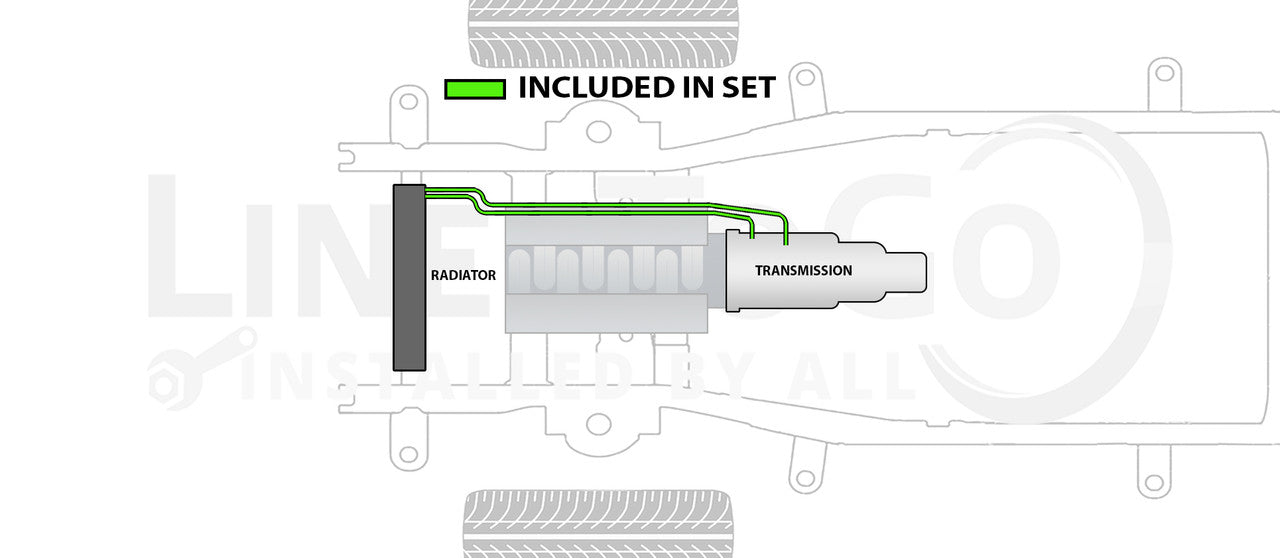

Location: Upper Outlet Line runs from Upper Radiator Connection to Upper Transmission Connection, Lower Inlet Line runs from Lower Radiator Connection to Lower Transmission Connection

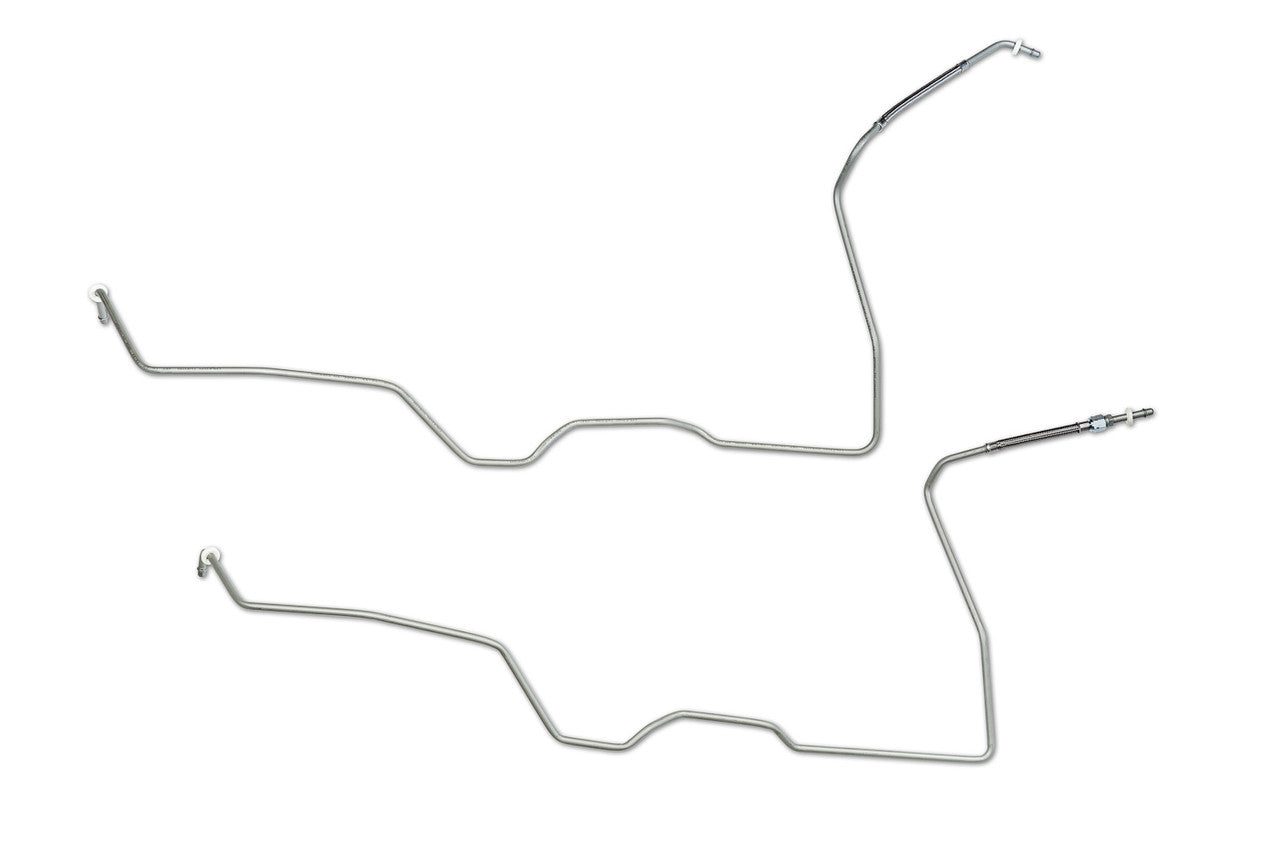

Included in Set: 1 Upper Outlet Line 3/8", 1 Lower Inlet Line 3/8" (2 sections)

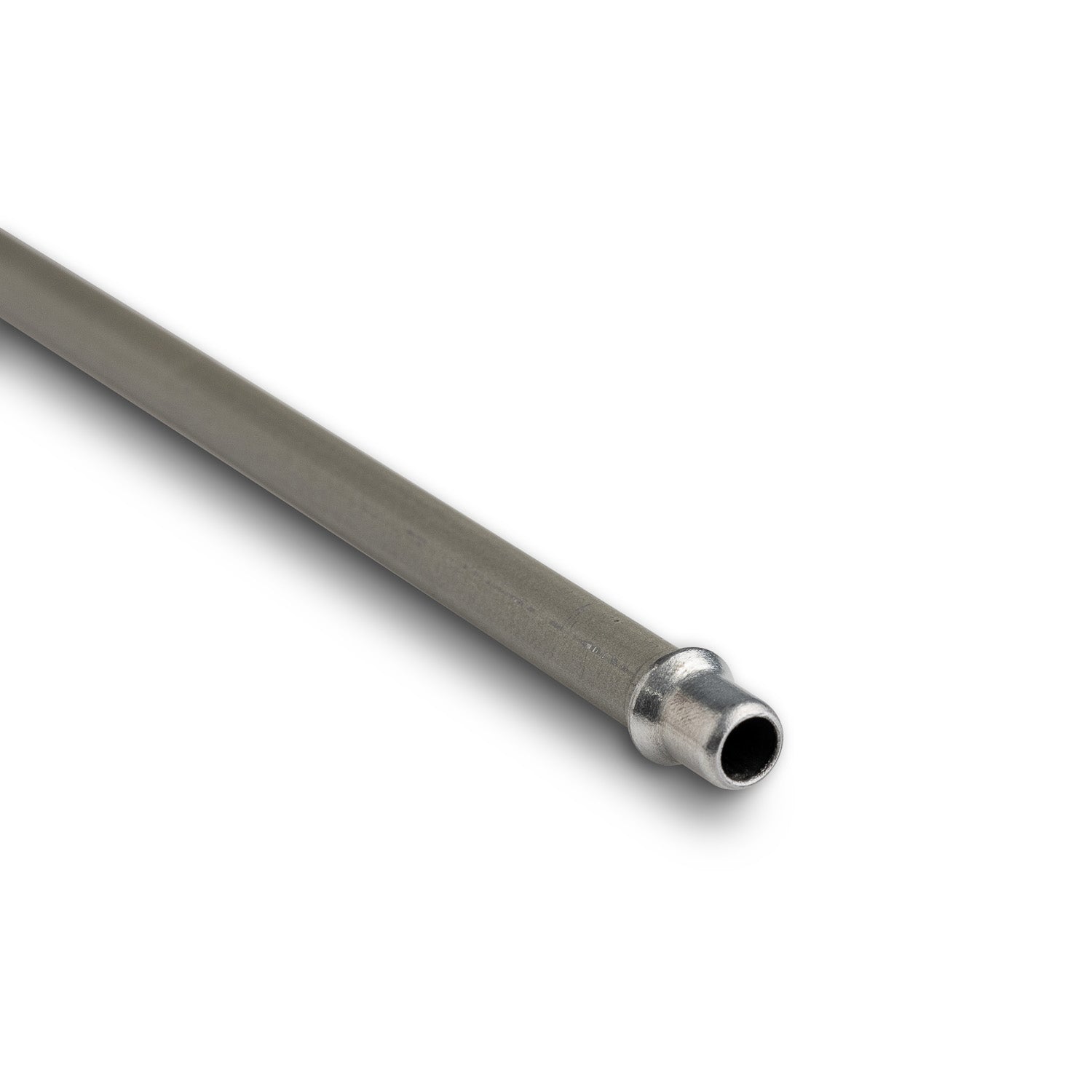

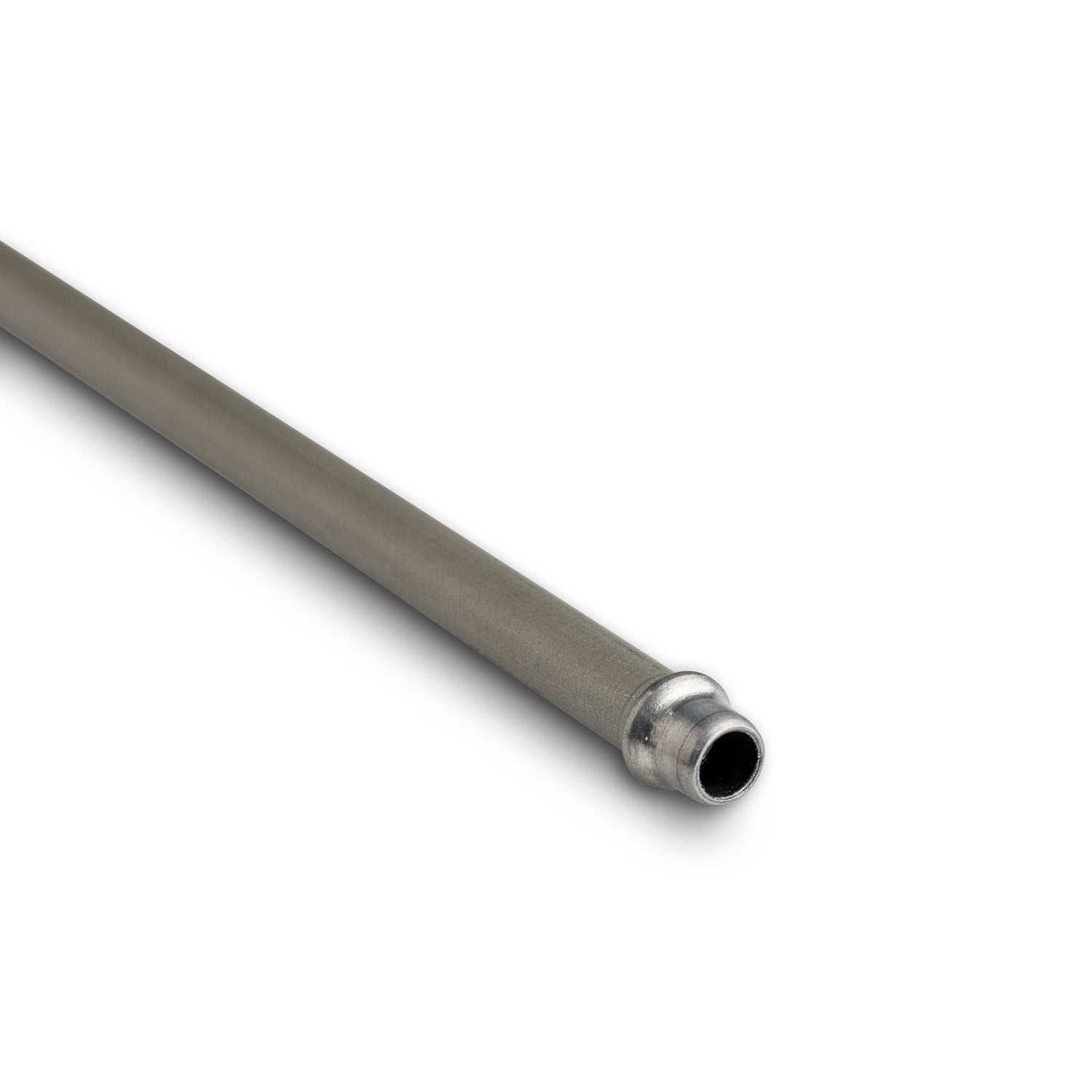

Tube Construction: Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Warranty: 1 Year

Box Dimensions: 39" x 29" x 6"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
