GMC Savana 1500 Transmission Line Set 1996 4.3L TCL-118-3A

w/Transmission Cooling (w/RPO Code KD1), w/4L60-E Transmission (w/RPO Code M30)

GMC Savana 1500 Transmission Line Set 1996 4.3L TCL-118-3A
GMC Savana 1500 Transmission Line Set 1996 4.3L TCL-118-3A
GMC Savana 1500 Transmission Line Set 1996 4.3L TCL-118-3A
GMC Savana 1500 Transmission Line Set 1996 4.3L TCL-118-3A
GMC Savana 1500 Transmission Line Set 1996 4.3L TCL-118-3A

GMC Savana 1500 Transmission Line Set 1996 4.3L TCL-118-3A

w/Transmission Cooling (w/RPO Code KD1), w/4L60-E Transmission (w/RPO Code M30)

SALE: from
from
Save $38.74
from /

Delivery Time & Rates

Install this pre bent 1996 transmission cooler line set in no time!

Transmission Cooler Line GMC Savana 1500 1996 Set w/Transmission Cooling (w/RPO Code KD1), w/4L60-E Transmission (w/RPO Code M30) for 4.3L engines only.

SKU: TCL-118-3A
Box Dimensions 46" x 11" x 7"
Product Warranty 1 Year

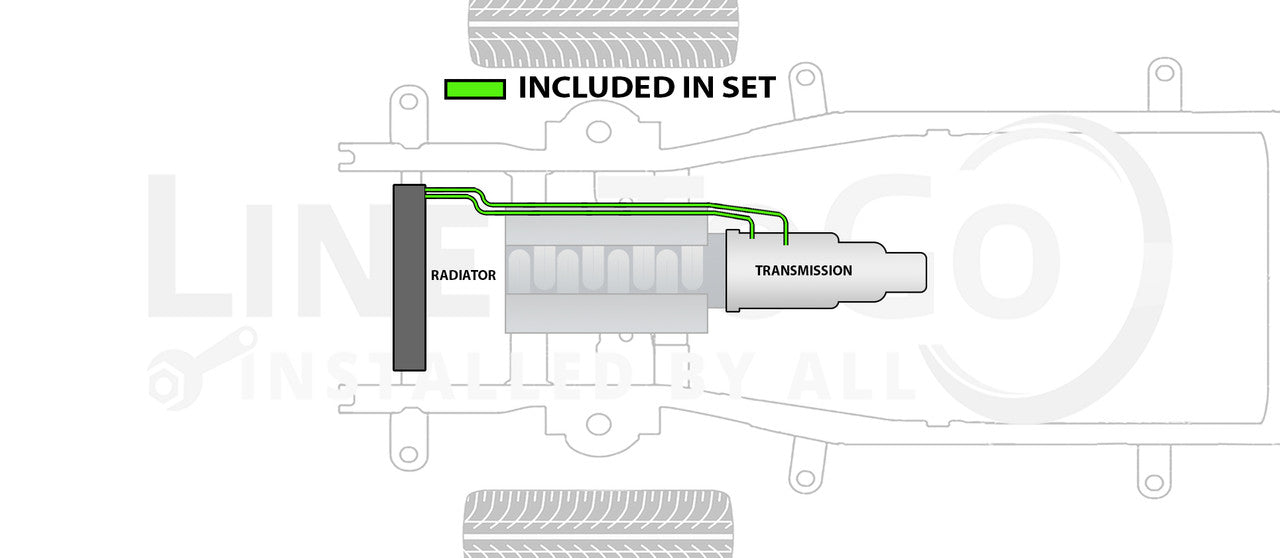

From Cooling Port of the Radiator to Transmission

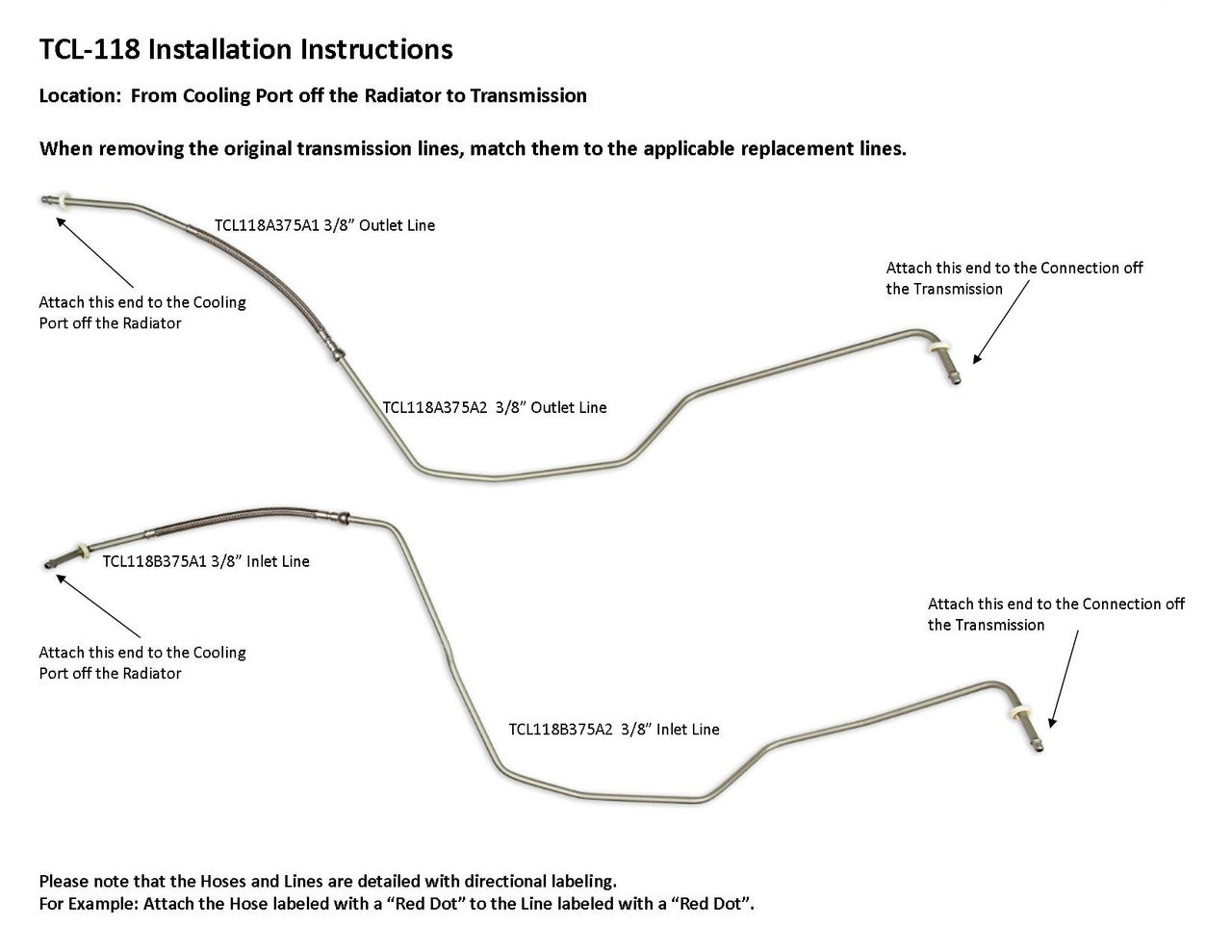

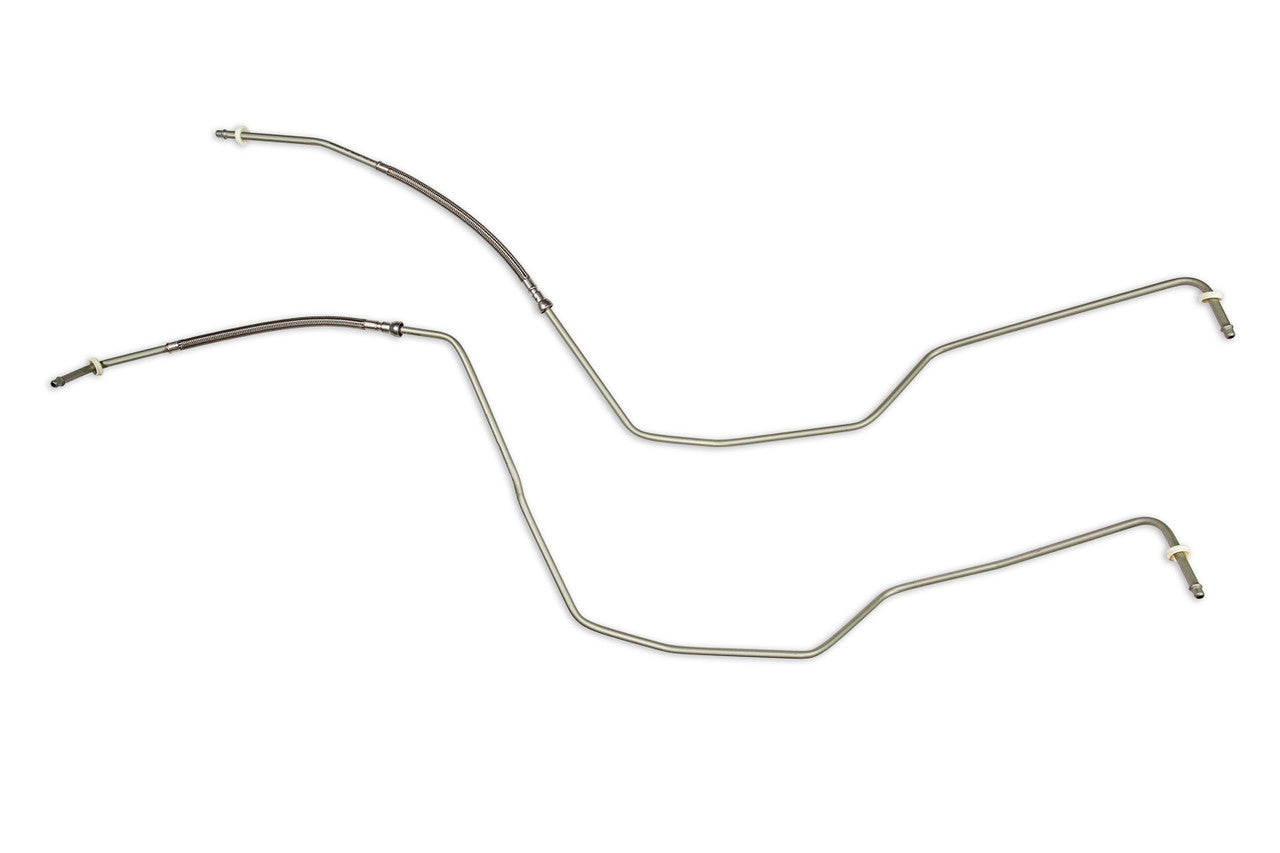

1 Upper Outlet Line 3/8"(2 easy to install sections), 1 Lower Inlet Line 3/8" (2 easy to install sections), 2 Quick Connectors

15052174, 15029681, 1505370, 15052171, 15959729, 15009647

Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.
