GMC Intermediate & Rear Fuel Line Set 1995 C3500 2WD Reg Cab 135.5" WB 7.4L FL487-C2J

w/Rear Auxiliary Tank (NK7) w/15,000 GVW (C5B)

GMC Intermediate & Rear Fuel Line Set 1995 C3500 2WD Reg Cab 135.5" WB 7.4L FL487-C2J
GMC Intermediate & Rear Fuel Line Set 1995 C3500 2WD Reg Cab 135.5" WB 7.4L FL487-C2J
GMC Intermediate & Rear Fuel Line Set 1995 C3500 2WD Reg Cab 135.5" WB 7.4L FL487-C2J
GMC Intermediate & Rear Fuel Line Set 1995 C3500 2WD Reg Cab 135.5" WB 7.4L FL487-C2J
GMC Intermediate & Rear Fuel Line Set 1995 C3500 2WD Reg Cab 135.5" WB 7.4L FL487-C2J
GMC Intermediate & Rear Fuel Line Set 1995 C3500 2WD Reg Cab 135.5" WB 7.4L FL487-C2J

GMC Intermediate & Rear Fuel Line Set 1995 C3500 2WD Reg Cab 135.5" WB 7.4L FL487-C2J

w/Rear Auxiliary Tank (NK7) w/15,000 GVW (C5B)

MSRP: from
SALE: from
Save $72.49
from /
Stainless steel
Check Your Cab Configuration

Delivery Time & Rates

Zip/Postal Code:
SKU: FL487-C2J
  • Weight: 4

Rear Fuel Line Set 1995 GMC C3500 2WD 2 Dr Reg Cab & Chassis w/135.5" WB for 7.4L engines

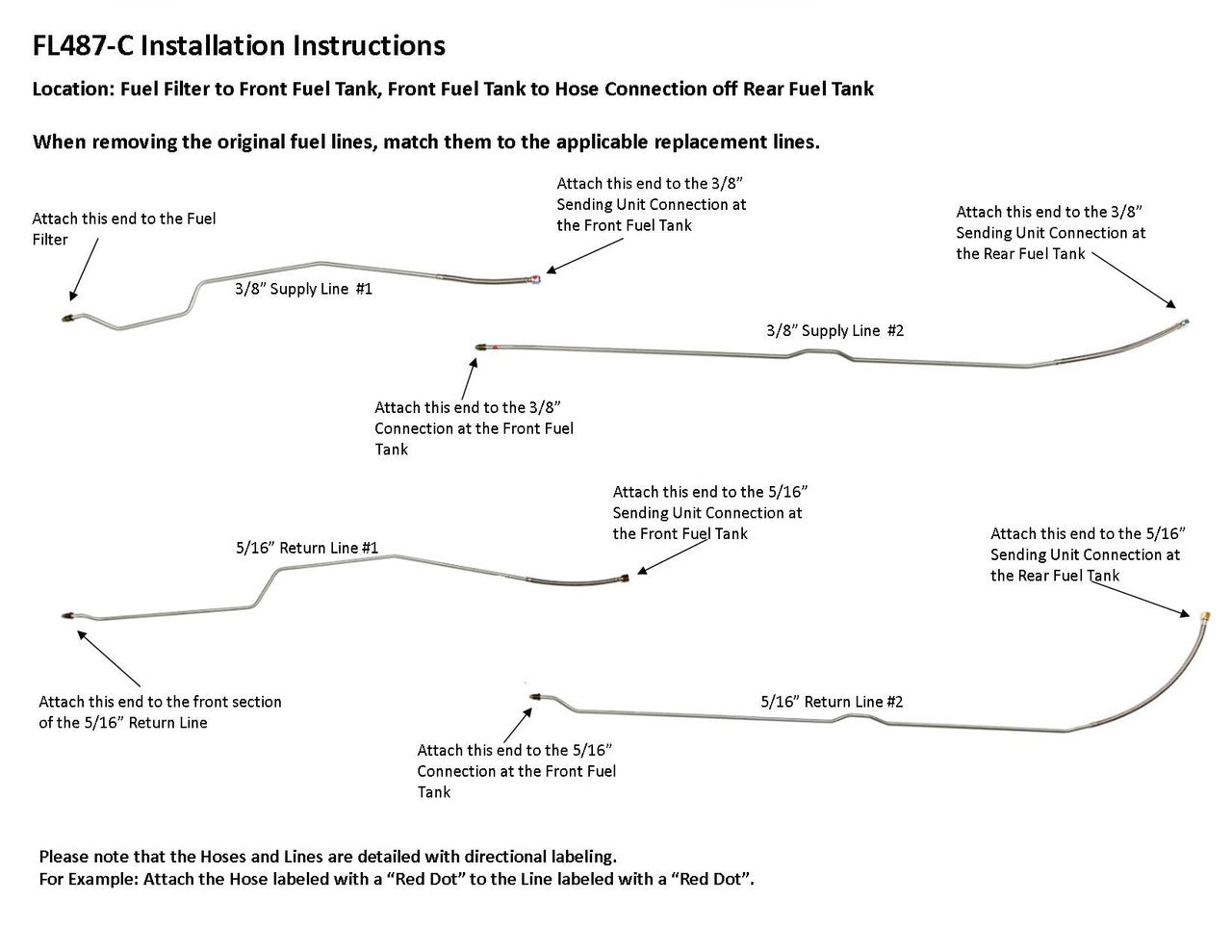

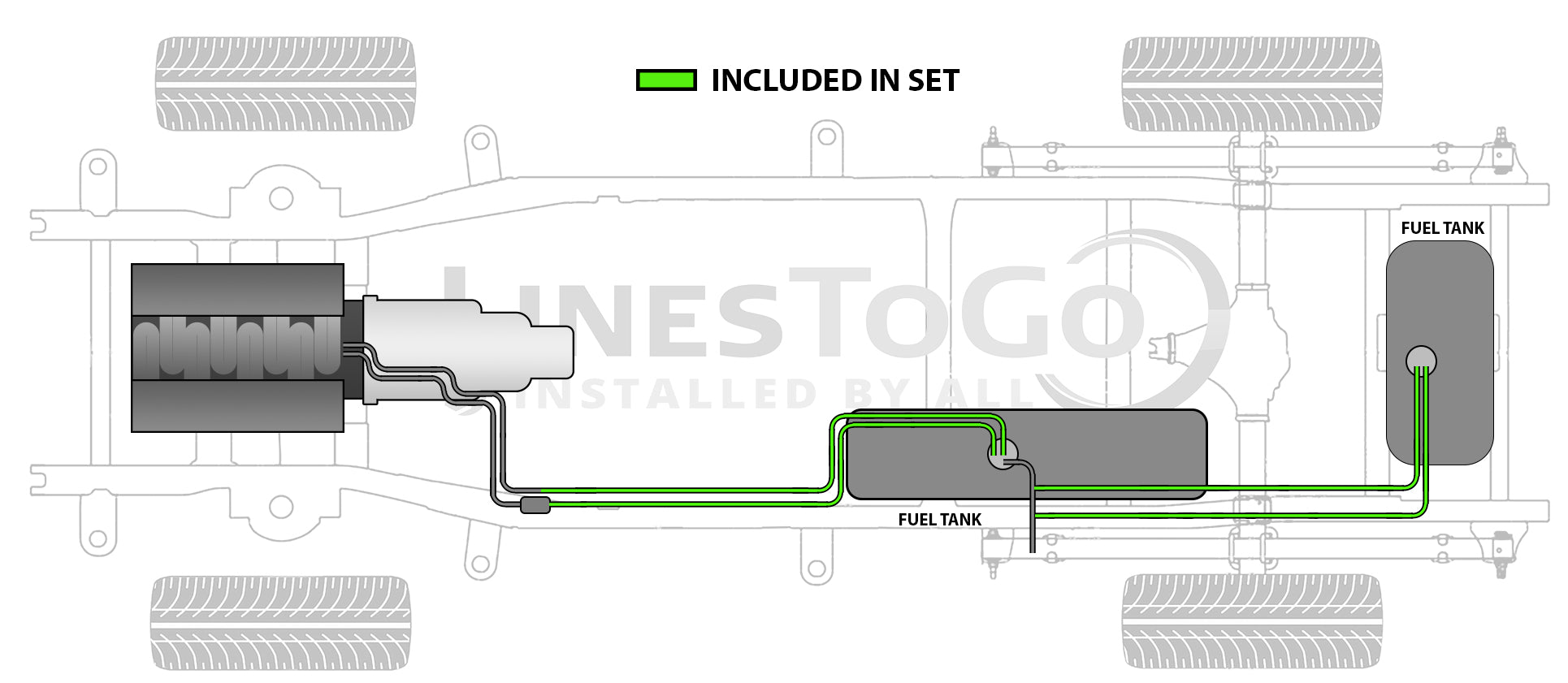

Location: Fuel Filter to Front Fuel Tank, Front Fuel Tank to Hose Connection off Rear Fuel Tank

OEM Part Number15025280, 15991932, 15991931, 15695648, 15732450

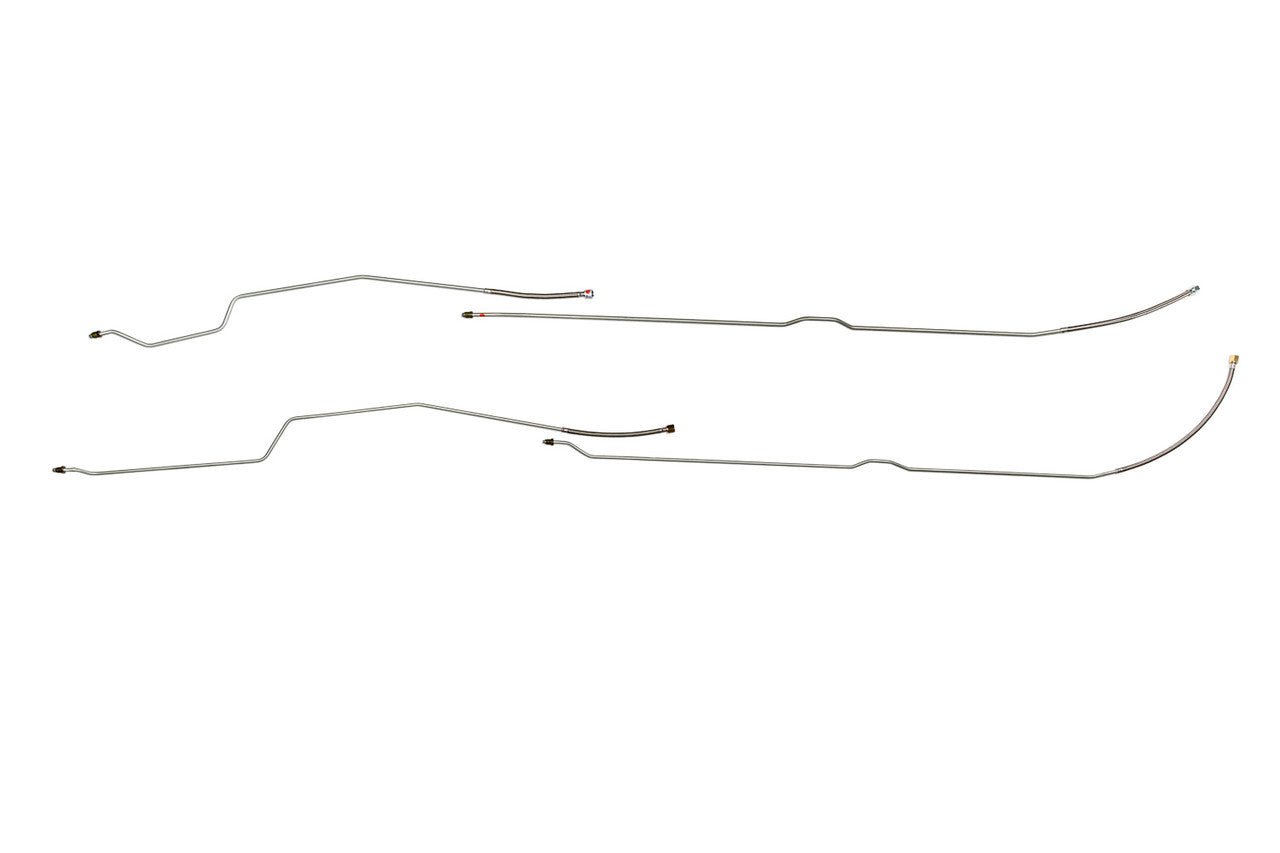

Included in Set: 1 supply line 3/8" (3 pieces), 1 return line 5/16" (3 pieces)

Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 68" x 7" x 5"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
