Install this pre bent 1999 Jimmy brake line without a problem!

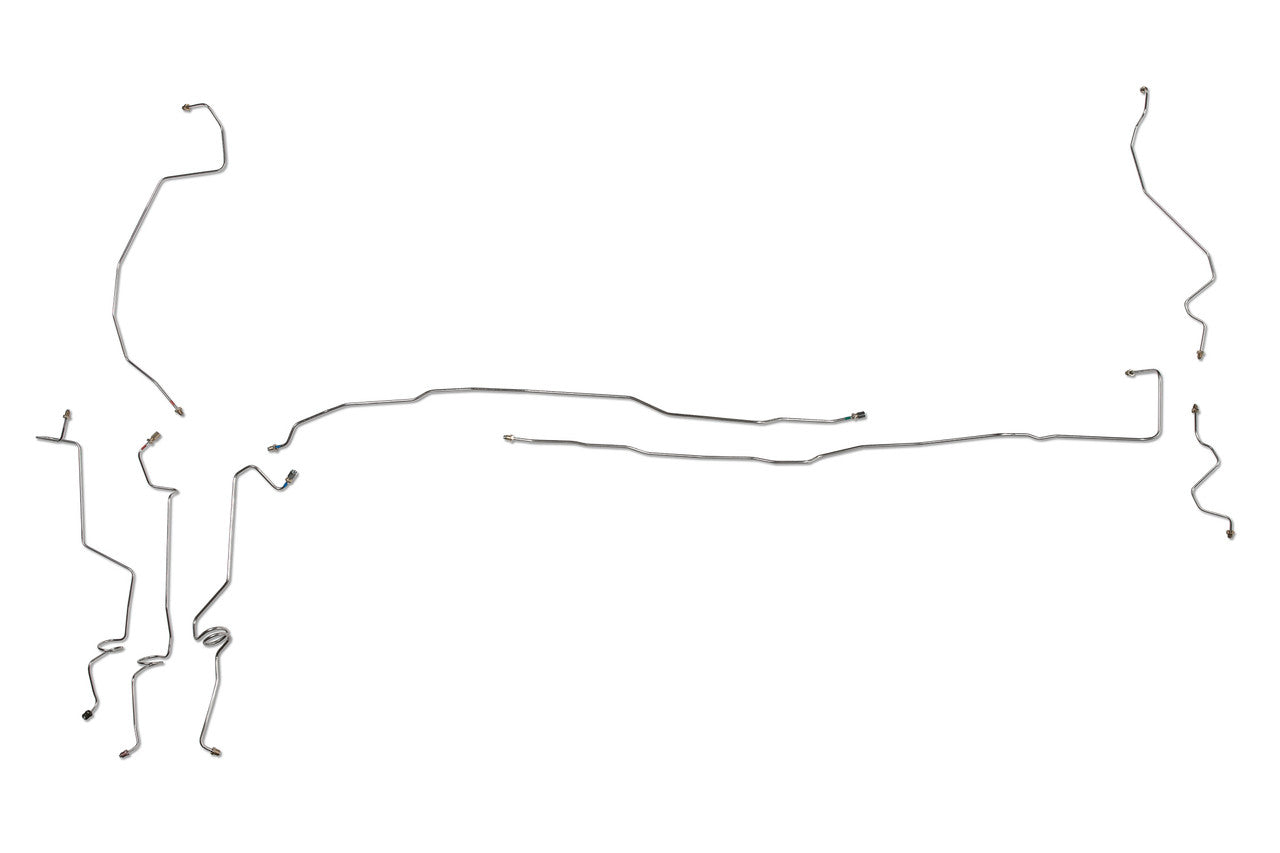

Brake Line Set Stainless Steel GMC Jimmy S Series 2WD 4 Dr w/4 Wheel Disc Brakes for 4.3L engines, Eighth VIN Digit W.

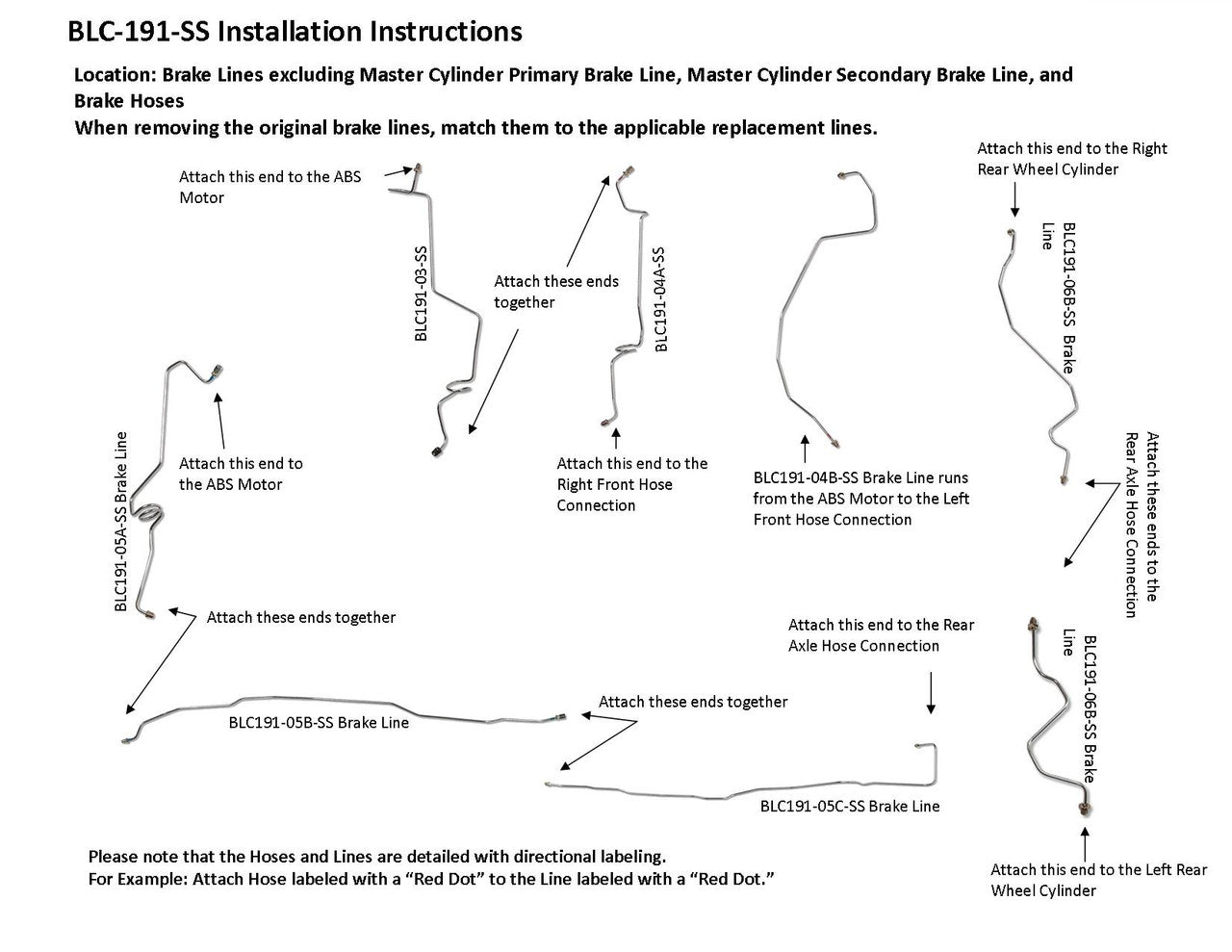

Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC191-05B-SS and BLC191-05C-SS. See the video below on how to remove the shipping bend.
Left Front Brake Line runs from ABS Motor to Left Front Hose Connection, Right Front Brake Line runs from ABS Motor to Right Front Hose Connection, Intermediate Brake Line runs from ABS Motor to Rear Axle Hose Connection, Rear Axle Brake Line runs across the Rear Axle
1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Intermediate Brake Line 1/4" (in 3 easy to install sections), 1 Rear Axle Brake Line 3/16" (2 sections.) Does NOT include Master Cylinder Primary Brake Line, Master Cylinder Secondary Brake Line, or Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
