Brake Line Set Stainless Steel 1997 GMC Jimmy S10 Series 2WD 4 Dr w/Rear Drum Brakes for 4.3L engines, Eighth VIN Digit W for vehicles that have brake lines going into side of the ABS Motor. (Please note there are different types.)
Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC108-05A-SS and BLC108-05B-SS. See the video below on how to remove the shipping bend.

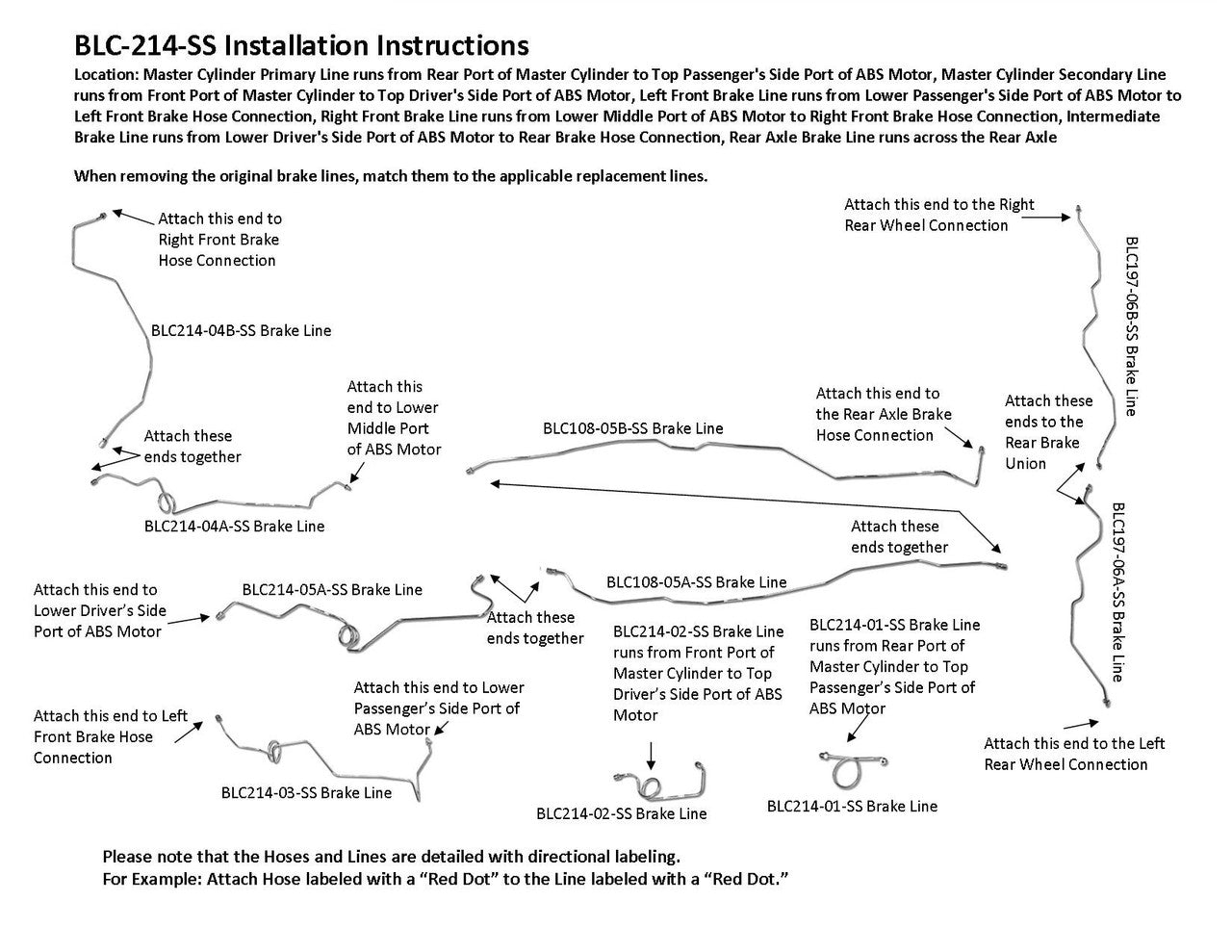

Master Cylinder Primary Line runs from Rear Port of Master Cylinder to Top Passenger's Side Port of ABS Motor, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to Top Driver's Side Port of ABS Motor, Left Front Brake Line runs from Lower Passenger's Side Port of ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from Lower Middle Port of ABS Motor to Right Front Brake Hose Connection, Intermediate Brake Line runs from Lower Driver's Side Port of ABS Motor to Rear Brake Hose Connection, Rear Axle Brake Line runs across the Rear Axle

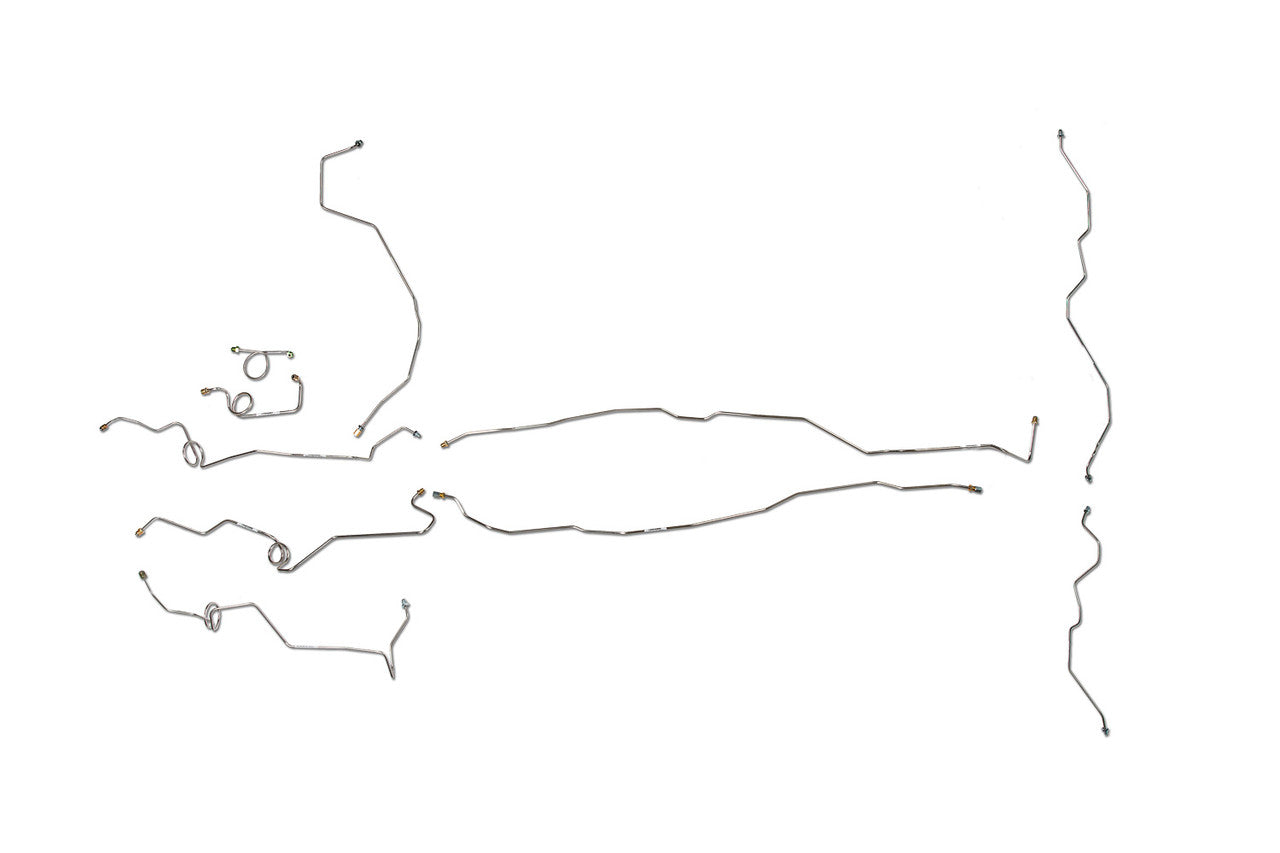

1 Master Cylinder Primary Brake Line 3/16", 1 Master Cylinder Secondary Brake Line 1/4", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Intermediate Brake Line 1/4" (in 2 easy to install sections), 1 Rear Axle Crossover Line 3/16" (2 sections), Does NOT include Hoses
Brake lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
