Fuel Line Set 1997 S Series Jimmy 4Dr 2WD & 4WD
Retainer Clips Included On Lines: The retainer clips provided on the replacement lines may not be needed. The replacement lines will plug into connectors which have retainer clips inside them.
Sometimes during removal of the OEM lines, the retainer clips inside the connectors may be damaged. If this is the case, you will need to leave the retainer clips on the replacement lines.
If the retainer clips remain inside the connector undamaged during removal of the OEM lines, you will not require the retainer clips provided on the replacement lines. The retainer clips will need to be removed before plugging into the connector.

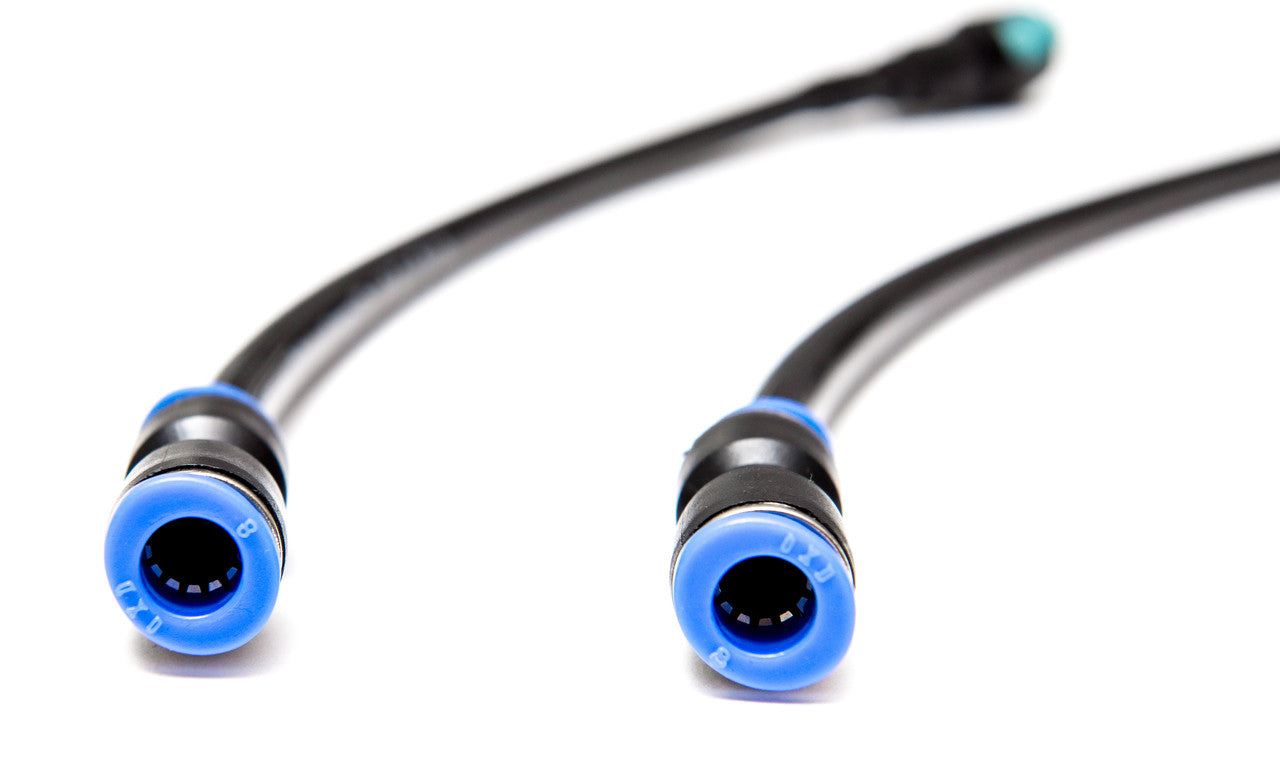

Nylon Repair Kits
3068-01 includes 2 – 5/16” Nylon Lines, 180° quick connectors

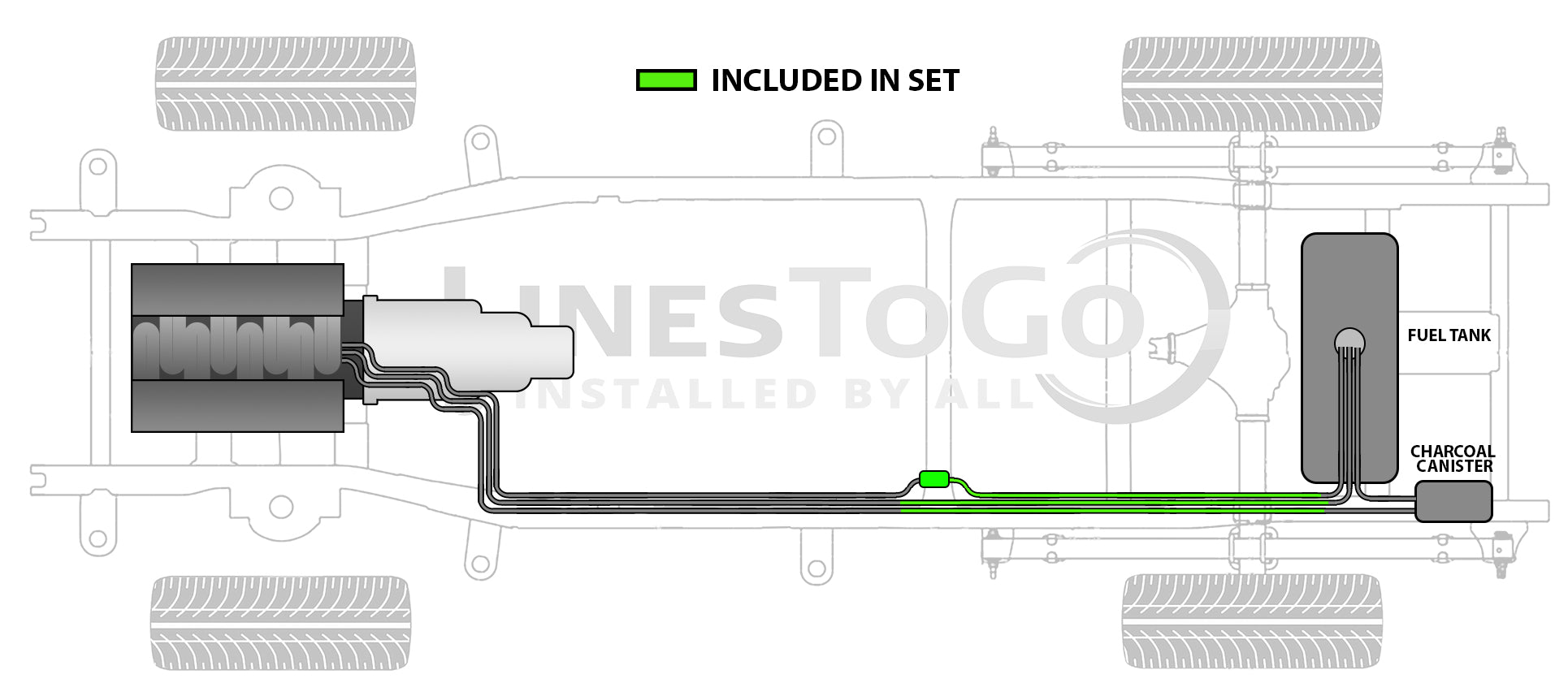

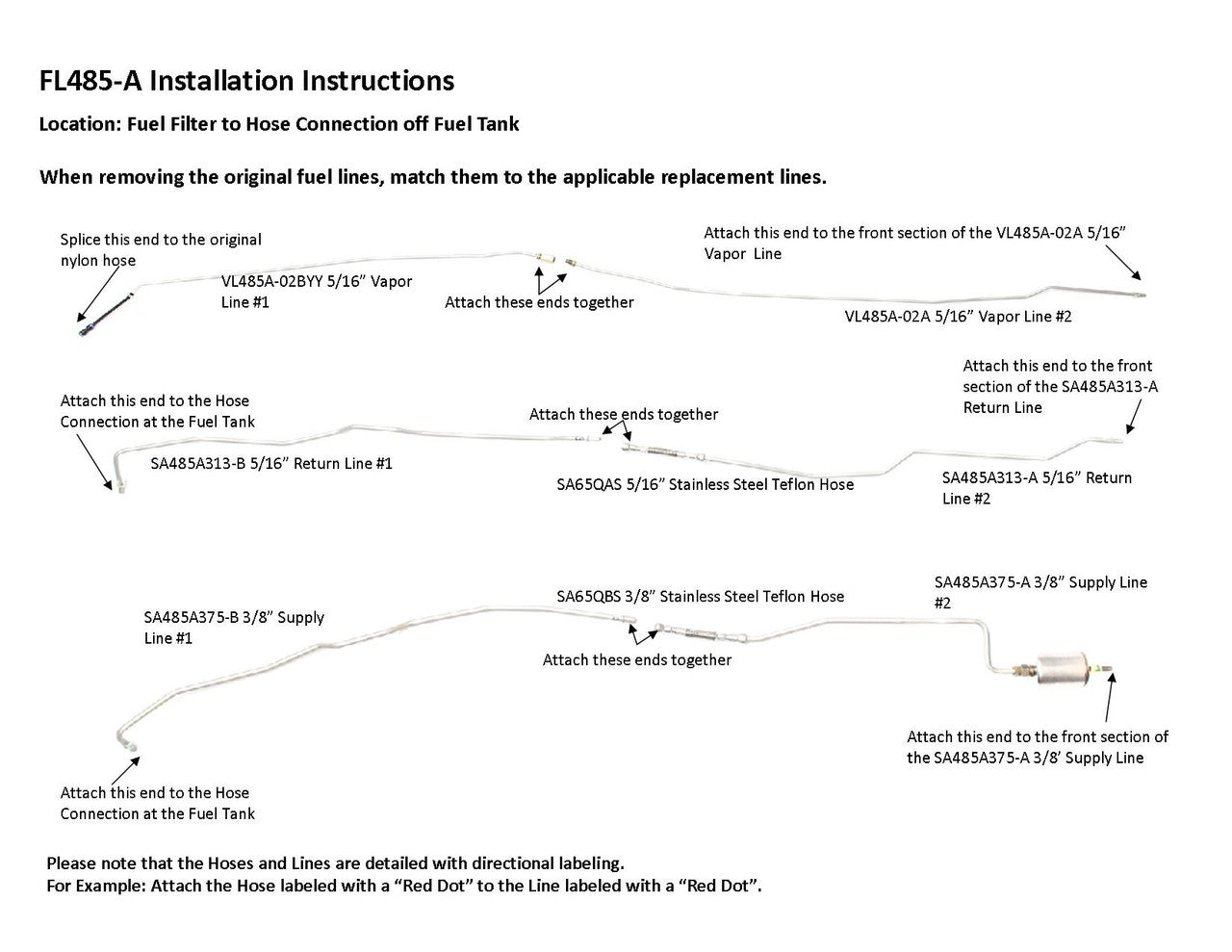

Fuel Filter to Hose Connection off Fuel Tank

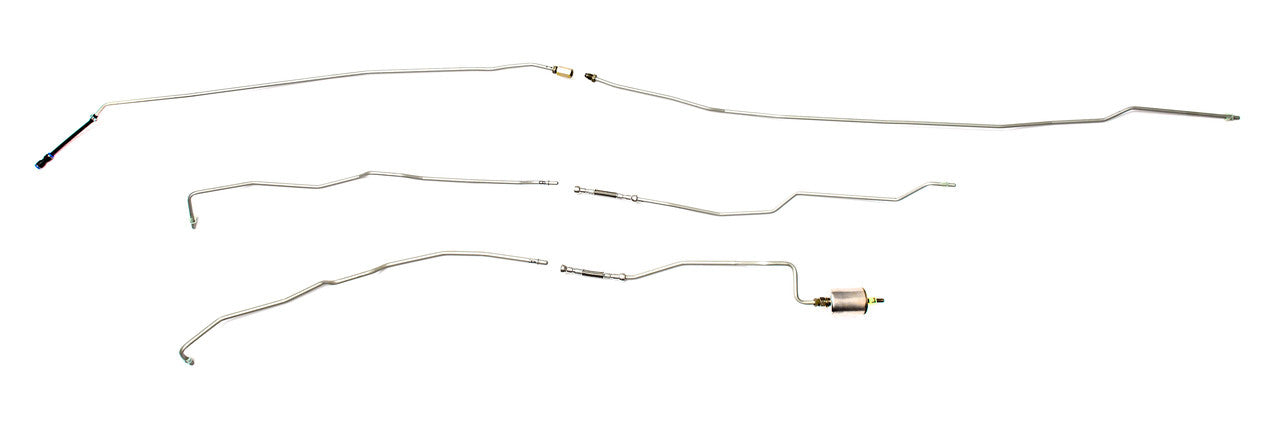

1 supply line 3/8" ( in 2 easy to install sections), 1 return line 5/16" ( in 2 easy to install sections), 1 vapor line 5/16" ( in 2 easy to install sections) excl. section from fuel tank to evap canister, hoses to join to rear sections, 1 fuel filter
Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.
All hoses are made from Stainless Steel Braided Teflon with OE style fittings
