Name: GMC Jimmy Rear Fuel Line Set 1999 S Series 2 Door 2WD & 4WD FL443-B2C
Brand: Lines - To - Go
SKU: FL443-B2C
Price: 214.95 USD
Availability: InStock

Year Make & Model

GMC Jimmy Rear Fuel Line Set 1999 S Series 2 Door 2WD & 4WD FL443-B2C

Price

SALE:

Save $53.74

Delivery Time & Rates

Fuel Line Set 1999 S Series Jimmy 2Dr 2WD & 4WD

Retainer Clips Included On Lines: The retainer clips provided on the replacement lines may not be needed. The replacement lines will plug into connectors which have retainer clips inside them.

Sometimes during removal of the OEM lines, the retainer clips inside the connectors may be damaged. If this is the case, you will need to leave the retainer clips on the replacement lines.

If the retainer clips remain inside the connector undamaged during removal of the OEM lines, you will not require the retainer clips provided on the replacement lines. The retainer clips will need to be removed before plugging into the connector.

SKU: FL443-B2C

Weight: 5

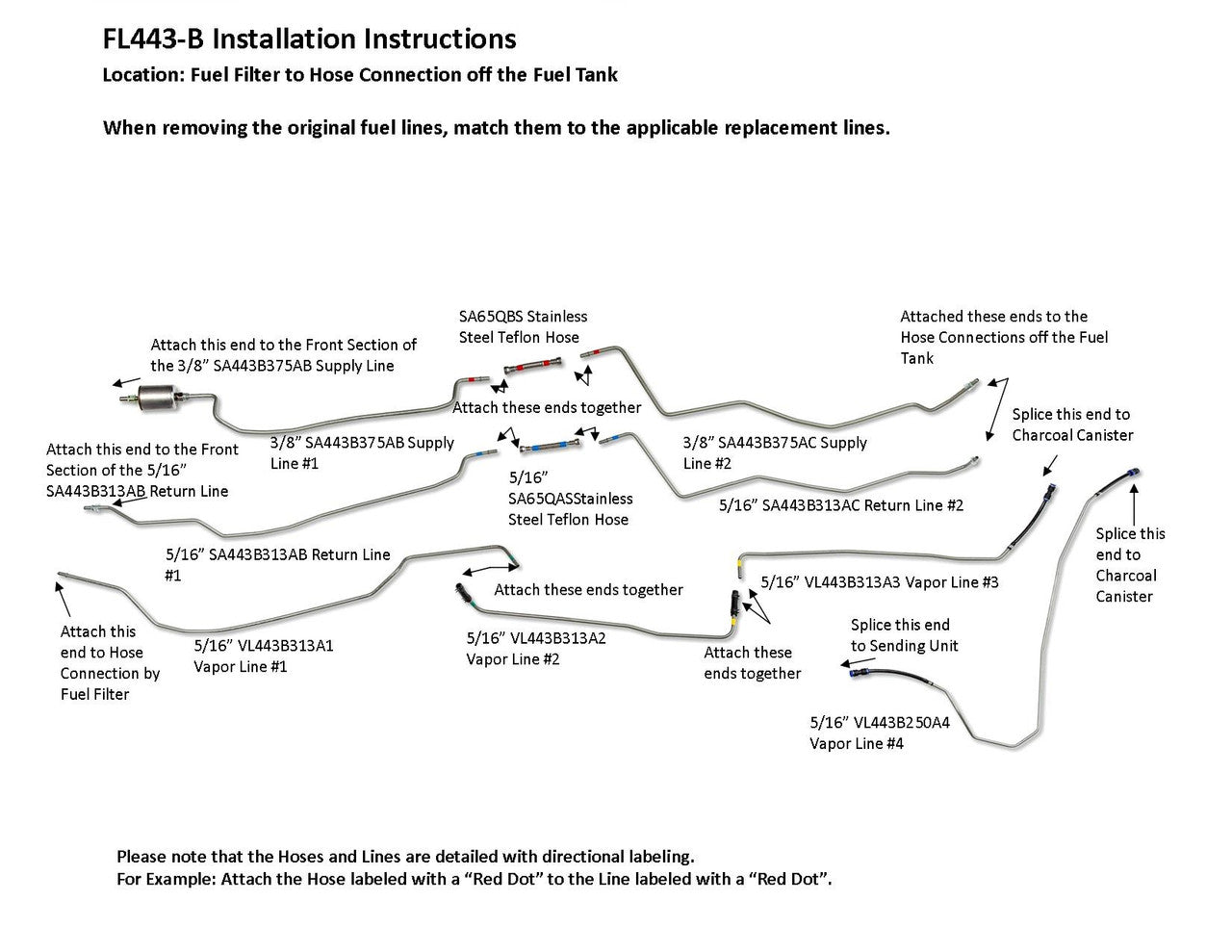

Installation Instructions

Box Dimensions 46" x 11" x 7"

Product Warranty 1 Year

Nylon Splicing

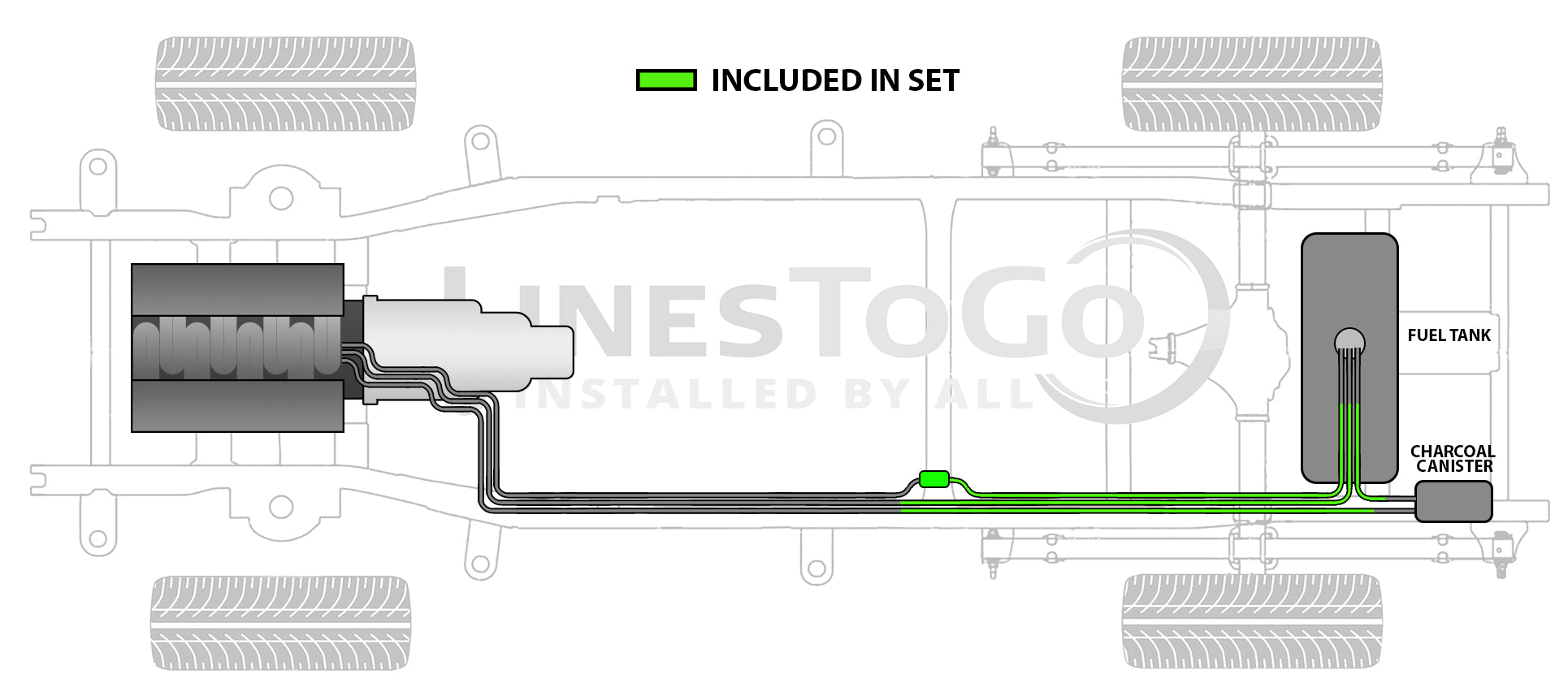

Fuel Filter to Fuel Tank

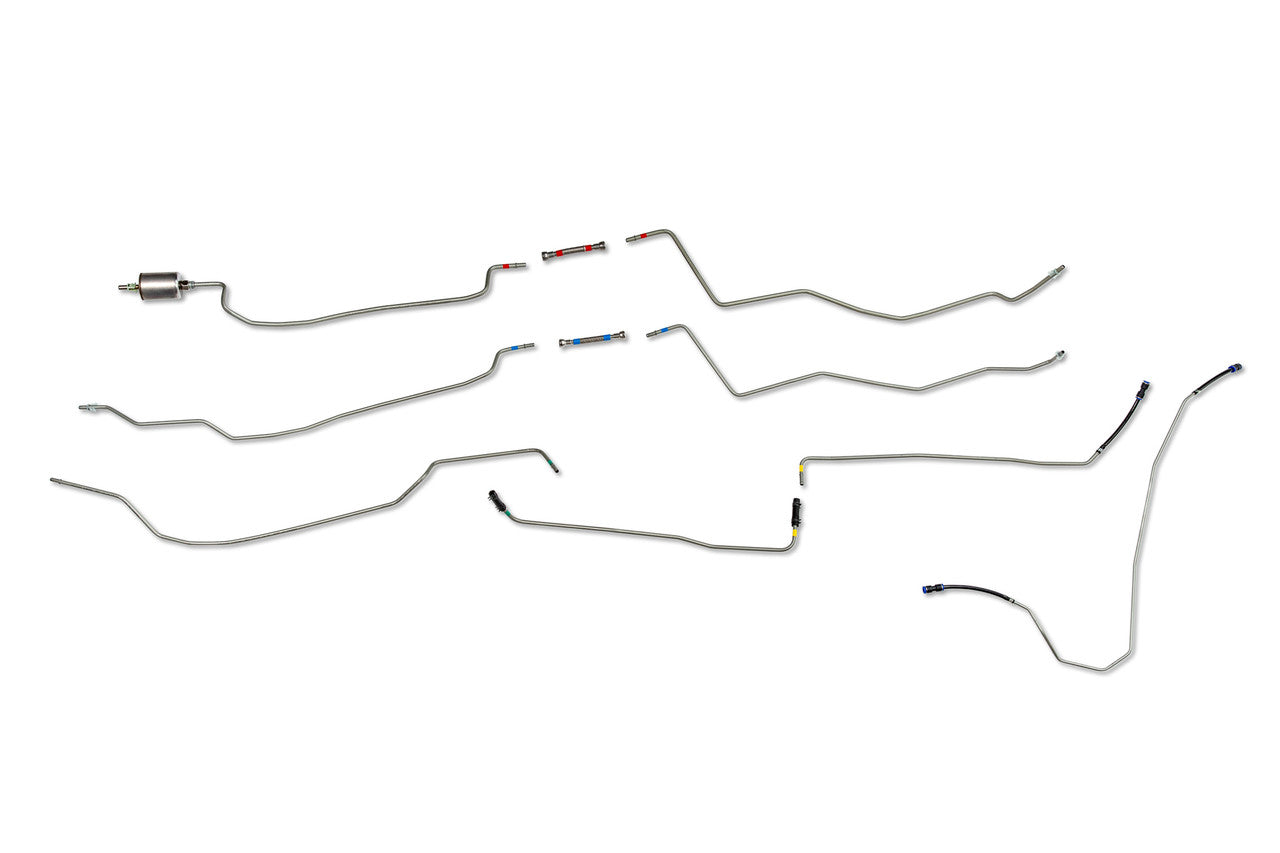

1 supply line 3/8" (in 2 easy to install sections), 1 return line 5/16" (in 2 easy to install sections), 1 vapor line 5/16" (in 3 easy to install sections), 1 vapor line 1/4", hoses to join rear sections, 1 fuel filter

15734525, 15004585, 15734527, 15004587, 15734523, 15734529

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

All hoses are made from Stainless Steel Braided Teflon with OE style fittings
