SALE:
Save $47.22
/

Delivery Time & Rates

Shipping calculated at checkout.

Fuel Line Set 1995 S Series Jimmy 4Dr 2WD & 4WD

SKU: FL444-A2A
Box Dimensions 67" x 6" x 4"

Fuel Filter to Fuel Tank

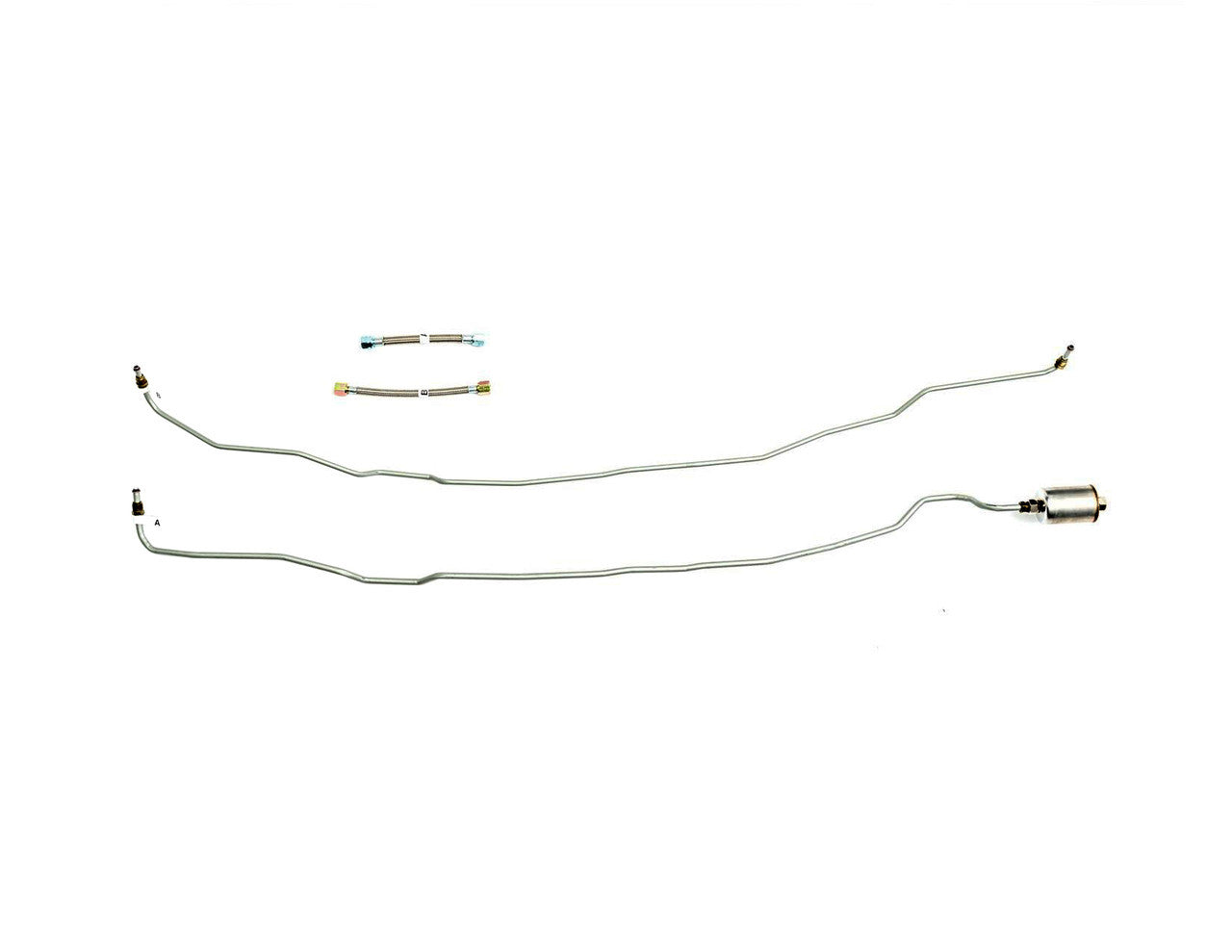

1 supply line 3/8", 1 return line 5/16", hoses to sending unit connection, 1 fuel filter

15704602, 15704608

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.

Overall rating: 4.75 / 5 from 8 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["shipping","factory"].

Review highlights

Reviews

great service and product very

"great service and product very pleased"

— John V. (5/5)

The lines were bent perfectly

"The lines were bent perfectly they fit along the frame rail with perfect bends to conform to the frame rail ,but the price is a little high."

— Lester G. (5/5)

Fit perfect. Couldn't be more

"Fit perfect. Couldn't be more pleased. I also needed the vacuum line which they did not make, so I used the old line. It saddens me that after pulling the old tank out and replacing it with new motor, lines and straps I couldn't go all the way and put in the vacuum line."

— Larry S. (5/5)

Awesome easy and fit linke

"Awesome easy and fit linke factory at half the cost"

— Tony (5/5)

quality product good shipping

"quality product good shipping"

— Robert D. (5/5)

Altough line were cnc bent

"Altough line were cnc bent shipped in bent box allowed them to be flattened some and also, unless I was doing a frame off restoration the lines each should have been supplied in two pieces to facilitate installation"

— Jeanne J. (3/5)

1995 GMC jimmy fuel lines from fillter to tank

"quick ship from canada, all the bends in all the right places. orings fuel fillter nice stainless flex hoses to tank. no leaks. sweet!"

— John (5/5)

works great thanks

"works great thanks"

— John (5/5)

Q&A
