MSRP: from
SALE: from
Save $63.35
from /

Delivery Time & Rates

Zip/Postal Code:
SKU: FL507-J2K
  • Weight: 6

1985 Jimmy Fuel Lines 2 Door 4WD 5.7L

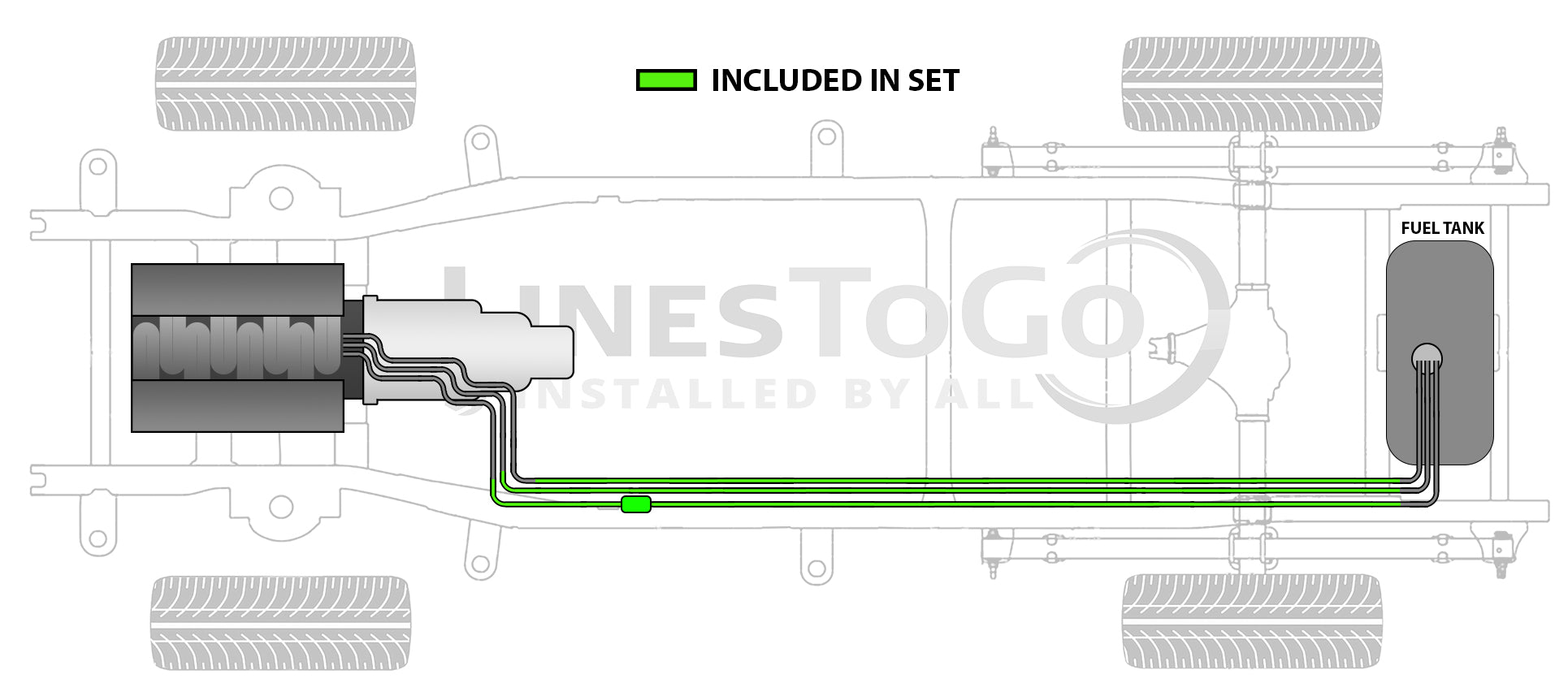

Location: Hose Connection at Front Inner Fender to Hose Connection off Fuel Tank

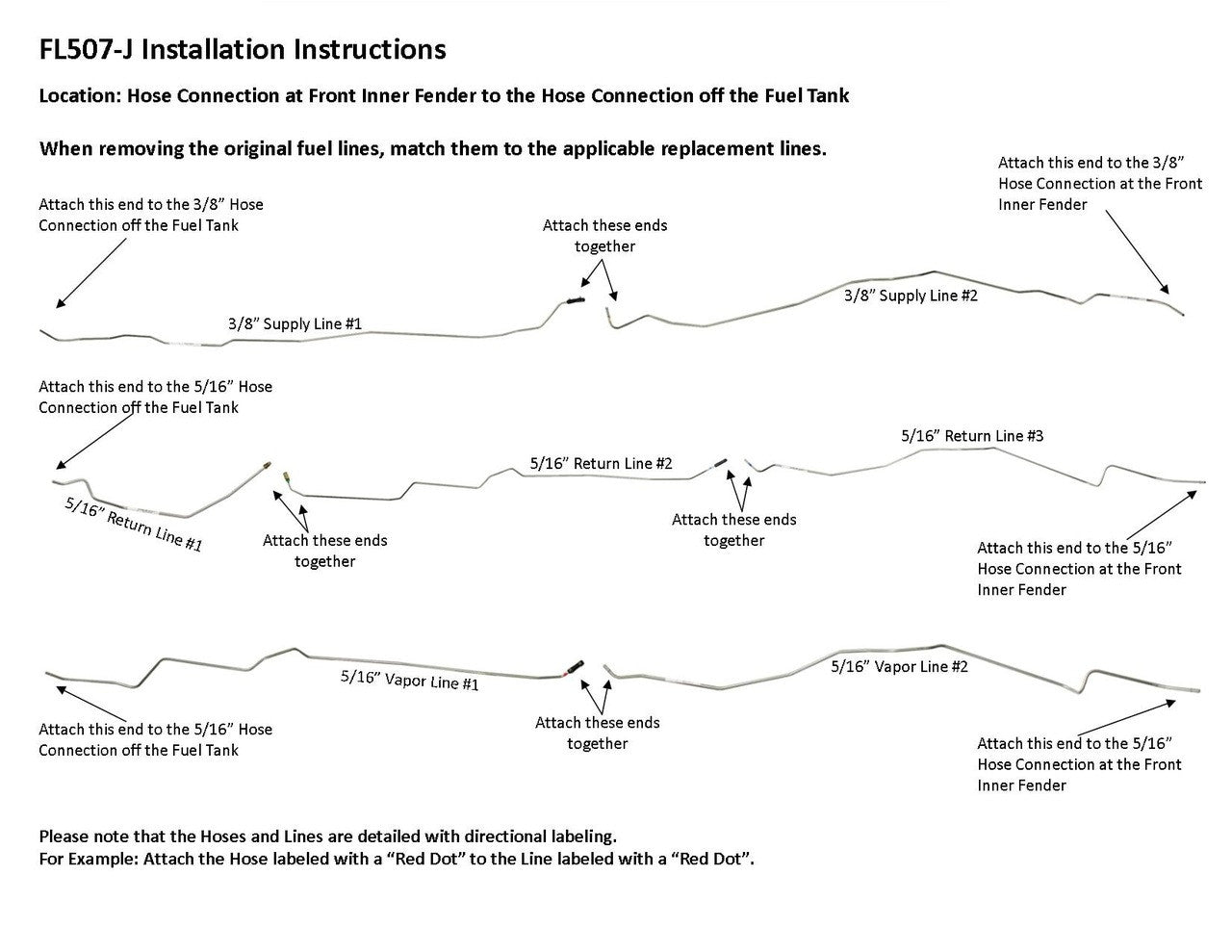

Please Note: Before installing your fuel line, a shipping bend will need to be removed from the lines labeled VL507J250AYY, VL507J250B, RL507J313BYY, RL507J313C, SL507J375AYY, and SL507J375B. See the video below on how to remove the shipping bend.

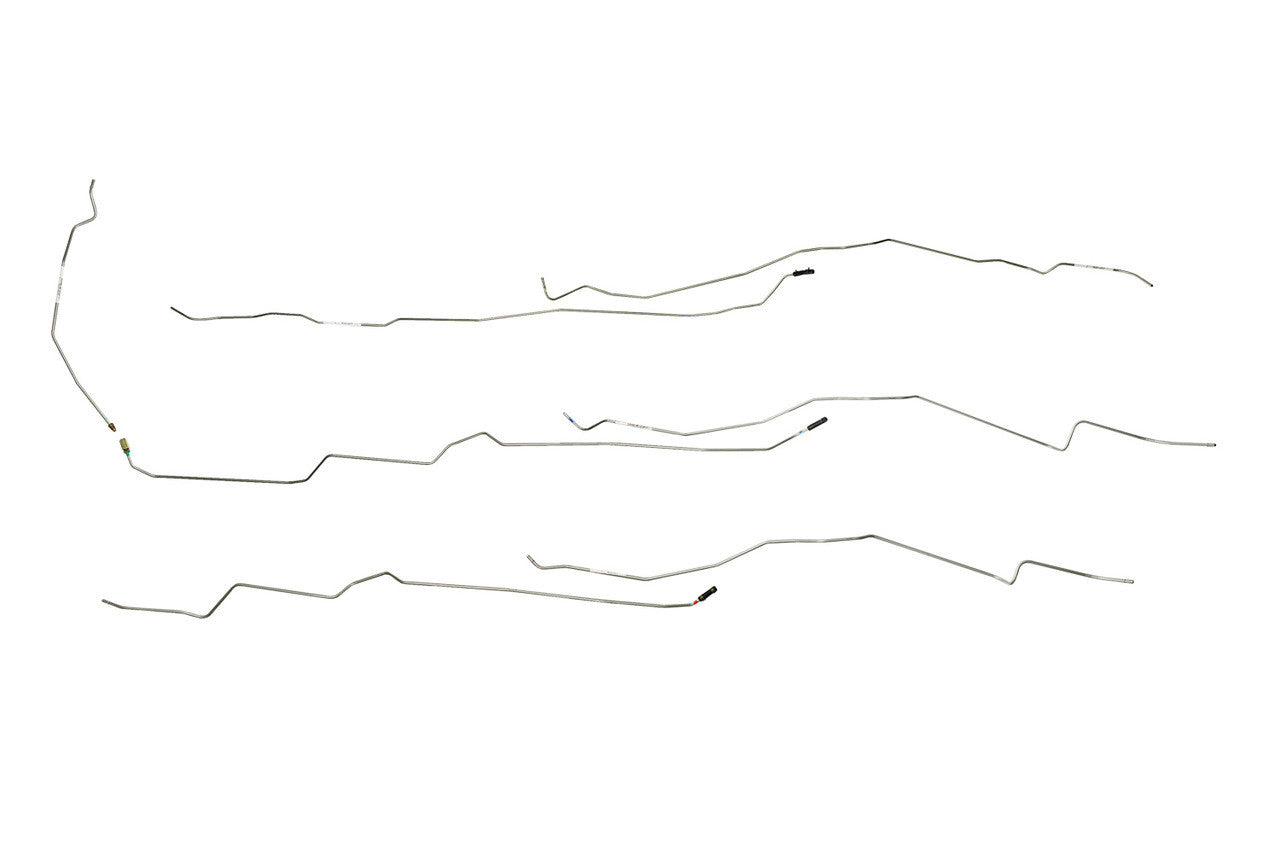

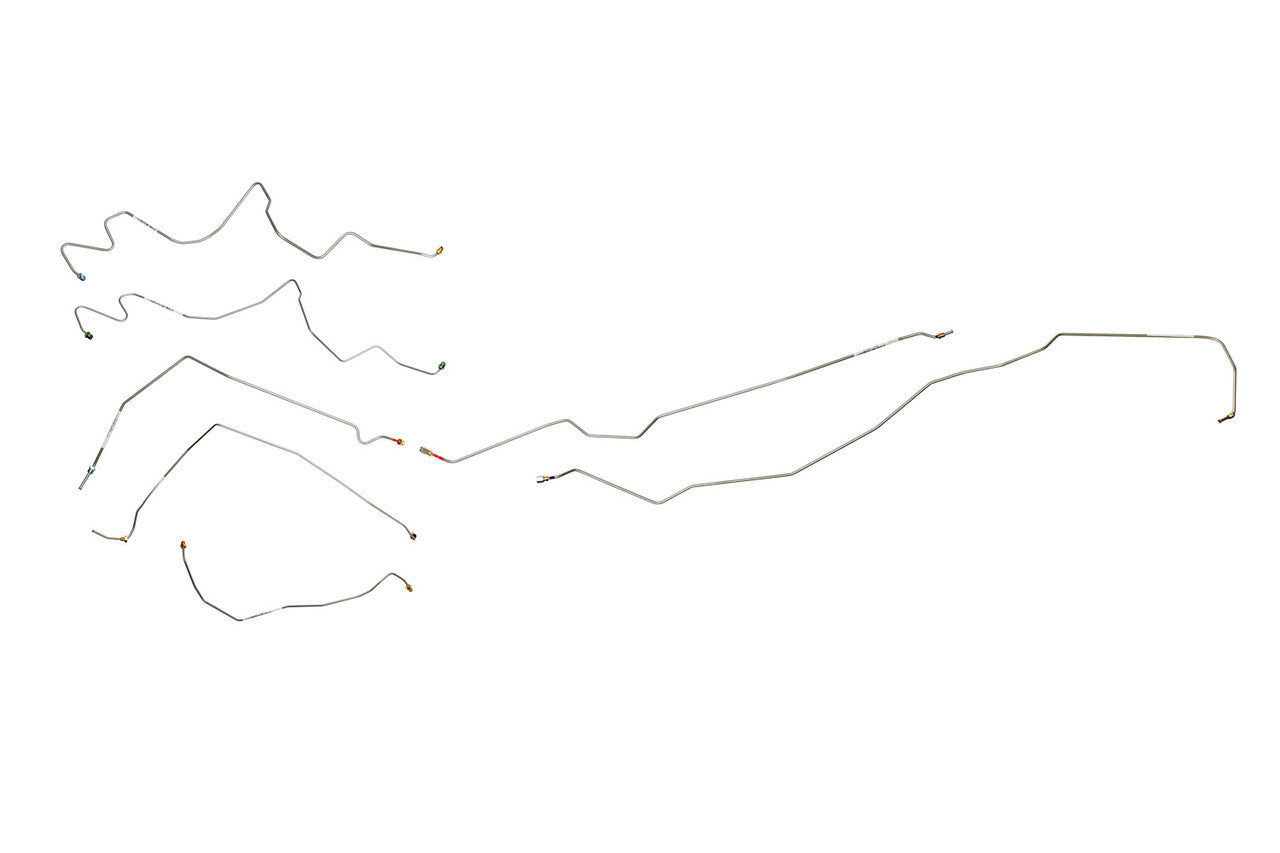

Included in Set: 1 supply line 3/8" ( in 2 easy to install sections), 1 return line 5/16" ( in 3 easy to install sections), 1 vapor line 1/4" ( in 2 easy to install sections), 1 union

Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 46" x 11" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
