GMC Jimmy Front Fuel Line Set S Series 2002 4WD 4.3L FL442-B2F
EZ Install Set Automatic
GMC Jimmy Front Fuel Line Set S Series 2002 4WD 4.3L FL442-B2F
EZ Install Set Automatic
Delivery Time & Rates

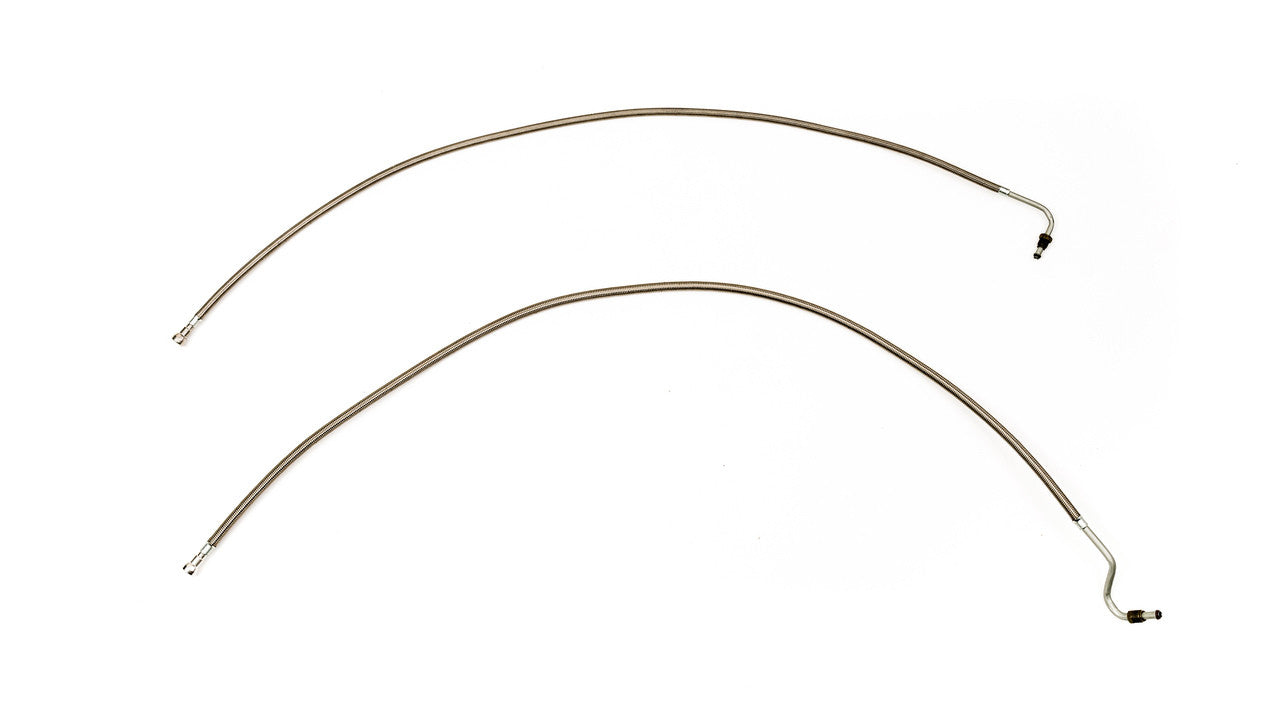

EZ Install Front Fuel Line Set 02 Jimmy S15 4WD Automatic 2 Dr & 4 Dr for 4.3L engine.
Stainless Steel Braided Teflon Hose
Please Note: This is not a direct OEM Replacement part. The direct OEM Replacement part is FL441-D. The FL441-D is more difficult to install than the average set of front fuel lines as the transmission cross member should be removed and the transmission/engine assembly needs to be angled down to make the installation.
FL442-B is another replacement option. The lines are made from Stainless Steel Braided Teflon which is flexible and can be routed between the engine and the fire wall down over and along the transmission and transfer case.
Retainer Clips Included On Lines:
The retainer clips provided on the replacement lines may not be needed.
The replacement lines will plug into connectors which have retainer clips inside them.
1) Damaged During Removal:
Sometimes during removal of the OEM lines, the retainer clips inside the connectors may be damaged.
If this is the case, you will need to leave the retainer clips on the replacement lines.
2) NOT Damaged During Removal:
If the retainer clips remain inside the connector undamaged during removal of the OEM lines, you will not require the retainer clips provided on the replacement lines.
The retainer clips will need to be removed before plugging into the connector.

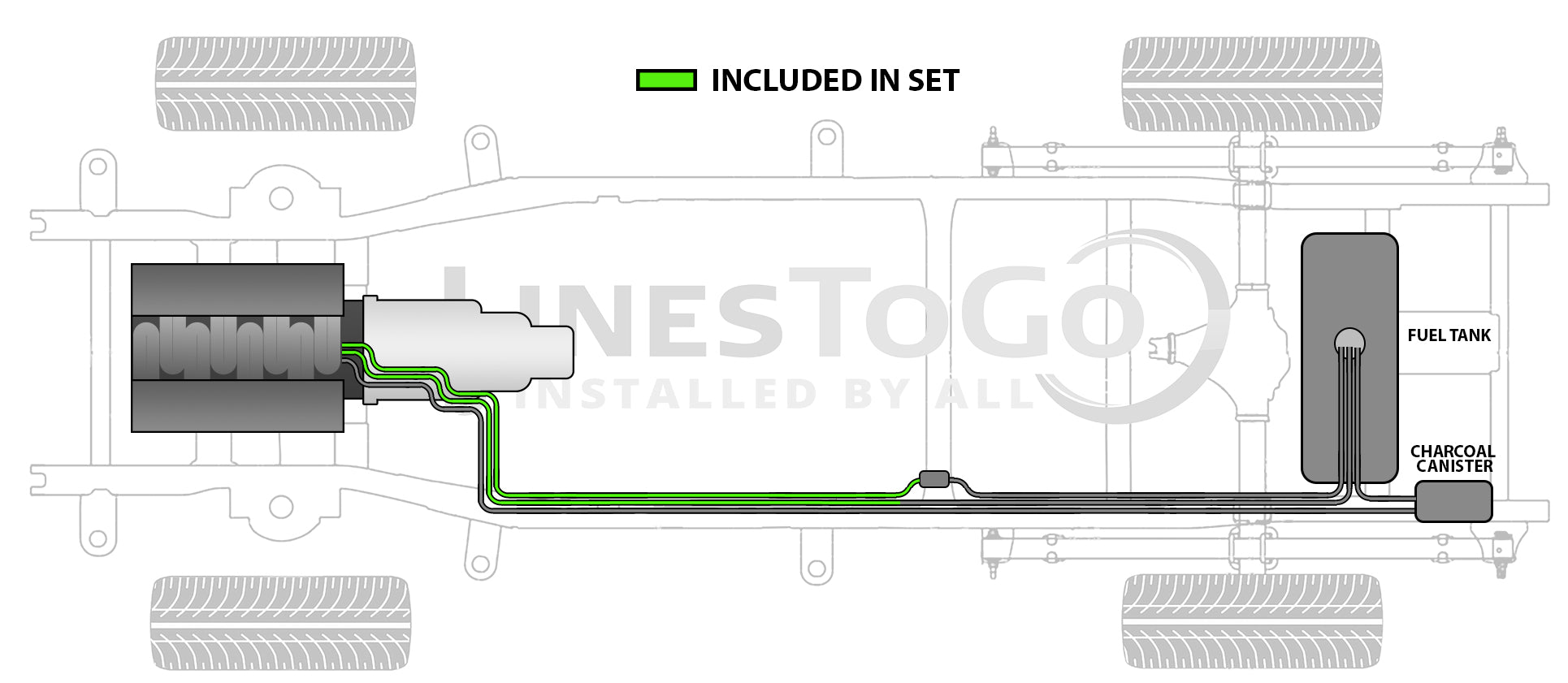

Engine to Fuel Filter
1 supply line 3/8", 1 return line 5/16" (Stainless Steel Braided Teflon Flexible Lines for easy installation)
All hoses are made from Stainless Steel Braided Teflon with OE style fittings
