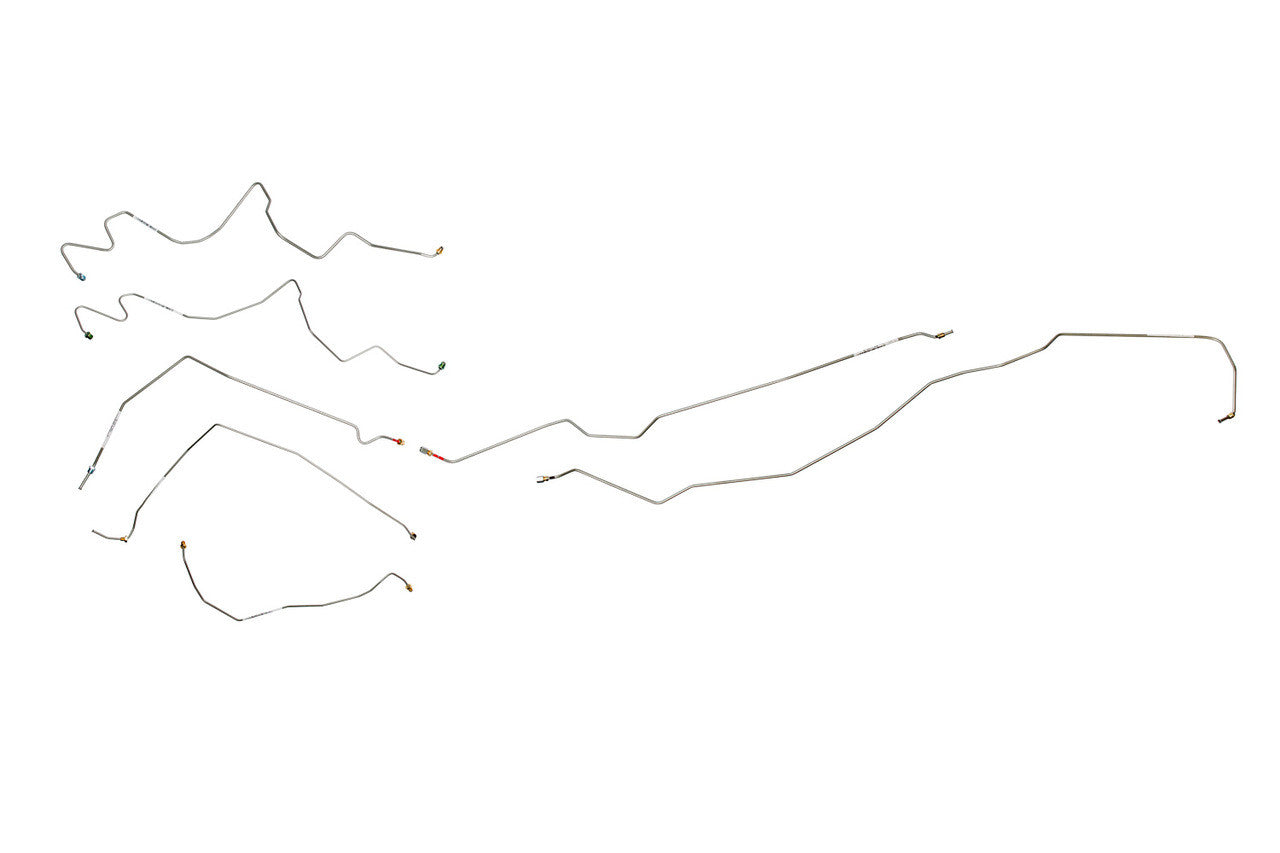

Install this pre bent 1984 Jimmy K5 Full-Size brake line without a problem!

Brake Line Set Stainless Steel GMC Jimmy K5 2 Dr 4WD for 6.2L Diesel engines

SKU: BLC-507-J-SS2P
Box Dimensions 57" x 11" x 7"
Product Warranty 1 Year

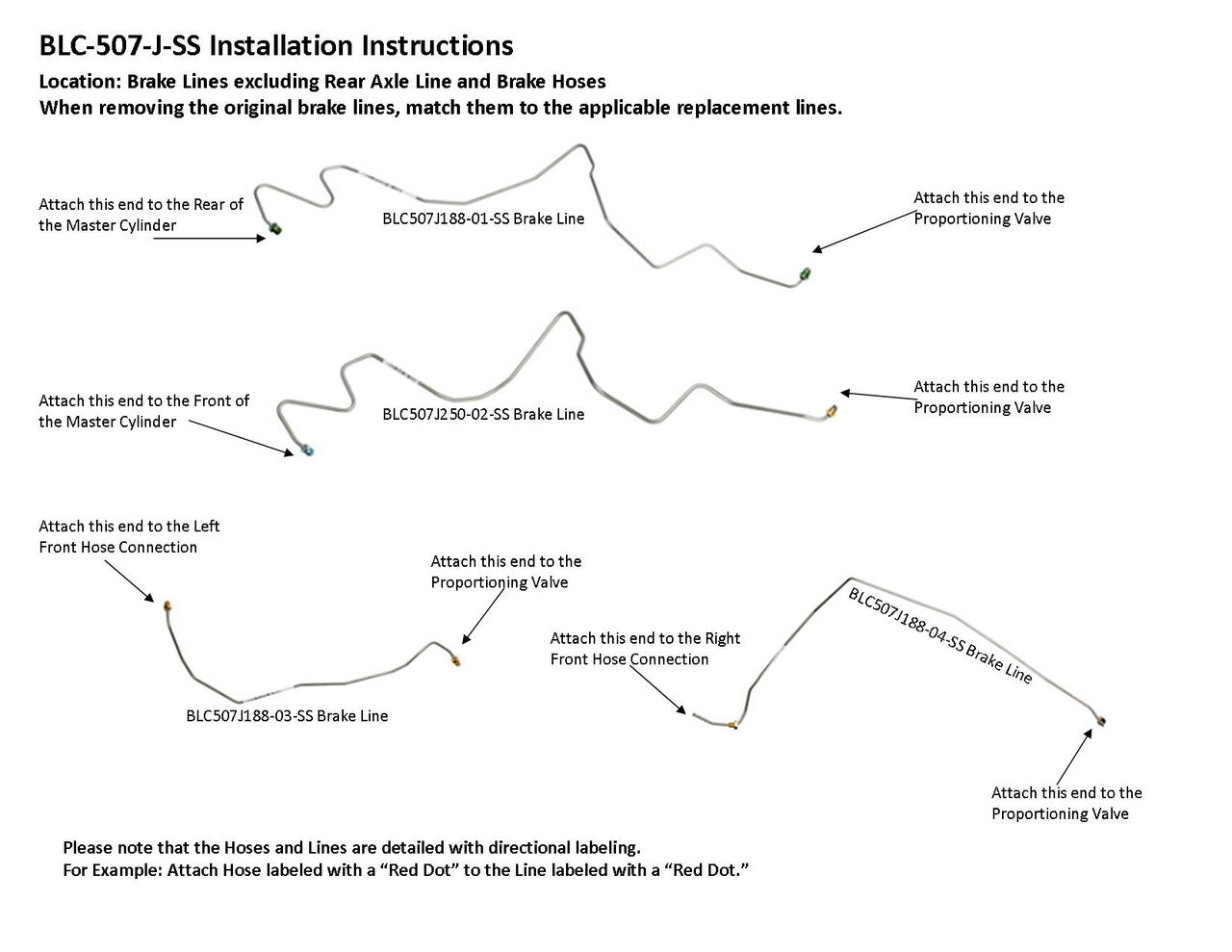

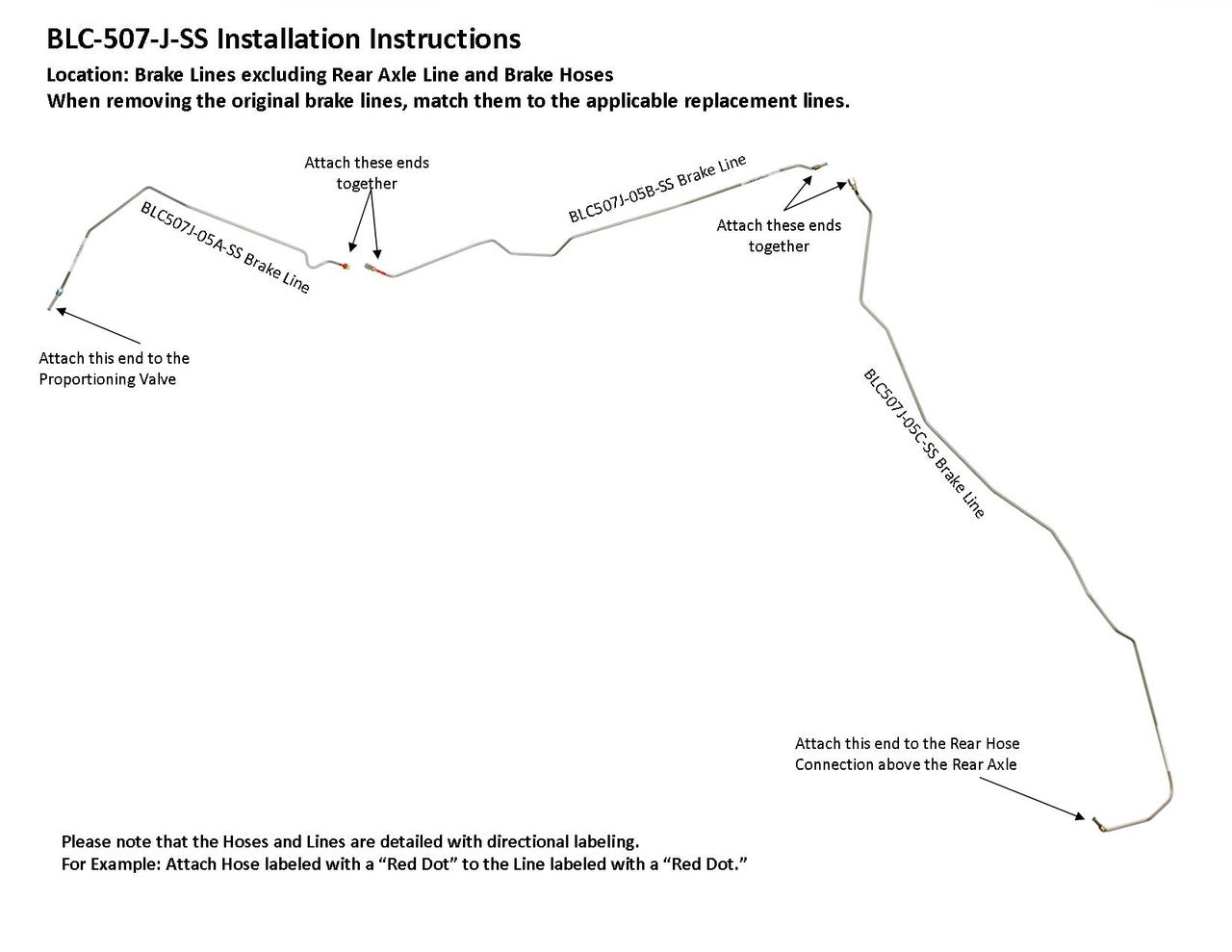

Master Cylinder Primary Line runs from Rear of Master Cylinder to Proportioning Valve, Master Cylinder Secondary Line runs from Front of Master Cylinder to Proportioning Valve, Left Front Brake Line runs from Proportioning Valve to Left Front Hose Connection, Right Front Brake Line runs from Proportioning Valve to Right Front Hose Connection, Rear Brake Line runs from Proportioning Valve to Rear Hose Connection above the Rear Axle

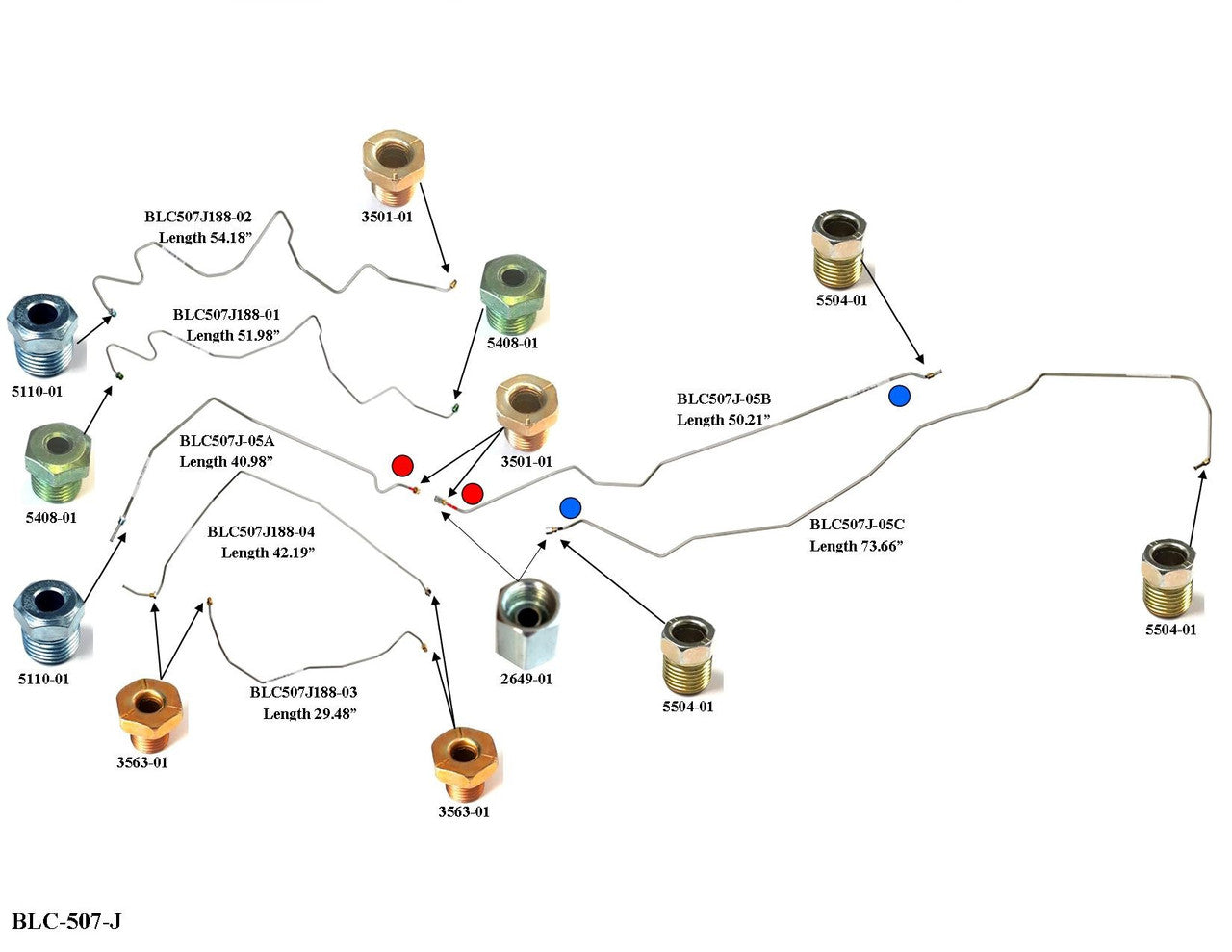

1 Master Cylinder Primary Line 3/16", 1 Master Cylinder Secondary Line 1/4", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16", 1 Rear Brake Line 1/4" (in 3 easy to install sections) excludes Brake Hoses and Rear Axle Crossover Line



Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
