SALE:
Save $59.07
/

Delivery Time & Rates

Fuel Line Set 95 GMC G Series Van/Sportvan/Rally/Vandura 1500/2500/3500 with 125" WB and 4.3L engines

SKU: FL499-A2D
Box Dimensions 67" x 6" x 4"

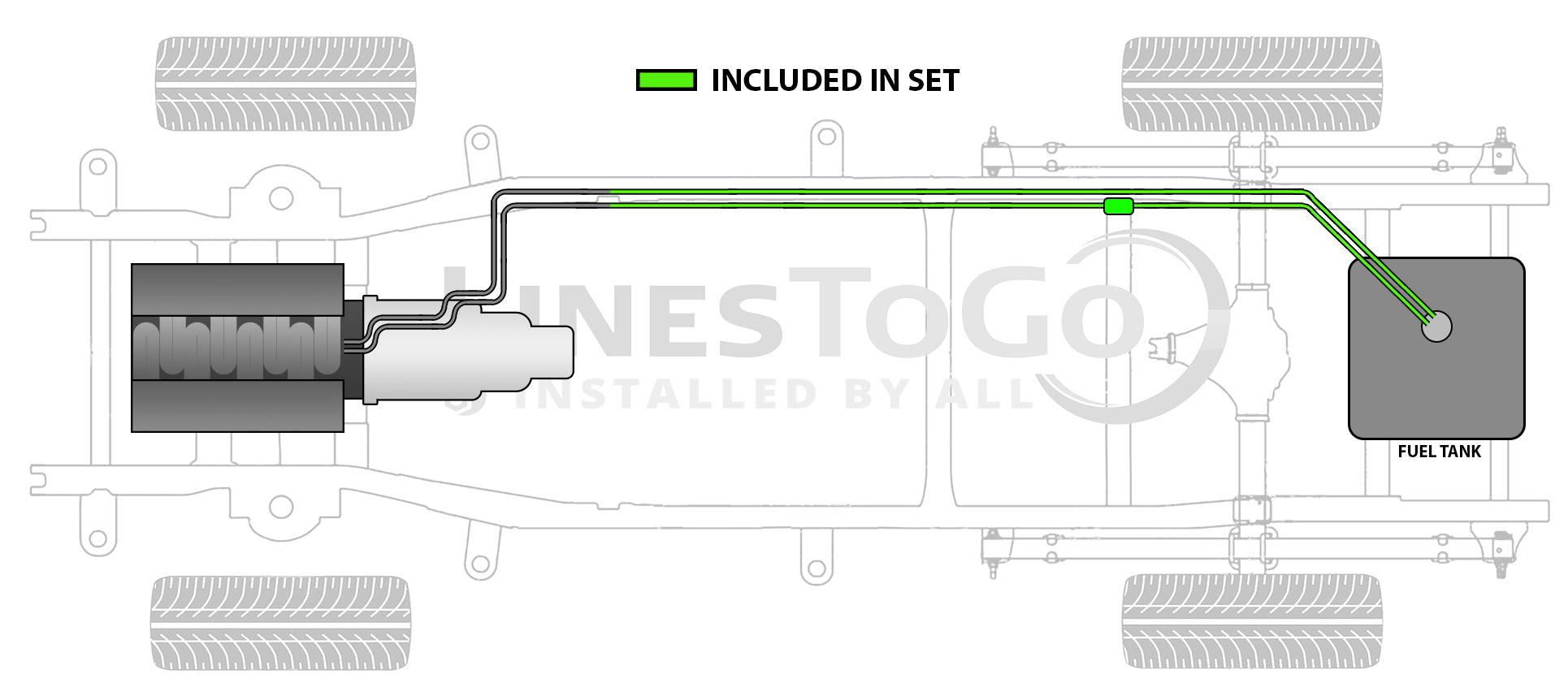

Fuel Tank to Where Front Section Connects at Frame

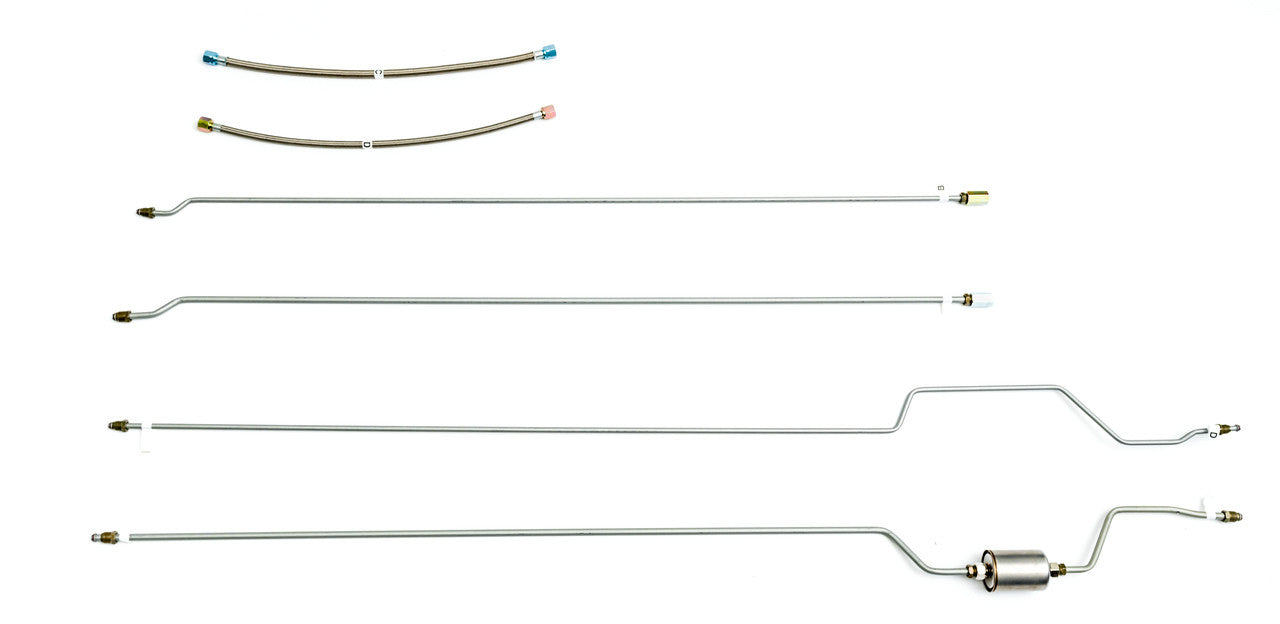

1 supply line 3/8" ( in 2 easy to install sections), 1 return line 5/16" ( in 2 easy to install sections), hoses to sending unit connection, 1 fuel filter, 2 unions

15544807, 15544814, 15556581

Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.
