Name: GMC Envoy Fuel Line Set 2003 4.2L w/Remote Fuel Filter w/25 Gal Fuel Tank FL446-A3A
Brand: Lines - To - Go
SKU: FL446-A3A
Price: 236.28 USD
Availability: InStock

Year Make & Model

GMC Envoy Fuel Line Set 2003 4.2L w/Remote Fuel Filter w/25 Gal Fuel Tank FL446-A3A

Price

SALE:

Save $59.07

Delivery Time & Rates

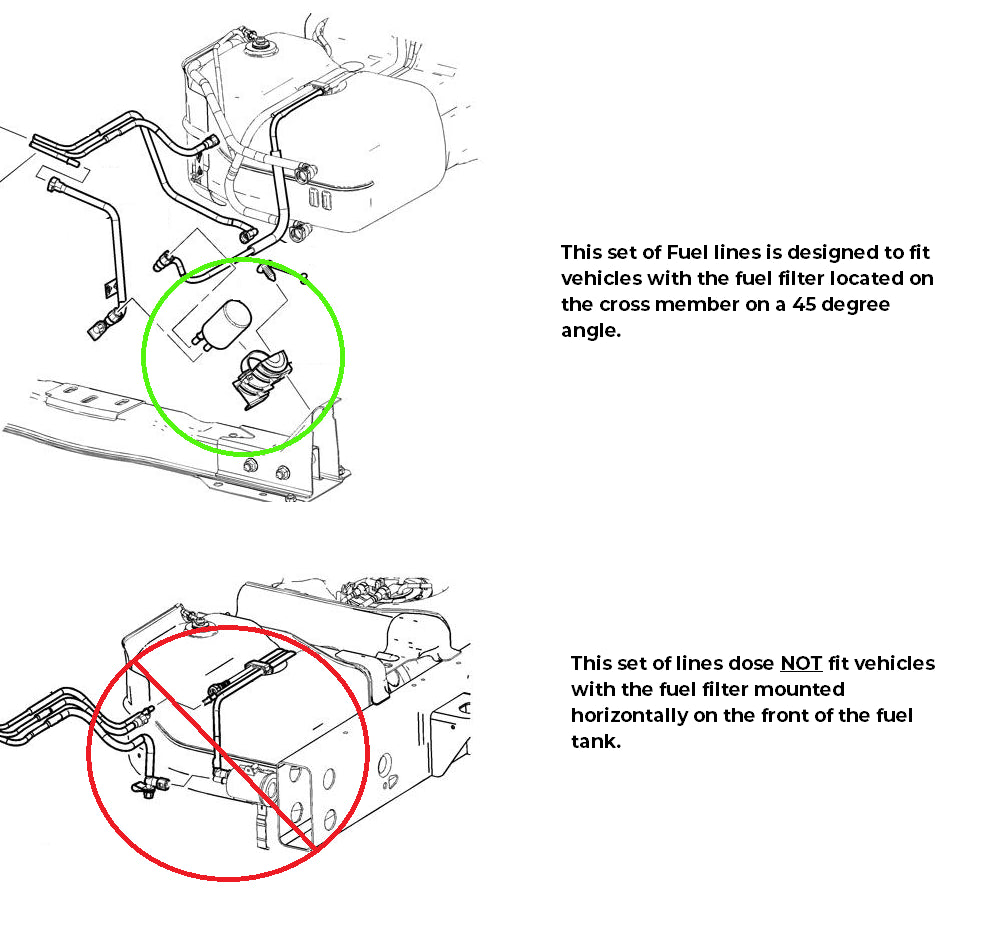

Shop LinesToGo for your 2003 GMC fuel lines. These are ideal for any truck with a remote fuel filter and a 25 gallon fuel tank FL446-A3A set

Fuel Line Set 03-04 GMC Envoy 4.2L w/Remote Fuel Filter (Fuel Filter is located away from the Fuel Tank) and 25 Gal Fuel Tank

SKU: FL446-A3A

Weight: 5

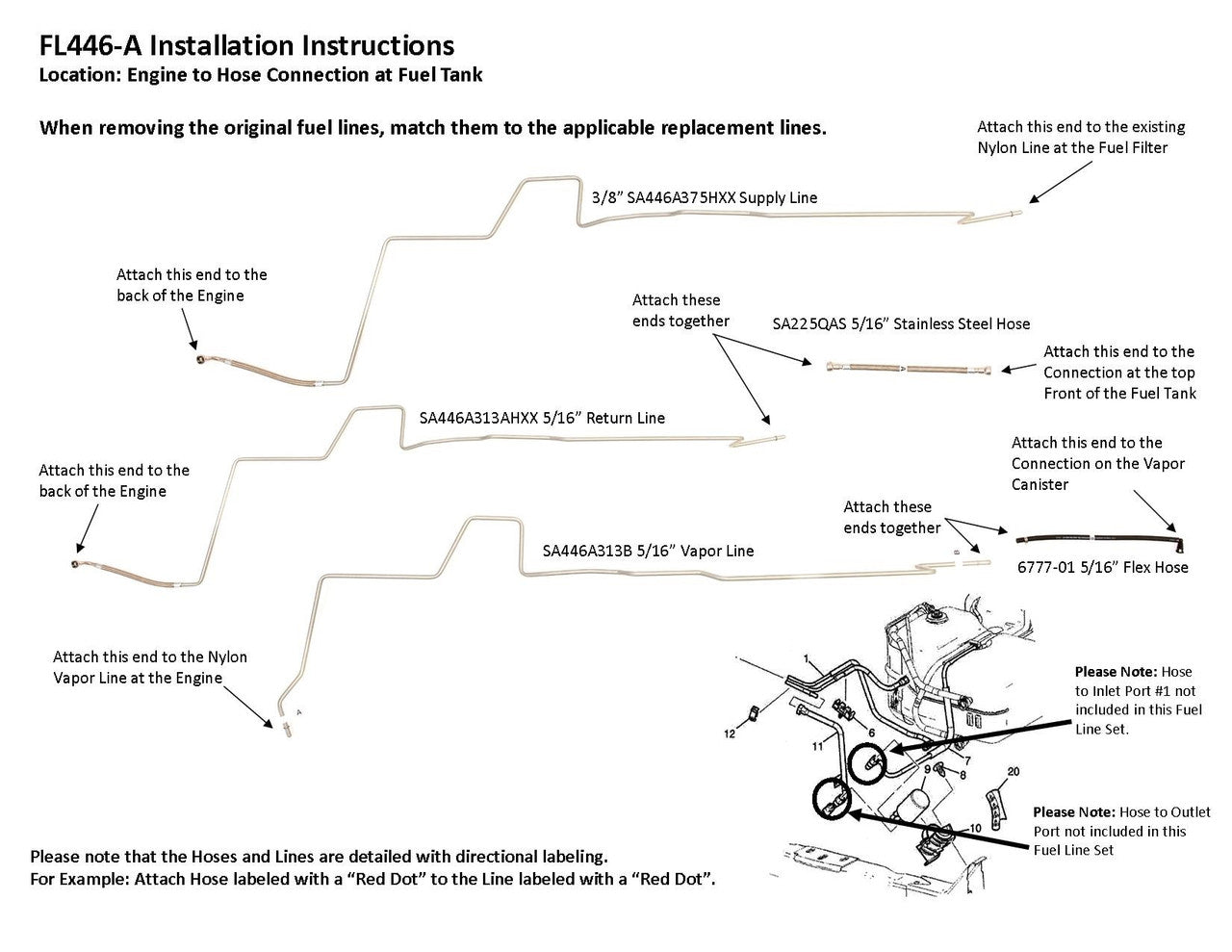

Installation Instructions

Box Dimensions 57" x 11" x 7"

Engine to Hose Connection at Fuel Tank

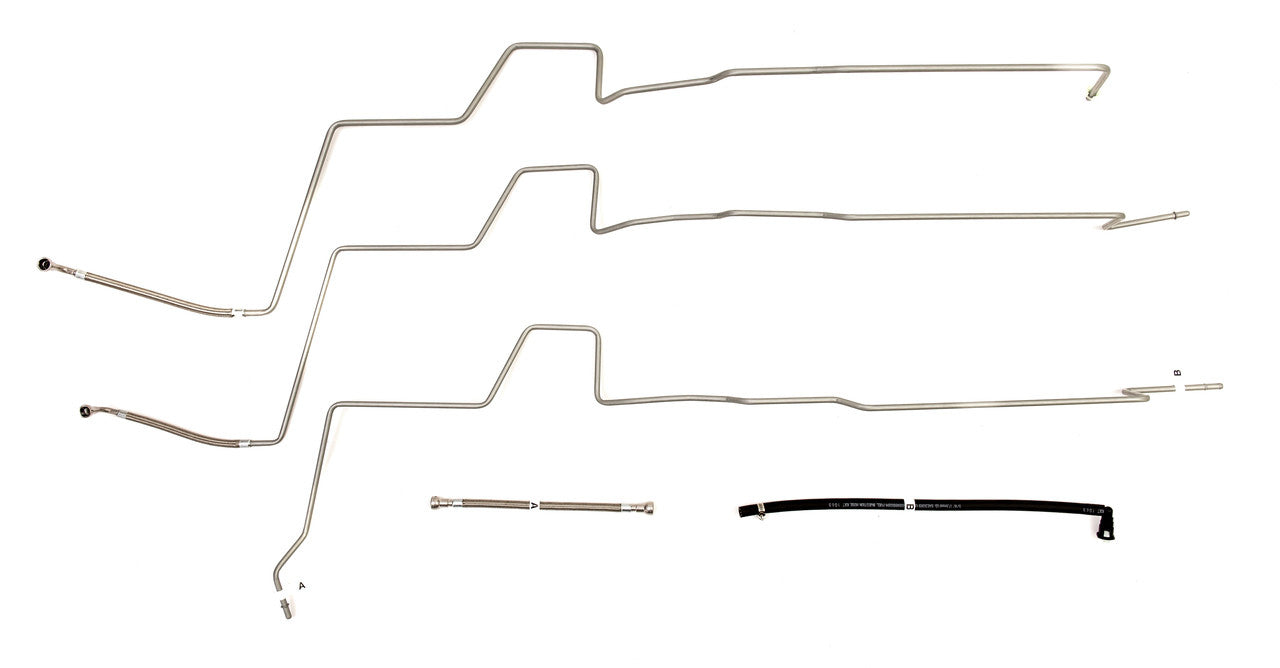

1 supply line 3/8" , 1 return line 5/16", 1 vapor line 5/16", hoses to engine connection, flex hose to front fuel tank

15203688

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

Hoses are made from Stainless Steel Braided Teflon with OE style fittings: 3234-01, 3176-01, SA225QAS

Hose meets or exceeds applicable SAE Specifications – SAE J30R7: FI-503250
