Shop LinesToGo for 1998 Astro fuel lines.

Fuel Line Set 1998 Astro

Please Note: If you have an aftermarket sending unit, you may not be able to utilize the quick connector that comes on the nylon hose on the vapor line. If that is the case, you may have to reuse the original vapor hose.

SKU: FL483-B1B
Box Dimensions 36" x 16" x 3"

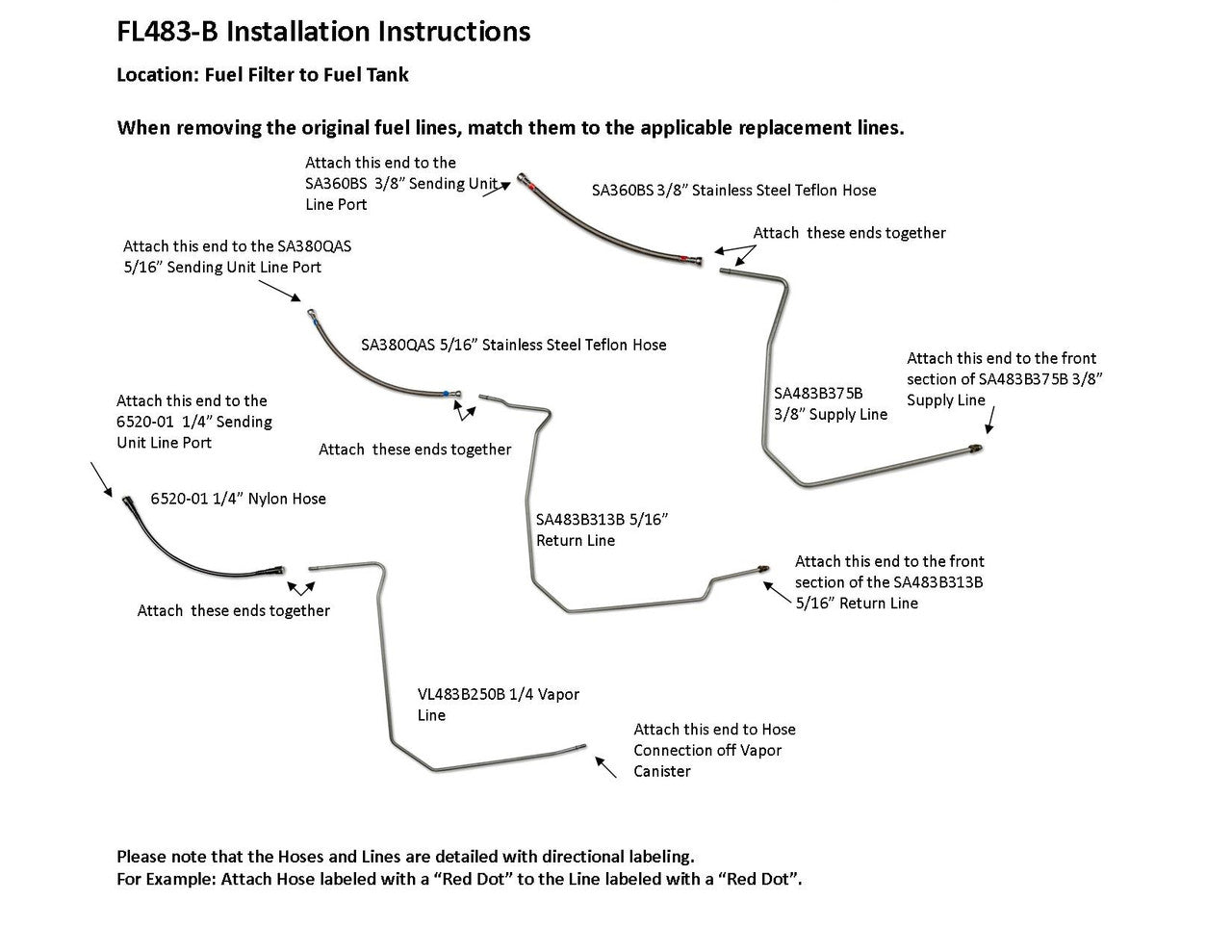

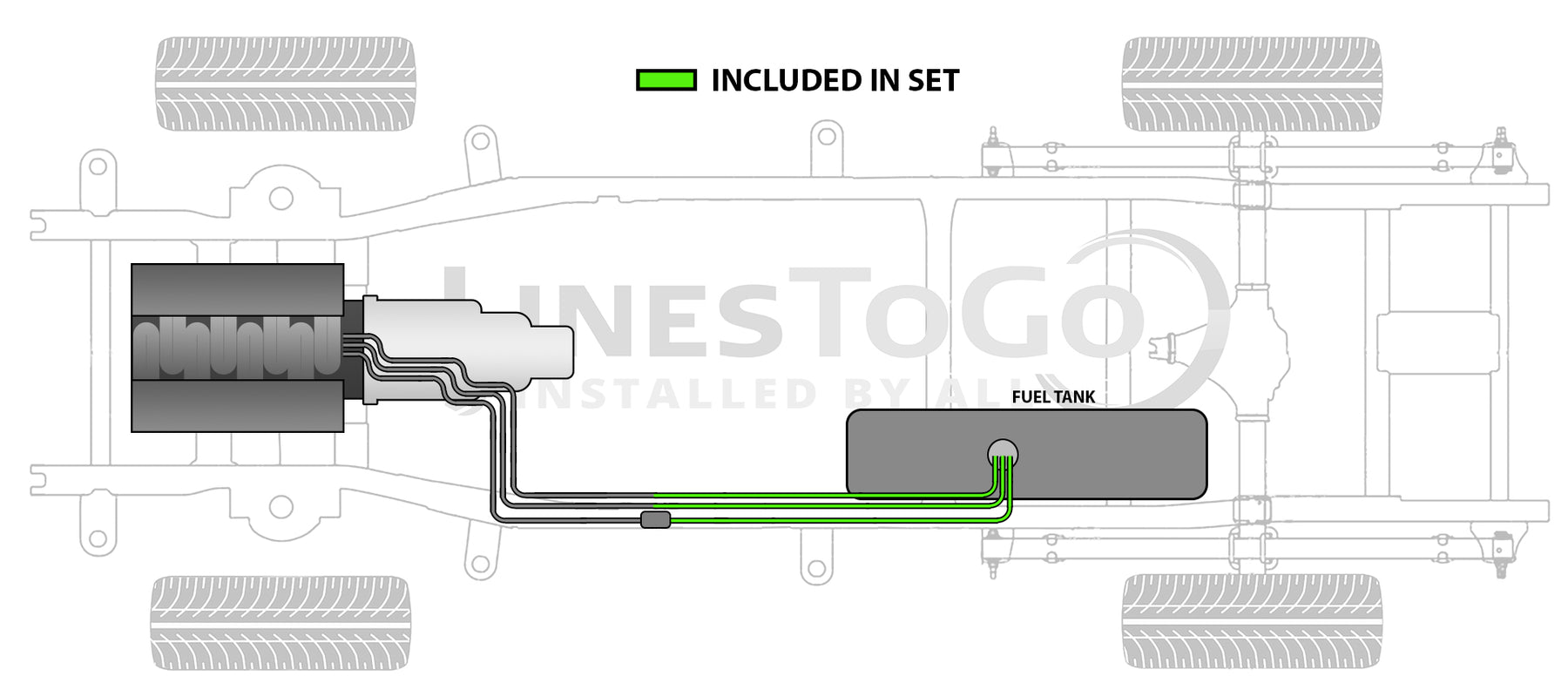

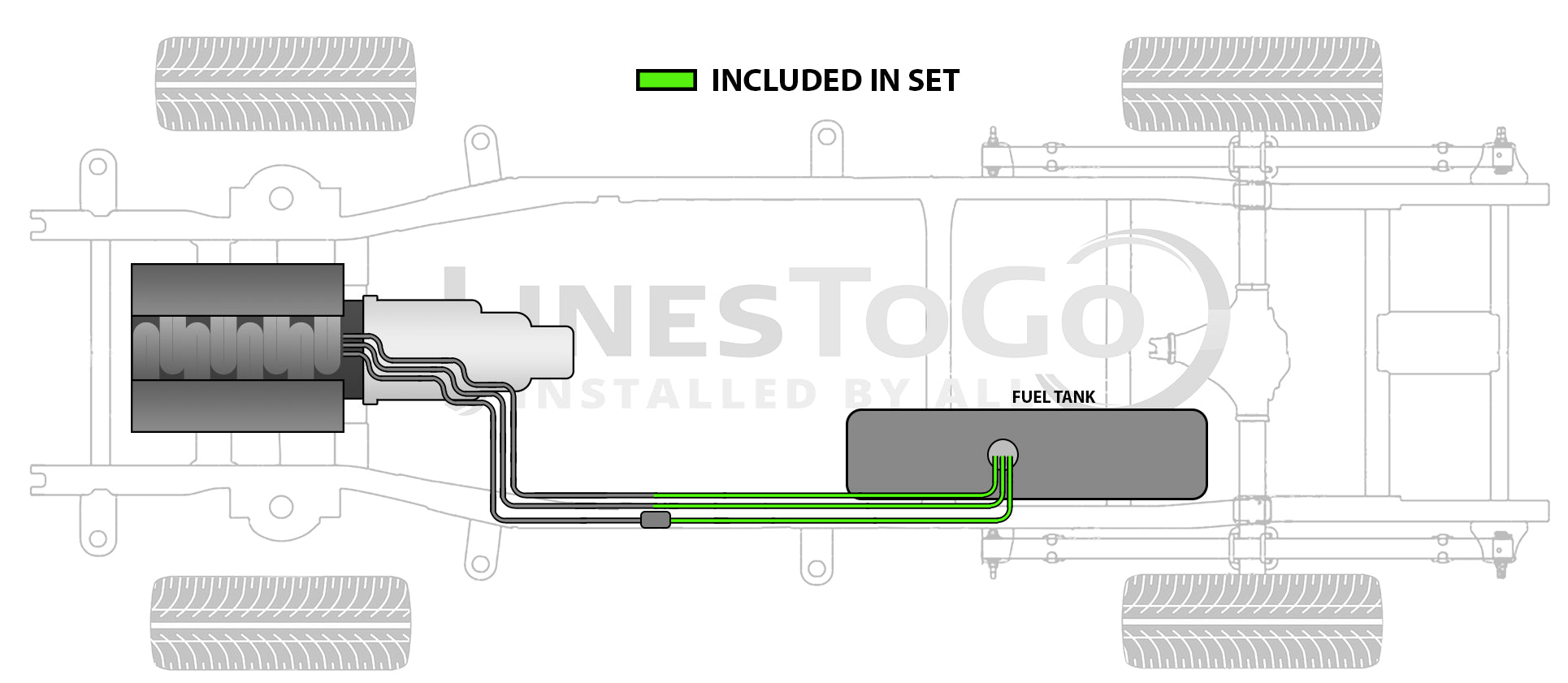

Fuel Filter to Fuel Tank

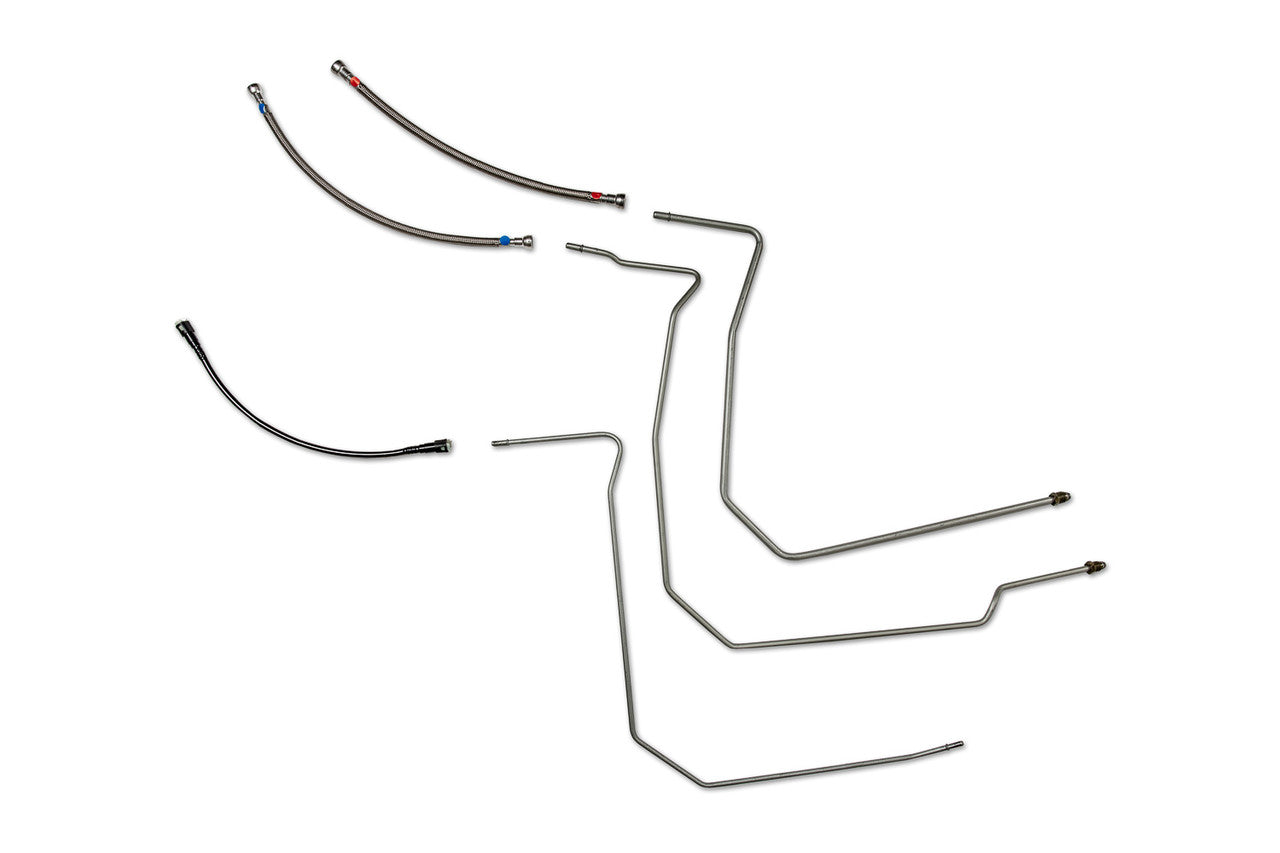

1 supply line 3/8", 1 return line 5/16", 1 vapor line 1/4", nylon line, hoses to sending unit connection

15728612, 15728611

Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.
