Product Overview

Shop LinesToGo for 1994 Astro fuel lines.

Fuel Line Set 1994 Astro 4.3L "W", RPO Code L35, 2WD/AWD

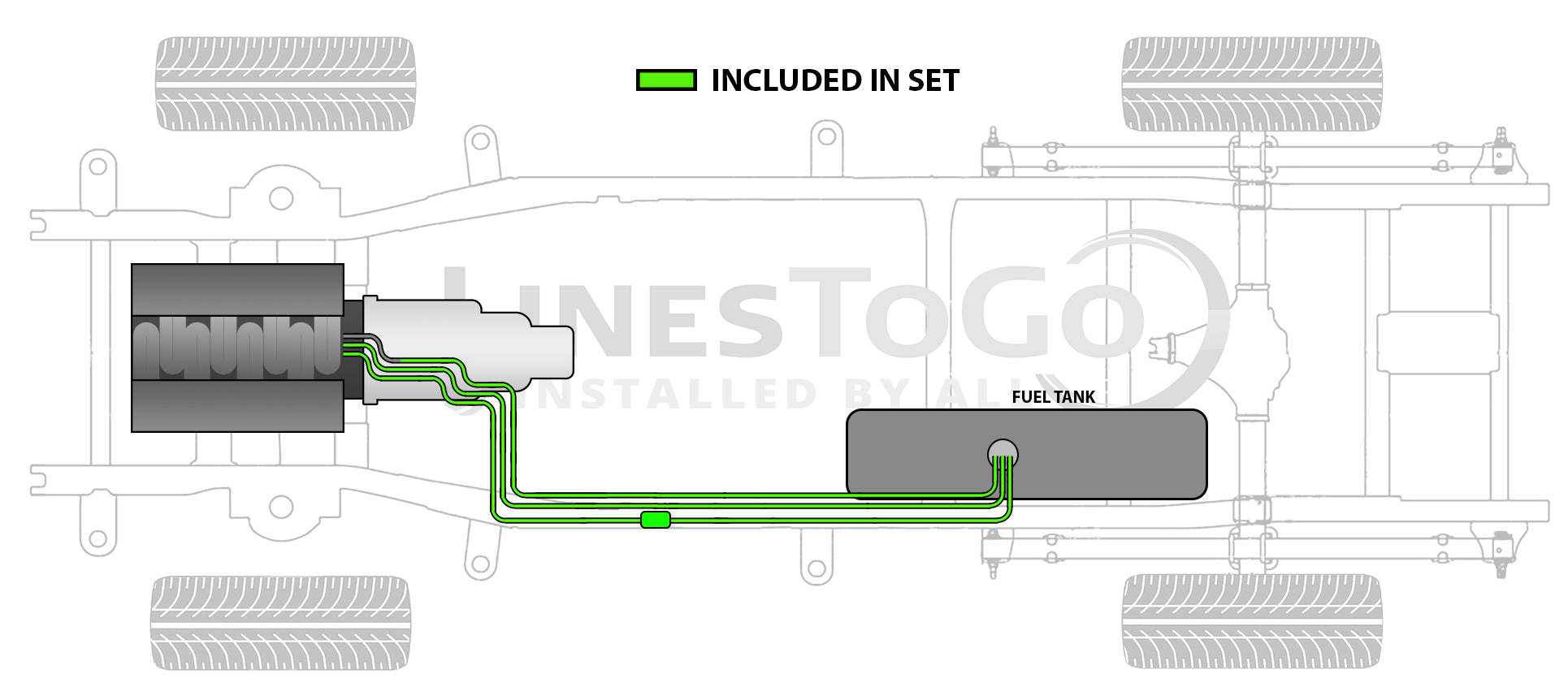

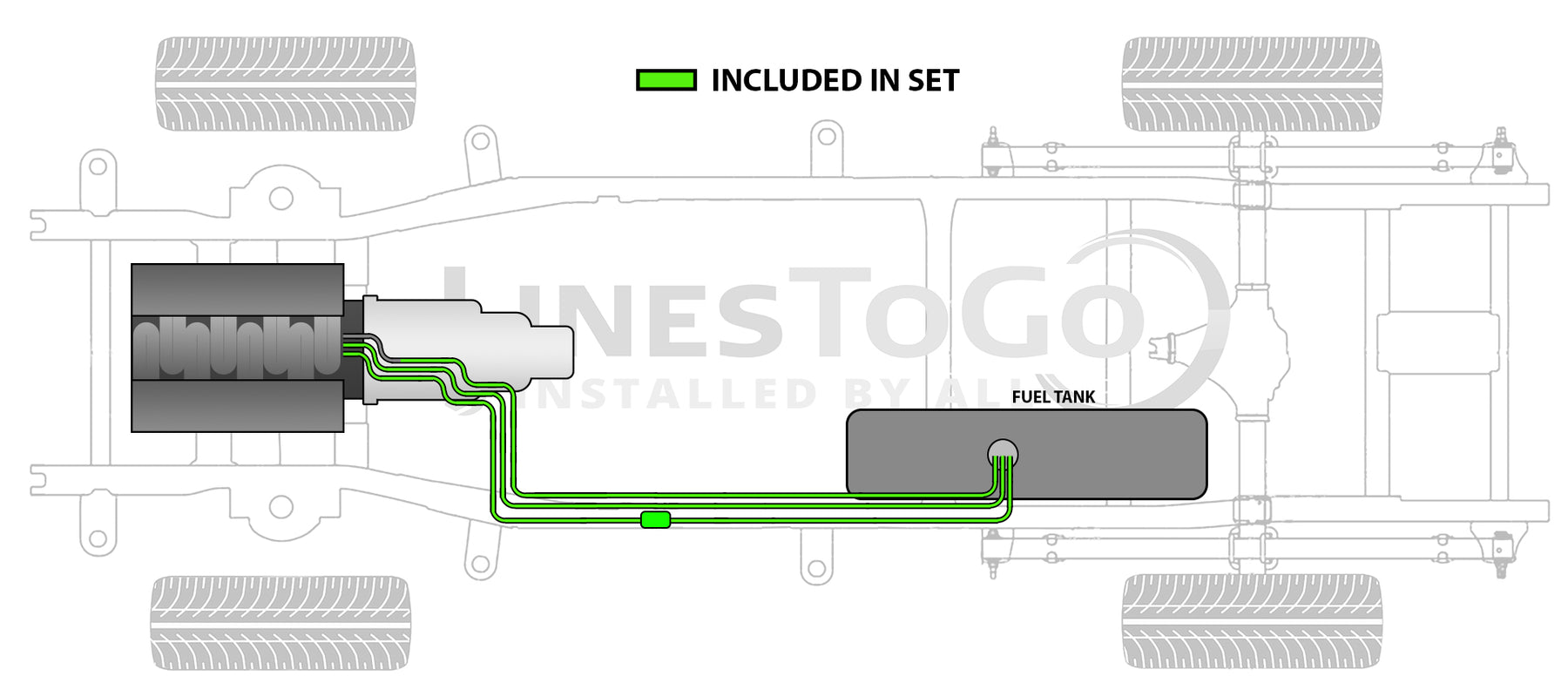

Location: Engine to Fuel Tank

OEM Part Number:  10118735, 15656181, 10118736, 1567455, 15674572, 15674576

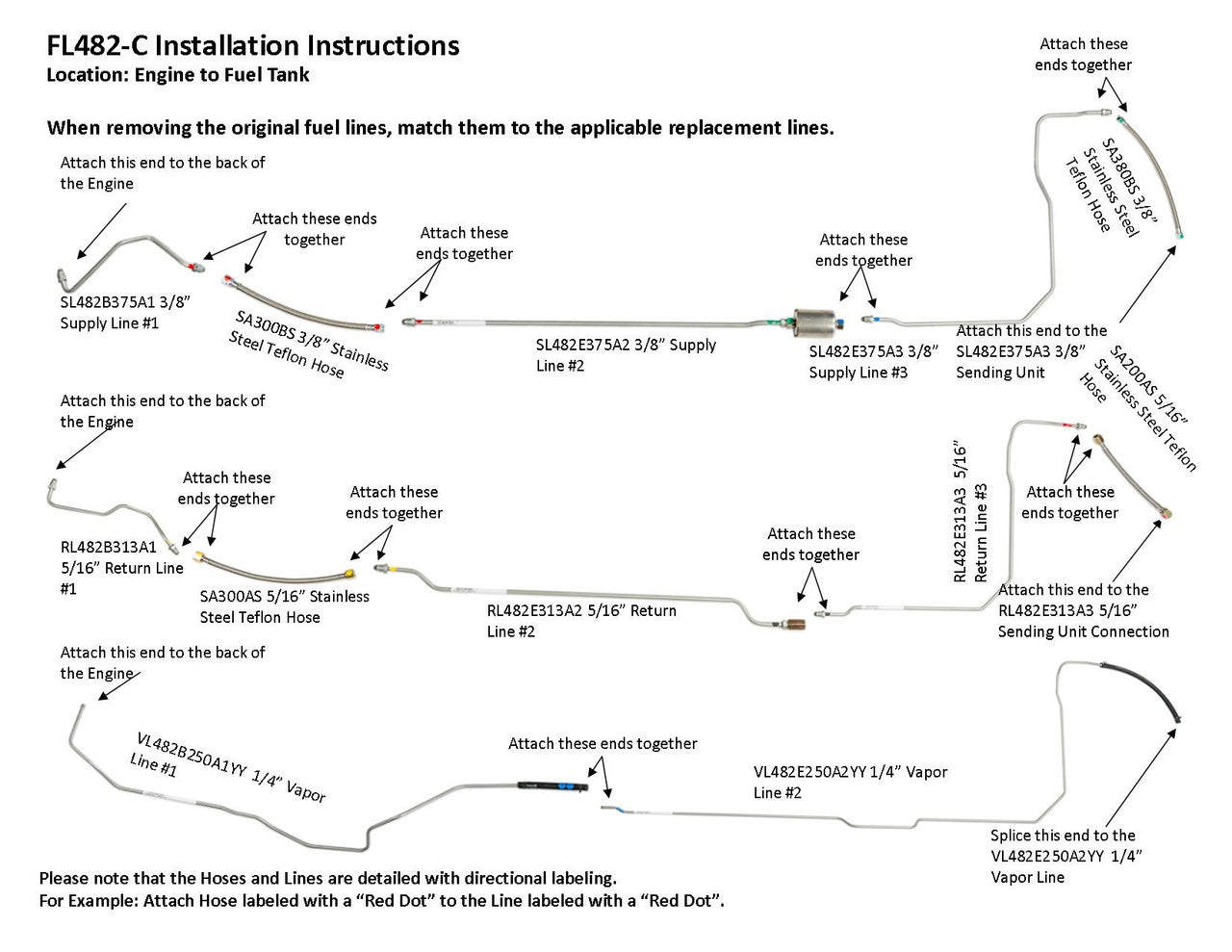

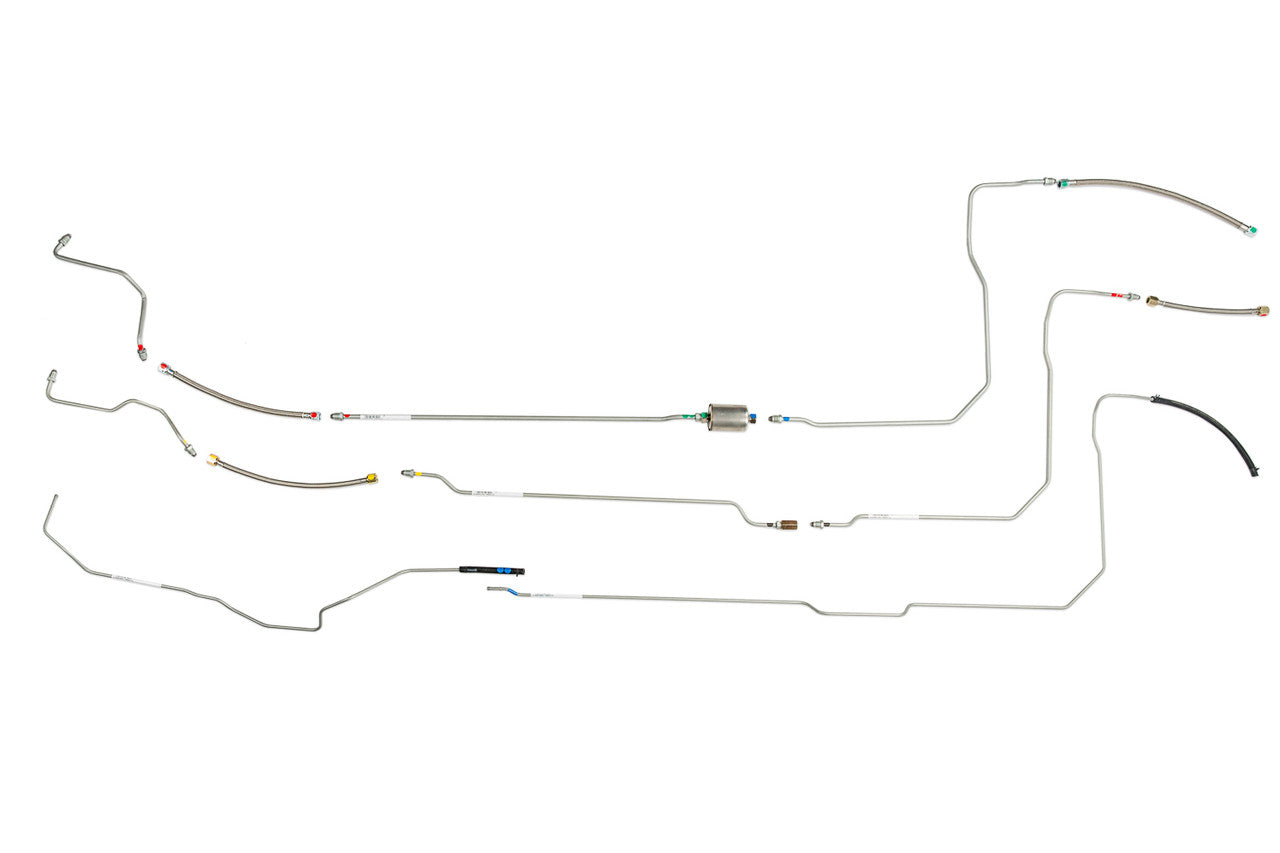

Included in Set: 1 supply line 3/8" (in 3 sections), 1 return line 5/16" (in 3 sections),1 vapor line 1/4" (in 2 sections) hoses to sending unit connection

Tube Construction: Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 57" x 11" x 7"
