SALE:
Save $56.62
/

Delivery Time & Rates

Shop LinesToGo for 1992 Astro fuel lines.

Fuel Line Set 1992 Astro 4.3L "W", RPO Code L35, 2WD/AWD

SKU: FL482-C1B
Box Dimensions 57" x 11" x 7"

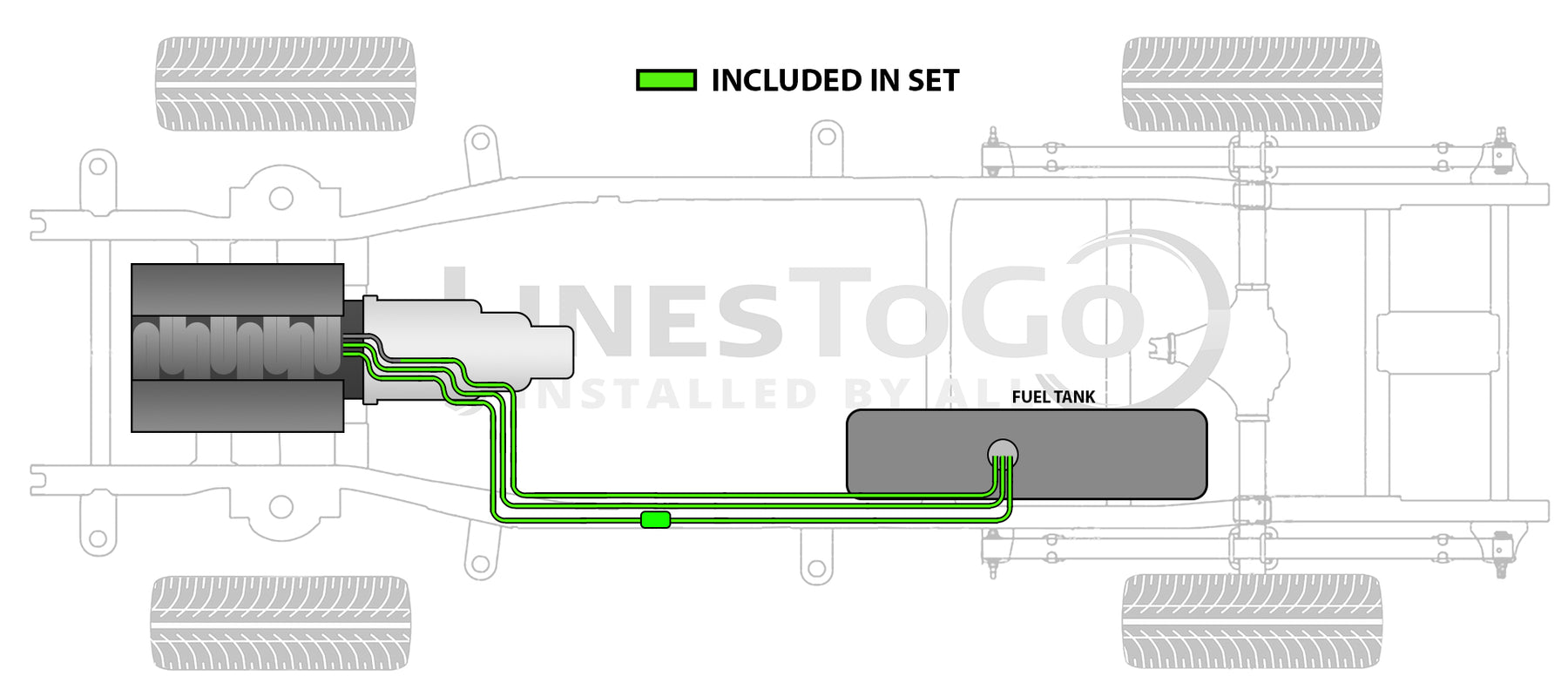

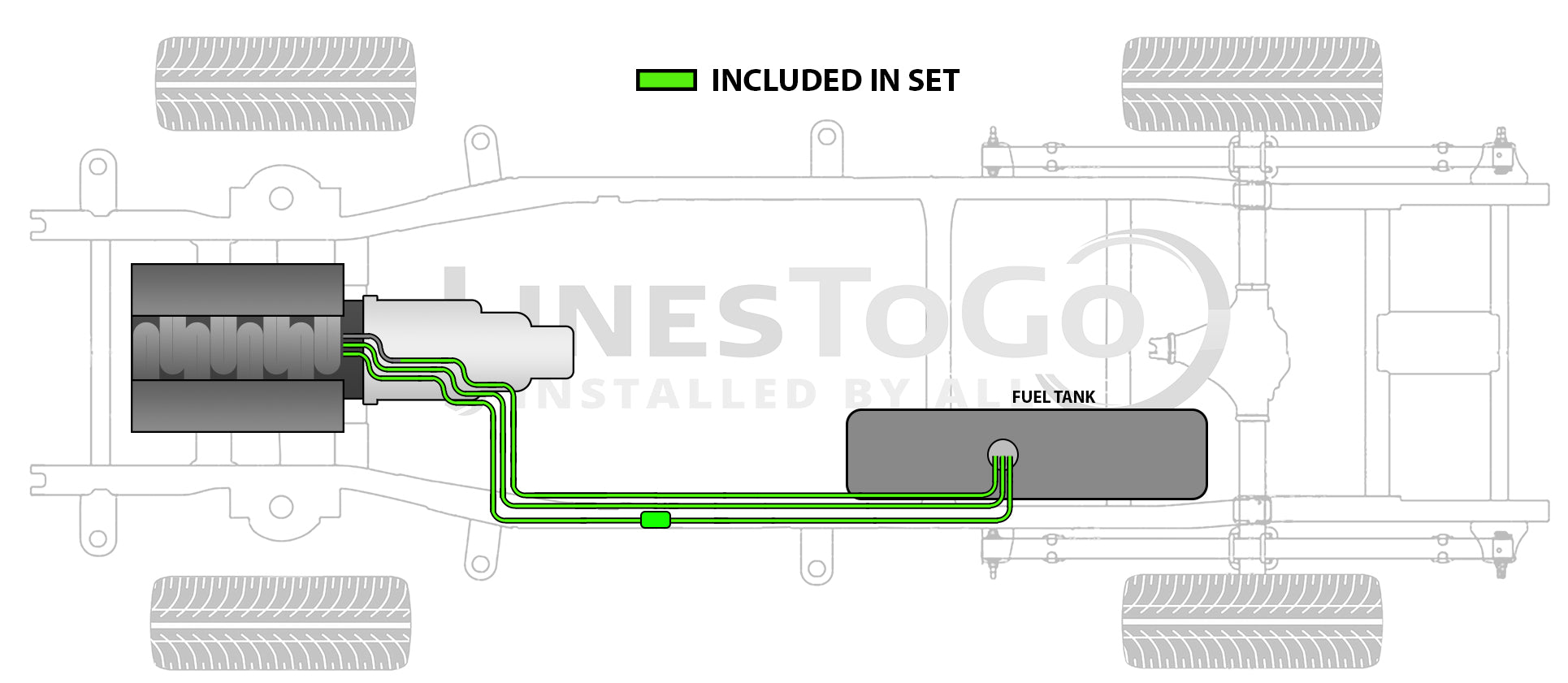

Engine to Fuel Tank

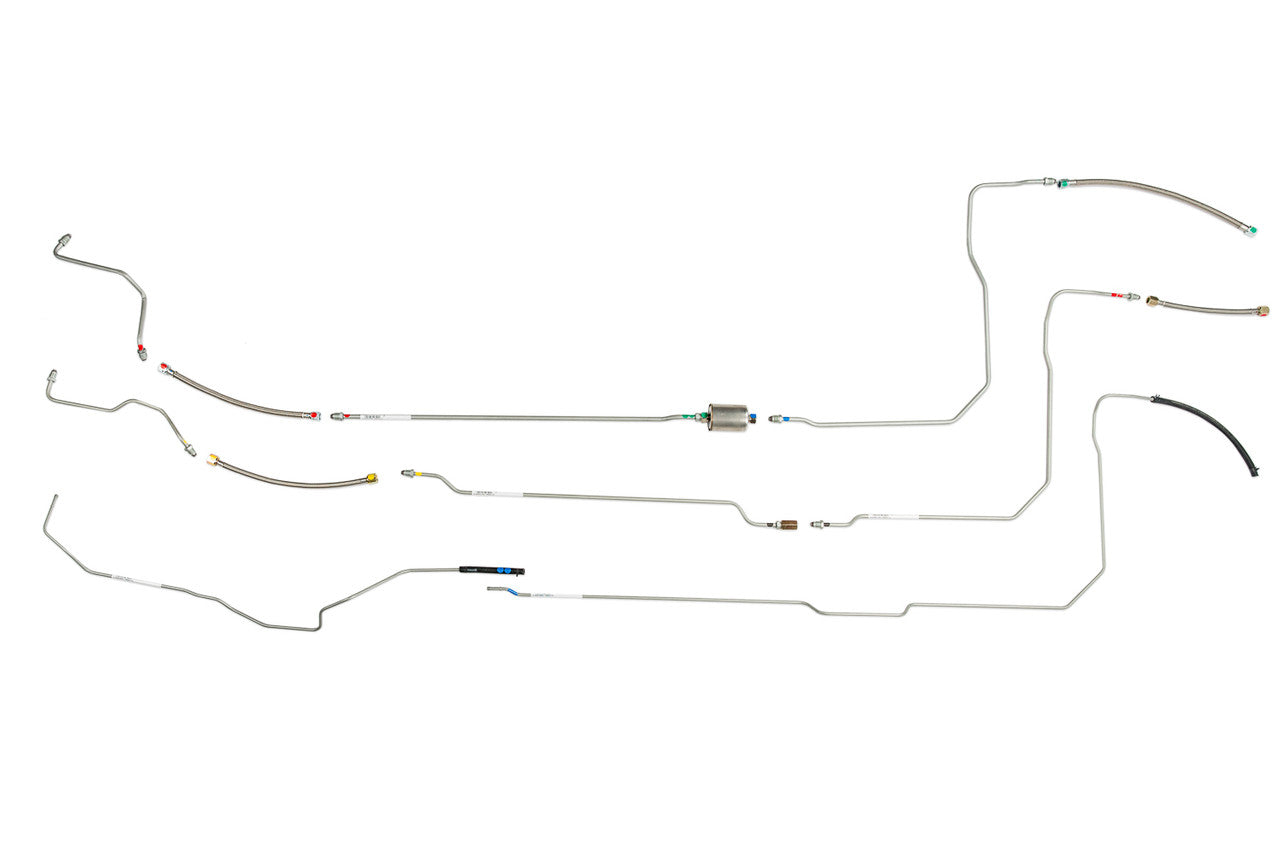

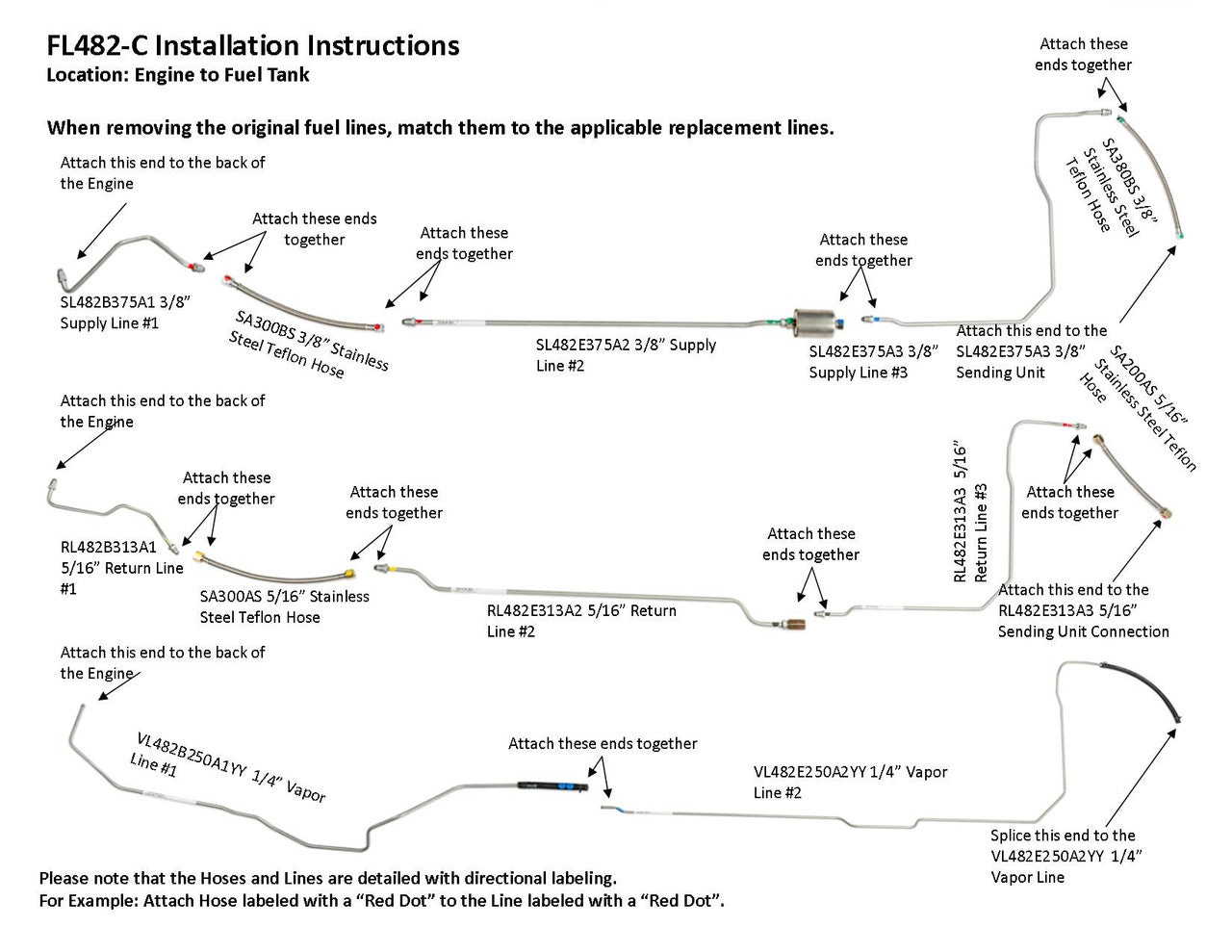

1 supply line 3/8" (in 3 sections), 1 return line 5/16" (in 3 sections),1 vapor line 1/4" (in 2 sections) hoses to sending unit connection

10118735, 15656181, 10118736, 1567455, 15674572, 15674576

Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hoses are made from Stainless Steel Braided Teflon with OE style fittings: SA300BS, SA380BS, SA300AS, SA200AS

Hose meets or exceeds applicable SAE Specifications – SAE J30R7: FI-505250
