Product Overview

Shop LinesToGo for 1992 Astro Chevrolet van fuel lines - 2WD/AWD w/Anti-Lock Brakes (Eighth VIN Digit W) for 4.3L engines.

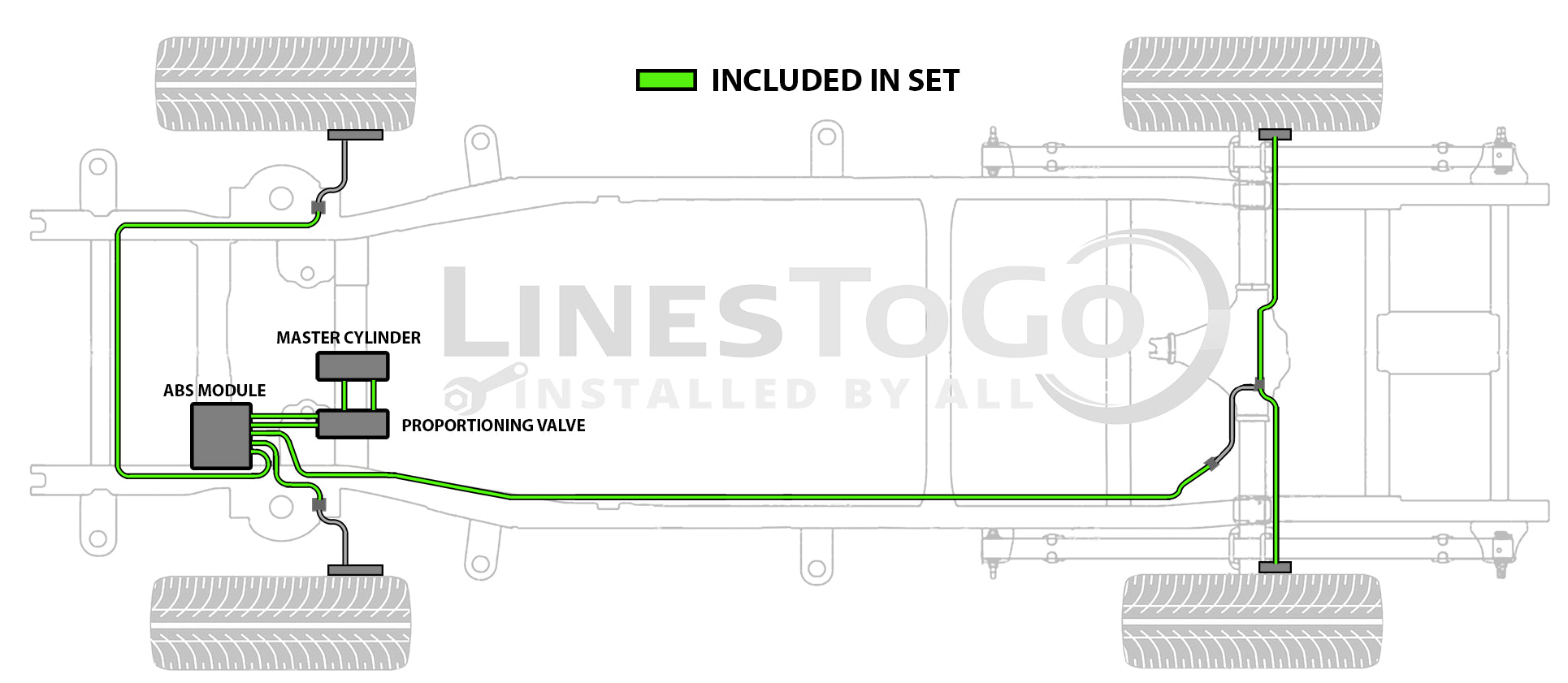

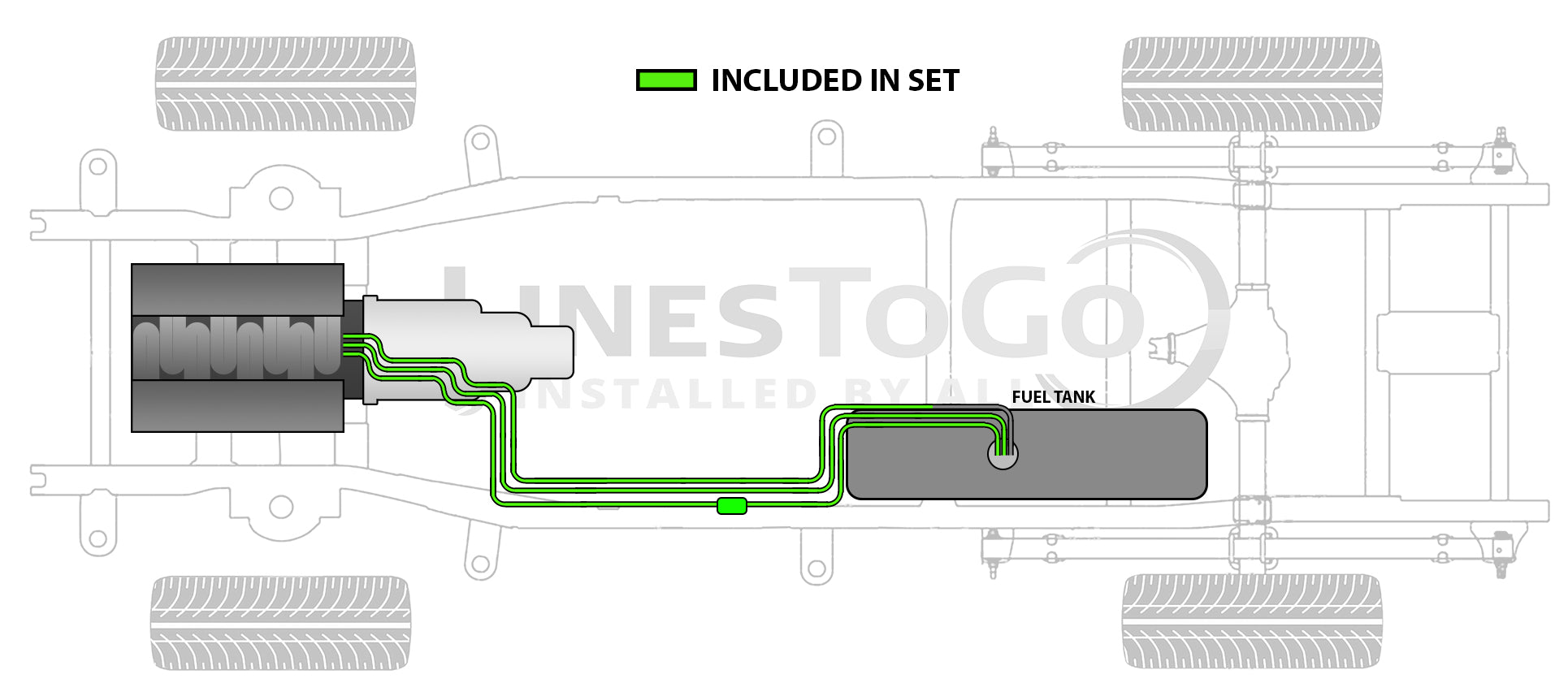

Location: Fuel Line: Engine to Fuel Tank; Brake Line: Complete set excluding Hoses

OEM Part Number1018735, 1018736, 10118736, 15674573

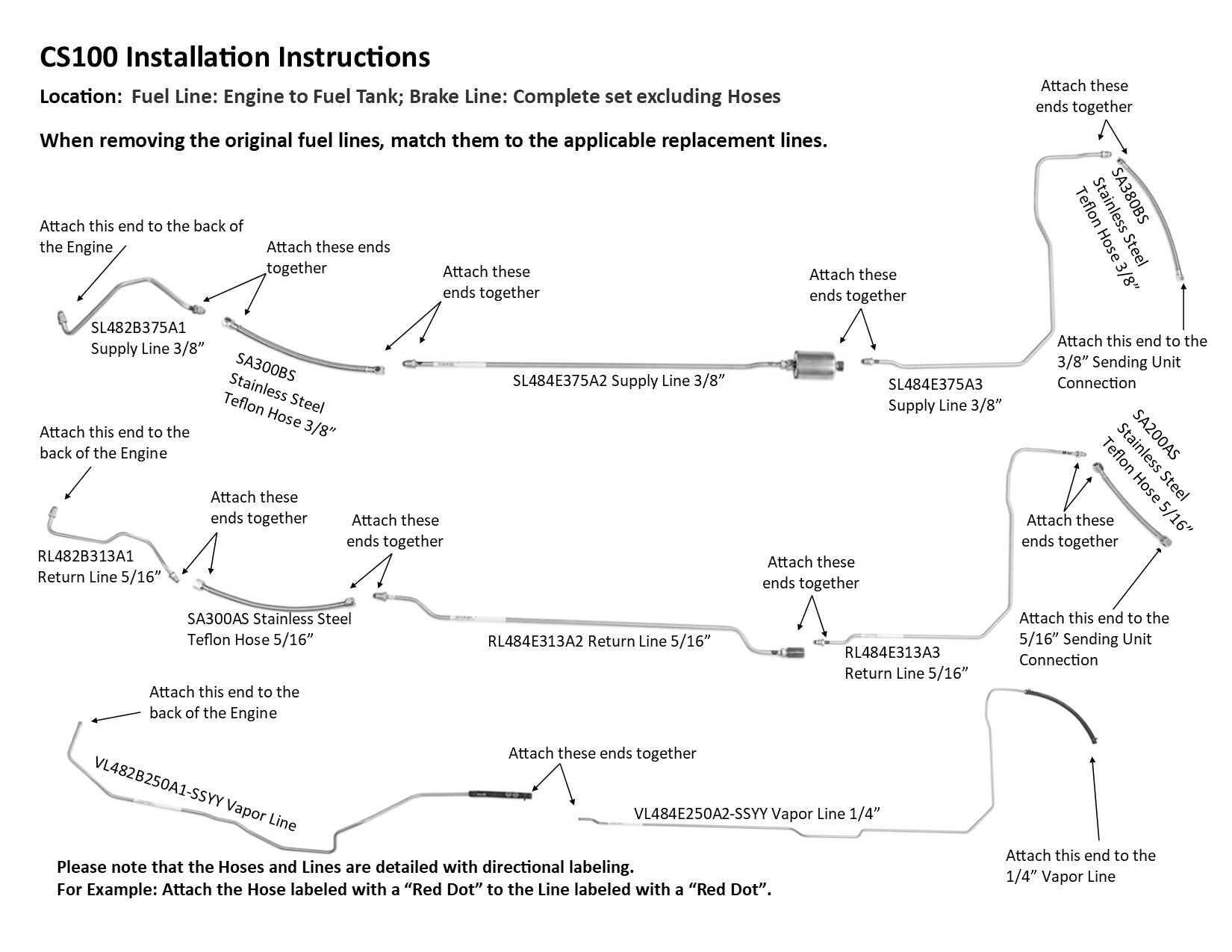

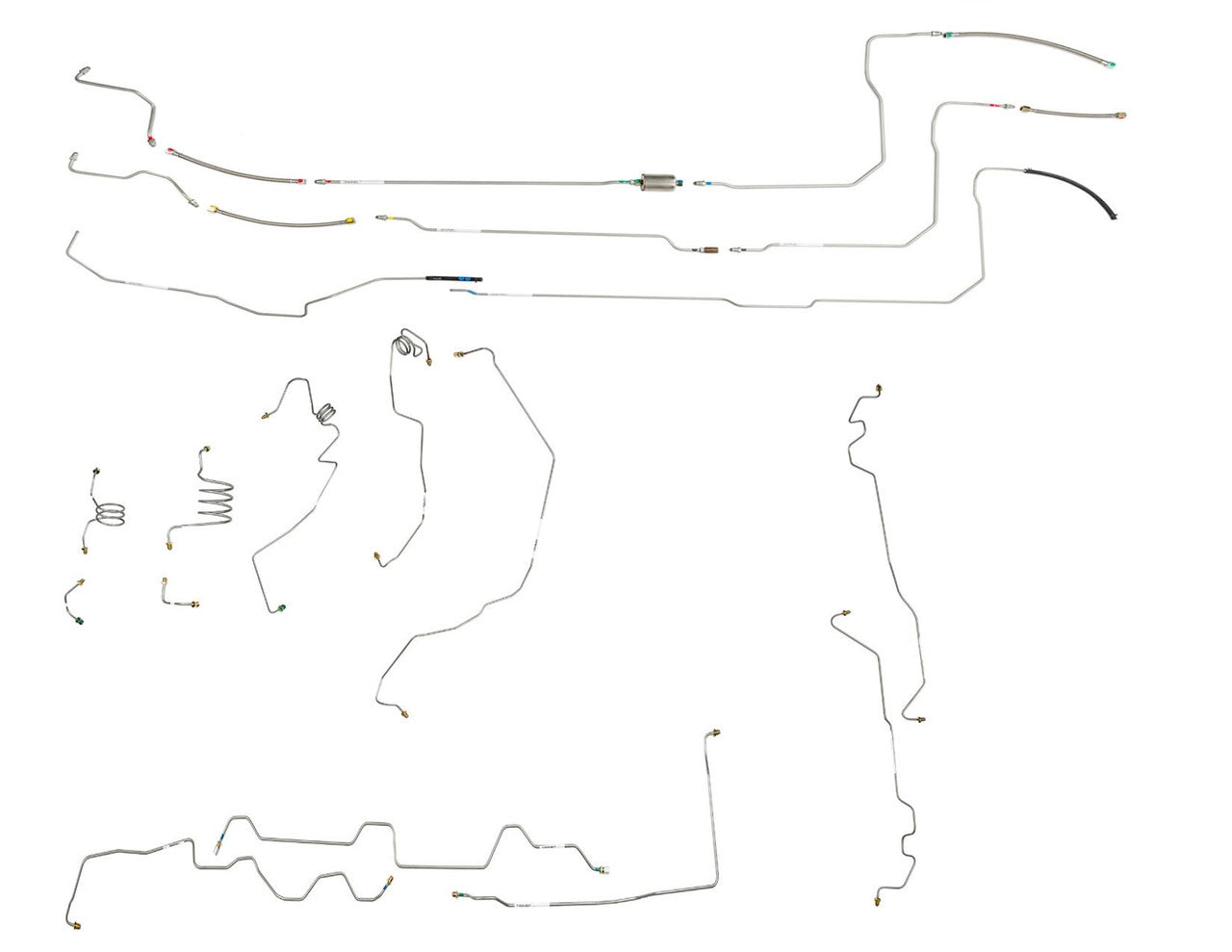

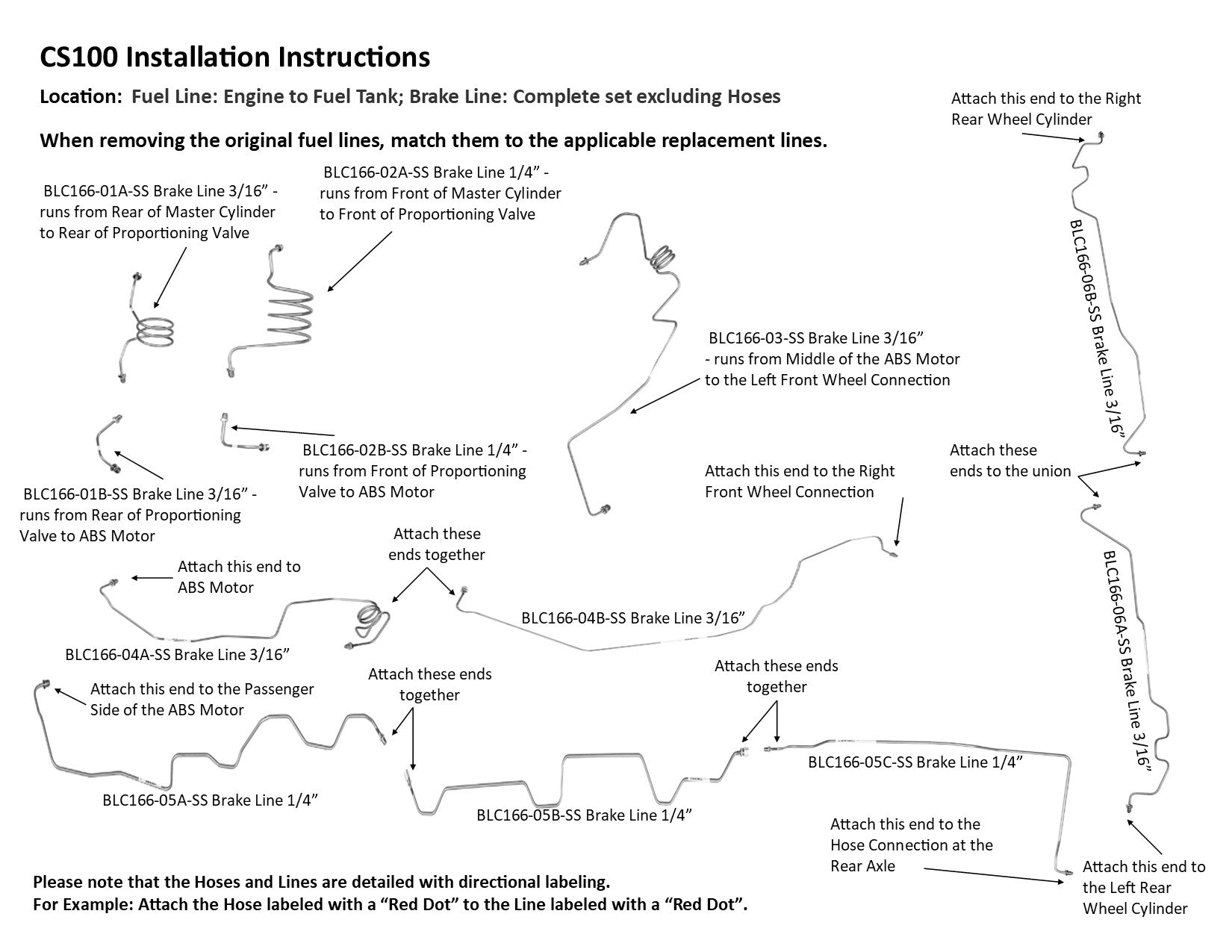

Included in Set: Fuel Line: 1 supply line 3/8" (in 3 sections), 1 return line 5/16" (in 3 sections),1 vapor line 1/4" (in 2 sections) hoses to sending unit connection; Brake Line: 1 Master Cylinder Primary Line from Rear of Master Cylinder to Rear of Proportioning Valve, 1 Master Cylinder Primary Line from Rear of Proportioning Valve to ABS Motor, 1 Master Cylinder Secondary Line from Front of Master Cylinder to Front of Proportioning Valve, 1 Master Cylinder Secondary Line from Front of Proportioning Valve to ABS Motor, 1 Left Front Line from Middle of ABS Module to Left Front Wheel House Connection, 1 Right Front Line from Driver's side of the ABS Module to the Right Front Wheel Hose Connection, 1 Rear Line (3 easy to install sections) from Passenger's side of the ABS Module to the Rear Axle Hose Connection, 1 Rear Axle Crossover Line (2 sections) across the Rear Axle

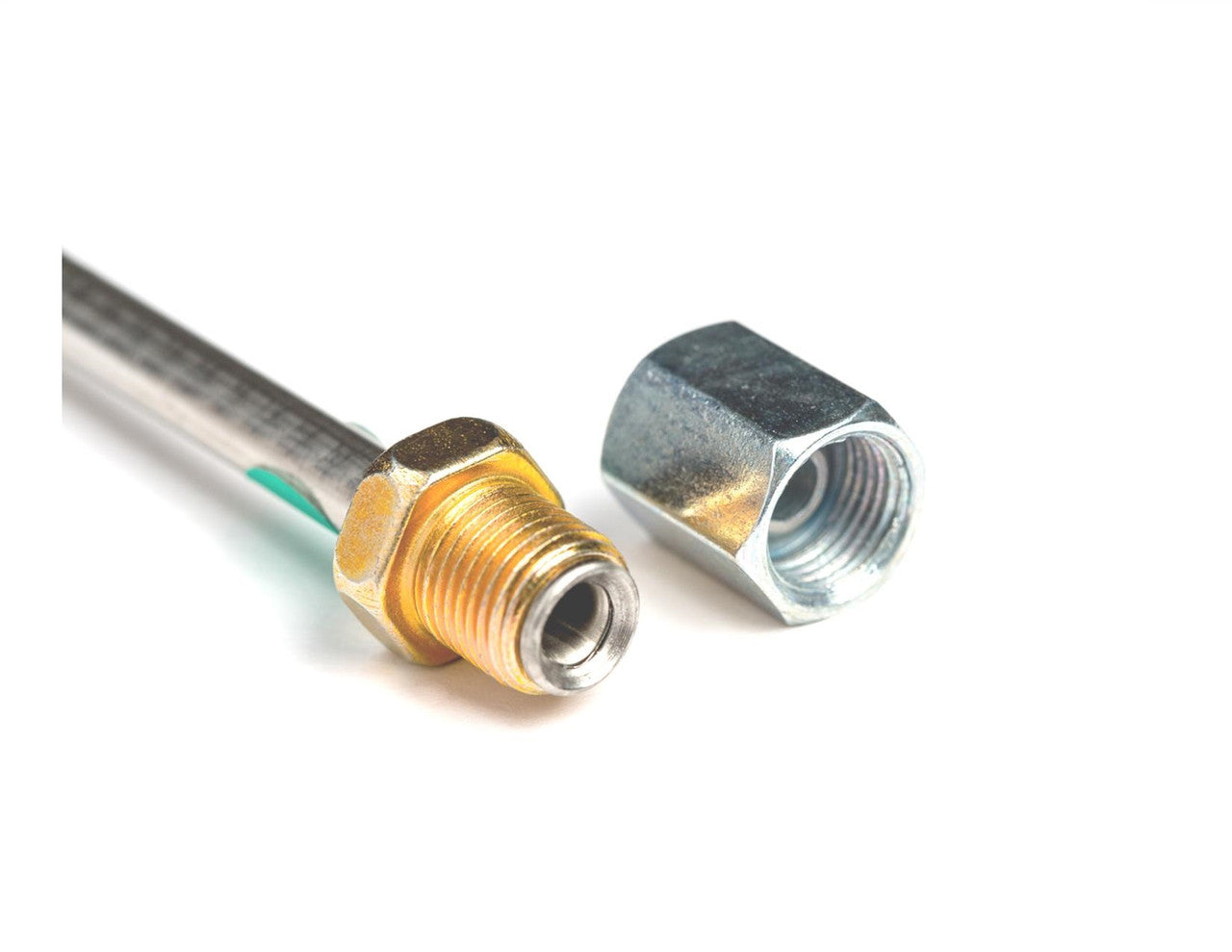

Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 60" x 12" x 12"
