Ford Ranger Transmission Line Set 2003 4.0L TCL-178-SS2F Stainless Steel

w/Auxiliary Cooler

Ford Ranger Transmission Line Set 2003 4.0L TCL-178-SS2F Stainless Steel
Ford Ranger Transmission Line Set 2003 4.0L TCL-178-SS2F Stainless Steel
Ford Ranger Transmission Line Set 2003 4.0L TCL-178-SS2F Stainless Steel
Ford Ranger Transmission Line Set 2003 4.0L TCL-178-SS2F Stainless Steel
Ford Ranger Transmission Line Set 2003 4.0L TCL-178-SS2F Stainless Steel
Ford Ranger Transmission Line Set 2003 4.0L TCL-178-SS2F Stainless Steel
Ford Ranger Transmission Line Set 2003 4.0L TCL-178-SS2F Stainless Steel
Ford Ranger Transmission Line Set 2003 4.0L TCL-178-SS2F Stainless Steel
Ford Ranger Transmission Line Set 2003 4.0L TCL-178-SS2F Stainless Steel
Ford Ranger Transmission Line Set 2003 4.0L TCL-178-SS2F Stainless Steel
Ford Ranger Transmission Line Set 2003 4.0L TCL-178-SS2F Stainless Steel
Ford Ranger Transmission Line Set 2003 4.0L TCL-178-SS2F Stainless Steel
Ford Ranger Transmission Line Set 2003 4.0L TCL-178-SS2F Stainless Steel
Ford Ranger Transmission Line Set 2003 4.0L TCL-178-SS2F Stainless Steel
Ford Ranger Transmission Line Set 2003 4.0L TCL-178-SS2F Stainless Steel
Ford Ranger Transmission Line Set 2003 4.0L TCL-178-SS2F Stainless Steel

Ford Ranger Transmission Line Set 2003 4.0L TCL-178-SS2F Stainless Steel

w/Auxiliary Cooler

SALE:
Save $34.74
/

Delivery Time & Rates

Shipping calculated at checkout.

Install this pre-bent 2003 transmission cooler line set in no time!

Stainless Steel Transmission Line Set 2003 Ford Ranger w/Auxiliary Cooler for 4.0L engines.

SKU: TCL-178-SS2F
Box Dimensions 46" x 11" x 7"

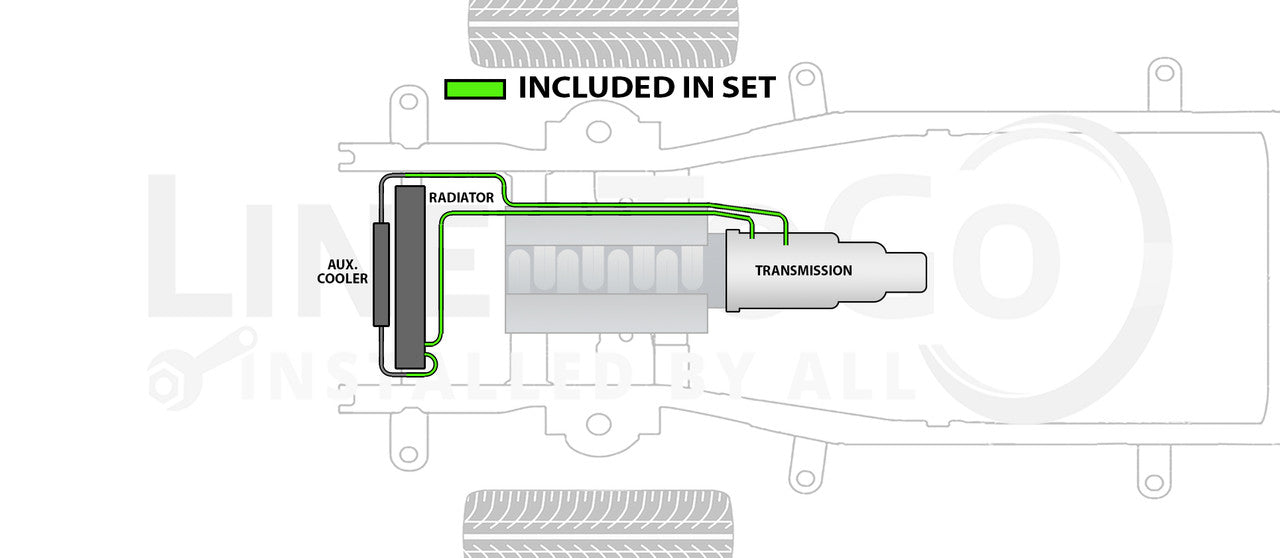

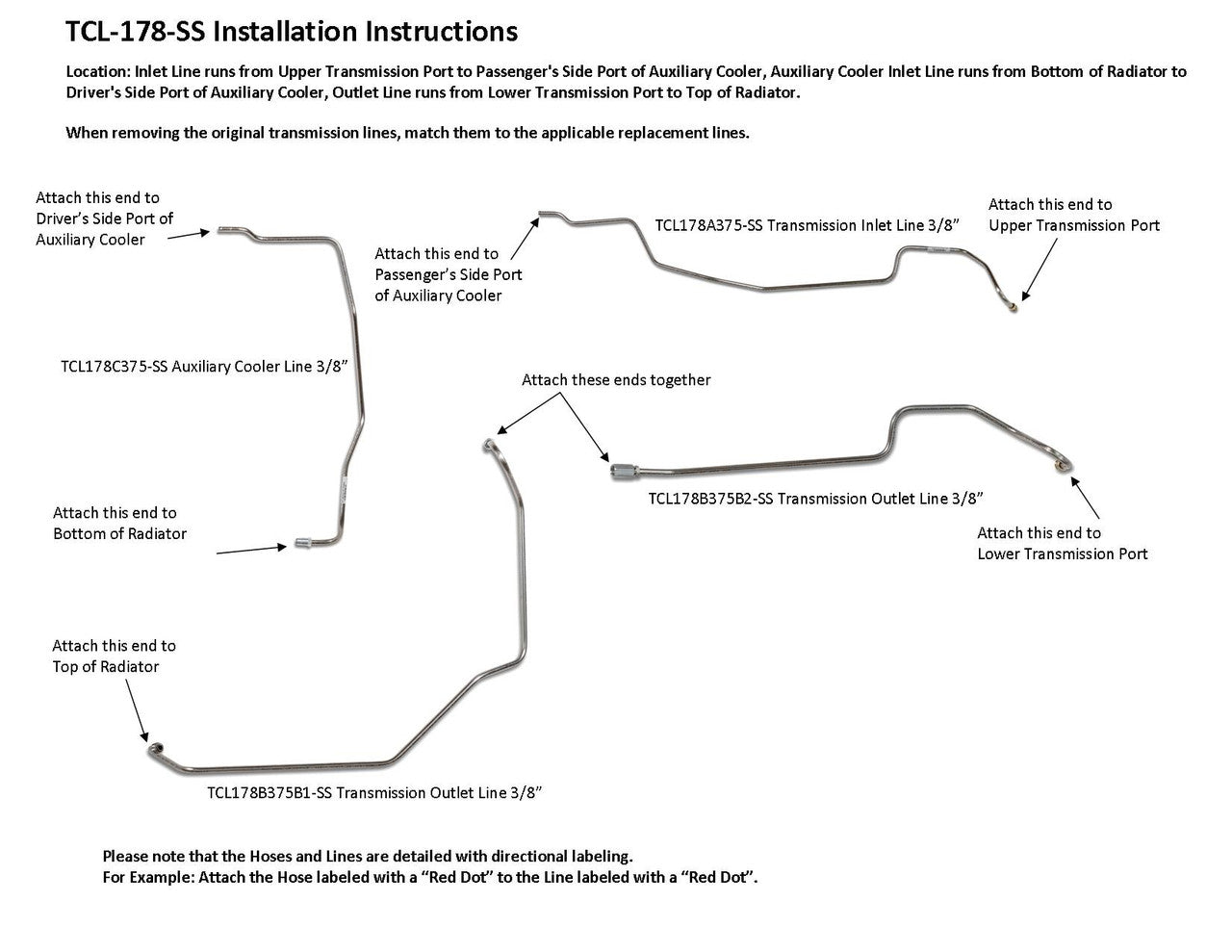

Inlet Line runs from Upper Transmission Port to Passenger's Side Port of the Auxiliary Cooler, Outlet Line runs from Lower Transmission Port to Top of Radiator, Auxiliary Cooler Line runs from Bottom of Radiator to Driver's Side Port of Auxiliary Cooler

1 Inlet Line 3/8", 1 Outlet Line 3/8" (2 sections), 1 Auxiliary Cooler Line 3/8"

F87Z 7A030 LA, F87Z 7A031 KA, F87Z 7C410 LA

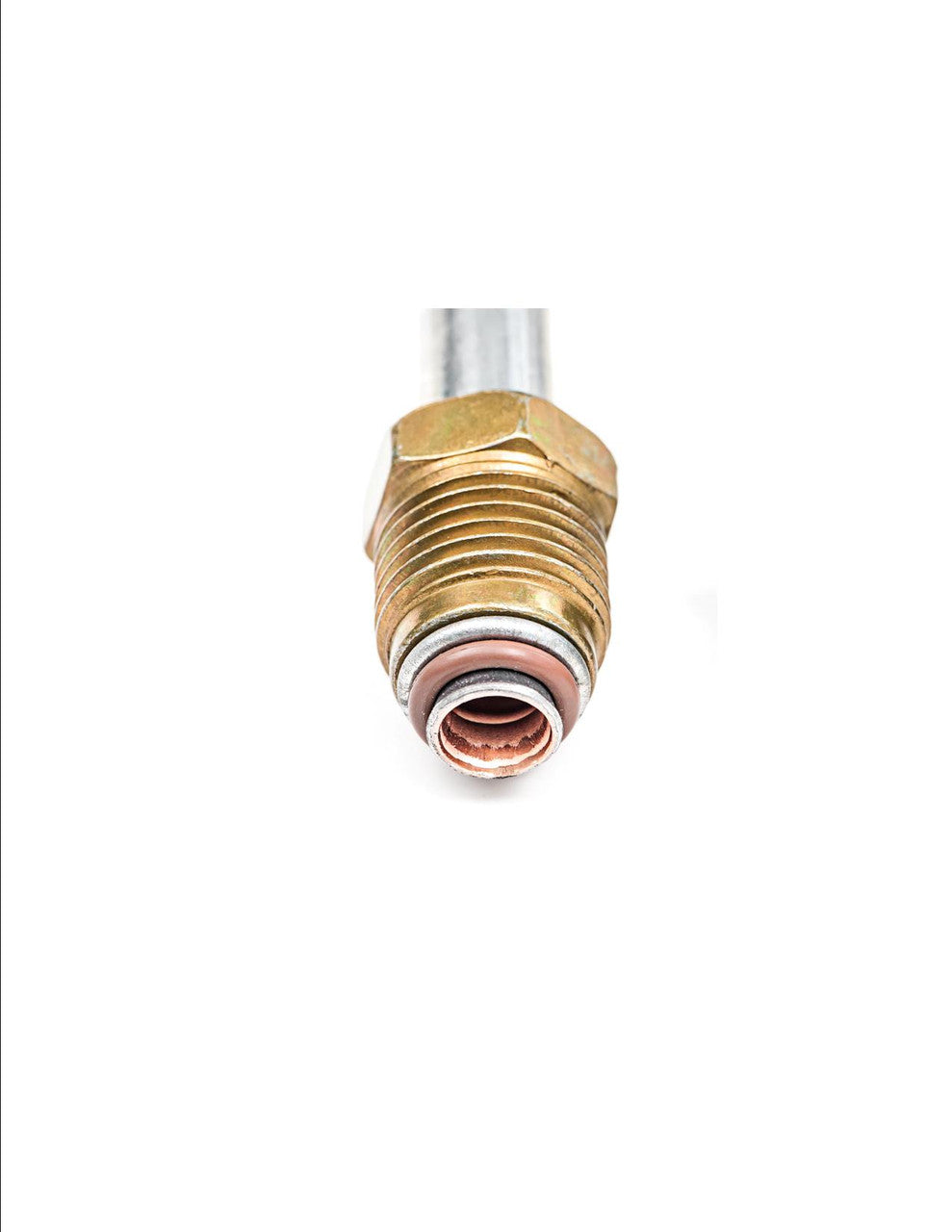

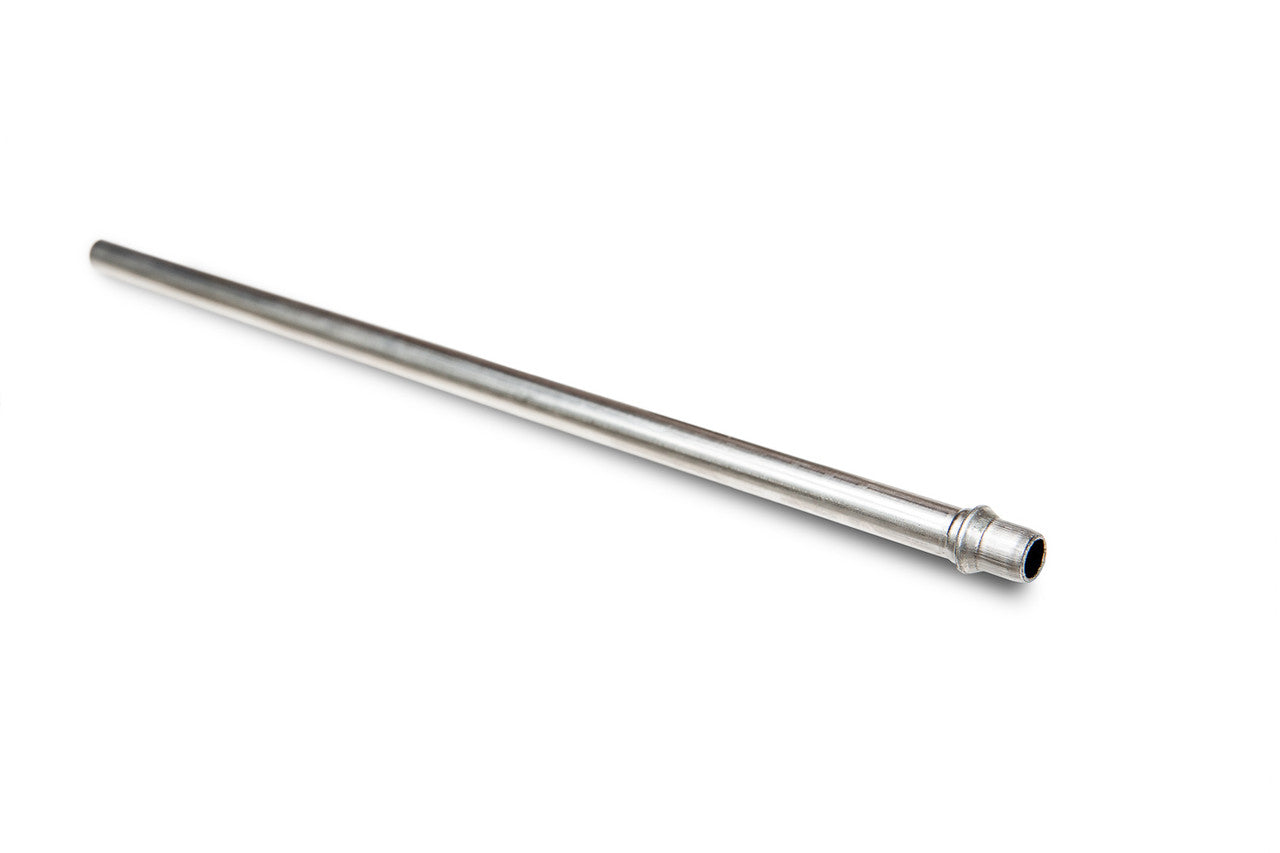

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.

Overall rating: 5.0 / 5 from 2 reviews.

AI Generated Review Summary

Summary topics

Review topics: [lines].

Review highlights

Reviews

Very pleased with the transmission

"Very pleased with the transmission lines. They were a direct replacement for the ones that were leaking. I would recommend them without hesitation. Great job and great product."

— Gary F. (5/5)

Great product, overall. The only

"Great product, overall. The only issue I had was that the lower line out of the transmission was bent at too closed of an angle. I was able to bend it out to the proper angle, so it worked out just fine."

— Danny B. (5/5)
