Ford Focus Brake Line Set 2001 BLF-109-SS1B
w/ABS w/Rear Drum Brakes
Ford Focus Brake Line Set 2001 BLF-109-SS1B
w/ABS w/Rear Drum Brakes
Delivery Time & Rates
Install this pre bent 2001 Ford Focus brake line set in no time!
Brake Line Set Stainless Steel Ford Focus w/ABS w/Rear Drum Brakes for 2.0L and 2.3L engines

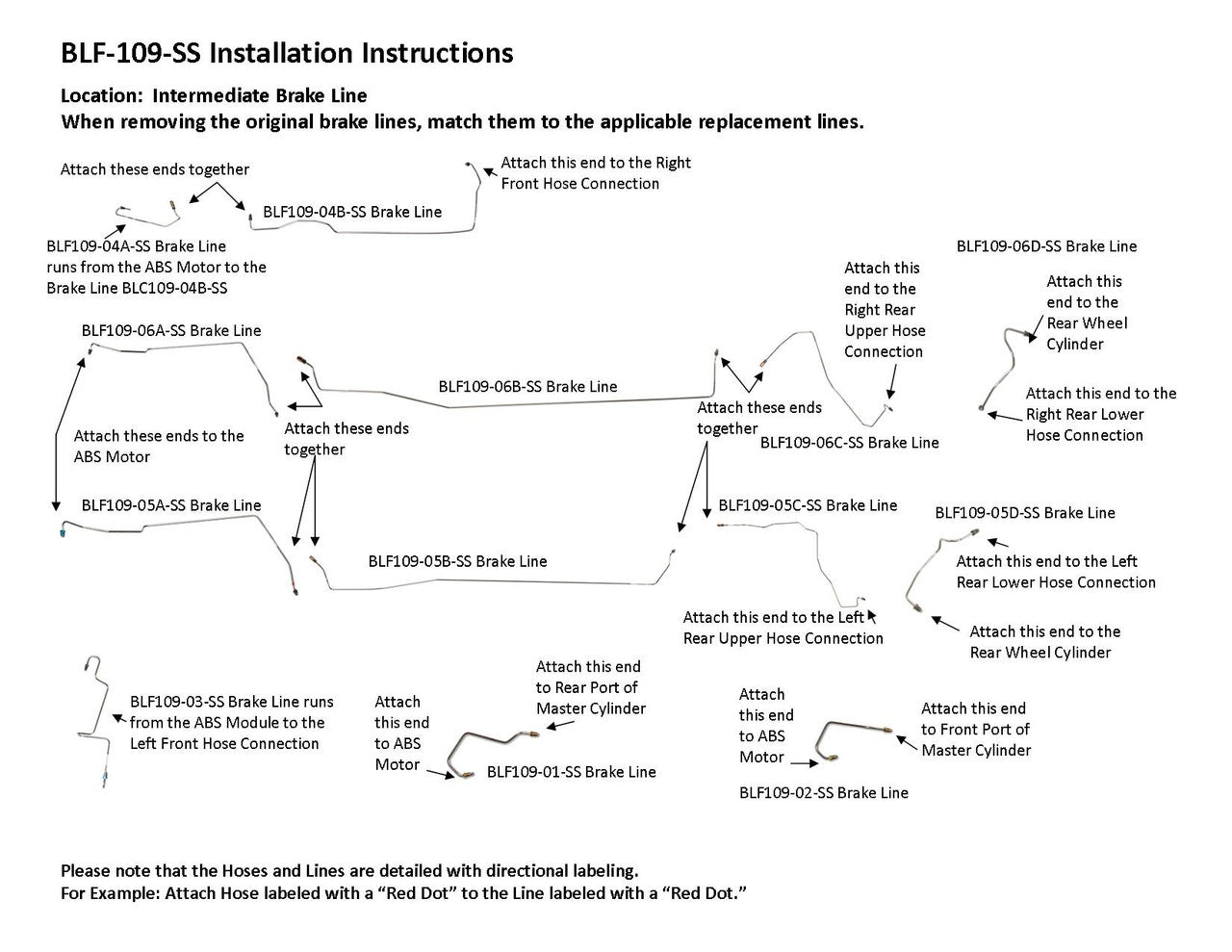

Please Note: Before installing your brake line, a shipping bend will need to be removed from the lines labeled BLF109-05B-SS and BLF109-06B-SS. See the video below on how to remove the shipping bend
Master Cylinder Primary Line runs from Rear Port of Master Cylinder to ABS Motor, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to ABS Motor, Left Front from ABS Motor to Left Front Hose Connection, Right Front from ABS Motor to Right Front Hose Connection, Left Rear from ABS Motor to Left Rear Wheel Hose Connection, Right Rear from ABS Motor to Right Rear Hose Connection

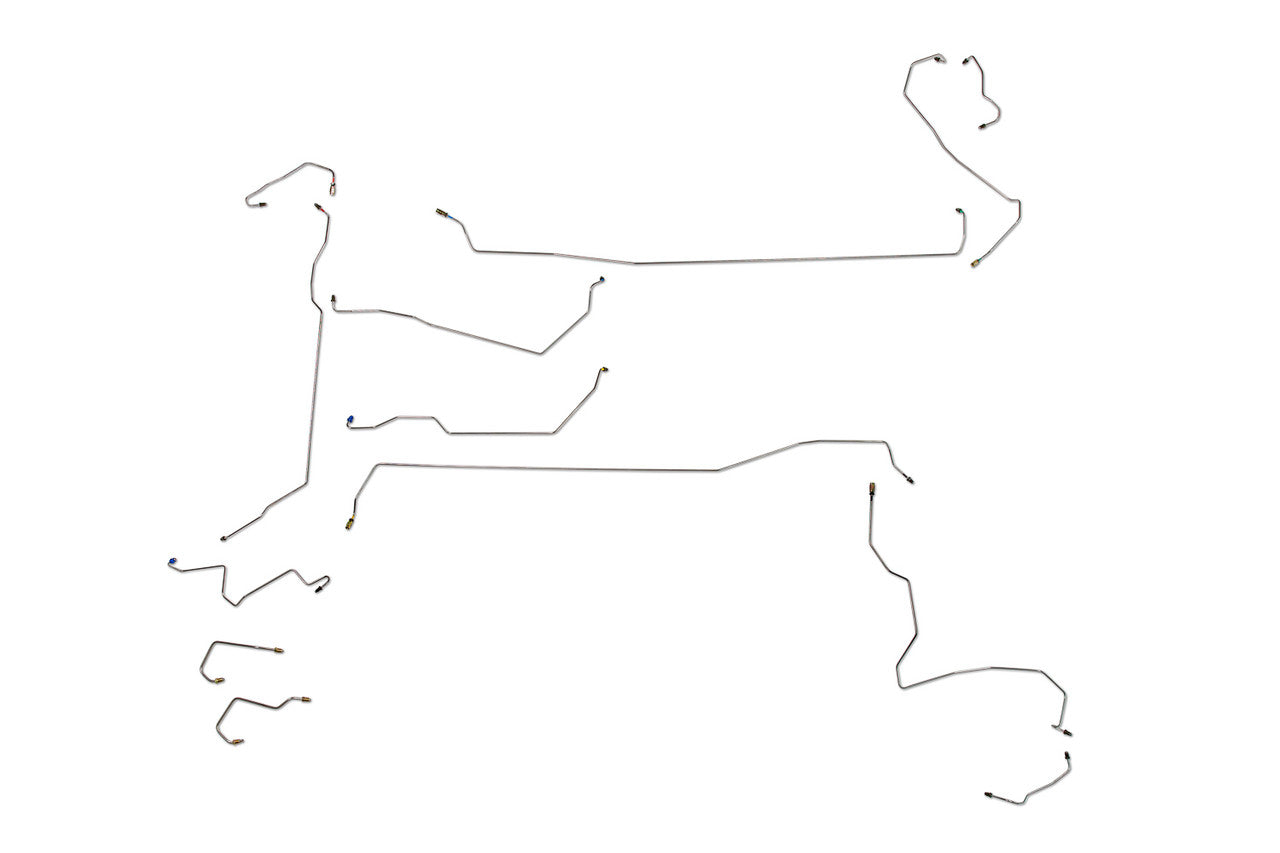

1 Master Cylinder Primary Line, 1 Master Cylinder Secondary Line, 1 Left Front from ABS Motor to Left Front Hose Connection, 1 Right Front from ABS Motor to Right Front Hose Connection (2 easy to install sections), 1 Left Rear from ABS Motor to Left Rear Wheel Hose Connection (4 easy to install sections), 1 Right Rear from ABS Motor to Right Rear Hose Connection (4 easy to install sections)
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
