Ford F250/F350 Brake Line Set 1991 2WD Crew Cab 8ft Bed 5.8L BLF-131-SS1A Stainless Steel
SRW w/o Cruise Control
Ford F250/F350 Brake Line Set 1991 2WD Crew Cab 8ft Bed 5.8L BLF-131-SS1A Stainless Steel
SRW w/o Cruise Control
Delivery Time & Rates
Install this pre bent 1991 Ford F250/F350 brake line set in no time!
Stainless Steel Brake Line Set Ford F250/F350 2WD SRW Crew Cab 8ft Bed w/o Cruise Control for 5.8L engines
Please Note: Before installing your brake line, a shipping bend will need to be removed from the lines labeled BLF129-05B-SS and BLF129-05C-SS . See the video below on how to remove the shipping bend
- Weight: 6

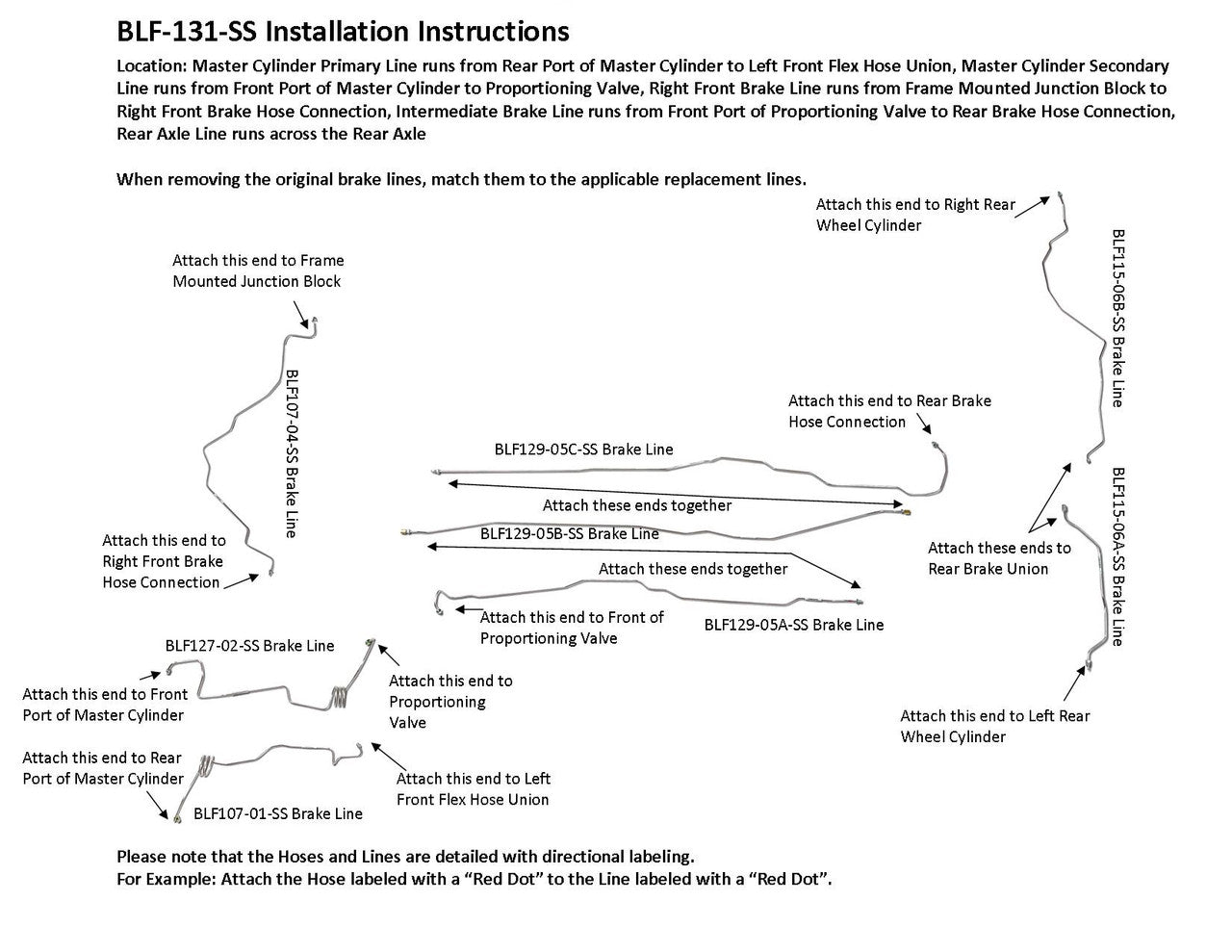

- Installation Instructions
Master Cylinder Primary Line runs from Rear Port of Master Cylinder to Left Front Flex Hose Union, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to Proportioning Valve, Right Front Brake Line runs from Frame Mounted Junction Block to Right Front Brake Hose Connection, Intermediate Brake Line runs from Front Port of Proportioning Valve to Rear Brake Hose Connection, Rear Axle Line runs across the Rear Axle

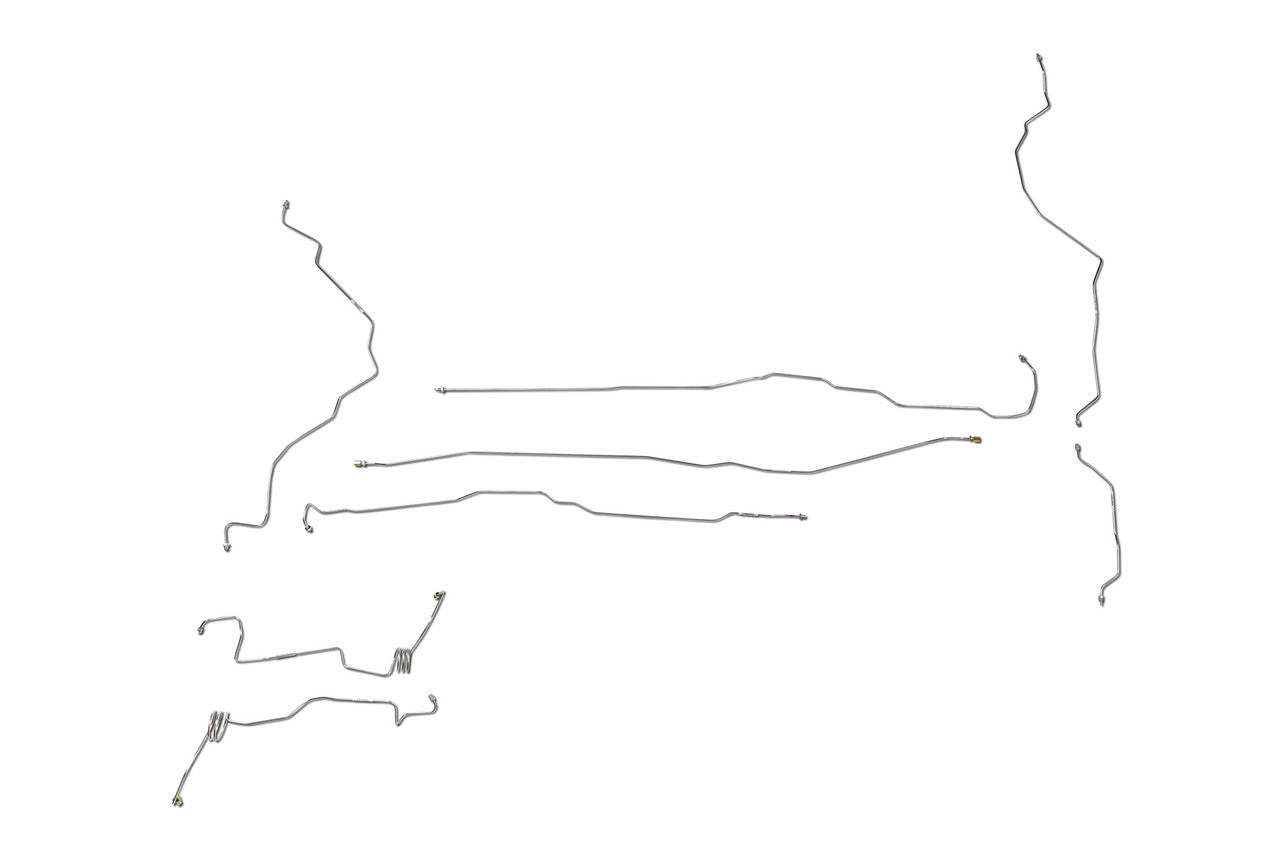

1 Master Cylinder Primary Line 3/16", 1 Master Cylinder Secondary Line 3/16", 1 Right Front Brake Line 3/16", 1 Intermediate Brake Line 3/16" (in 3 easy to install sections), 1 Rear Axle Crossover Line 3/16" (2 sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
Need Assistance? Call us toll free 1-855-781-5992
We'll make sure you're ordering the correct part and we can take your order for you too.
