Ford F150 Brake Line Set 1994 2WD Ext Cab 6.5ft Bed BLF-107-SS1C Stainless Steel
Ford F150 Brake Line Set 1994 2WD Ext Cab 6.5ft Bed BLF-107-SS1C Stainless Steel
Delivery Time & Rates
Install this pre bent 1994 Ford F150 brake line set in no time!
Brake Line Set Stainless Steel Ford F150 2WD Ext Cab 6.5ft Bed for 4.9L, 5.0L and 5.8L engines
Please Note: Before installing your brake line, a shipping bend will need to be removed from the lines labeled BLF107-05A-SS and BLF107-05B-SS. See the video below on how to remove the shipping bend

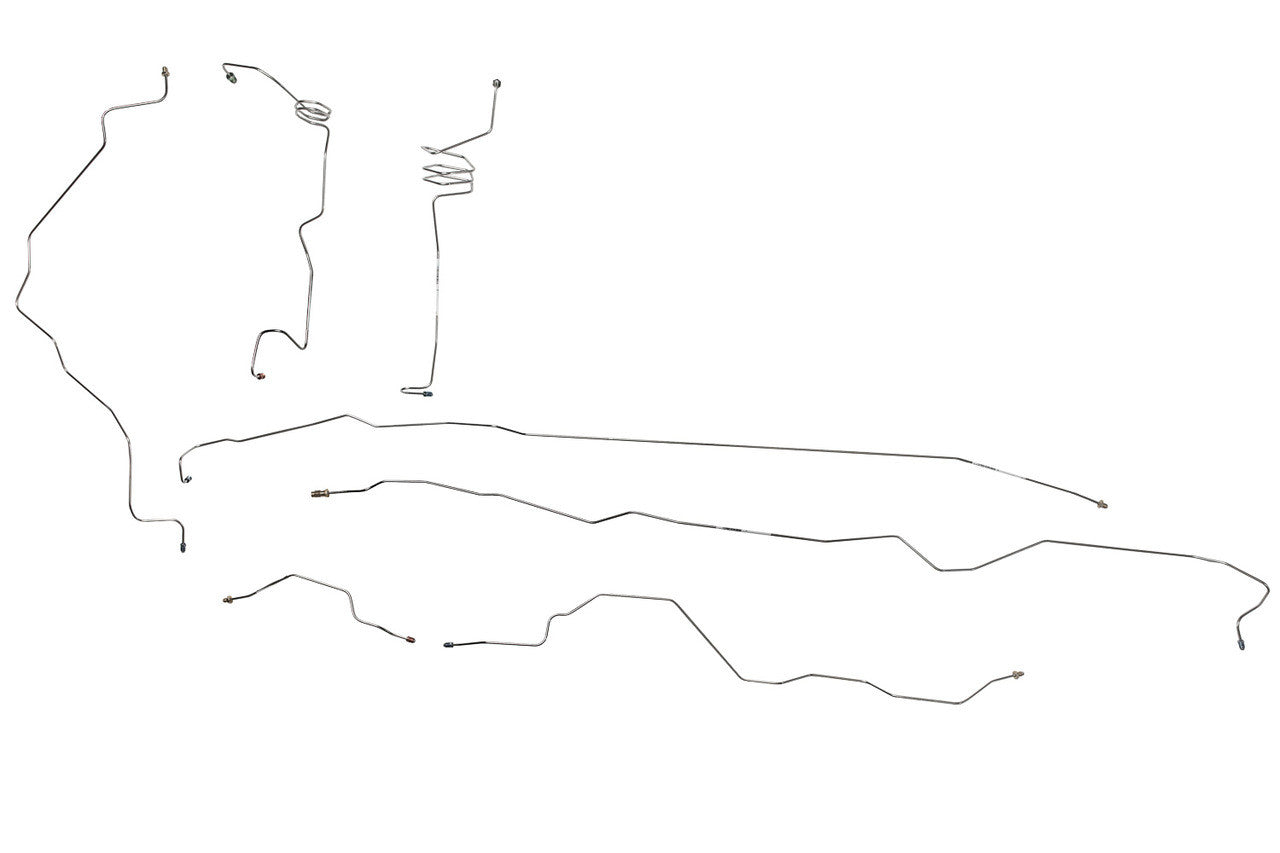

Complete Set Excluding Hoses

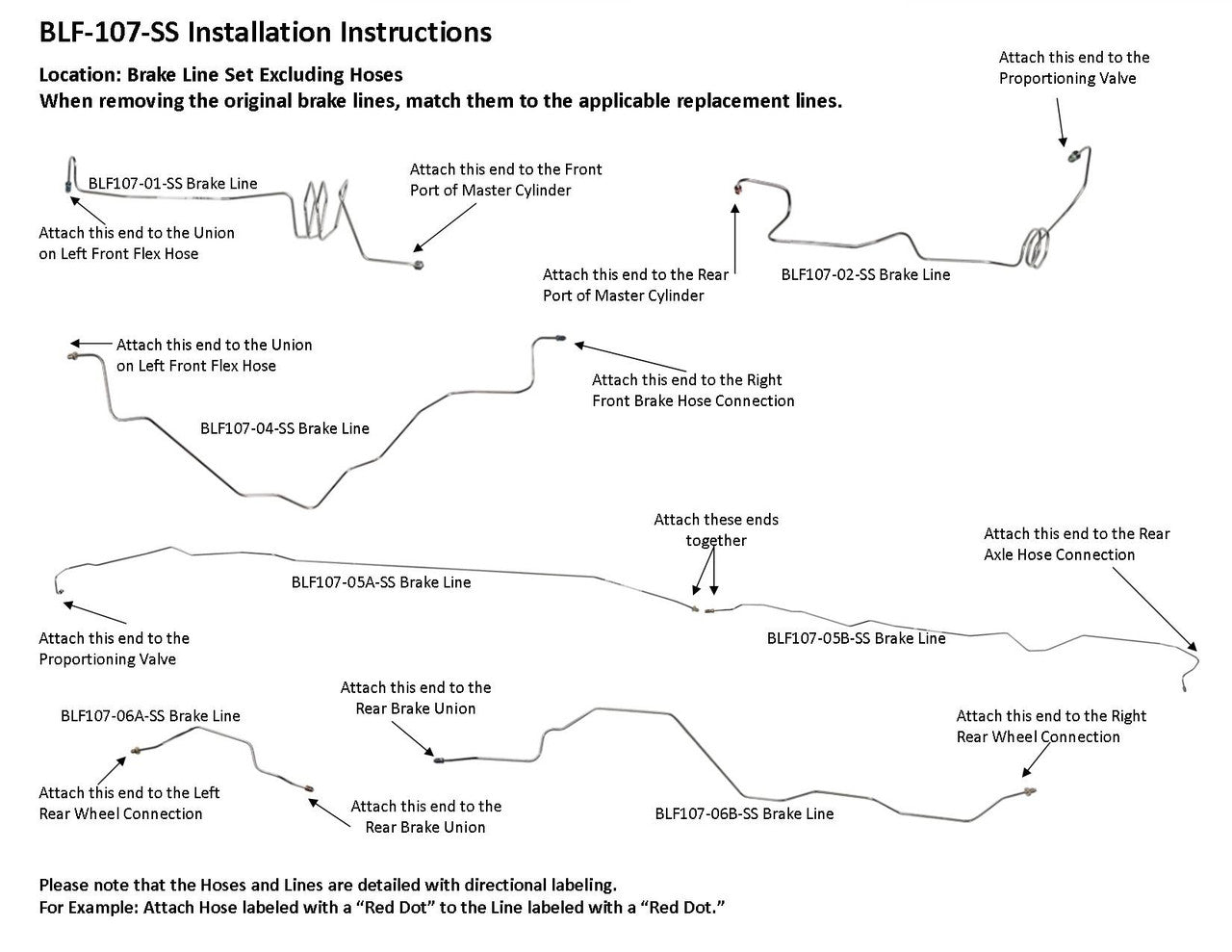

1 Line 3/16" from the Rear of the Master Cylinder to the Proportioning Valve mounted on the Inboard Side of the Frame, 1 Line 3/16" from Front of the Mater Cylinder to the Left Front Wheel Brake Hose Connection, 1 Line 3/16" from the Proportioning Valve mounted on the Inboard Side of the Frame to the Right Front Brake Hose Connection, 1 Line 3/16" (2 easy to install sections) from the Proportioning Valve mounted on the Inboard Side of the Frame to the Rear Axle Brake Hose Connection, 1 Line 3/16" Across the Rear Axle
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
